Description:

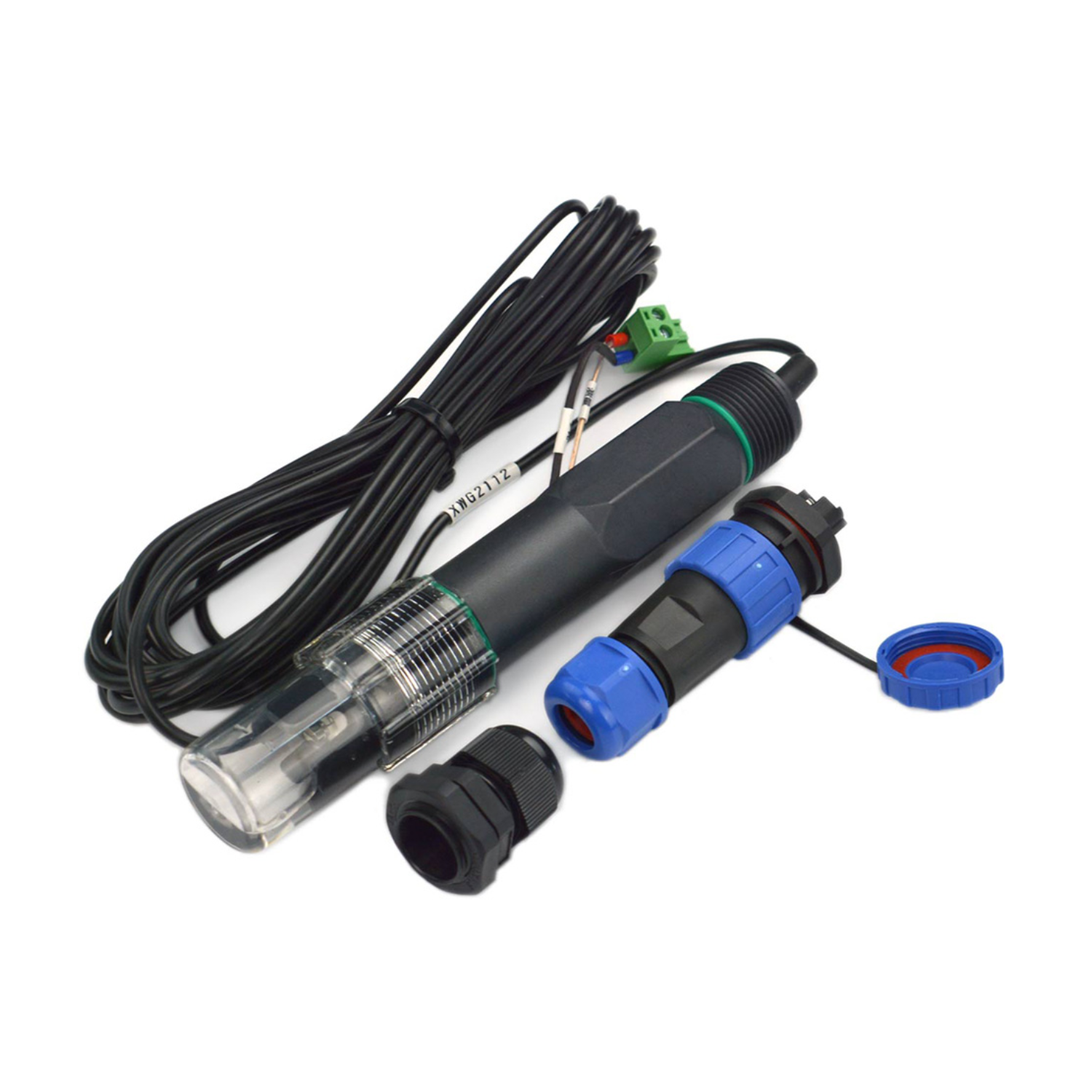

The Industrial Grade Analog ORP Sensor Meter PRO ORP probe represents a significant evolution in continuous water quality monitoring. Built for demanding industrial applications and 24/7 online operation, this upgraded probe employs a resilient platinum indicator electrode and a dependable silver-silver chloride reference electrode, ensuring exceptional durability. Its enhanced signal converter features a stabilized voltage reference, eliminating the impact of power fluctuations on sensor accuracy. The included accessory kit, containing screws, copper columns, and waterproof connectors, streamlines the construction of a complete ORP monitoring system.
Oxidation-Reduction Potential (ORP), measured in millivolts (mV), quantifies the oxidizing or reducing power of a solution. Higher positive values indicate strong oxidation, while lower or negative values signify a reducing environment. While not a comprehensive water quality indicator on its own, ORP is a valuable parameter that, when used in conjunction with other measurements, provides a richer understanding of the ecological dynamics of water.
Specifications:
ORP Signal Converter
- Input Voltage: 5V
- Input Signal: 0.5V ~ 4.5V
- Input Interface: 5.08mm/0.20" Pluggable Connector
- Measuring Range: -2000mV ~ +2000mV
- Output Interface: PH2.0 - 3Pin
- Module Size: 42mm×32mm/1.65×1.26

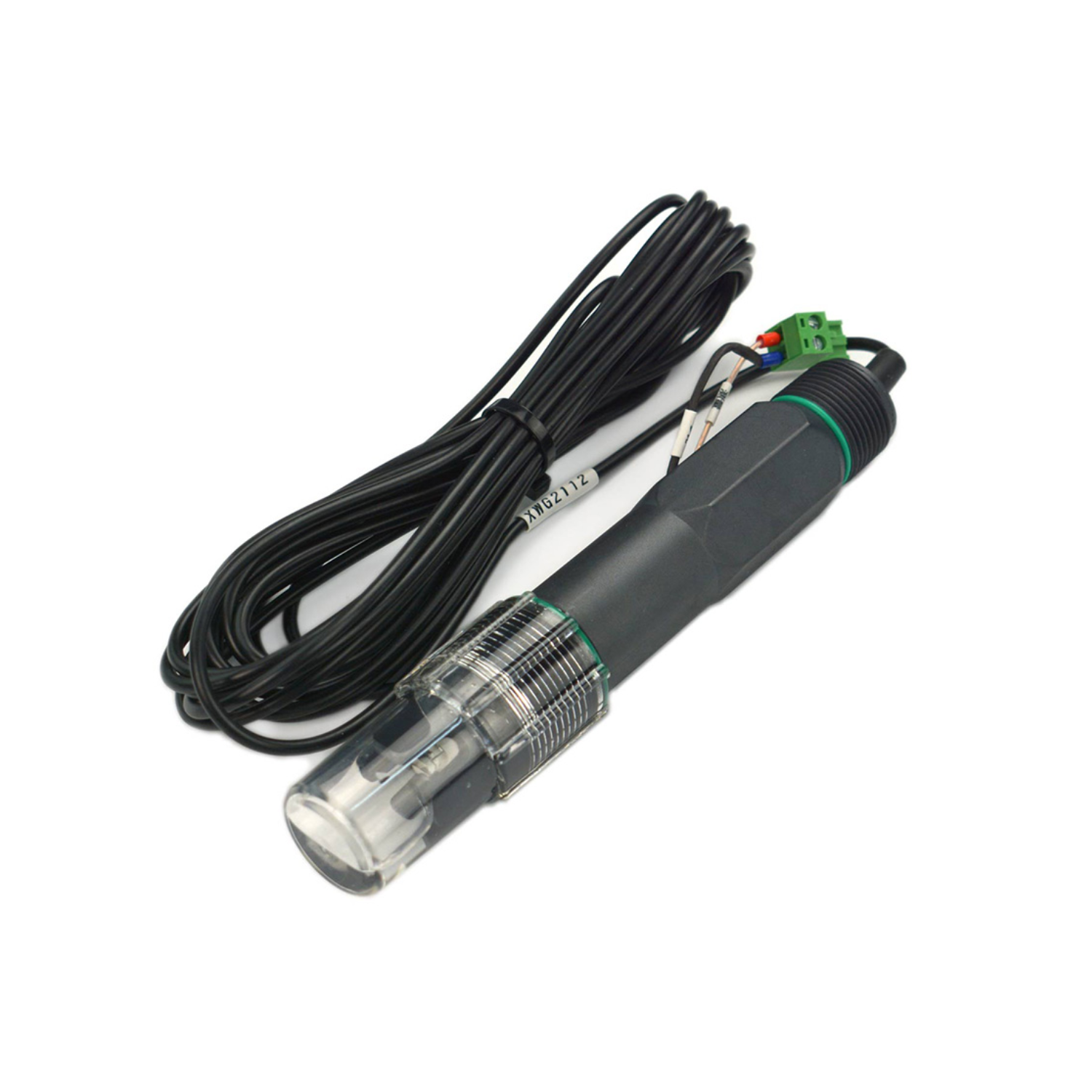

Industrial ORP Probe

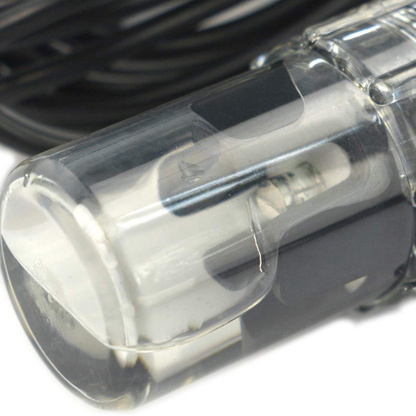

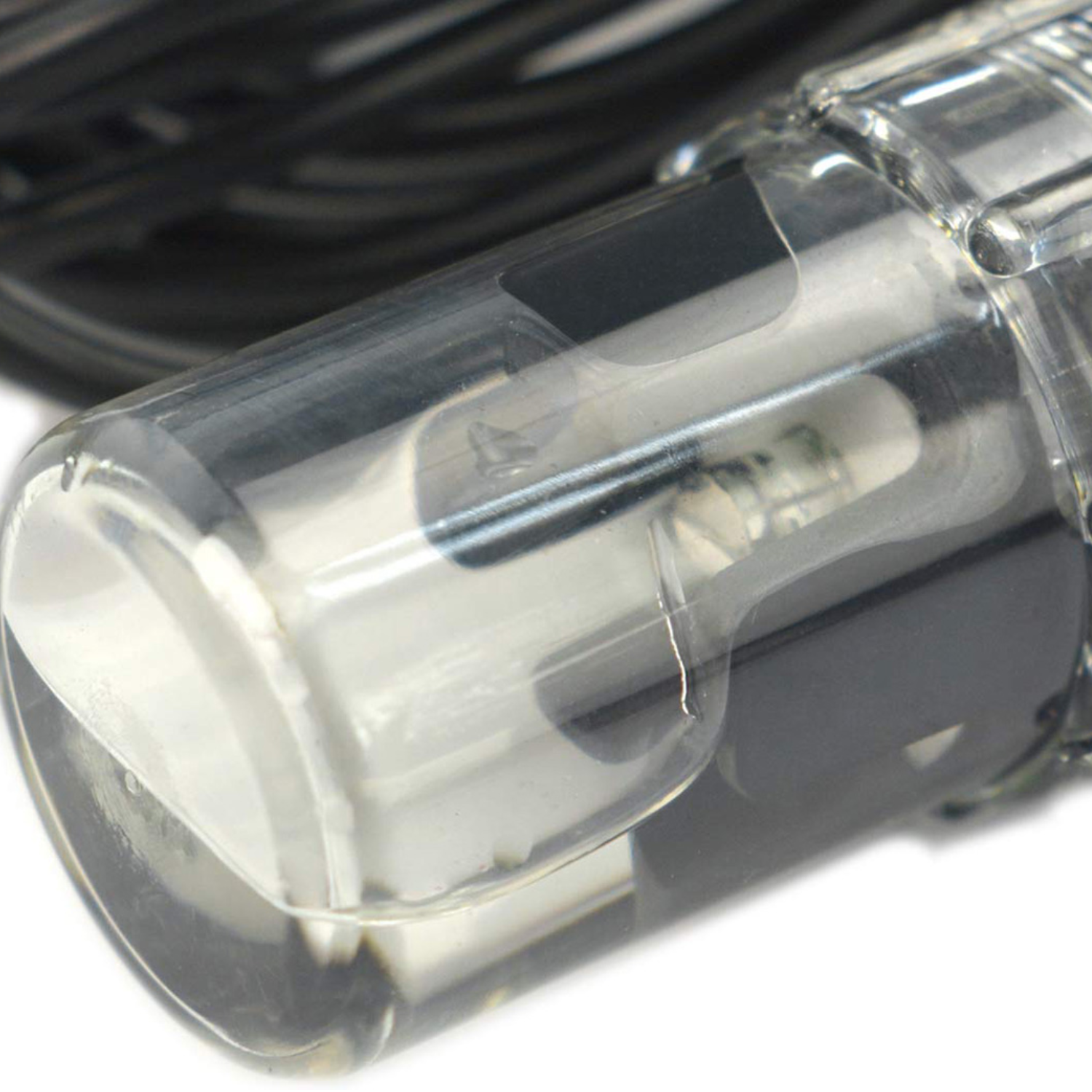

- Indicator Electrode: Platinum
- Reference Electrode: silver-silver chloride
- Suitable Temperature: 5-70℃
- Electrode Potential: 245 mV ~ 270 mV
- Reference Electrode Internal Resistance: ≤10KΩ
- Electrode Stability: ±8mV/24h
Features:
- Increased durability for reliable, extended use.
- Continuous online monitoring for immediate insights.
- Accurate readings, regardless of voltage variations.
Applications:
- ORP monitoring system
Documents:
Package Included:

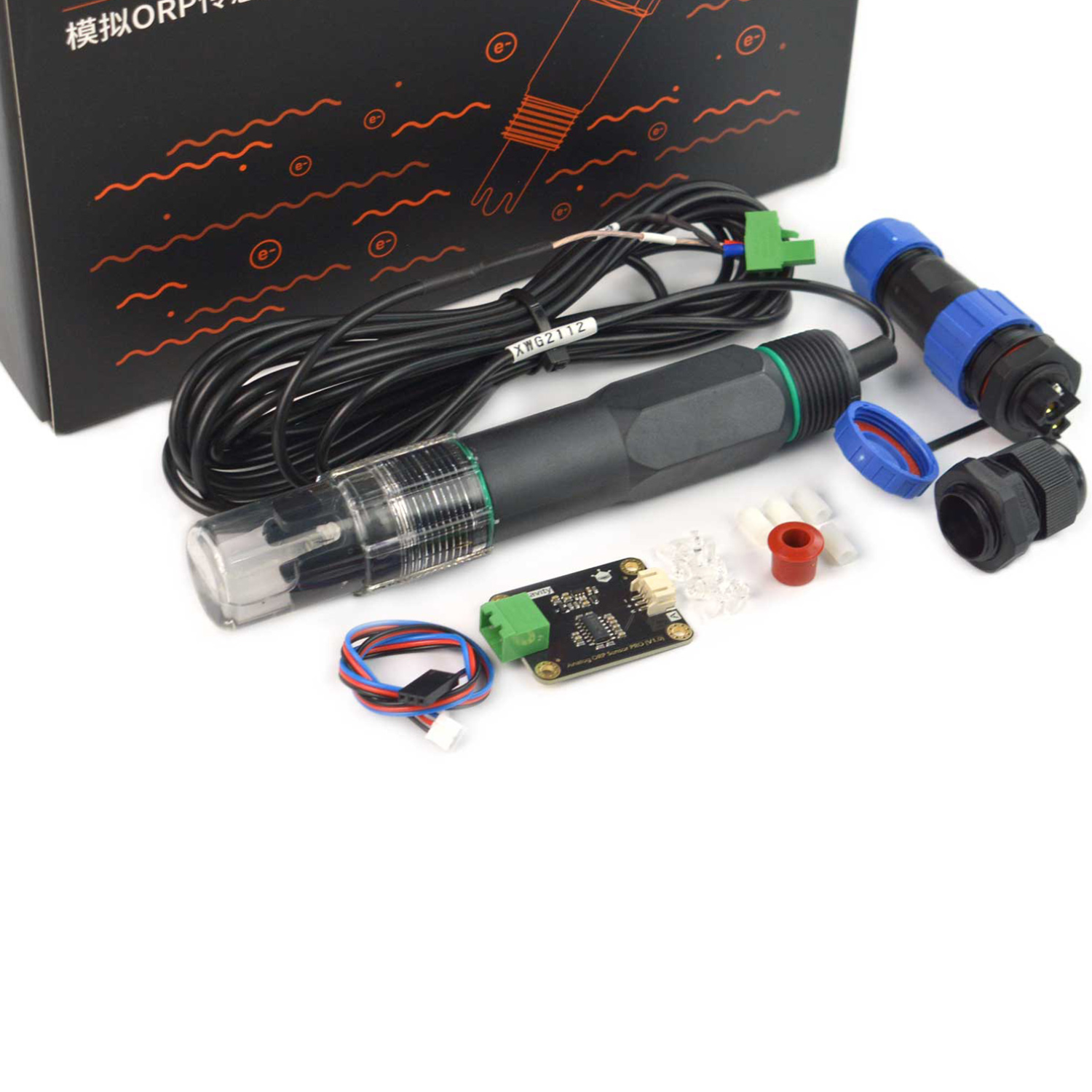

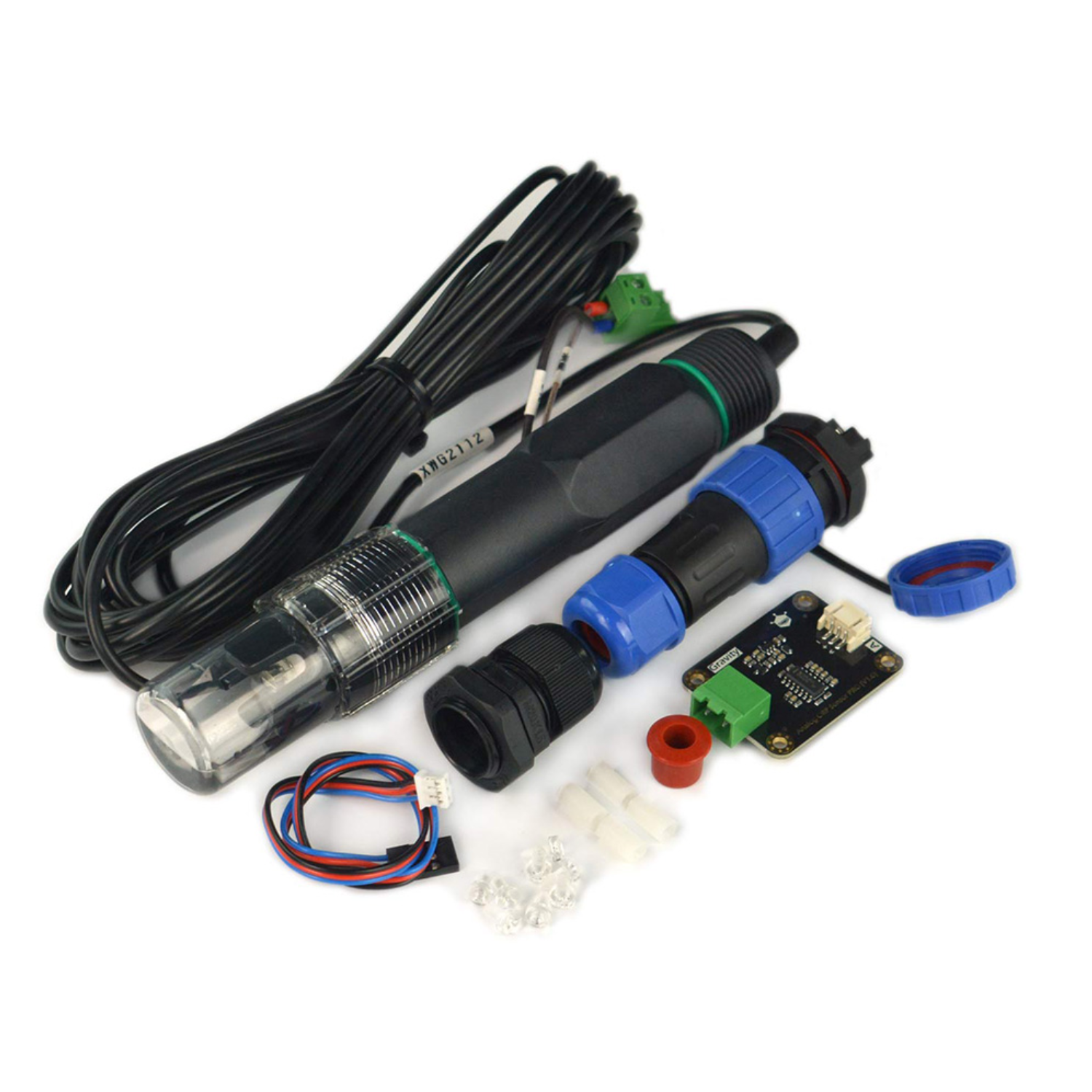

1 x DFRobot Gravity Industrial Grade Analog ORP Sensor Meter PRO For Arduino
