Description:

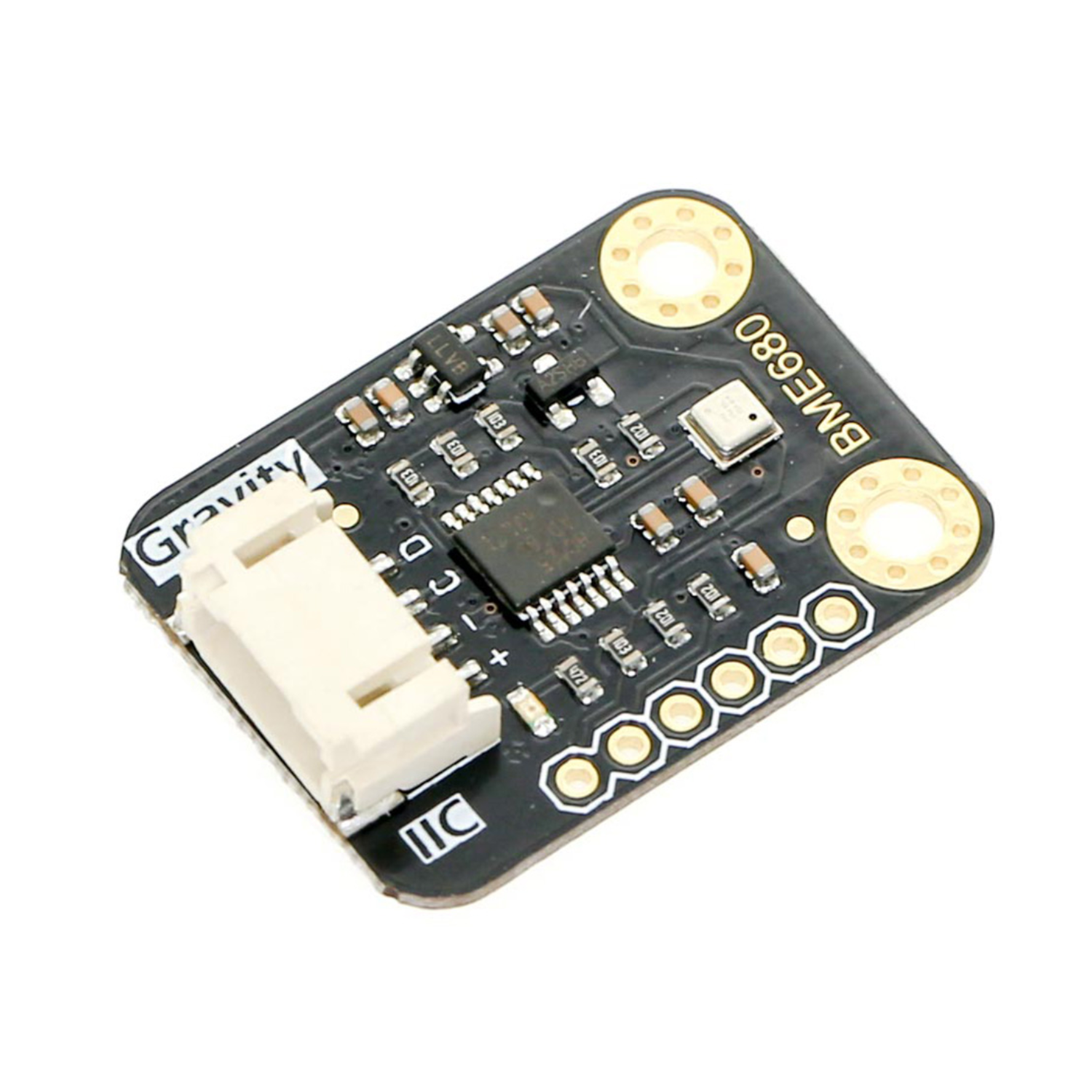

The DFRobot Gravity BME680 Environmental Sensor offers a comprehensive and efficient solution for environmental monitoring. At its core, this compact module integrates the advanced BOSCH BME680 sensor, delivering precise measurements of four key environmental parameters: volatile organic compounds (VOCs), temperature, humidity, and barometric pressure. This 4-in-1 multi-functional MEMS sensor empowers you to gain a holistic understanding of your surroundings with a single, low-power device.
Engineered for applications ranging from sophisticated air quality monitoring systems to intuitive home automation and the burgeoning field of Internet of Things (IoT) wearables, the BME680's miniature size and energy-conscious design, a hallmark of MEMS technology, make it an ideal choice for integration into space-constrained and battery-powered projects. Its capabilities also extend to enhancing GPS accuracy by providing reliable atmospheric pressure readings.
The DFRobot Gravity series ensures seamless integration with a user-friendly Gravity I2C connector, enabling effortless plug-and-play connectivity. The onboard voltage regulator and level translator ICs further enhance its versatility by providing robust compatibility with both 3.3V and 5V microcontroller systems. For more advanced users and future project expansions, a SPI connector is also conveniently included.
In an era marked by increasing industrialization and indoor air pollution from sources like new furniture, the DFRobot Gravity BME680 Environmental Sensor becomes a vital tool for proactive health management. By enabling the creation of personalized air quality monitors, this sensor empowers you to detect and respond to potentially harmful invisible pollutants, contributing to a healthier living environment. Invest in your well-being with the DFRobot Gravity BME680 – your proactive partner in environmental awareness.
Specifications:
- Input Voltage: 3.3V~5.0V
- Operating Current: 5mA (25mA in VOC)

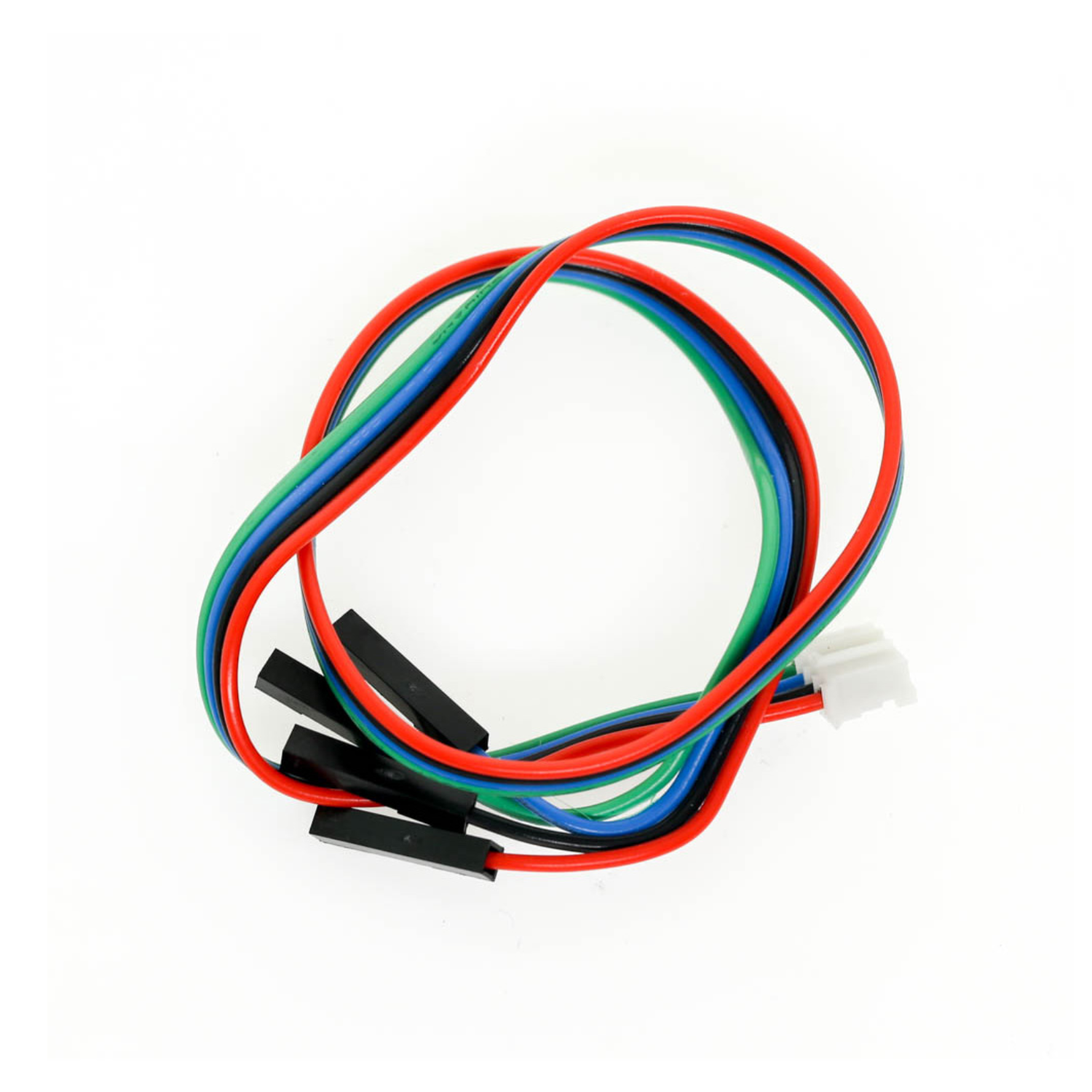

- Wiring Connector: Gravity I2C
- Connector in Reserve: SPI
- Temperature Measurement Range: -40℃~+85℃
- Temperature Measurement Precision: ±1.0℃(0~65℃)
- Humidity Measurement Range: 0- 100% RH.
- Humidity Measurement Precision: ±3%r.H.(20-80% r.H.,25℃)
- Atmospheric Pressure Measurement Range: 300-1100hPa
- Atmospheric Pressure Measurement Precision: ±0.6hPa(300-1100hPa,0~65℃)
- IAQ (Indoor Air Quality) Range: 0~500 (the larger the worse)

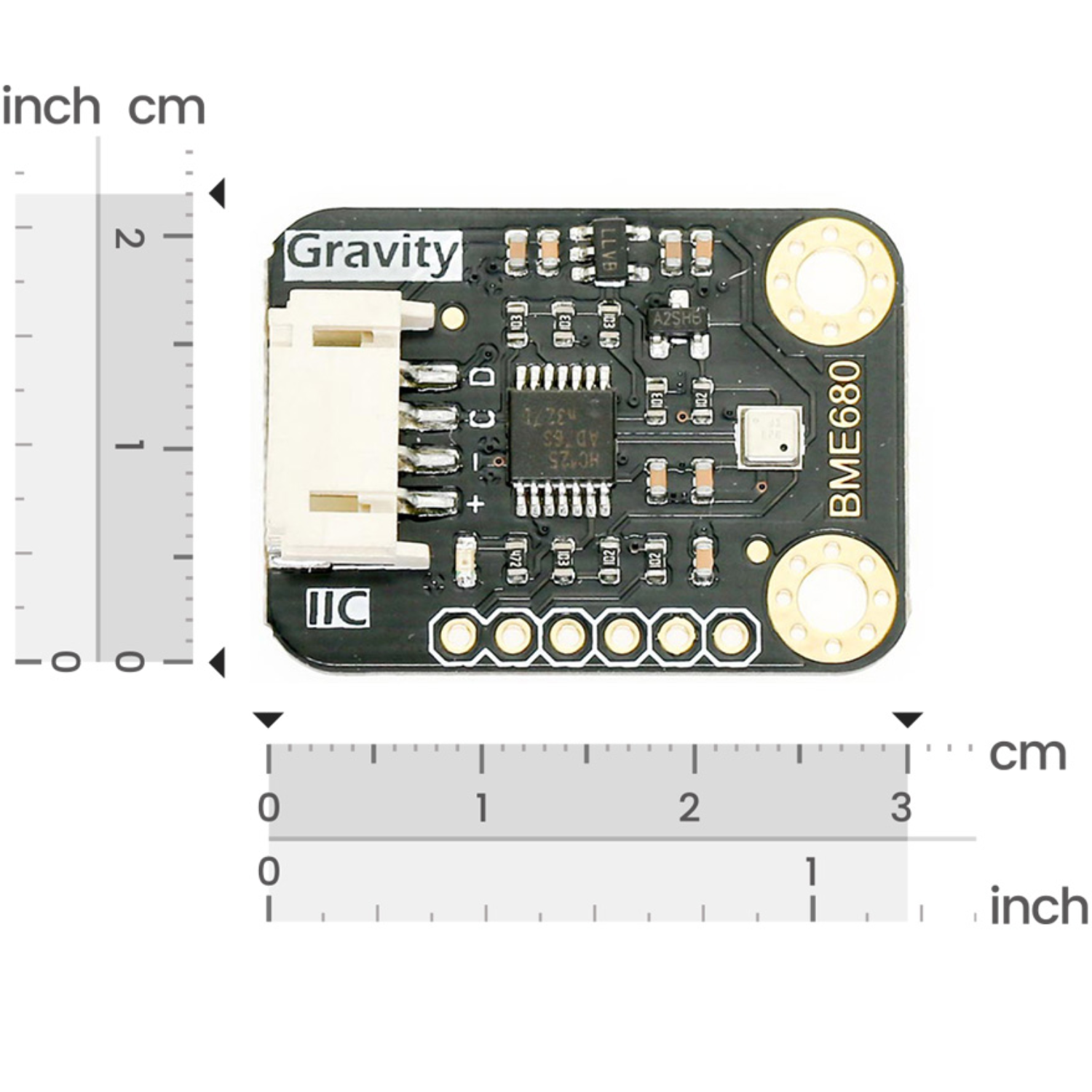

- Module Size: 30 × 22(mm) / 1.18 x0.87(inches)
Features:
- Miniature footprint with exceptional reliability and minimal power usage.
- Operates seamlessly with both 3.3V and 5V microcontrollers.
- Measures temperature, humidity, barometric pressure, and volatile organic compounds (VOCs) in a single unit.

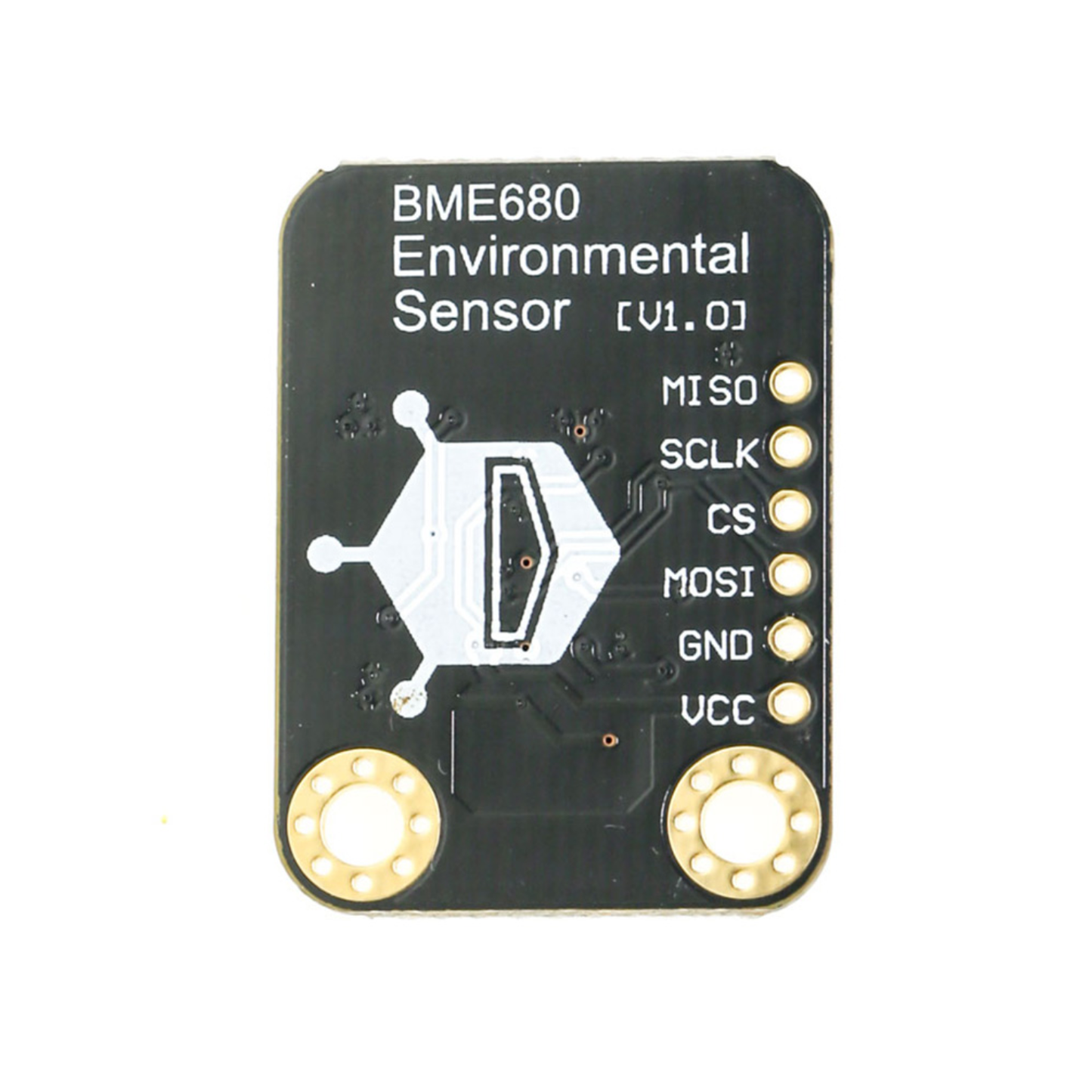

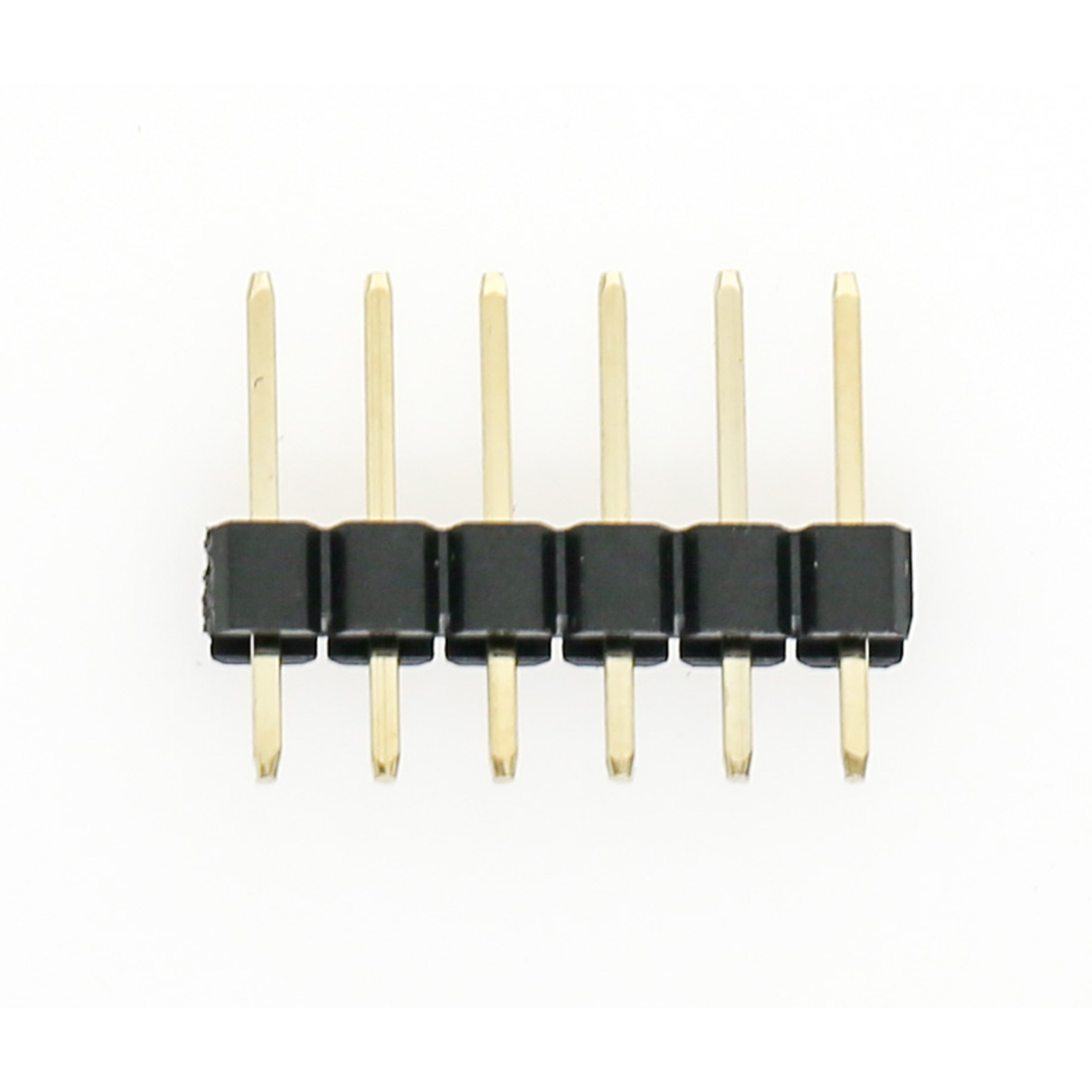

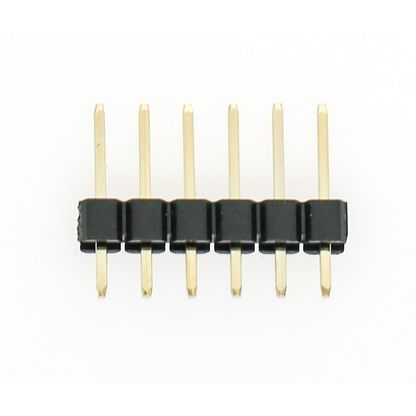

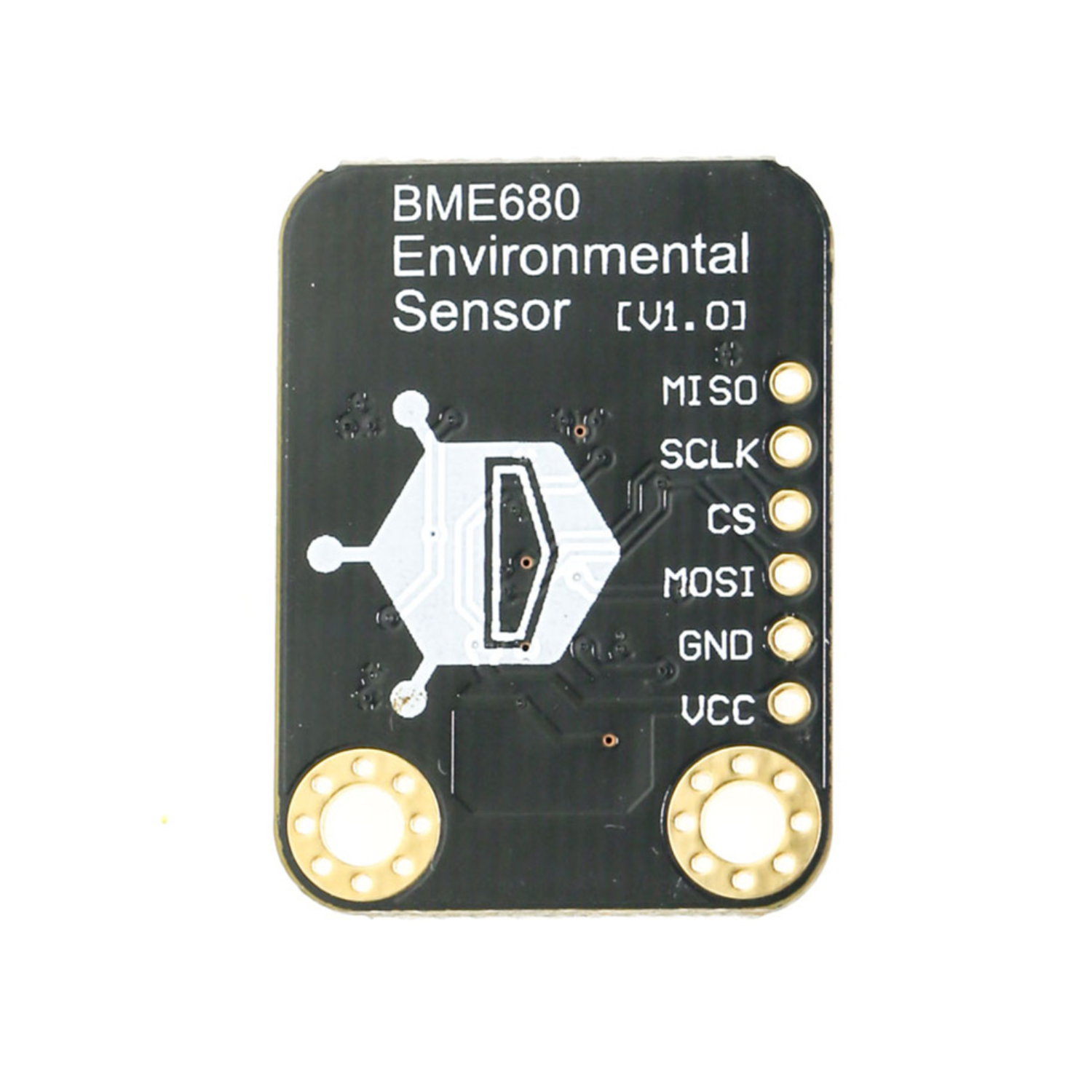

- Plug-and-play simplicity with a dedicated Gravity connector; includes a reserved XH2.54 SPI interface for advanced projects.
- Small form factor ensures easy integration into various applications.
Applications:
- Indoor air quality monitoring
- Weather station
- Smart home
- Internet of Things
- Wearable
Documents:

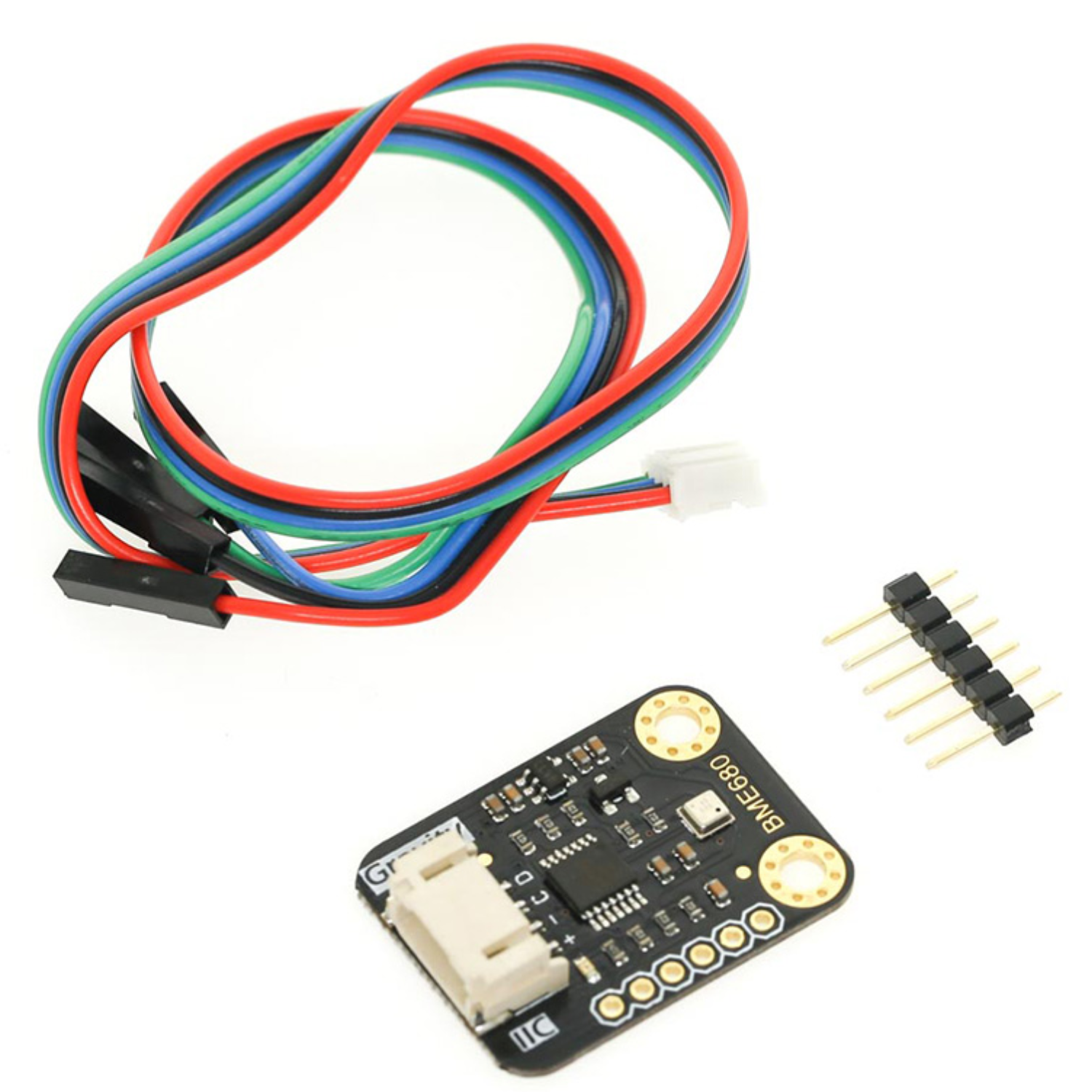

Package Included:
1 x DFRobot Gravity: I2C BME680 Environmental Sensor
