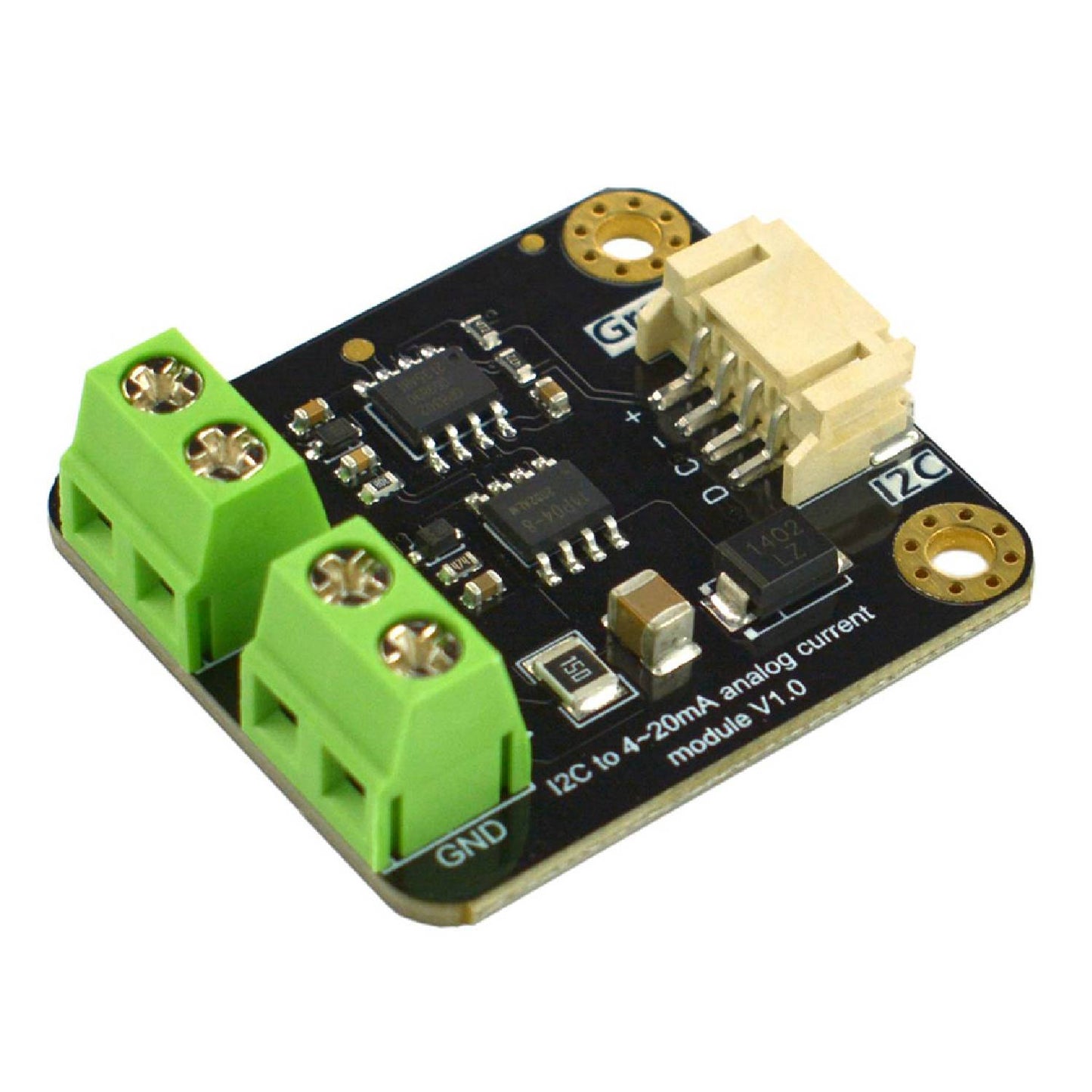

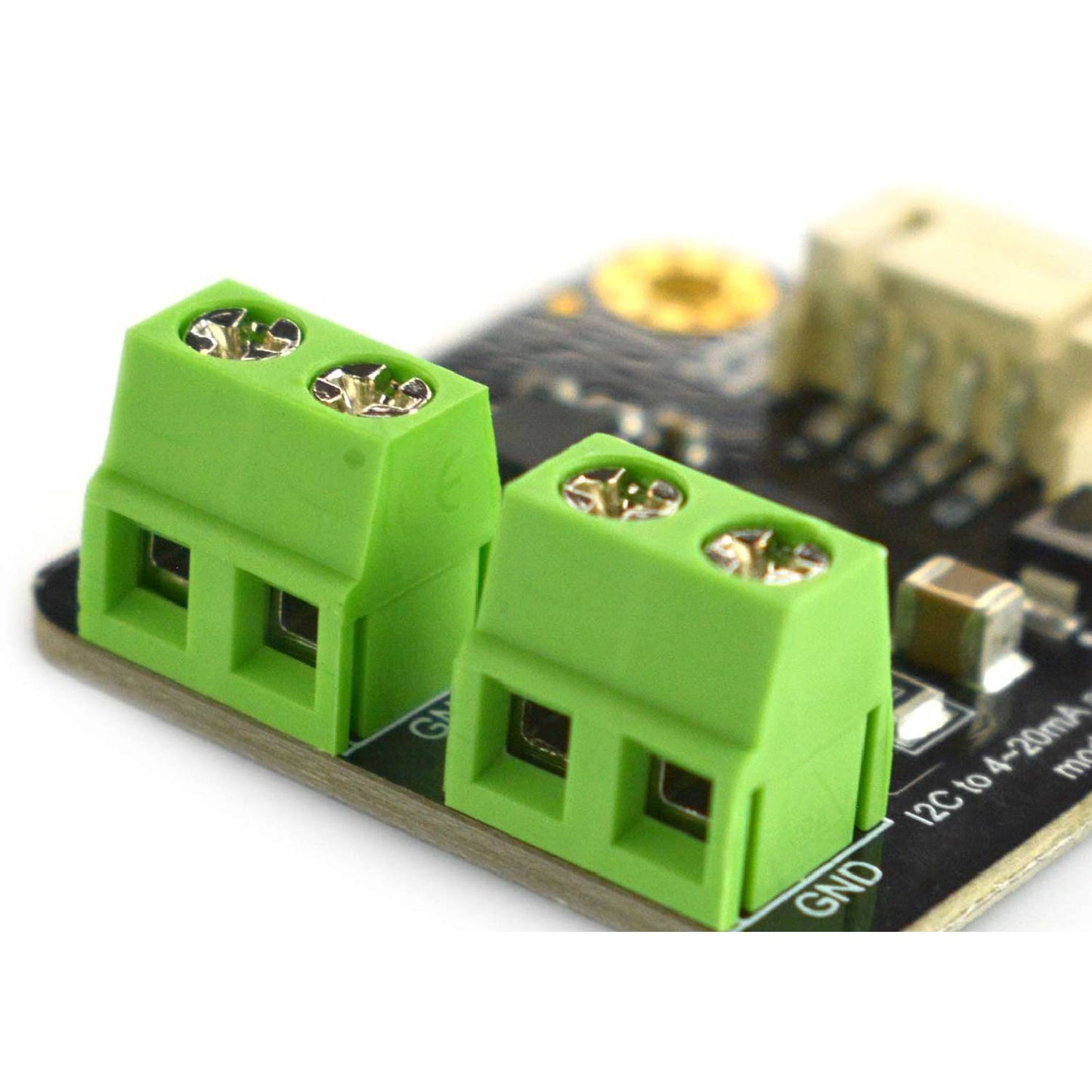

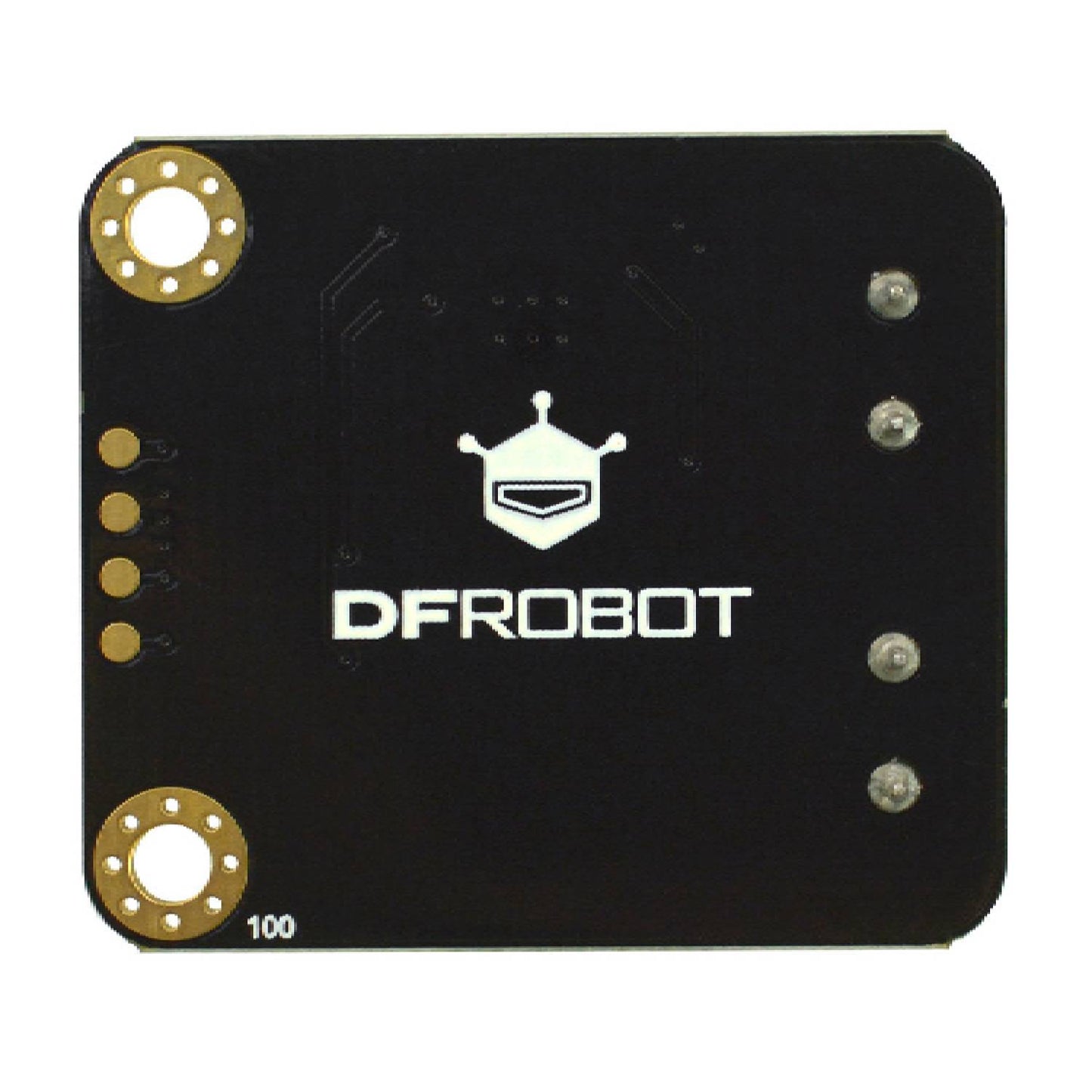

DFRobot Gravity: I2C 4-20mA DAC Module Digital-to-Analog Converter Module Arduino Compatible DAC Board

DFRobot Gravity: I2C 4-20mA DAC Module Digital-to-Analog Converter Module Arduino Compatible DAC Board

SKU:

In stock

Regular price Rs. 1,205.00
Sale price Rs. 1,205.00 Regular price
Sold out
Exclusive of GST
Shipping calculated at checkout.
REES52 REWARDS
Earn an estimated 12 points on this order
Found a better price?

Send the competitor link and price to our team. No automatic price match.

This website form routes enquiries to our support team. Your email app will not open.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

This is an I2C DAC module that outputs 0-25mA current. It offers a more accurate 4-20mA current output after calibration, which can be used with most 4-20mA devices on the market such as motors, inverters, valves, pumps, etc., by Arduino programming.

Specifications:

  • Chip Type: GP8302
  • Input Signal Range: 12Bit, 0x000-0xFFF (0-25mA)
  • Input I2C Signal High Level: 2.7V-5V
  • Power Supply: 18V-24V (24V recommended)
  • Accuracy: 0.5% before calibration, 0.2% after calibration
  • Power Consumption: <5mA
  • Start-up Time: <2ms
  • Operating Temperature: -40°C to 125°C
  • Load Resistance: Maximum 450Ω load capacity for 18V power supply, maximum 750Ω for 24V
  • Output Current: 0-25mA
  • I2C Address: 0x58

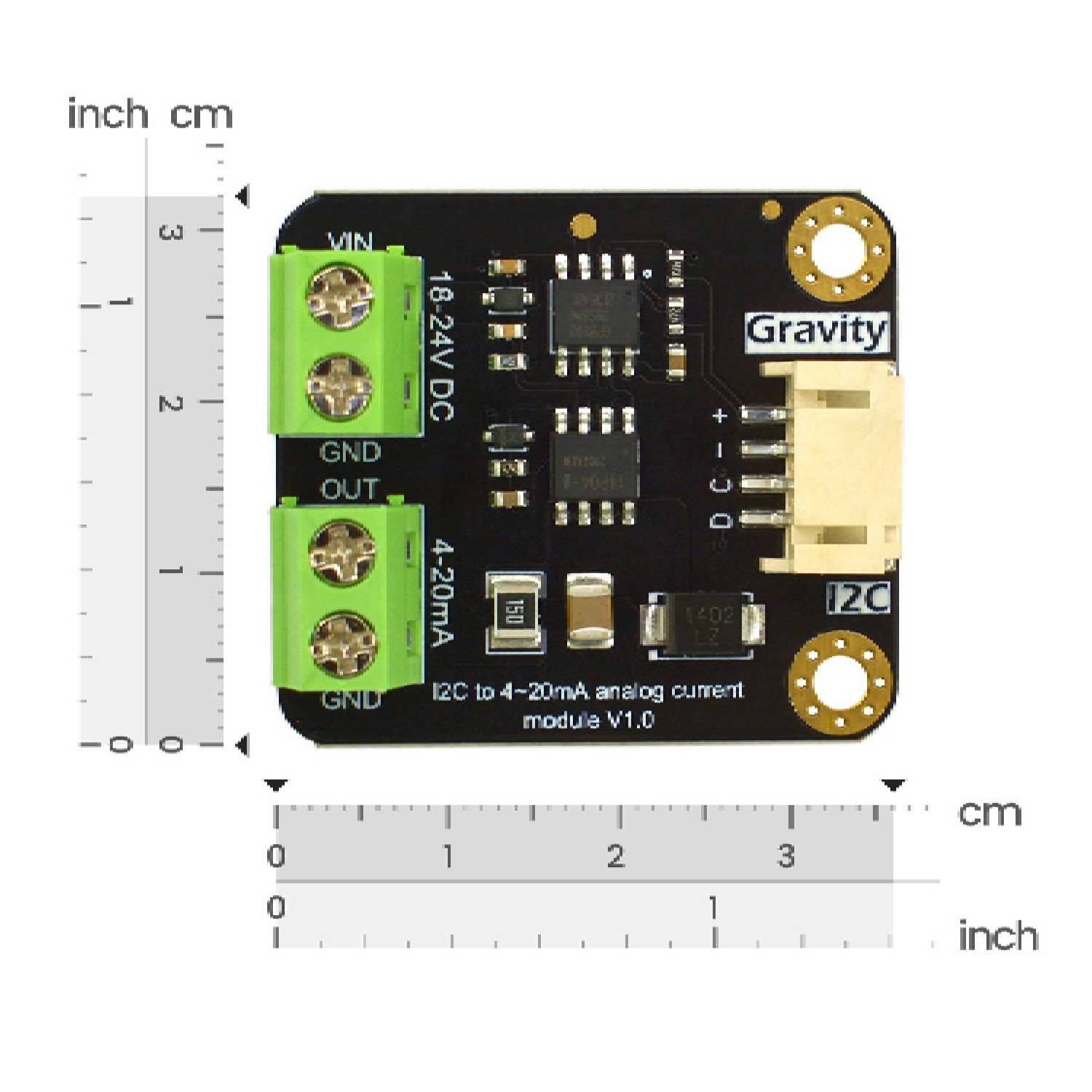

Function Indication:

Features:

  • 0-25mA output, more accurate current within 4-20mA available after calibration
  • Gravity interface, I2C communication
  • High accuracy, 0.2% linearity error
  • 18-24V power supply

Hardware Connection:

Applications:

  • Function signal generator
  • Automatic controller for lighting or fountain
  • Automatic and quick transformation of small equipment
  • Electromechanical equipment debugging
  • Transformation of the small test device

Useful Links:

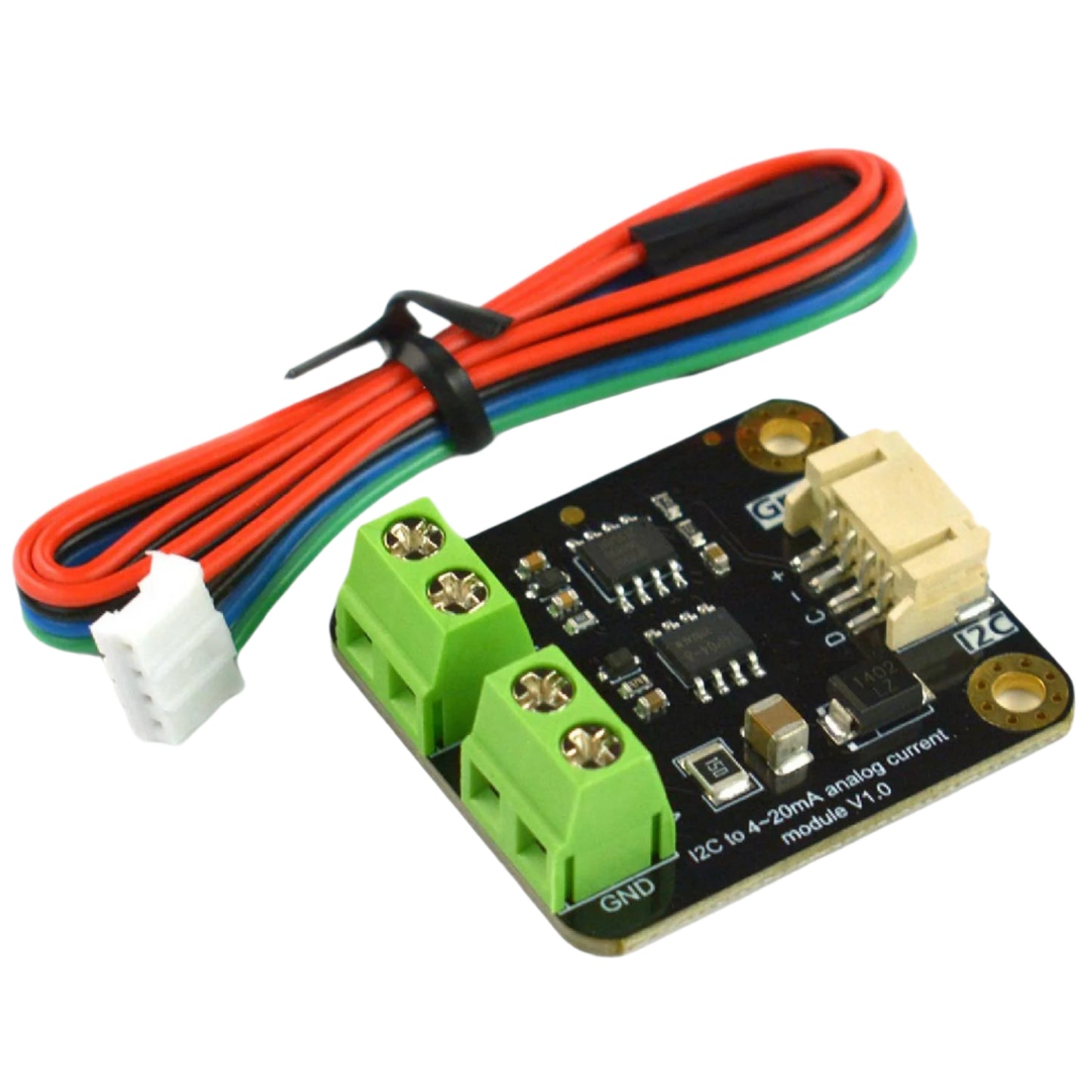

Package Included:

  • 1 x Gravity: I2C 4-20mA DAC Module (Arduino Compatible)
  • 1 x Gravity I2C/UART Sensor Connector
