Description:
This is a 2-channel DAC module with I2C communication, a resolution of 15-bit, and an accuracy of 0.2%, capable of generating analog voltage outputs of 0-10V or 0-5V. The 0-10V or 0-5V voltage range is a standard driving method. It can be widely used in automation applications such as light adjustment, frequency converters, valve regulation, and pump control. This product can drive a variety of 0-10V or 0-5V controlled devices available in the market through Arduino programming. The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy, such as fine speed control or angle control.
DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.
Specifications:
- Operating voltage: 3.3V to 5V
- Communication Method: I2C
- Chip Type: GP8413
- Resolution: 15-bit
- Output Voltage: 0-5V or 0-10V
- Number of channels: 2 channels
- Value Range: 0 - 32767 corresponding to 0-5V or 0-10V
- Output voltage: 0.2%
- Output voltage linearity error: 0.01%
Features:
- Support 3.3V-5V power supply.
- Output voltage error is less than 0.2%.
- The output voltage linearity error is 0.01%.
- Two channels of voltage output, either 0-5V or 0-10V, enable connection and control of standard analog voltage devices.
- Gravity interface, I2C communication, Arduino control, suitable for program automation control.
- Features eight adjustable I2C addresses, allowing simultaneous control of up to 16 devices.
- The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy.
Applications:
- Automatic light adjustment
- Variable frequency drive (VFD)
- Automatic valve regulation
- Automatic water pump control
Useful Links:

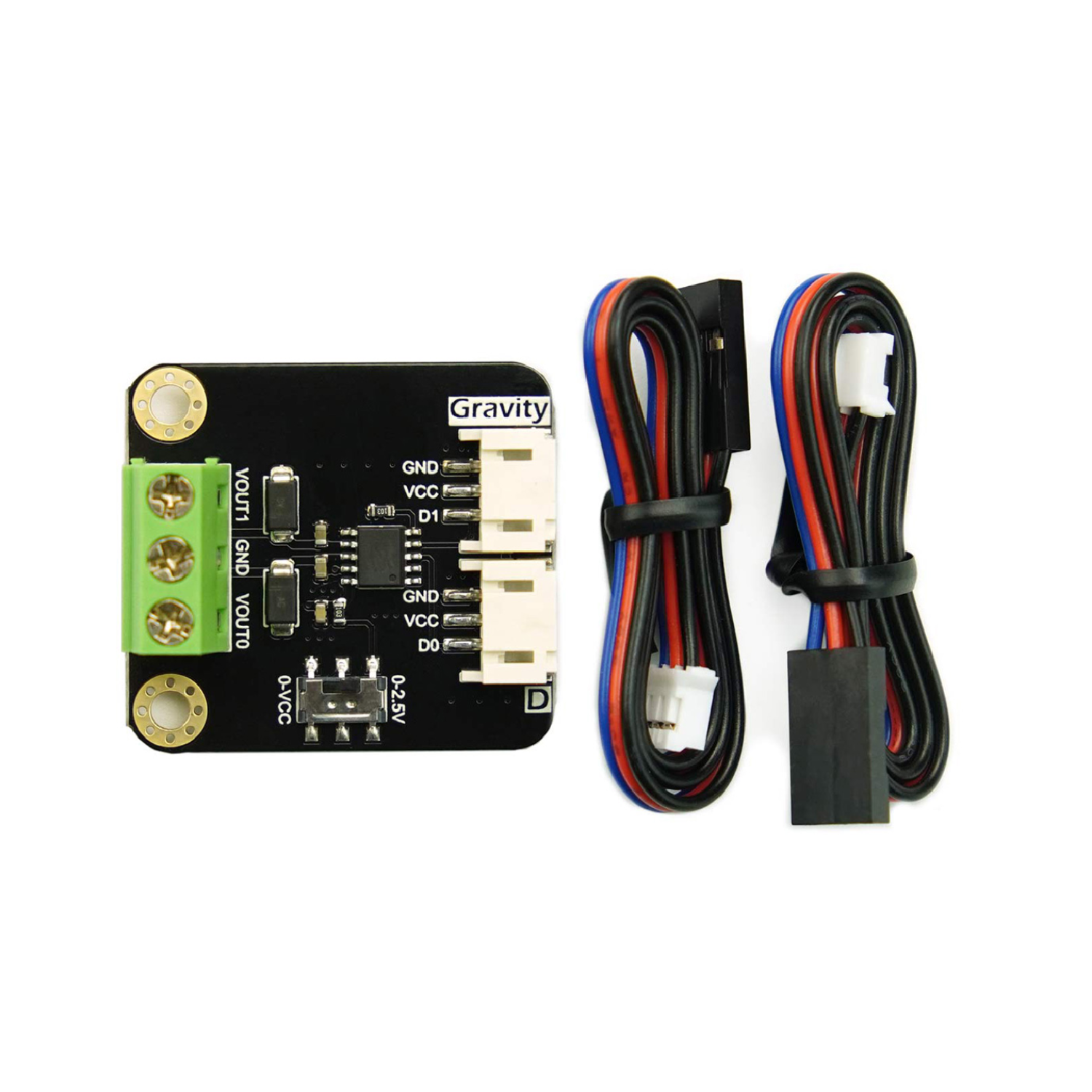

Package Included:
- 1 x GP8413 DAC Module
- 1 x -4P I2C/UART Sensor Cable
