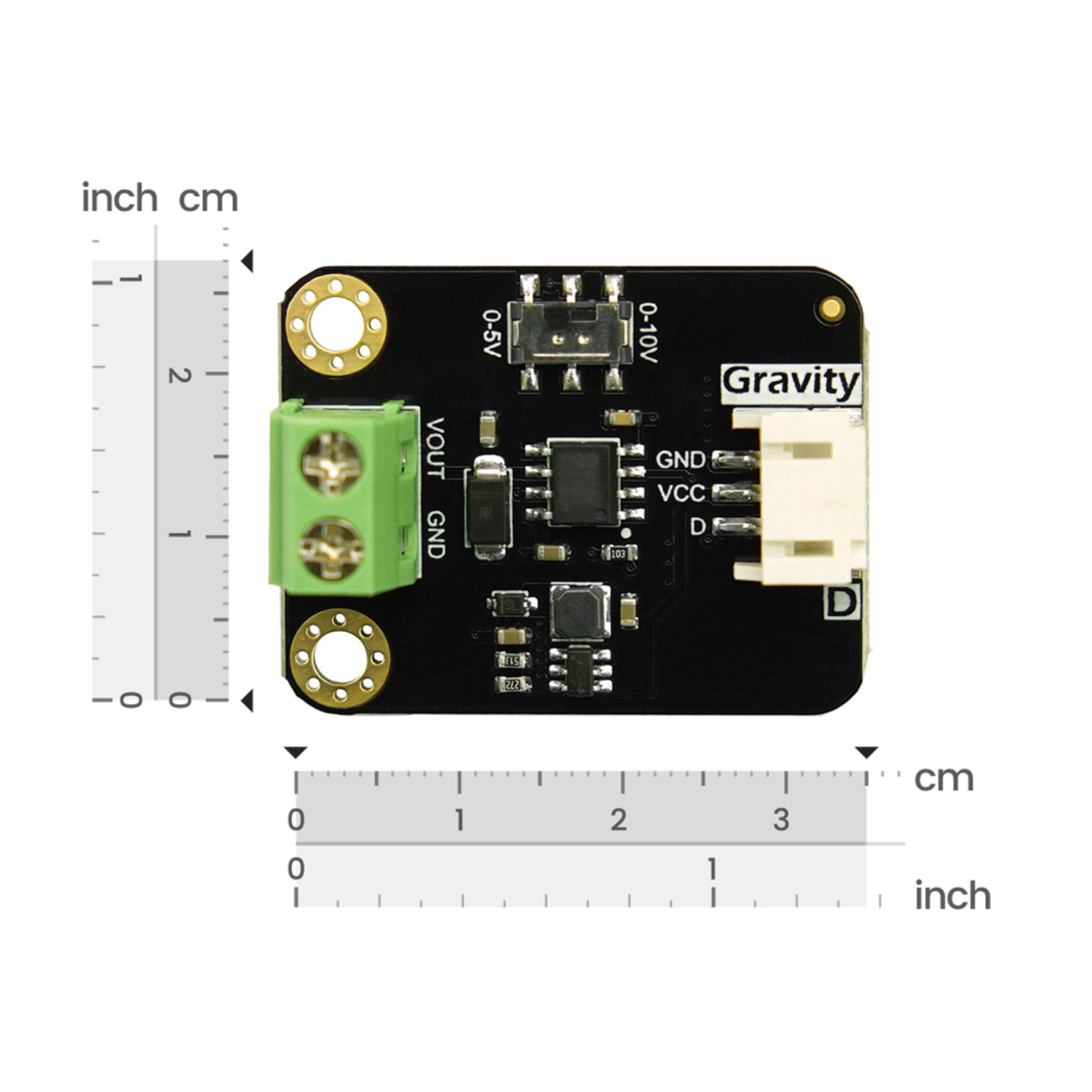

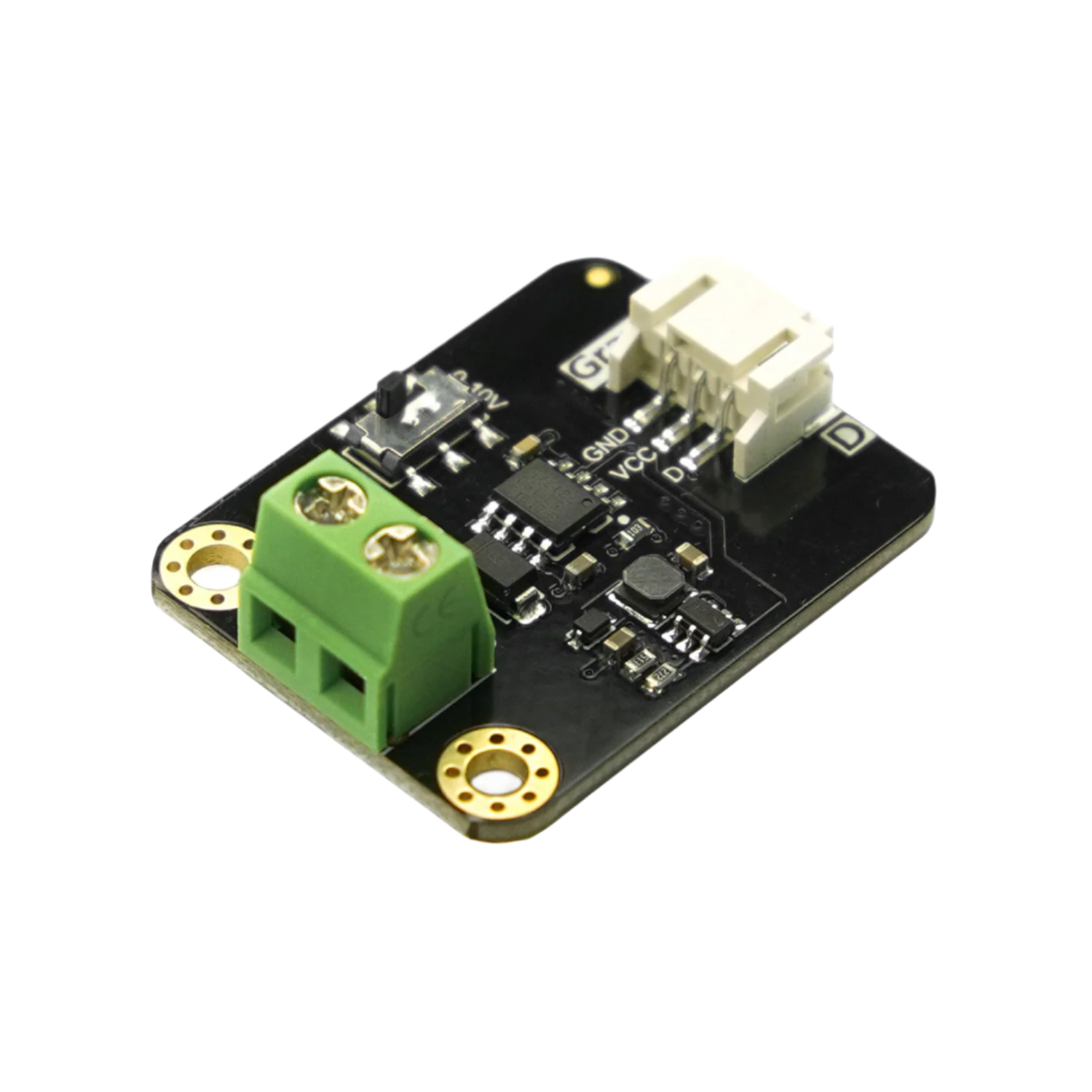

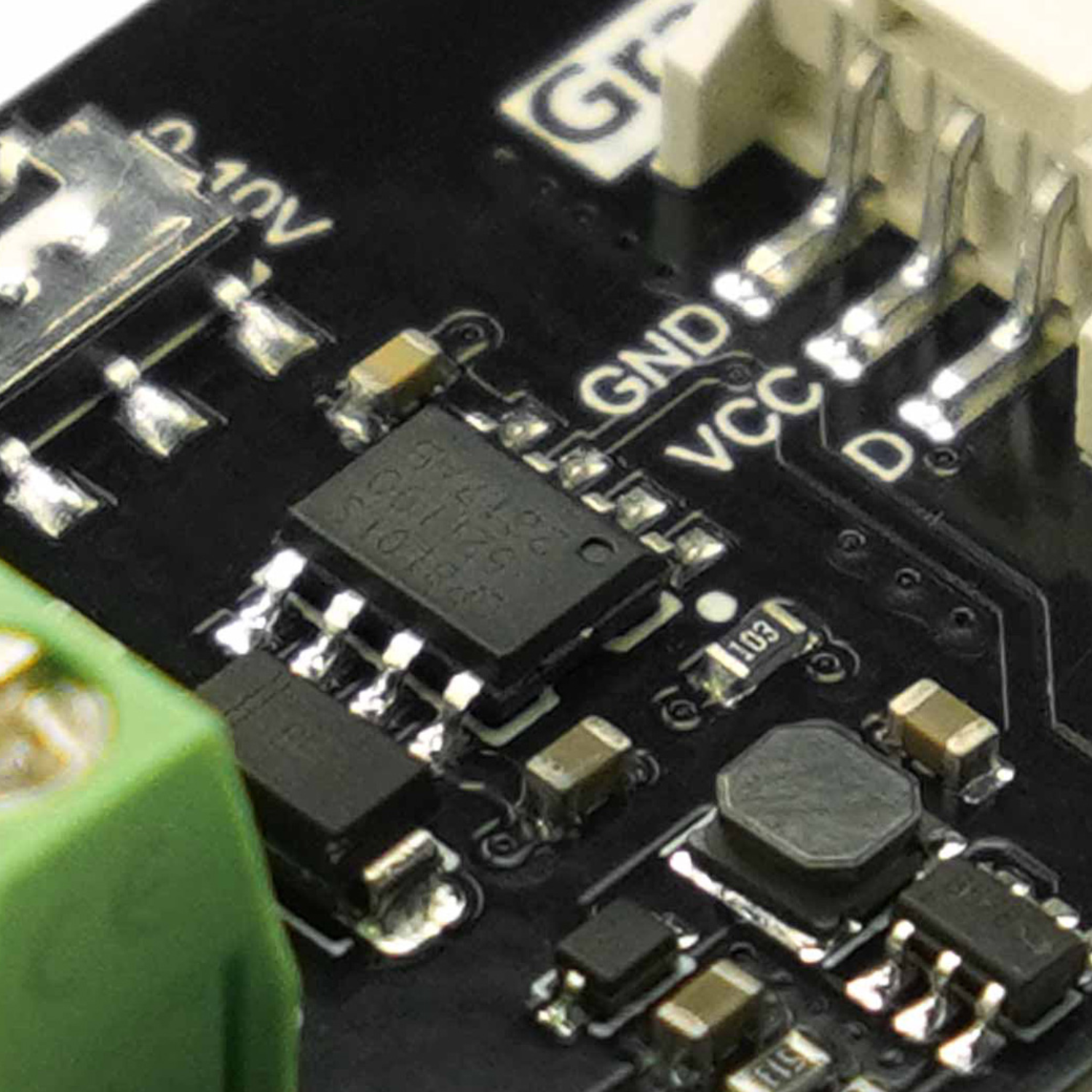

Description:
This single-channel DAC module provides a precise and convenient method for generating analog voltage outputs. Communicating via PWM, it offers 8-bit resolution and a high accuracy of 0.2%, delivering selectable 0- 10V or 0- 5V industry-standard signals. This makes it perfectly suited for direct control of numerous 0- 10V or 0- 5V devices in automation scenarios, including lighting adjustment, frequency control, valve operation, and pump management, all programmable through Arduino.
The PWM interface simplifies control using standard MCU digital pins. As a member of a comprehensive DAC series, this module benefits from a wider ecosystem of analog output solutions featuring I2C or PWM control, voltage or current output options, 8, 12, and 15-bit resolutions, single or dual channels, and the potential for multi-channel expansion through cascading.
Specifications:
- Operating voltage: 3.3V to 5V
- Communication Method: PWM
- Chip Type: GP8101S
- Resolution: 8-bit
- Output Voltage: 0- 5V or 0- 10V
- Number of channels: 1 channel
- Value Range: 0 - 255 corresponding to 0- 5V or 0- 10V
- Output voltage: 0.2%
- Output voltage linearity error: 0.1%
Features:
- Accepts 3.3V to 5V.
- Generates analog output using MCU PWM.
- Switchable 0- 5V or 0- 10V.
- Offers 256 discrete output levels.
- <0.2% voltage error.
- 0.1% linearity error ensures stable output.
- Simplifies connections for quick prototyping.
- Works with Arduino and other platforms.
Applications:
- Automatic light adjustment
- Variable frequency drive (VFD)
- Automatic valve regulation
- Automatic water pump control
Documents:
Package Included:

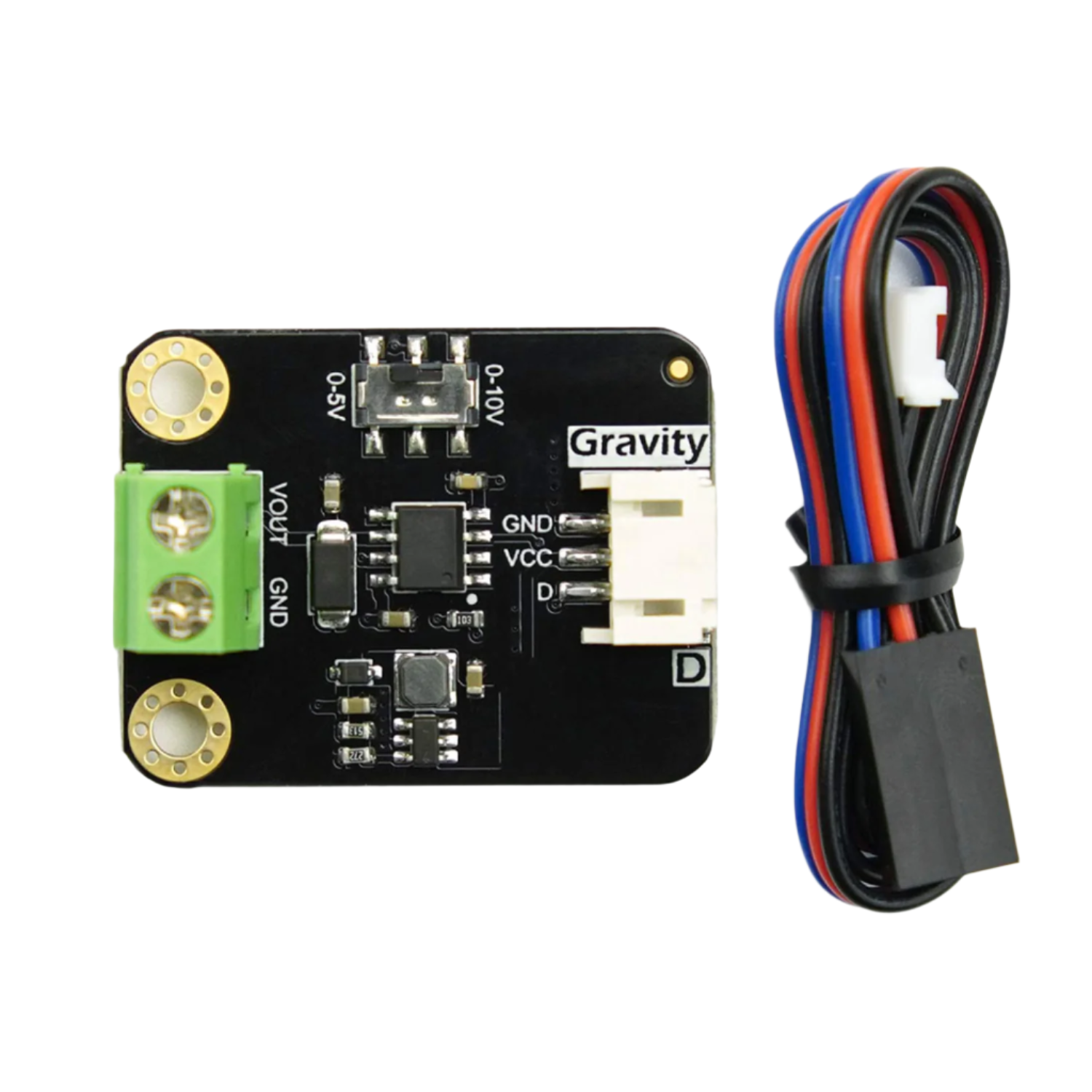

1 x DFRobot Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module
