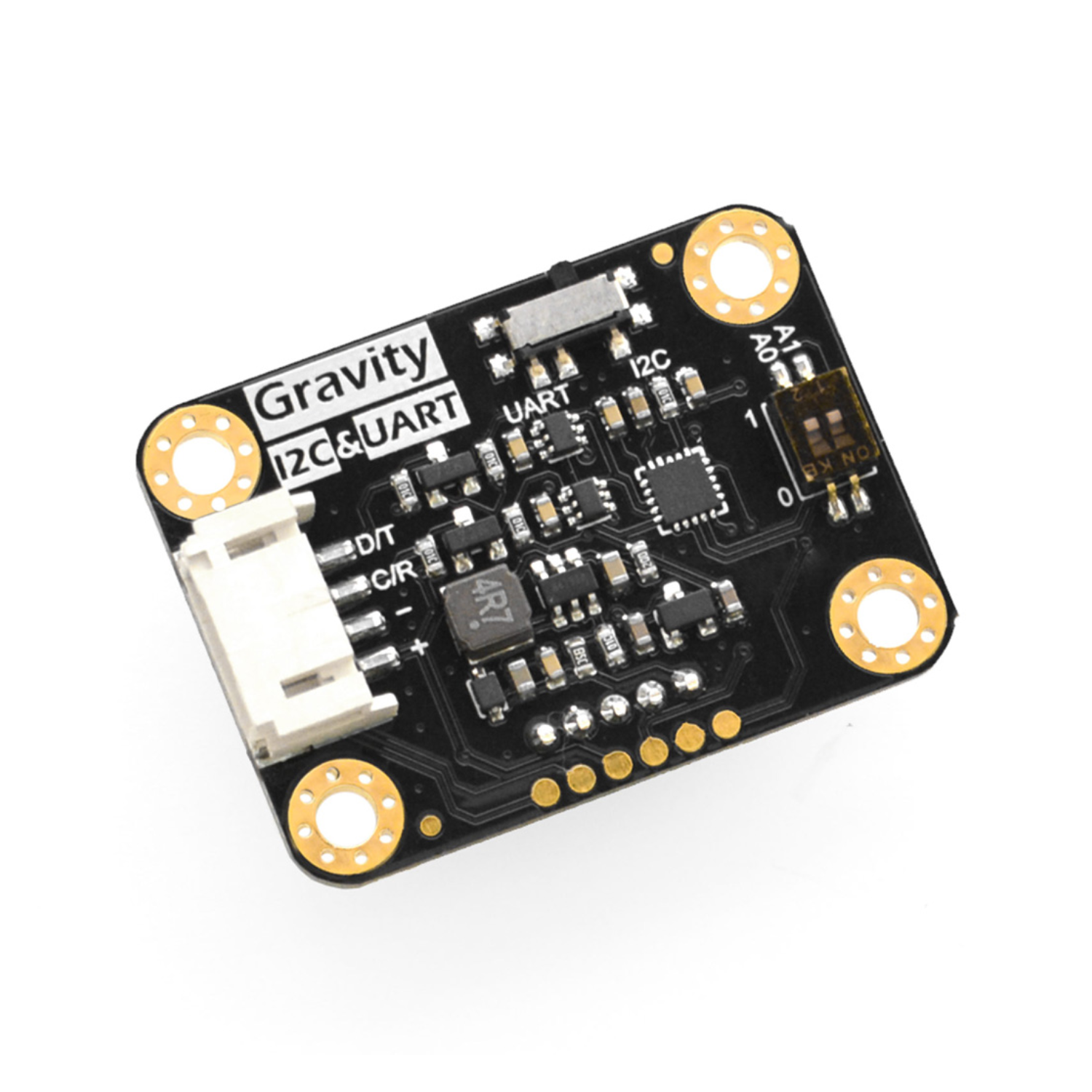

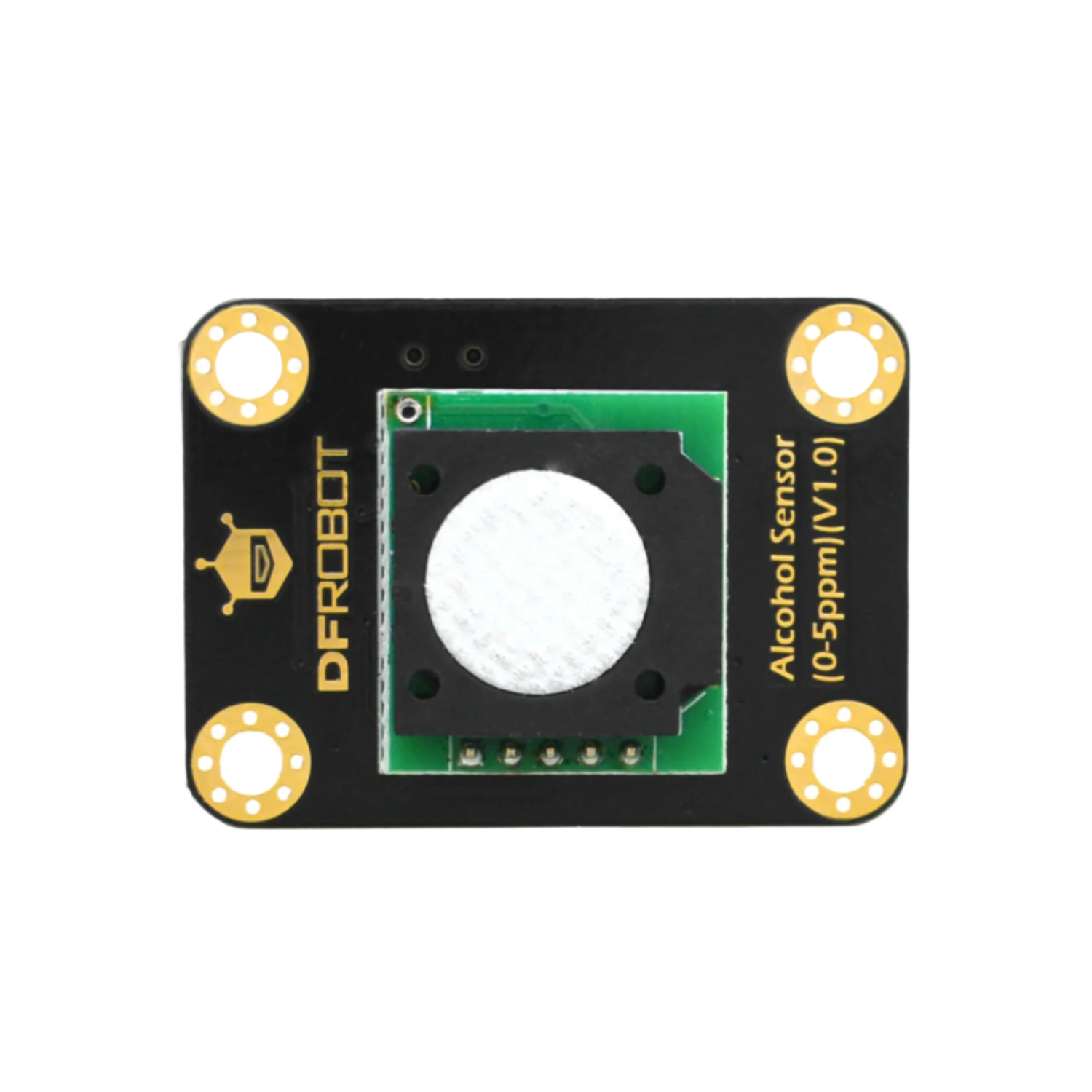

DFRobot Gravity: Factory Calibrated Electrochemical Alcohol Sensor 0-5ppm Alcohol Detection With I2C And UART Communication

DFRobot Gravity: Factory Calibrated Electrochemical Alcohol Sensor 0-5ppm Alcohol Detection With I2C And UART Communication

In stock

Rs. 2,438.00
Rs. 2,438.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

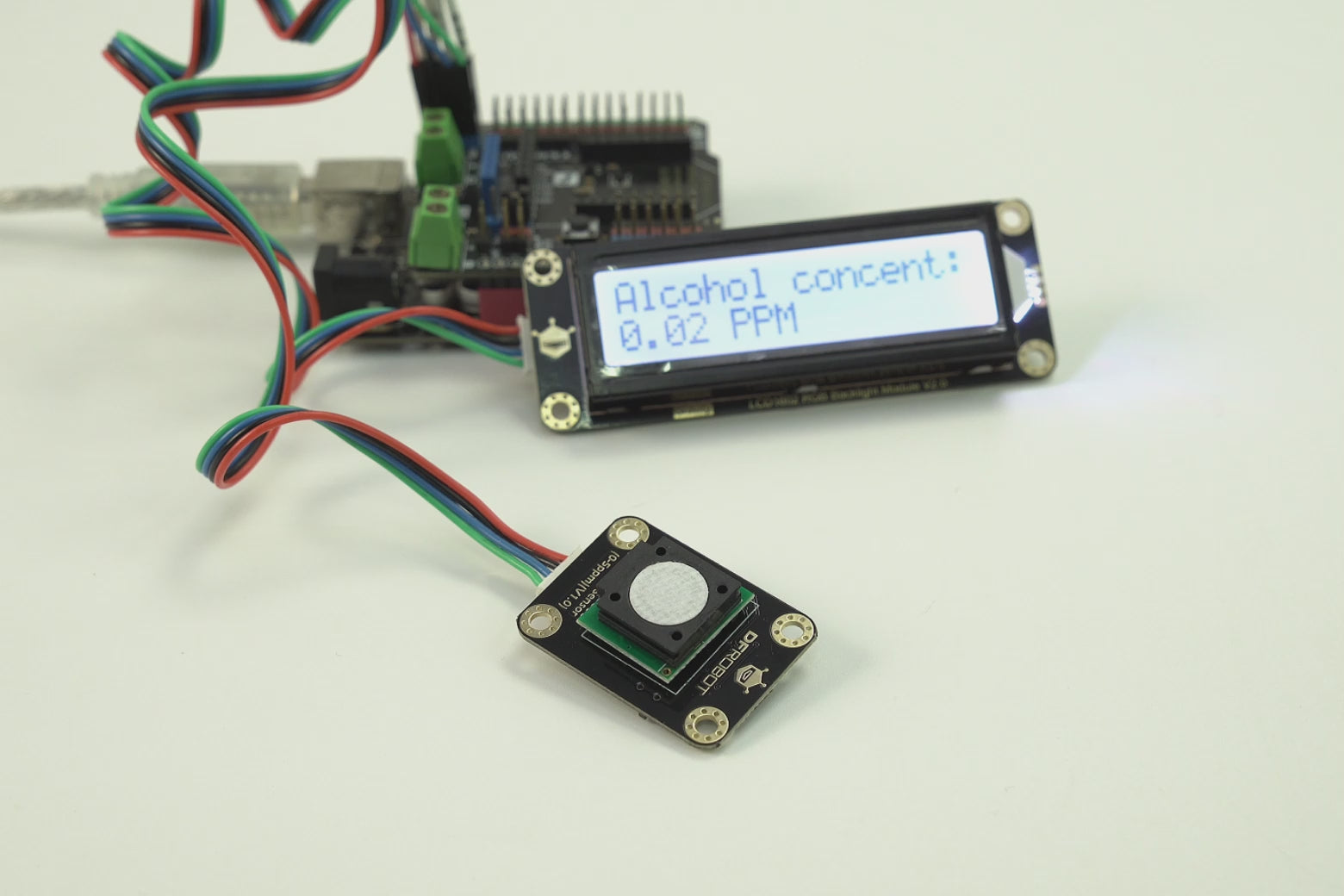

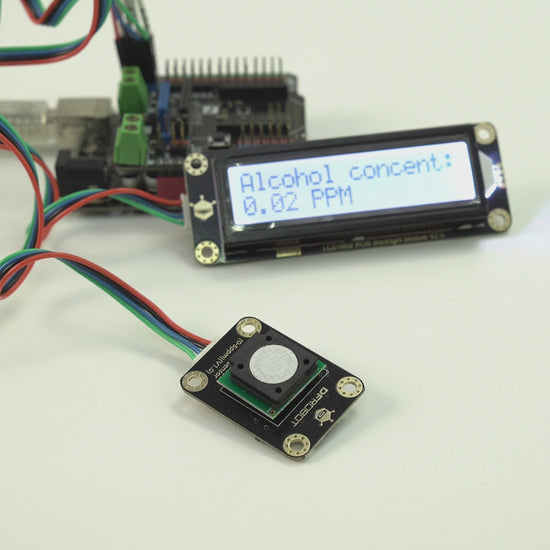

The DFRobot Arduino Alcohol Sensor Module provides a highly accurate and rapid solution for measuring low-level alcohol gas concentrations (0-5 ppm). Leveraging electrochemistry and factory calibration, this module offers strong anti-interference, high stability, and sensitivity, with a service life of up to 2 years. It features both I2C and UART communication, a fine resolution of 0.01 ppm (10 ppb), and a broad 3.3~5.5V input voltage range, making it ideal for integration with Arduino, ESP32, and Raspberry Pi. The user-friendly Gravity interface and provided sample code simplify the development of applications like breathalyzers and smart vehicle systems.

Specifications:

  • Detected Gas: alcohol
  • Interfering Gas: benzene(C6H6), toluene(C7H8), acetic acid(CH3COOH), hydrogen sulfide(H2S), carbon monoxide(CO)
  • Operating Voltage: 3.3～5.5V DC
  • Power: 0.05W(5V）
  • Signal Output: I2C, UART(0~3V)
  • Measuring Range: 0~5ppm
  • Resolution: ≤0.01ppm(10ppb）
  • Preheat Time: ≤3min
  • Response Time: ≤60s
  • Recover Time: ≤60s
  • Operating Temperature: -20～50℃
  • Operating Humidity: 15～90%RH (No condense)
  • Storage Temperature: 0~25℃
  • Service Life: >2 years(In the air)

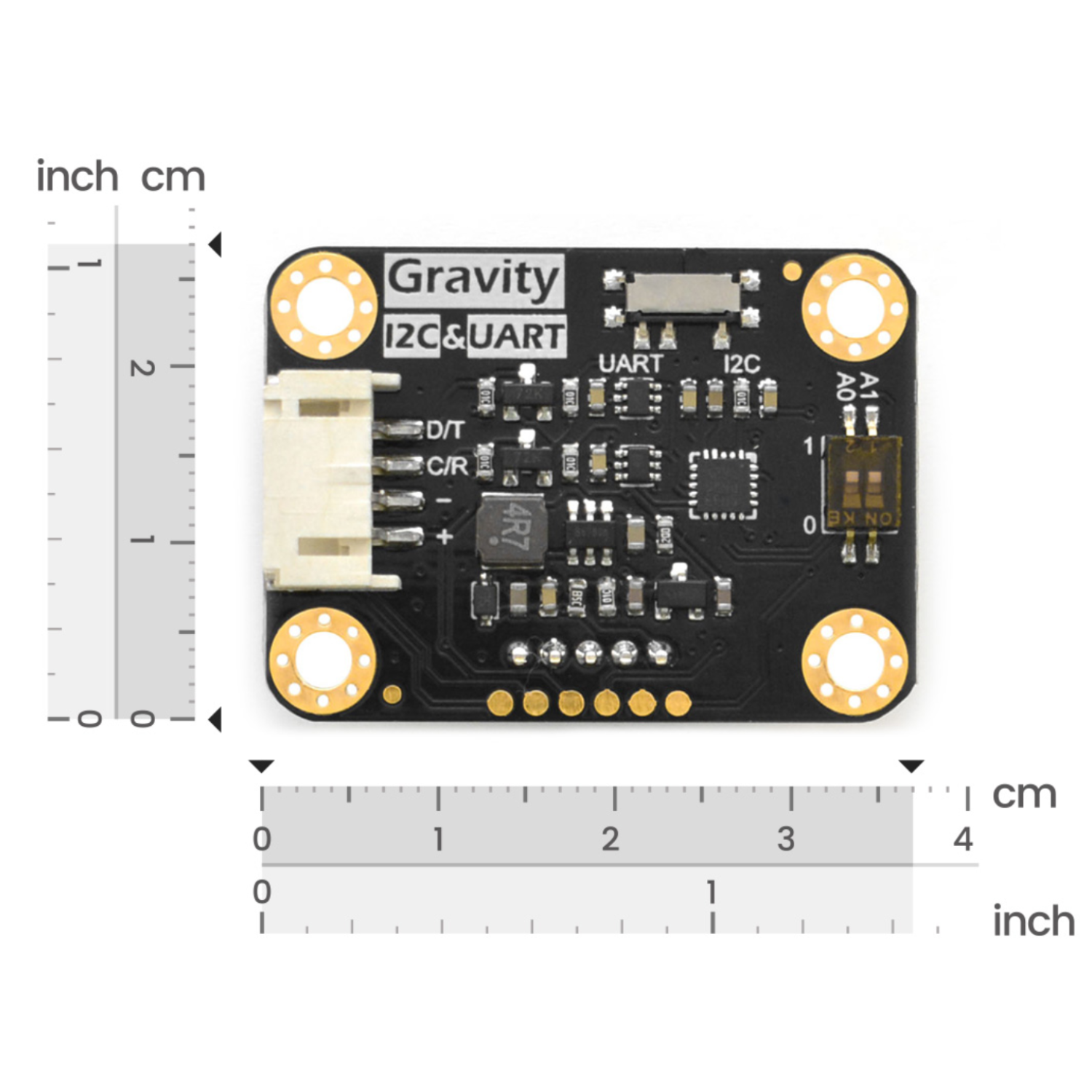

  • Board Dimension: 27mm×37mm/1.06×1.46

Features:

  • Ensures reliable data right out of the box.
  • Detects minute alcohol levels with minimal power draw.
  • Delivers consistent readings even in noisy environments.
  • Offers flexible integration options.
  • Provides accurate readings across the detection range.
  • Designed for long-term, reliable operation.
  • Works seamlessly with popular development boards.
  • Prevents damage from incorrect wiring.

Documents:

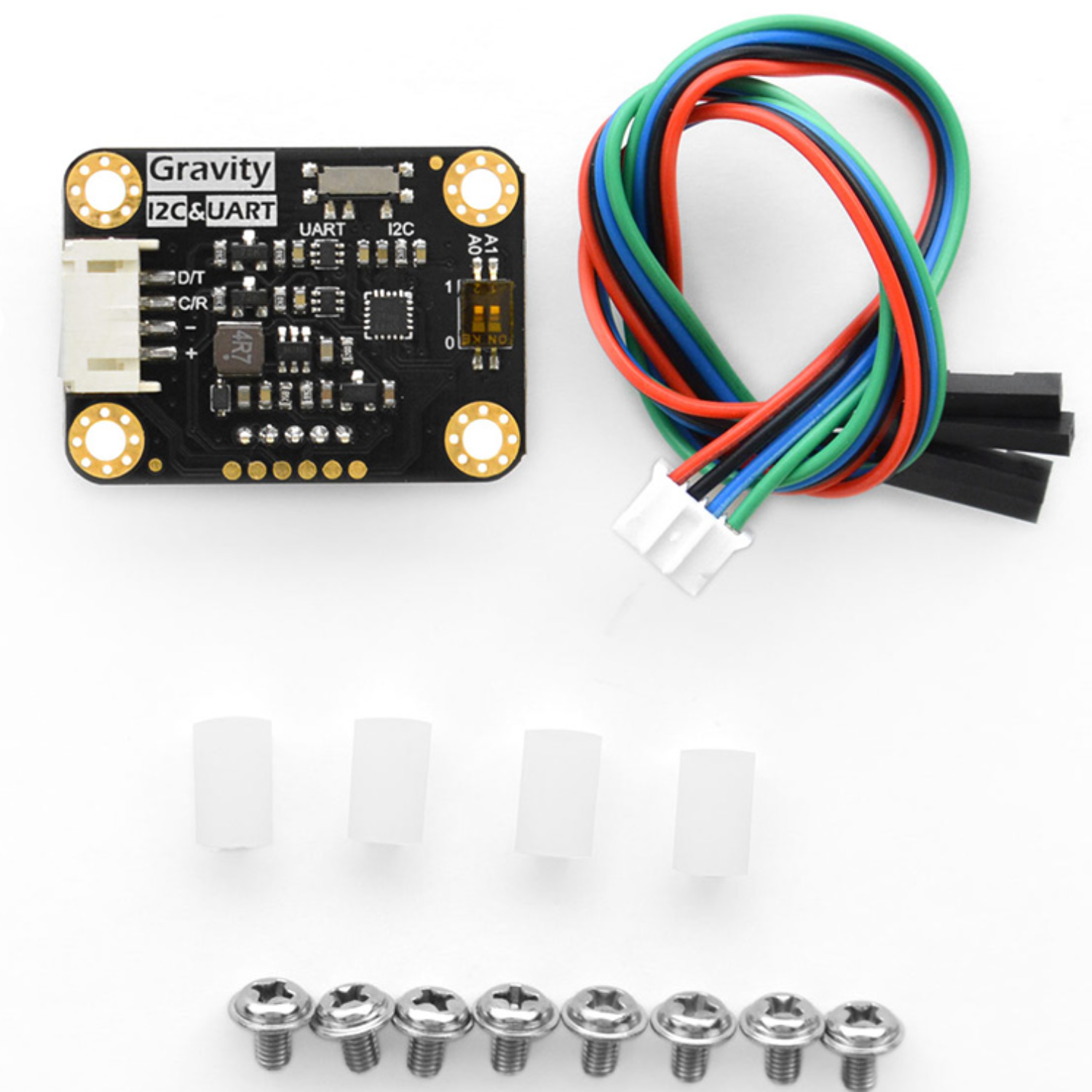

Package Included:

1 x DFRobot Gravity: Factory Calibrated Electrochemical Alcohol Sensor
