Description:

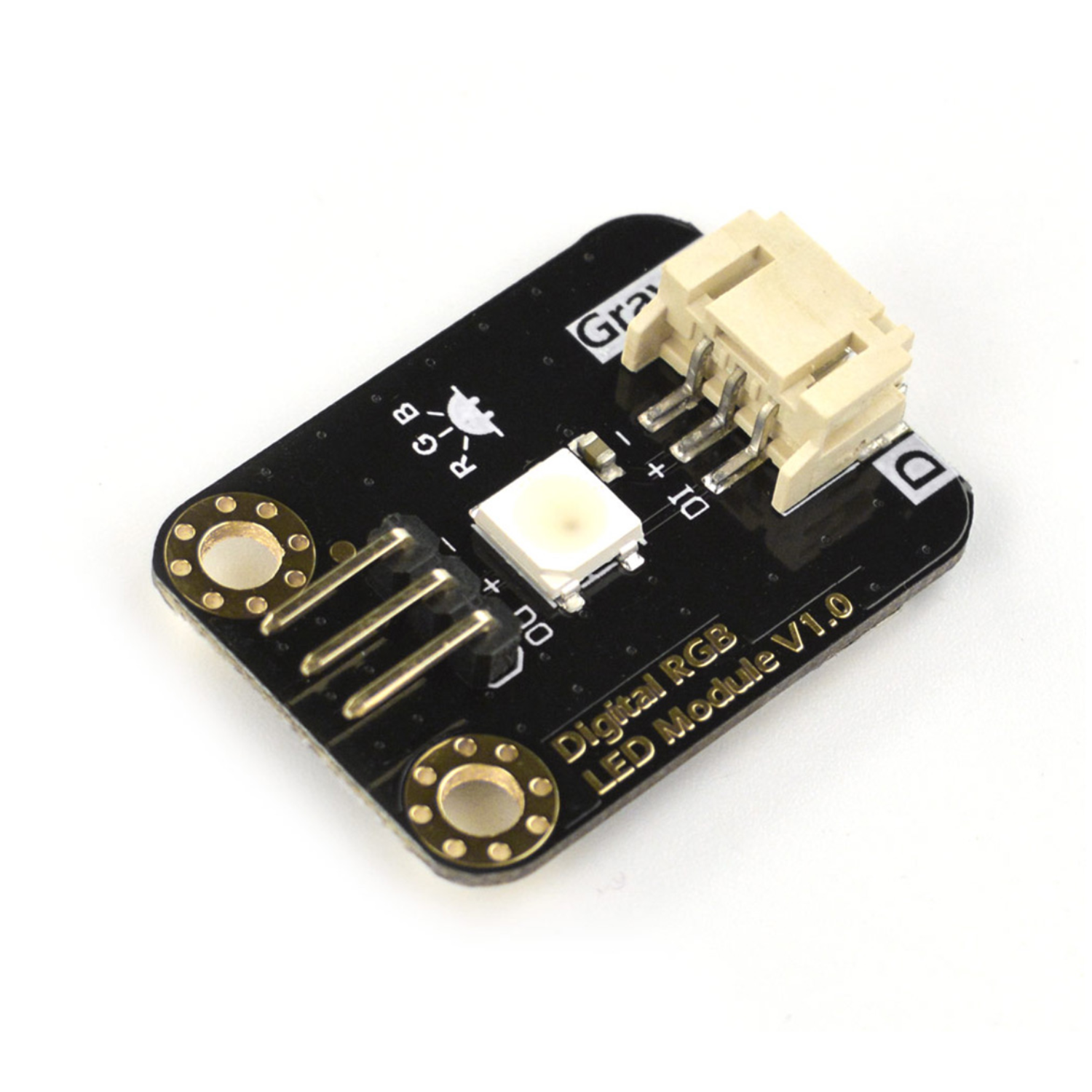

Introducing the Gravity: Digital RGB LED Module, a user-friendly and cascadable single RGB LED module designed for seamless integration with platforms like Arduino, micro: bit, and Raspberry Pi via the Gravity interface. This module simplifies RGB control by requiring only a single signal pin for cascaded LEDs, a significant improvement over traditional three-pin designs. This innovation results in remarkably low power consumption per meter, allowing for the creation of long, daisy-chained RGB LED strips (over 100 modules, potentially tens of meters) with a minimal 5V 2A power demand. The modular nature of this product offers exceptional flexibility in customizing the length of your RGB lighting, eliminating the need for cutting or soldering individual LEDs and making it incredibly easy to adapt to various project requirements.
Upgrade your projects with this small yet impactful RGB LED module string, featuring the same high-quality, high-brightness RGB LEDs as standard strips for brilliant visuals. Enjoy effortless integration thanks to its full compatibility with existing RGB LED strip drivers and software, requiring minimal code adjustments. Unlock a spectrum of creative applications, from simple flashing and vibrant rainbow effects to displaying custom text, graphics, and animated content with this versatile module.
Specifications:

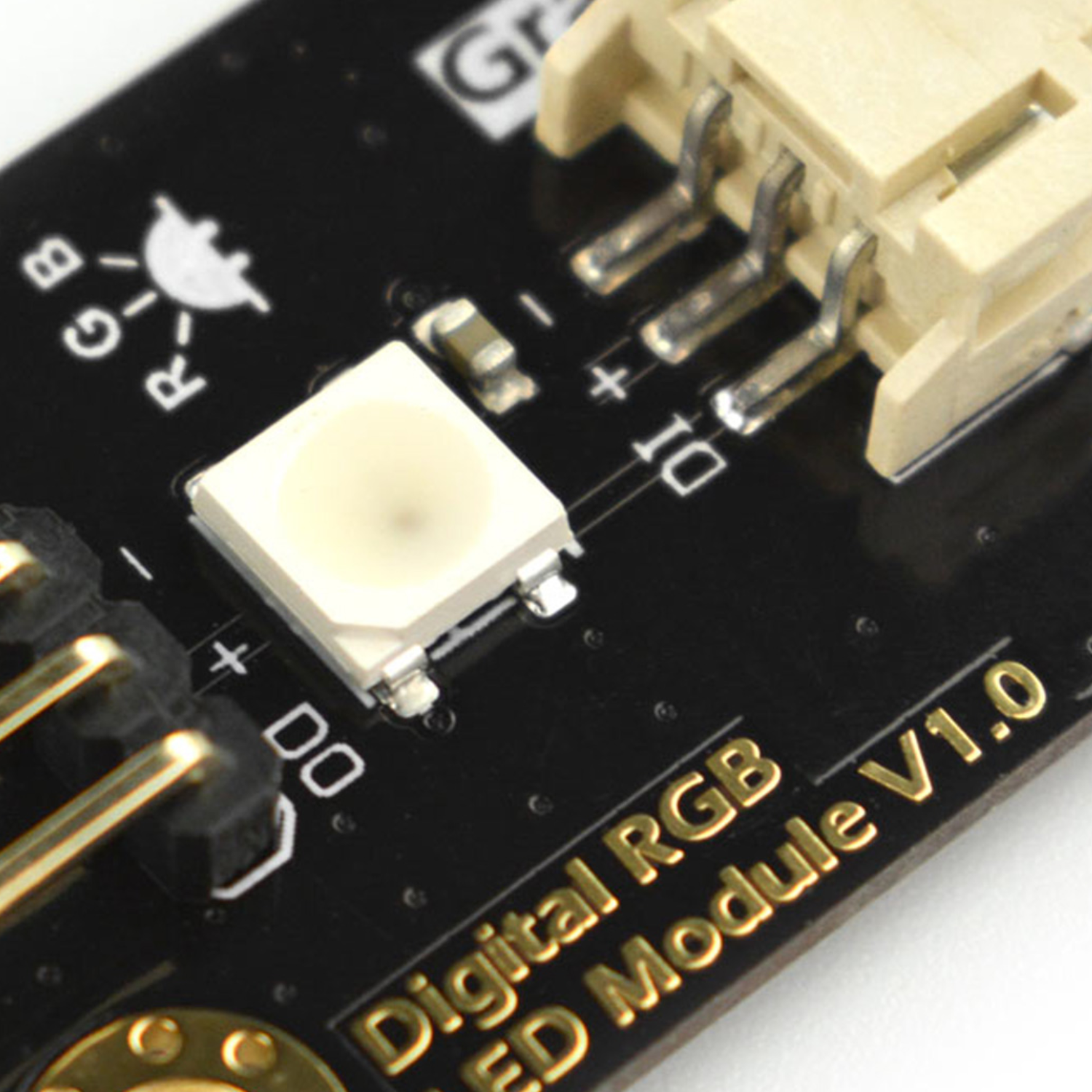

- LED Type: WS2812 RGB 5050 LED
- Input Voltage: 3.3V~5.5V
- Maximum Current: 48mA
- Quiescent Current: 0.7mA
- Interface: Gravity 3P Digital

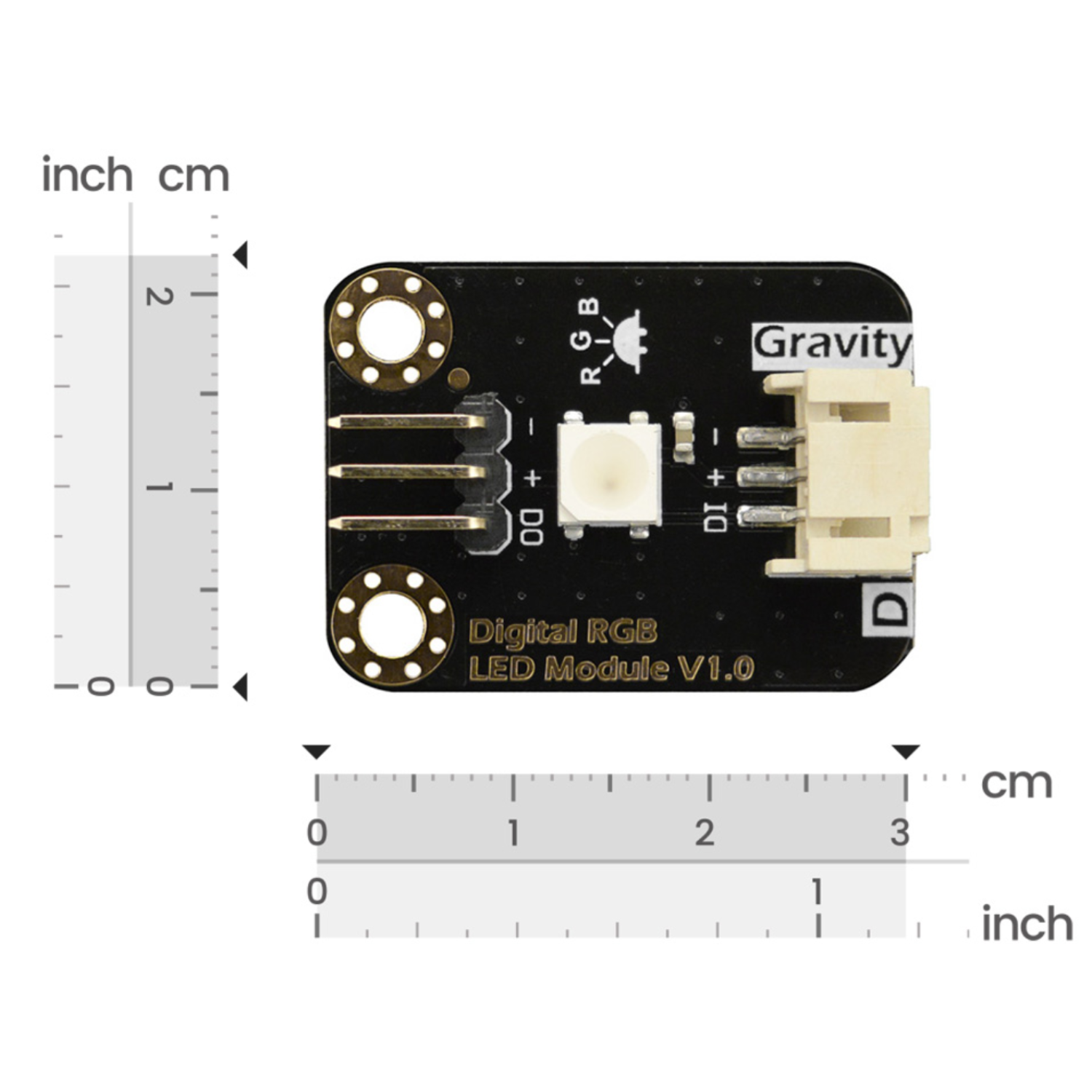

- Dimension: 30.0mm*22.0mm / 1.18*0.87 in
Features:
- Delivers excellent display performance.
- Low power draws over extensive lengths.
- Compatible with 3.3V/5V and existing RGB drivers.
- Standard connectors for solderless installation.
Applications:
- Holiday Decorations
- Signal Indicator
Documents:
Package Included:

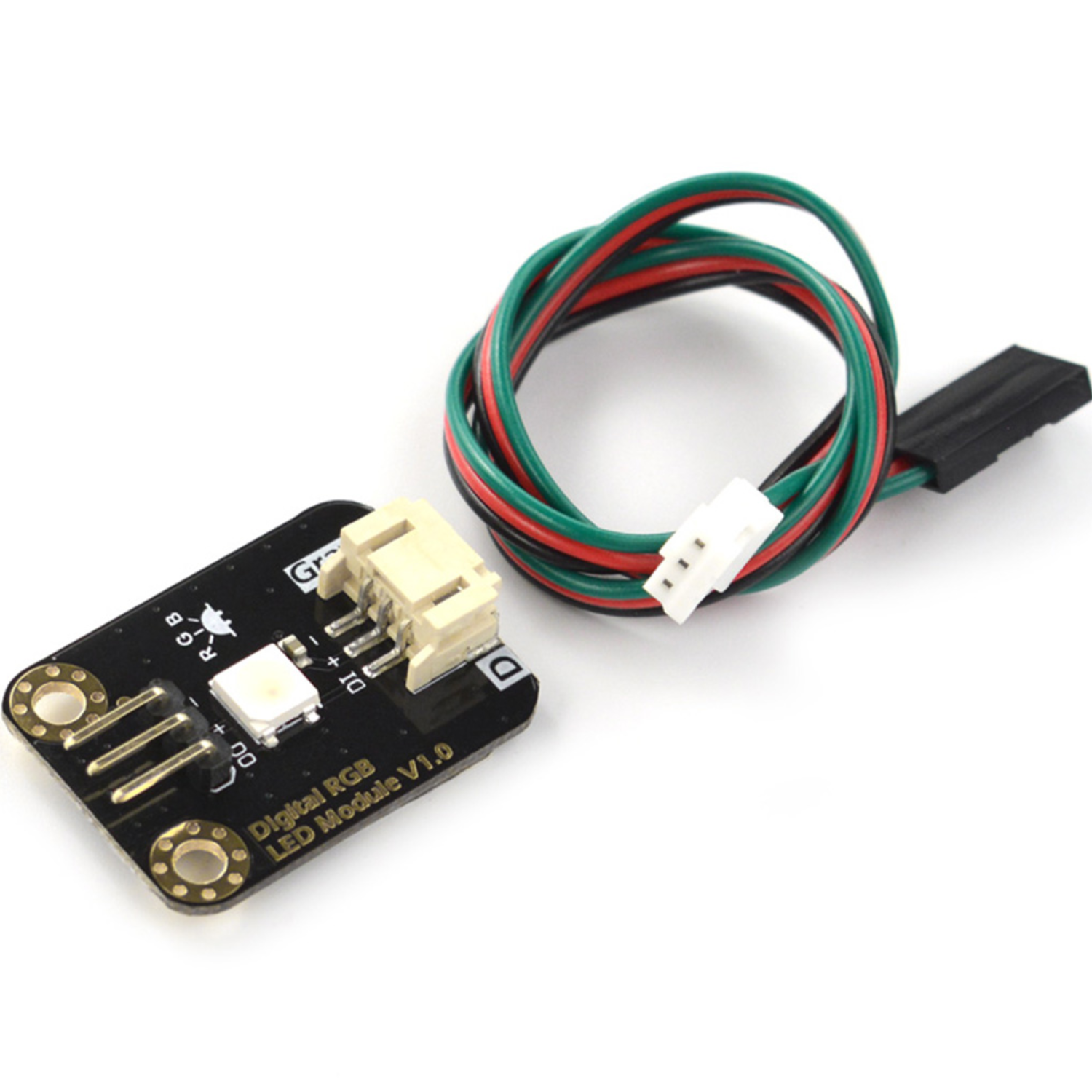

1 x DFRobot Gravity: Digital RGB LED Module
