Description:
The 10.525 GHz microwave motion sensor offers a significant advantage over traditional infrared (IR) sensors by employing the Doppler effect to achieve superior motion detection. Instead of passively sensing heat signatures, this active sensor emits microwaves and intelligently interprets frequency shifts in the reflected waves caused by moving objects. This key distinction provides exceptional sensitivity to a broad spectrum of microwave-reflective materials and, crucially, eliminates the influence of ambient temperature on sensor readings. This inherent reliability and versatility make it an indispensable component in numerous industrial, transportation, and civil applications. From accurately gauging vehicle speed and monitoring liquid levels to enabling hands-free automatic doors and washing systems, ensuring precise material detection in production processes, and enhancing driver safety with car reversing assistance, this microwave sensor delivers dependable performance in diverse and demanding environments.
Specifications:
- Working Voltage: 5V + 0.25V
- Working Current (CW): 60mA max., 37mA typical
- Interface: Gravity 3-Pin interface（Digital）
- Size: 48.5x63mm
- Emission parameters:
- Detection Distance: 2-16M continuously adjustable
- Emission Frequency: 10.525 GHz
- Precision Frequency Setting: 3MHz
- Output Power (minimum): 13 dBm EIRP
- Harmonic Emission: < -10 dBm
- Average Current (5%DC): 2mA typ.
- Pulse Width (Min.): 5uSec
- Load Cycle (Min.): 1%
- Reception Parameters:
- Sensitivity:(10dB S/N ratio) 3Hz to 80Hz
- Bandwidth: -86 dBm
- 3Hz to 80Hz Bandwidth Clutter: 10uV
- Antenna Gain: 8dBi
- Vertical 3dB Beam Width: 36 degrees
- Level 3dB Beam Width: 72 degrees
Features:
- Operates without physical contact.
- Reliable across diverse conditions.
- Senses living and non-living targets.
- Performs reliably despite noise, dust, or light.
- Emits low power for user safety.
Applications:
- Vehicle speed measurement
- Liquid level detection
- Automatic doors
- Production line monitoring
- Safety and security systems
Documents:
Package Included:

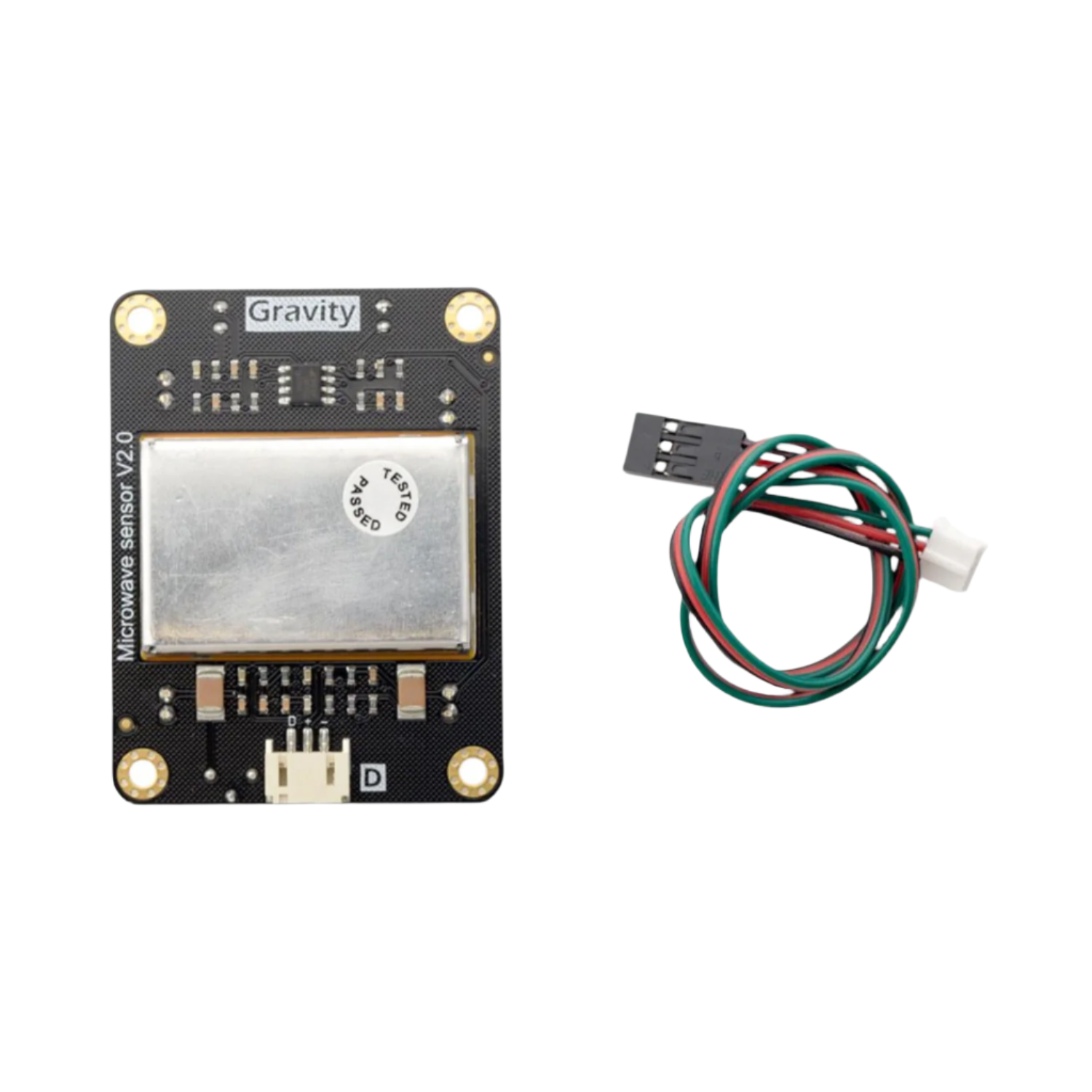

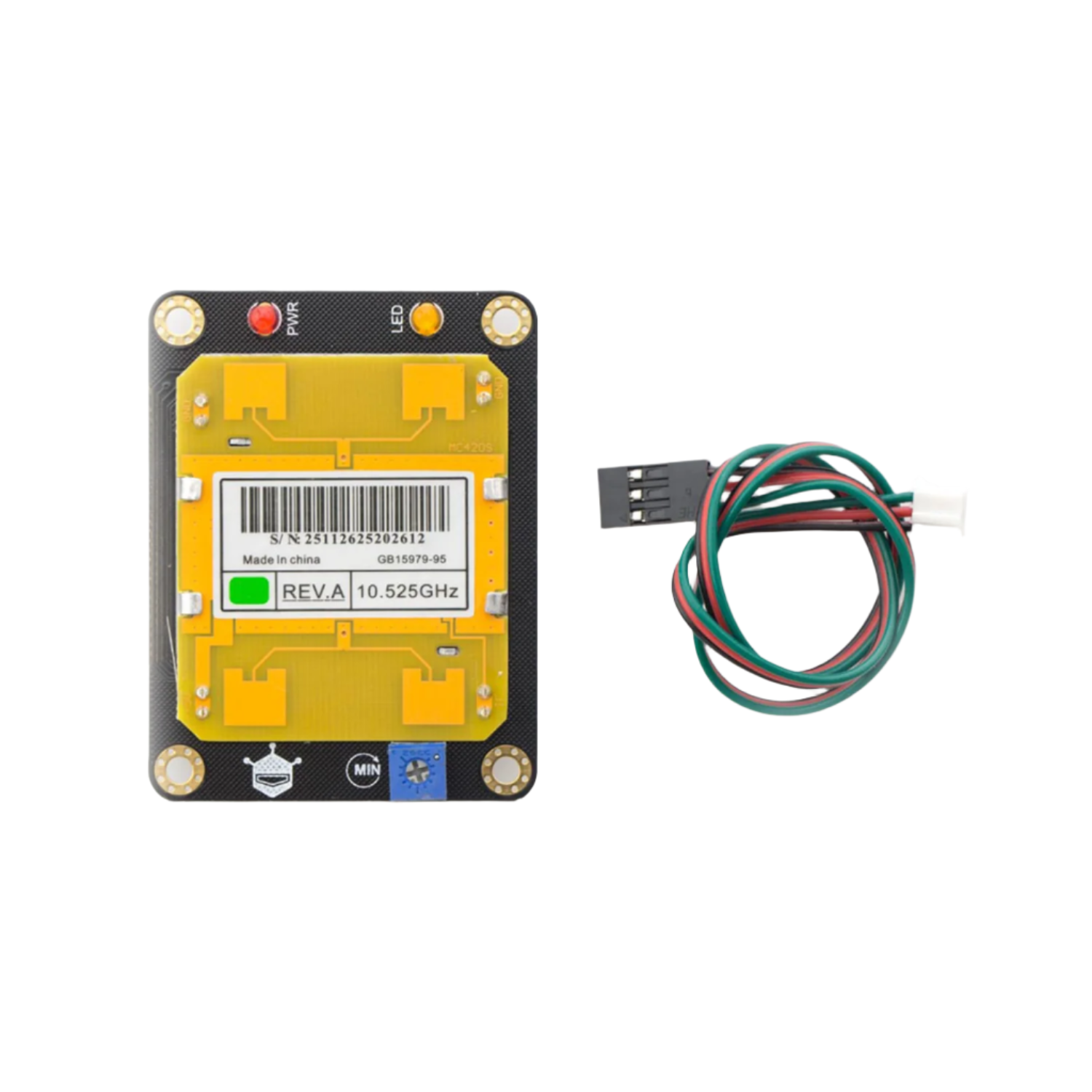

1 x DFRobot Gravity: Digital 10.525GHz Microwave Sensor (Motion Detector)
