Description:

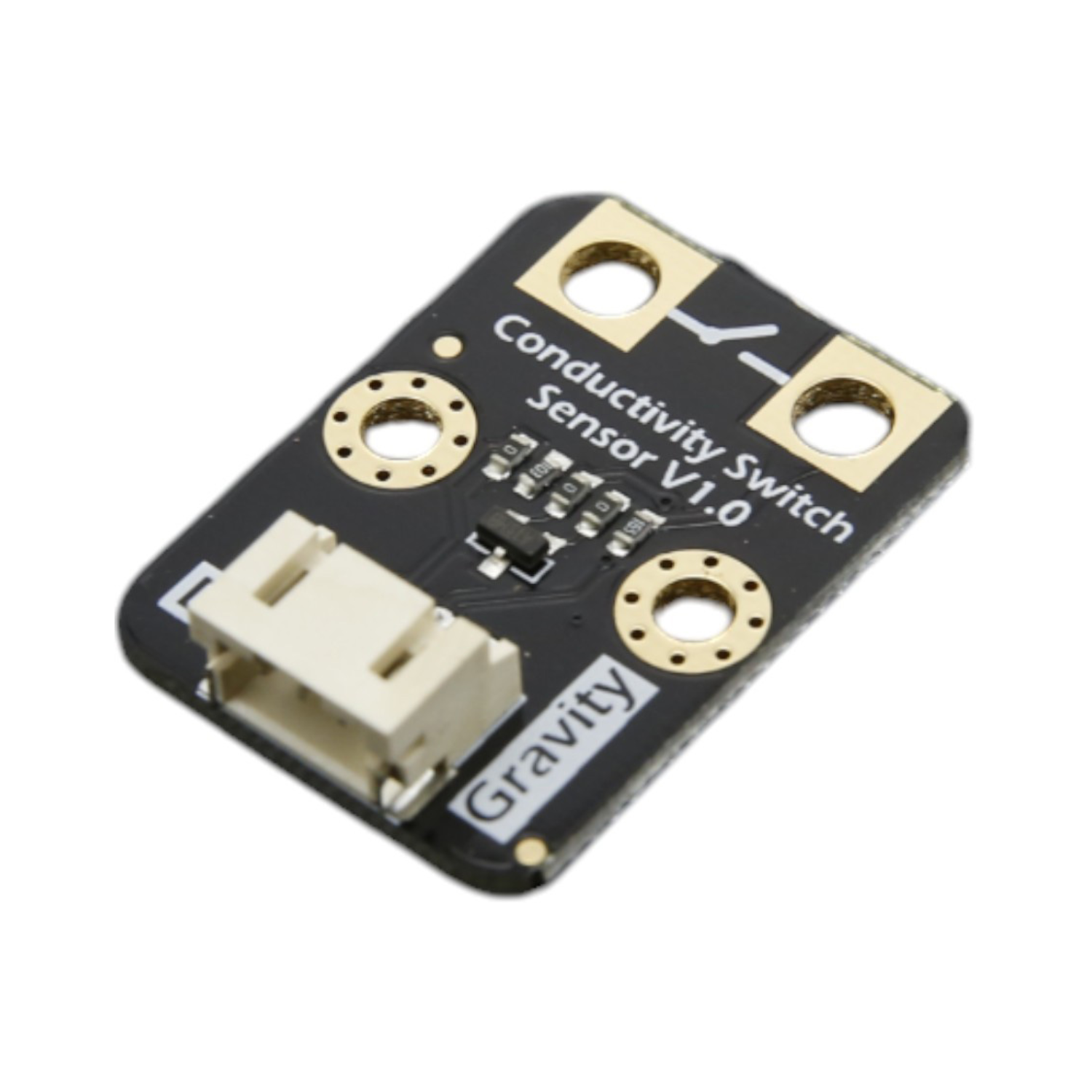

This compact Gravity Conductivity Sensor Switch module opens up a world of interactive possibilities by enabling you to detect the electrical conductivity of a wide range of objects. Going beyond typical metal detection, this versatile sensor can sense the subtle conductivity present in everyday items like human skin, fruits, and even plants, with a maximum detection threshold of 10MΩ.
Imagine the possibilities: by simply bridging the positive and negative terminals with a conductive material, you can trigger a change in the module's output state. This simple yet powerful mechanism allows you to create engaging and innovative projects. Transform a collection of bananas into a playable piano, craft musical wind chimes triggered by touch, or even design a unique video game controller using conductive fruits to navigate Super Mario's world.
As part of the acclaimed Gravity Sensor Family, this conductivity switch boasts the user-friendly features you've come to expect. The plug-and-play Gravity Interface, complete with color-coded pins, ensures effortless connection. Built-in reverse polarity protection safeguards your components during setup. For even more complex and creative endeavors, seamlessly integrate this sensor with our Gravity IO Expansion Shield to connect a multitude of sensors and unlock a new dimension of interactive fun!
Specifications:
- Operating Voltage: 3.3 ~ 5V
- Output Signal: Digital
- Interface Mode: PH2.0-3P
- Maximum Detecting Resistance: 10MΩ
- Dimension: 30 x 22mm

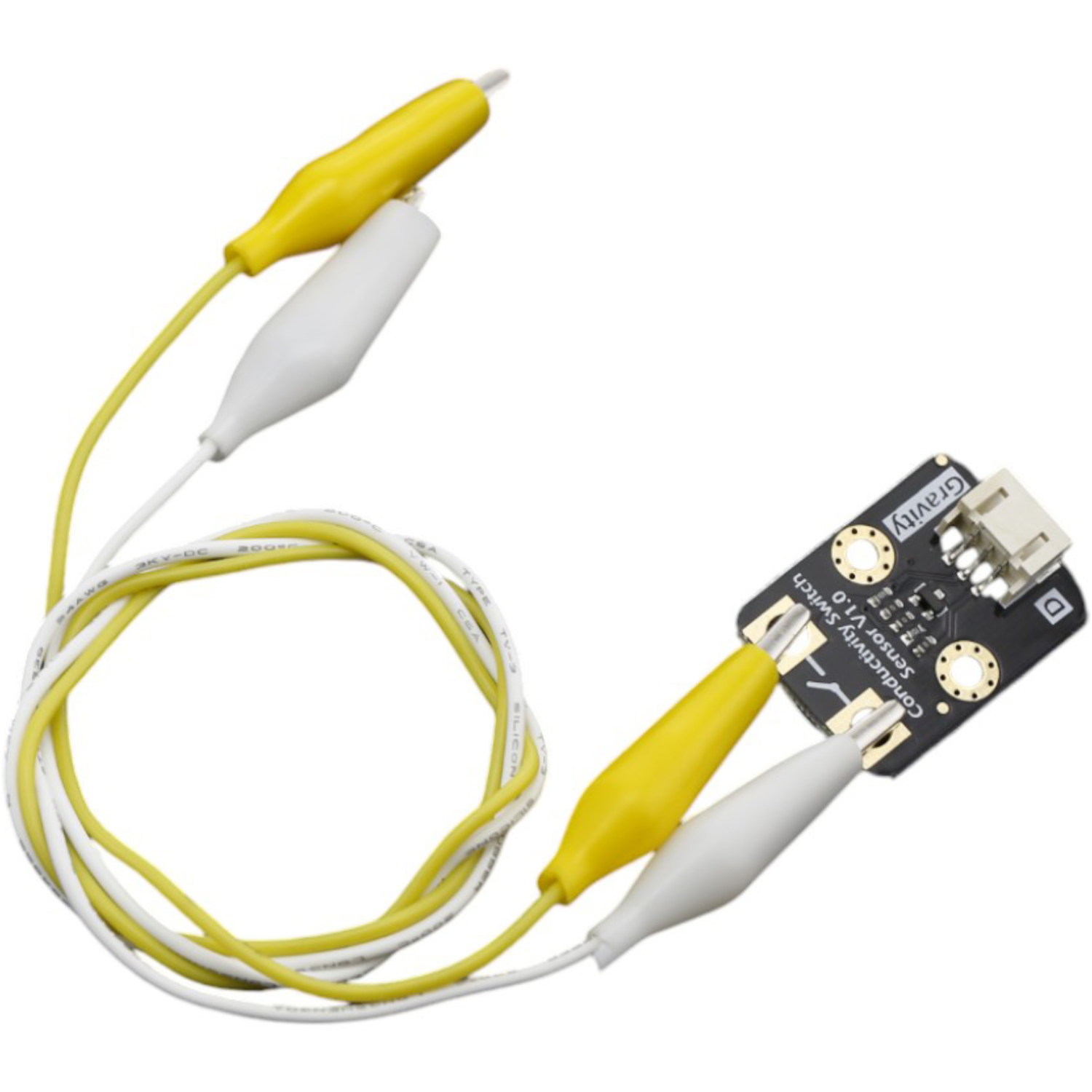

- Alligator clip Length: 45cm
Features:
- From standard metals to the subtle conductivity of humans, fruits, and plants (up to 10MΩ).
- Perfect for crafting innovative art installations, playful interfaces like fruit pianos, and unconventional game controllers.
- Part of the Gravity Sensor Family with plug-and-play simplicity, color-coded pins, and reverse polarity protection.
Documents:

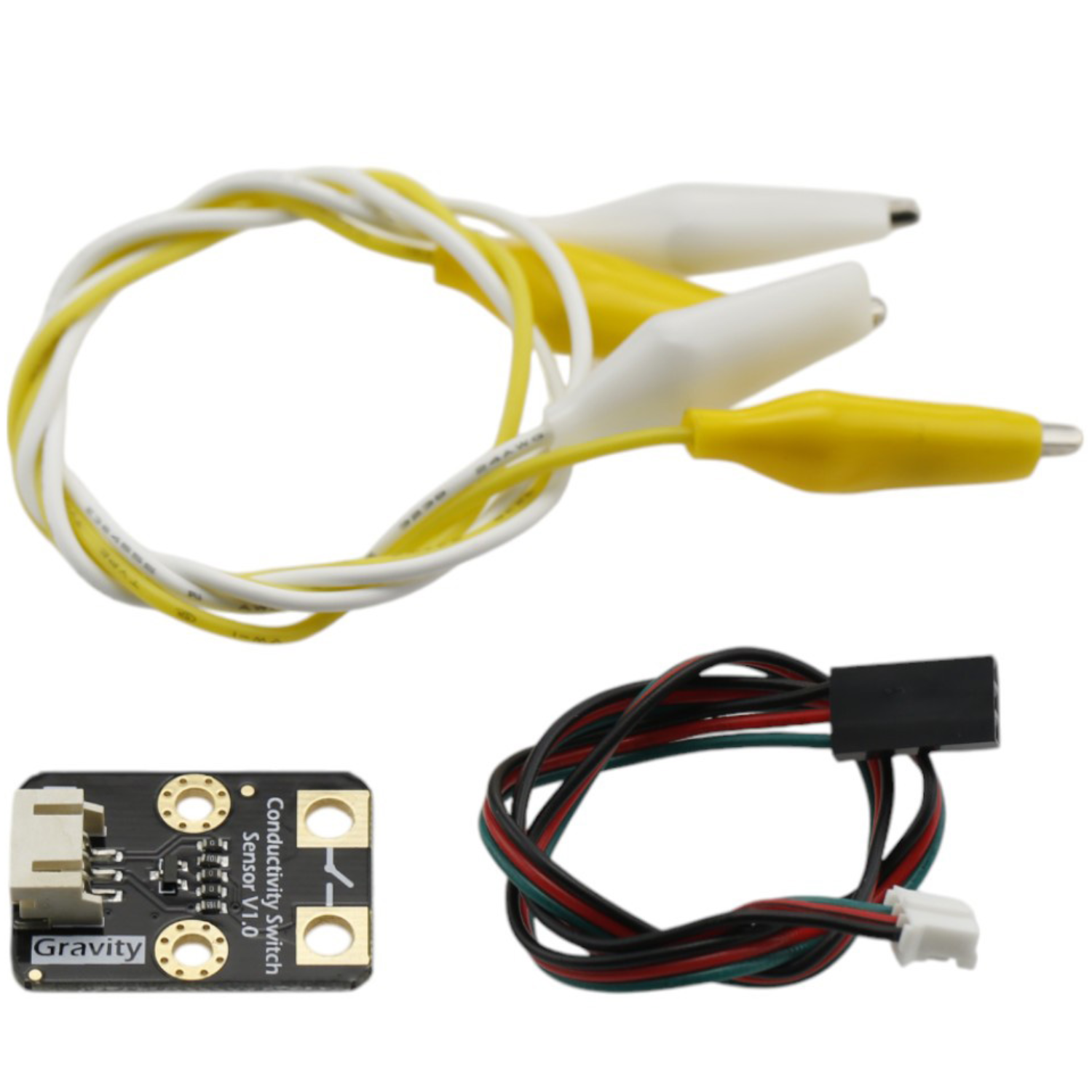

Package Included:
1 x DFRobot Gravity: Conductivity Sensor Switch
