Description:

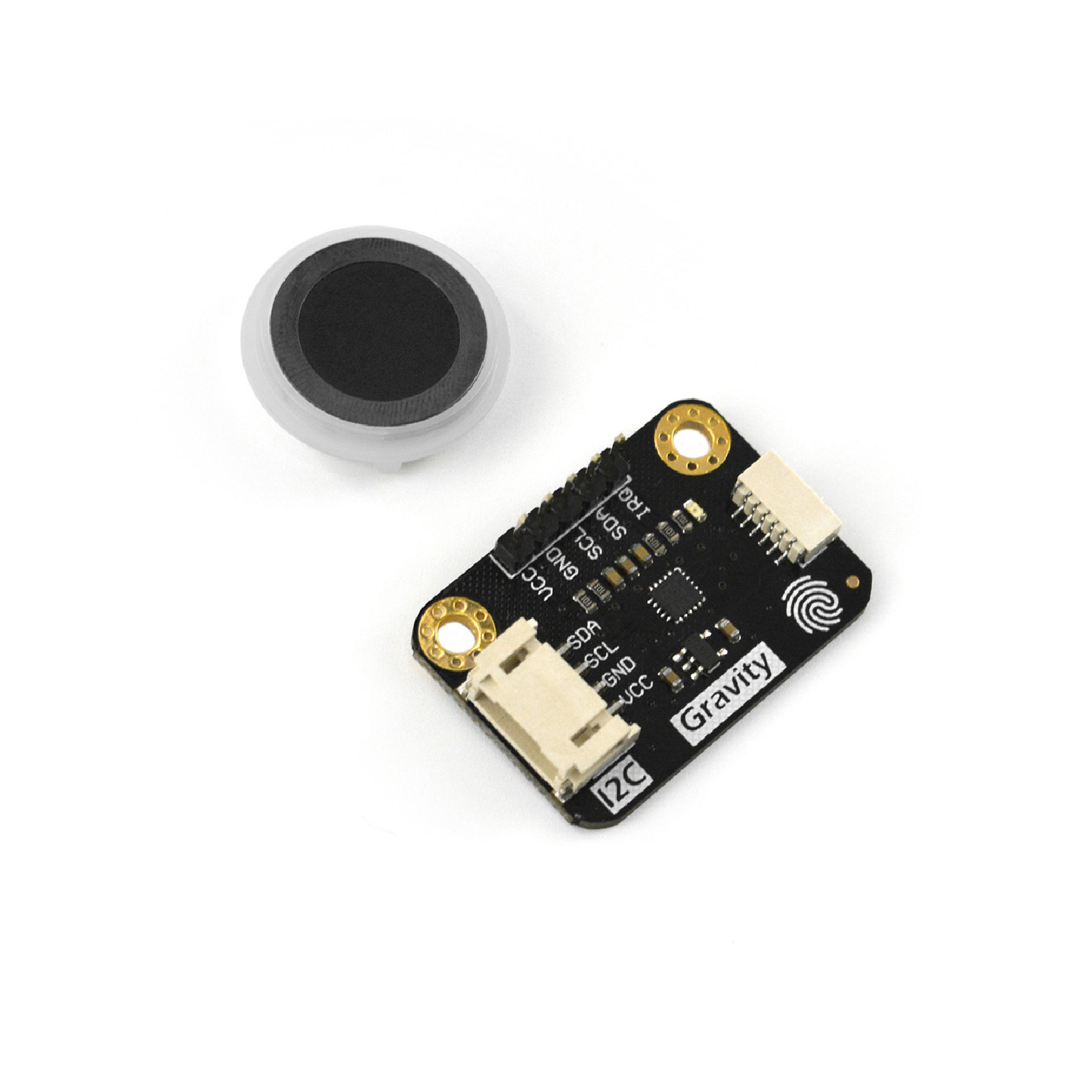

This is a capacitive fingerprint sensor with fingerprint collecting, processing, storing, and comparison integrated all in one. Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor is equipped with built-in IDfinger6.0 fingerprint algorithms that enable it to complete all the fingerprint recognition independently. When working with our Arduino Library, the module can realize functions like fingerprint registration, fingerprint deletion, etc. Also, we offer upper computer software to help users conveniently operate this sensor.

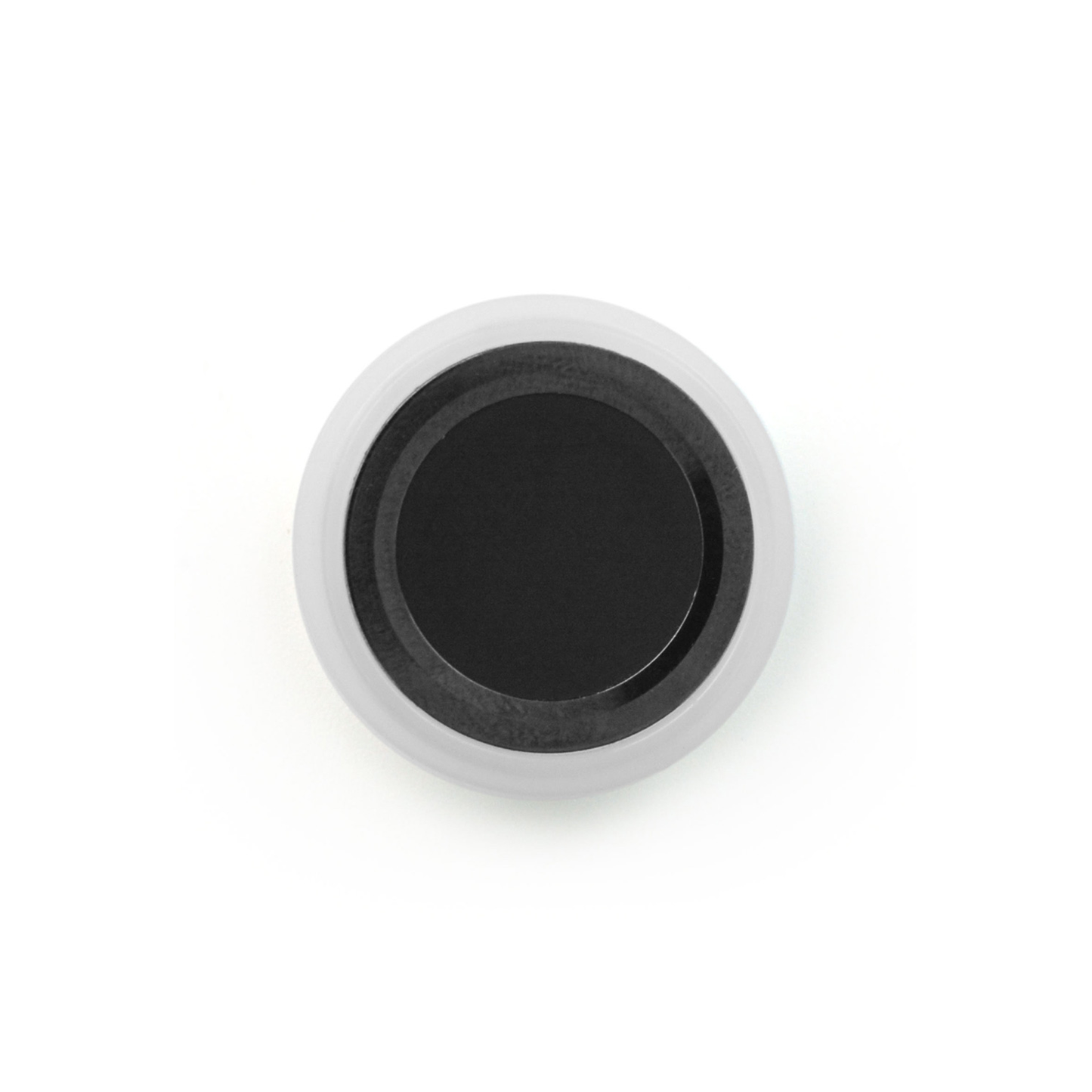

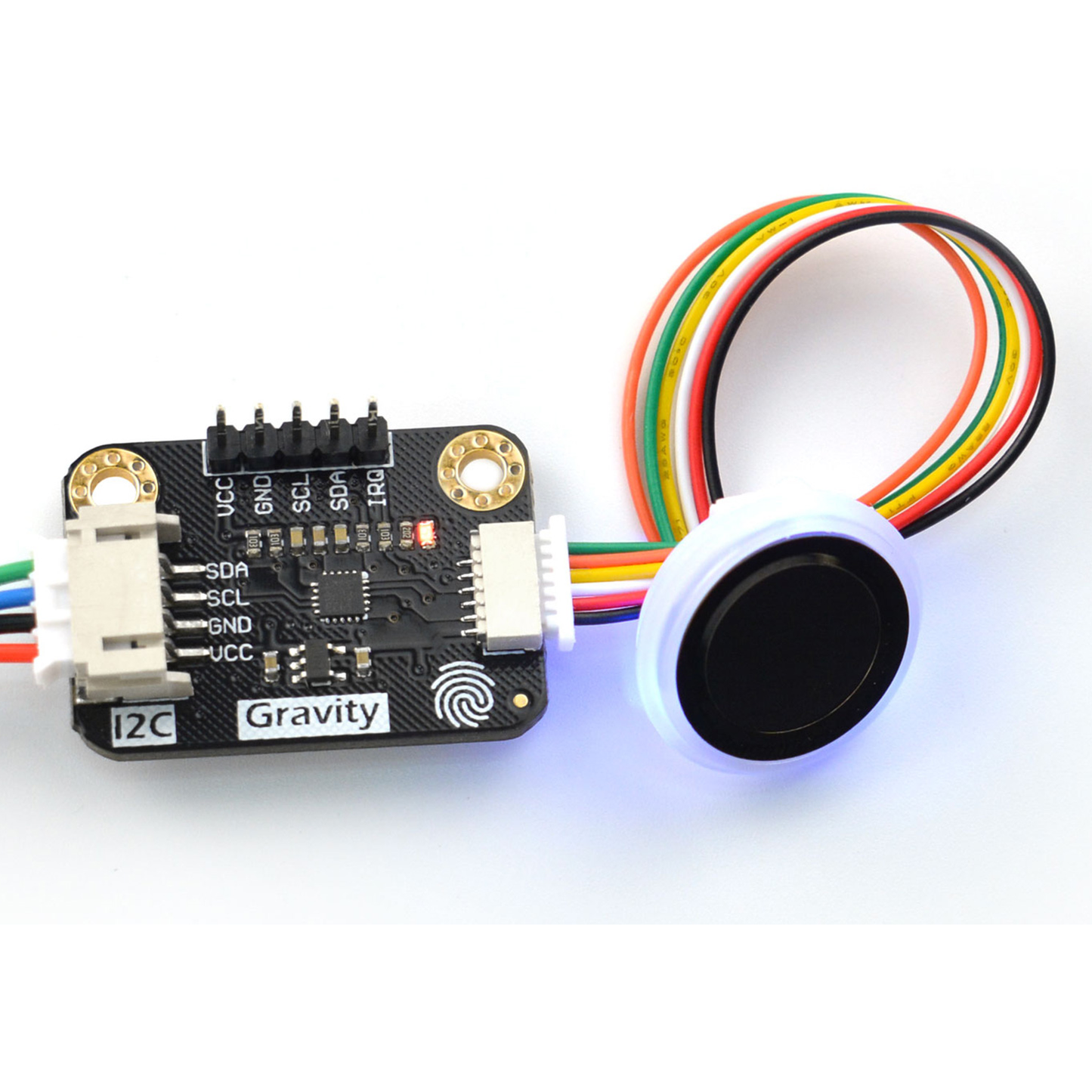

This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.
Compared with SEN0348 Capacitive Fingerprint Sensor/Scanner, this module adopts Gravity interfaces that make it easier to connect. In addition, it is 3.3V and 5V compliant and supports I2C communication, which is very suitable for working with controllers like UNO, micro: bit, and so on.
Specifications:
- Operating Voltage: 3.3V-5V
- Operating Current: <60mA
- Communication: I2C
- Storage Capacity: 80 fingerprints
- 1:1 verification time: 300~400ms
- Pixel Resolution: 508dpi
- Number of Pixels: 160x160
- Fingerprint Detection Area: 8.0mm x 8.0mm
- Working Environment: ‐40‐60℃/

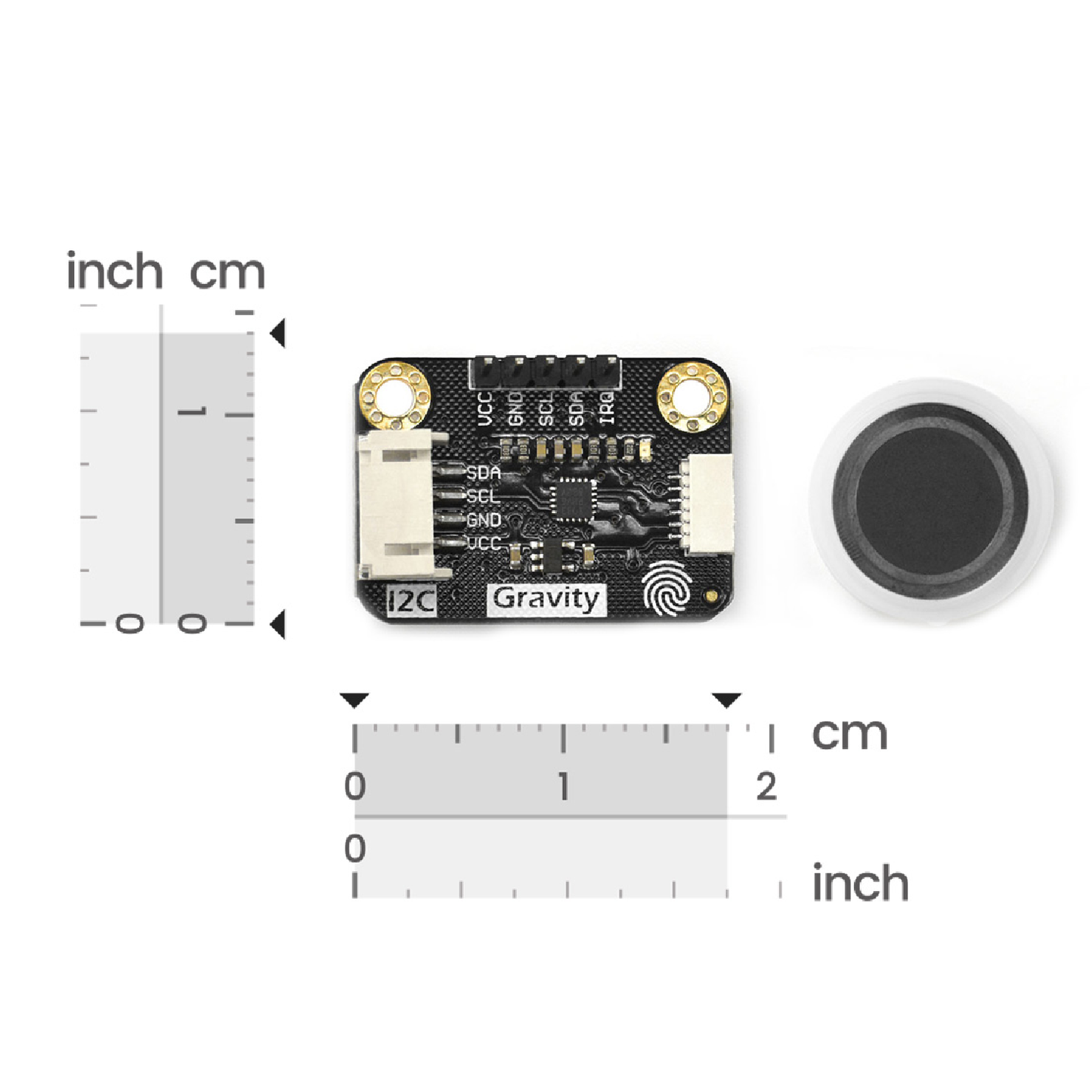

- Dimension: diameter 21mm/height 5mm
- Adapter Dimension: 22.5*32mm/0.89*1.26”
Features:
- 360-degree fingerprint entry and matching
- Self-learning function
- CNC metal ring, plus aperture
Applications:
- Fingerprint door-lock
- Drawer Lock
- Identity Recognition
- Authorization
Projects:
Introduction: This video presents an unboxing and review of four intriguing electronic components. The components include a voice recognition module, a fingerprint sensor, a Bluetooth Low-Energy (BLE) microcontroller, and a flexible RGB Matrix. Each component is examined in detail, highlighting its features and potential applications. The video concludes with a call to viewers to vote on which component should be reviewed first in a future tutorial.
Useful Links:

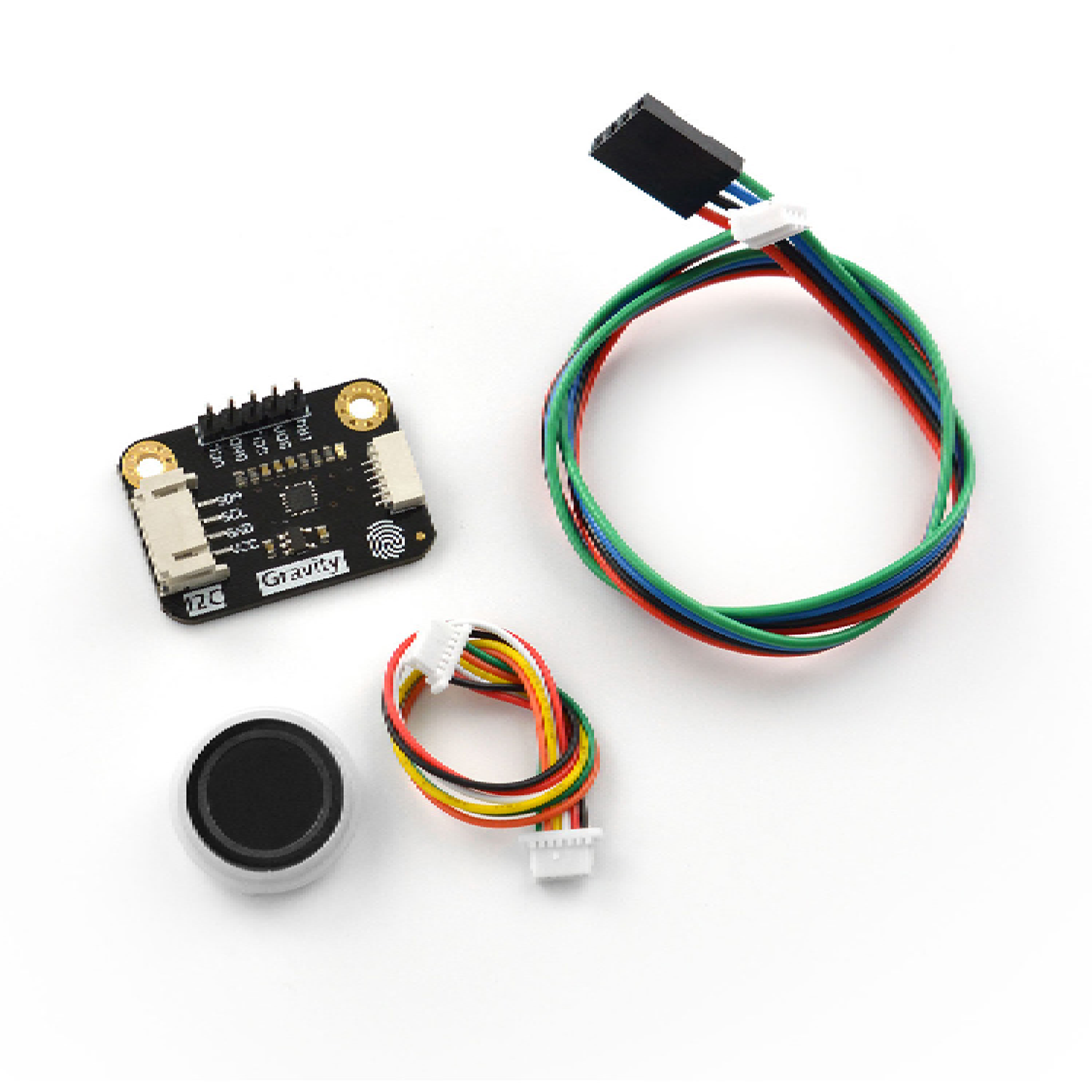

Package Included:
- 1 x Gravity: Capacitive Fingerprint Scanner/Sensor
- 1 x Adapter
- 1 x SH1.0 6P Wire
- 1 x Gravity-4P I2C/UART Sensor Cable
