DFRobot Gravity Calibrated PH3 Sensor High-Sensitivity PH3 Sensor Module With Dual Interface I2C & UART Output With Temperature Compensation
DFRobot Gravity Calibrated PH3 Sensor High-Sensitivity PH3 Sensor Module With Dual Interface I2C & UART Output With Temperature Compensation
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

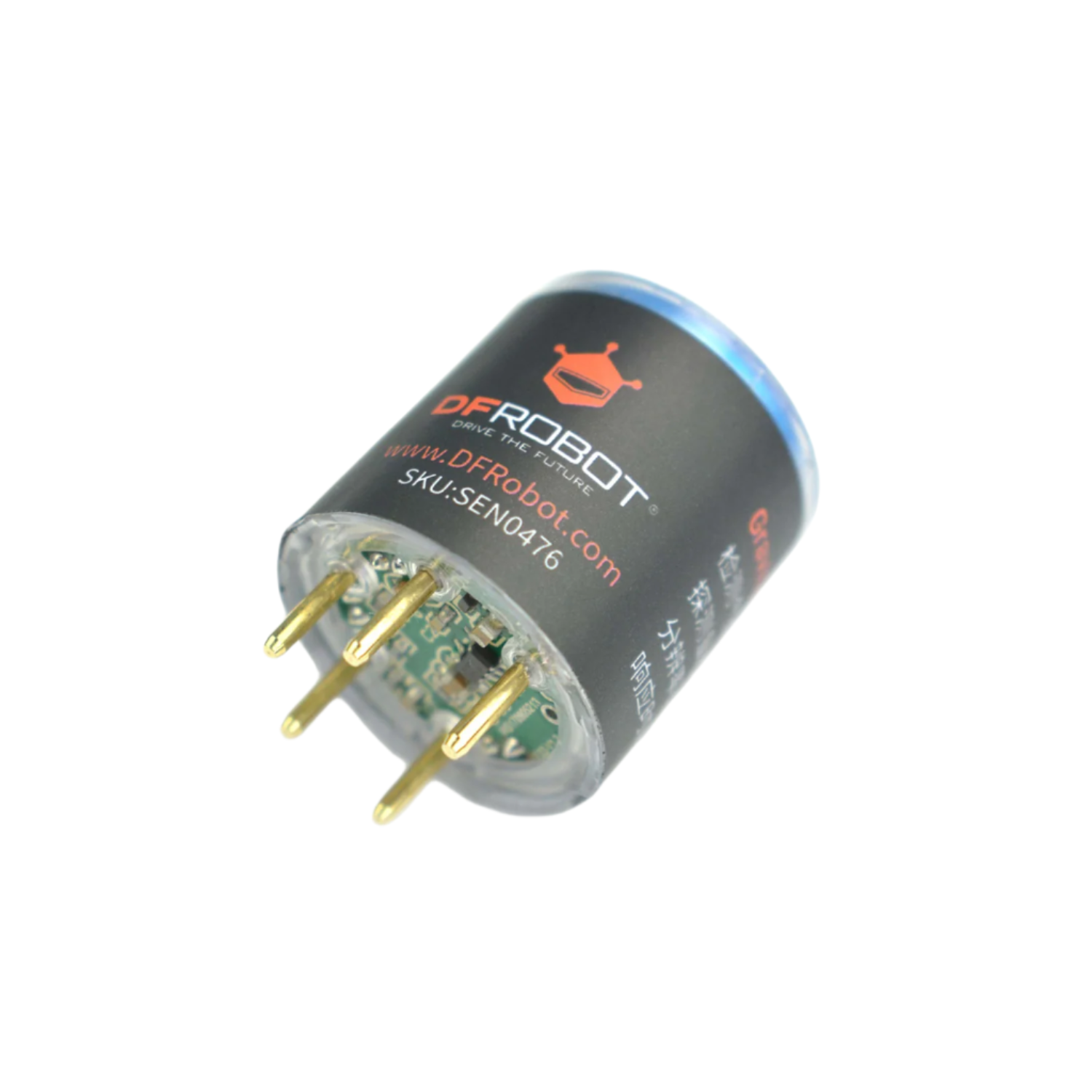

The DFRobot Gravity PH3 Sensor (Calibrated) offers a high-performance solution for detecting phosphine (PH3) concentration in a wide range of environments. Utilizing a stable and sensitive electrochemical sensing principle, this probe demonstrates strong resistance to interference and provides accurate measurements with a service life of up to two years. Its factory calibration ensures out-of-the-box functionality for rapid deployment in portable gas detectors, air quality monitoring systems, industrial safety setups, mines, and storage facilities where air circulation is limited. The sensor's versatility is evident in its three output modes: analog, I2C (with 32 adjustable addresses), and UART (enabling reliable serial communication with parallel-to-serial and serial-to-parallel data conversion and parity checking). Furthermore, an integrated temperature compensation algorithm guarantees measurement accuracy under fluctuating temperatures, and a programmable threshold alarm adds an extra layer of safety and control. Its compatibility with mainstream platforms like Arduino, ESP32, and Raspberry Pi, facilitated by the intuitive Gravity interface and comprehensive sample code, simplifies the creation of sophisticated phosphine detection systems.
Specifications:
- Detection Gas: Phosphine (PH3)
- Detection range: 0~1000ppm
- Working Voltage: 3.3～5.5V DC
- Working Current: ＜5mA
- Output Signal: I2C, UART (0~3V), analog voltage
- Working Temperature: -20～50℃
- Working Humidity: 15~90 % RH (non-condensing)
- Storage Temperature: -20～50℃
- Storage Humidity: 15～90%RH (non-condensing)
- Lifespan: >2 years (in the air)

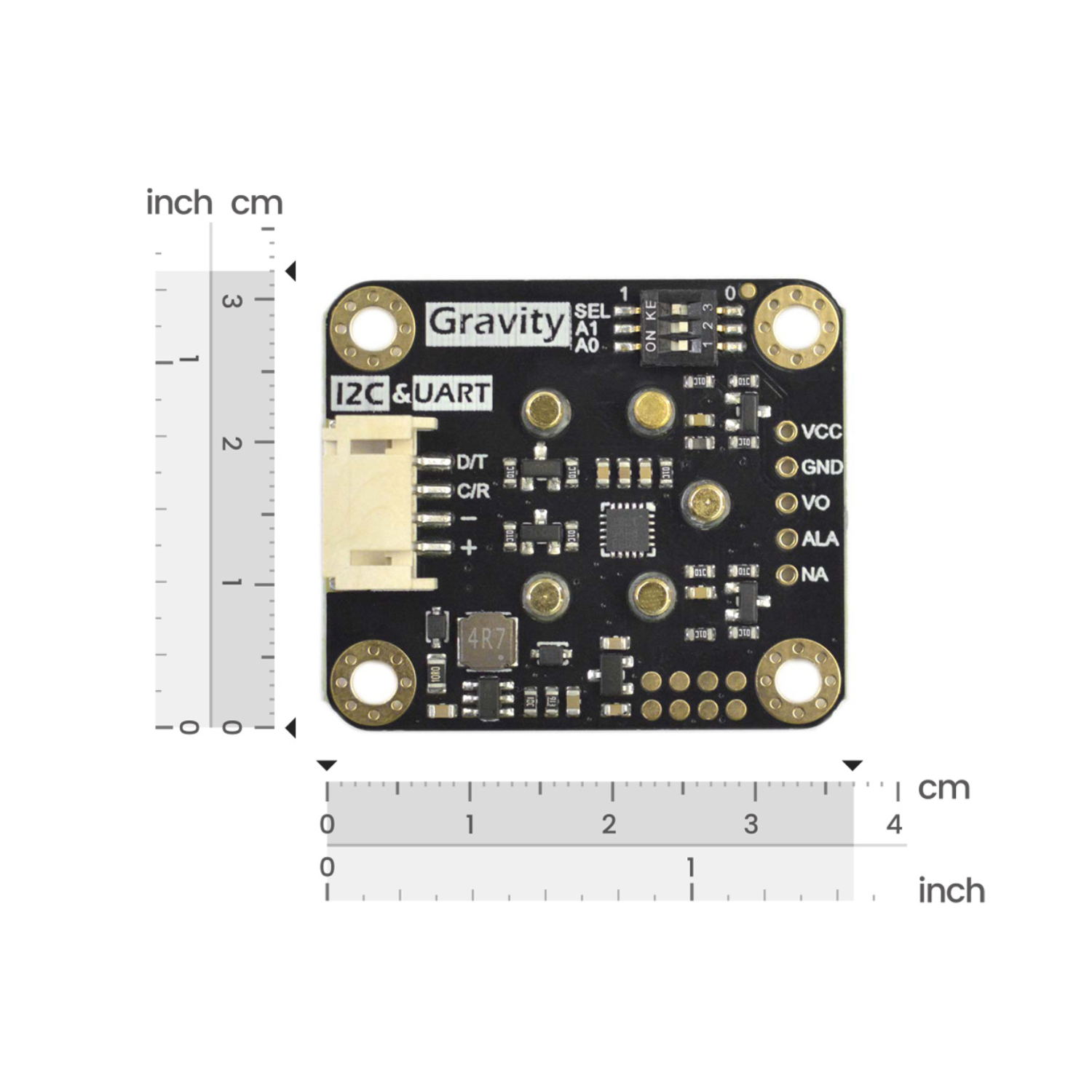

- Adapter Plate Size: 37*32mm
- Compatibility: Arduino, ESP32, Raspberry Pi
Features:
- Detects subtle changes efficiently.
- Delivers consistent performance in noisy environments.
- Offers flexible integration options.
- Provides long-term reliability.
- Integrates easily with various controllers.
- Simplifies multi-sensor setups.
- Prevents damage from incorrect wiring.
- Maintains accuracy across temperature variations.
- Enables proactive event notification.
Applications:
- Industrial phosphine detection
- Mining phosphine detection
- Environmental protection device
Documents:
Package Included:

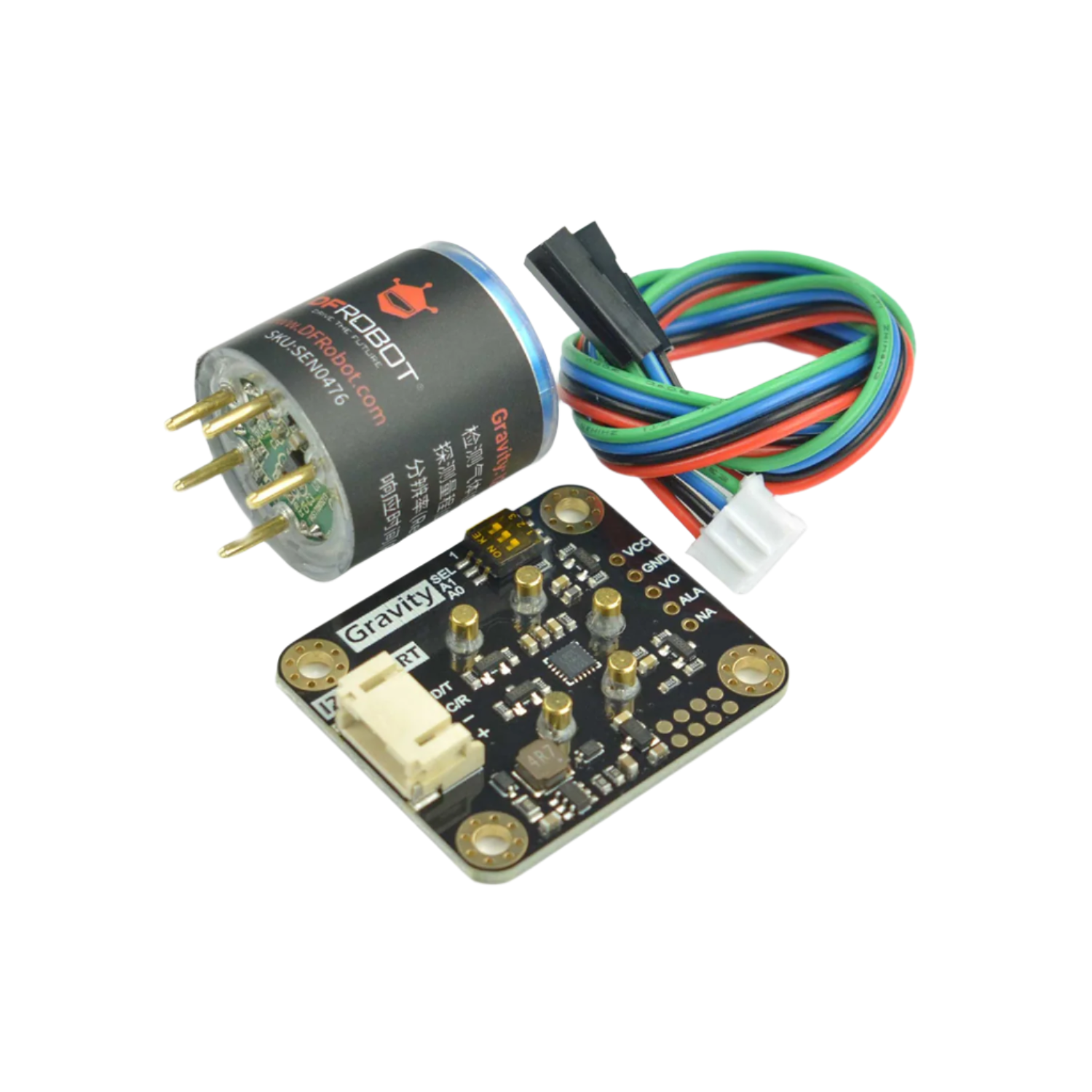

1 x DFRobot Gravity PH3 Sensor (Calibrated) – I2C & UART
