Description:
We live in a colorful world, but how much do you really know about color? Your eyes may deceive you, while the sensors don’t lie. This Gravity: AS7341 11-Channel Visible Light Sensor can tell you the truth about color.

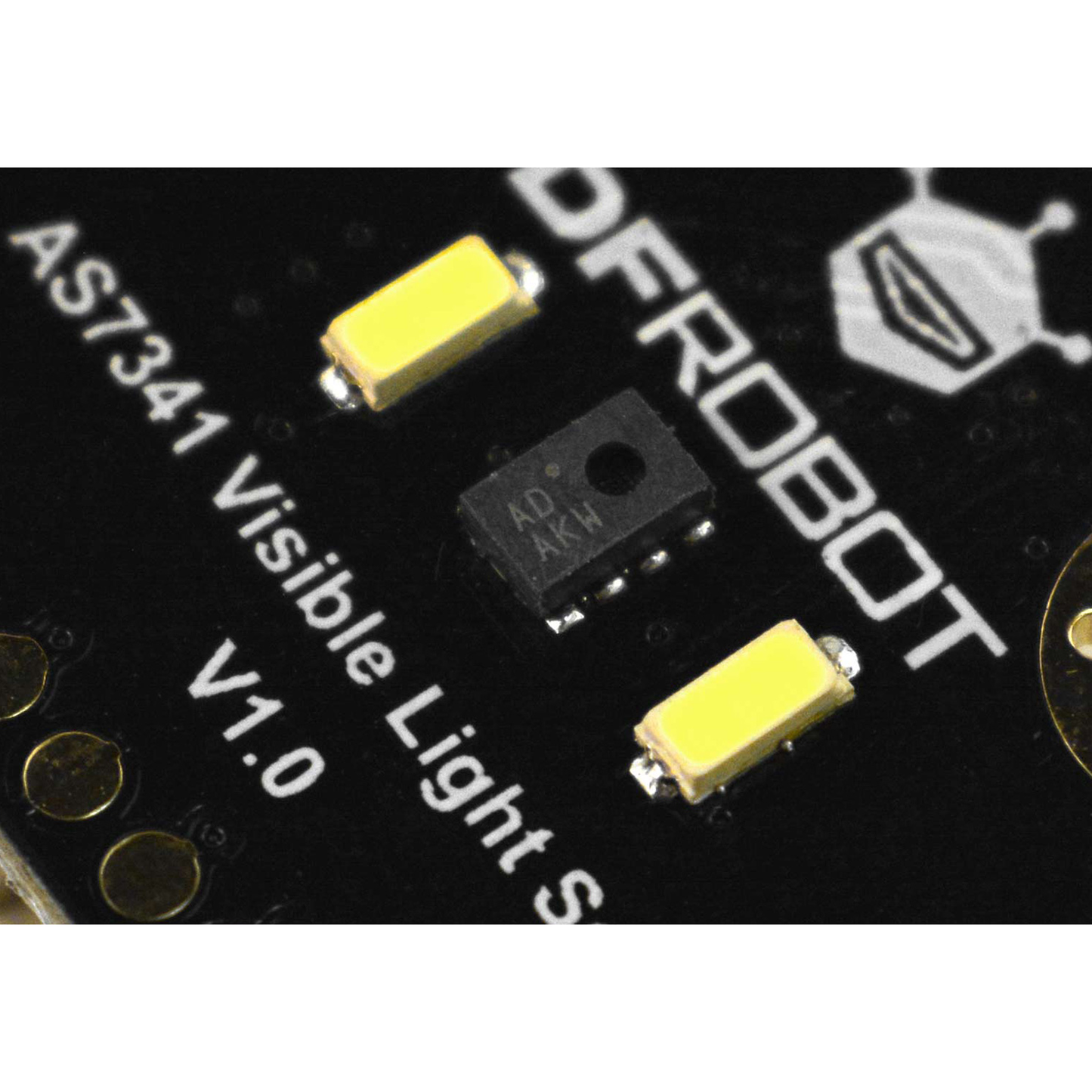

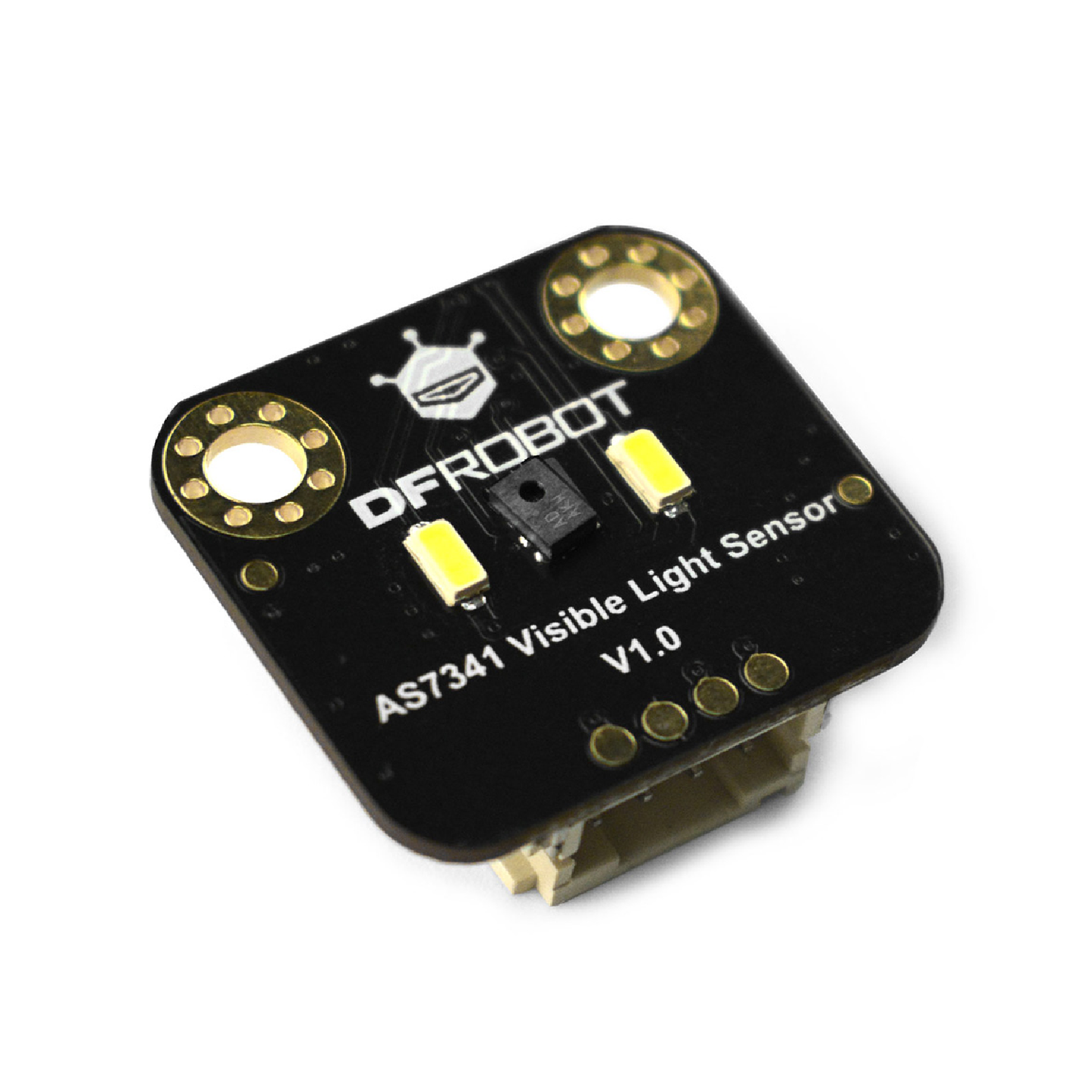

Gravity: AS7341 11-Channel Visible Light Sensor employs the new generation of AS7341 spectral sensor IC launched by the well-known AMS company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also, it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two on-board extra-bright LEDs can supply light in a dark environment.
Specifications:
- Power Supply: 3.3V~5V
- Visible Light Detection Range: F1(405-425nm), F2(435-455nm), F3(470-490nm), F4(505-525nm), F5(545-565nm), F6(580-600nm), F7(620-640nm), F8(670-690nm)
- Operating Current(LED Off): <5mA
- LED Driving Current: Class 1-20 (4-42mA)

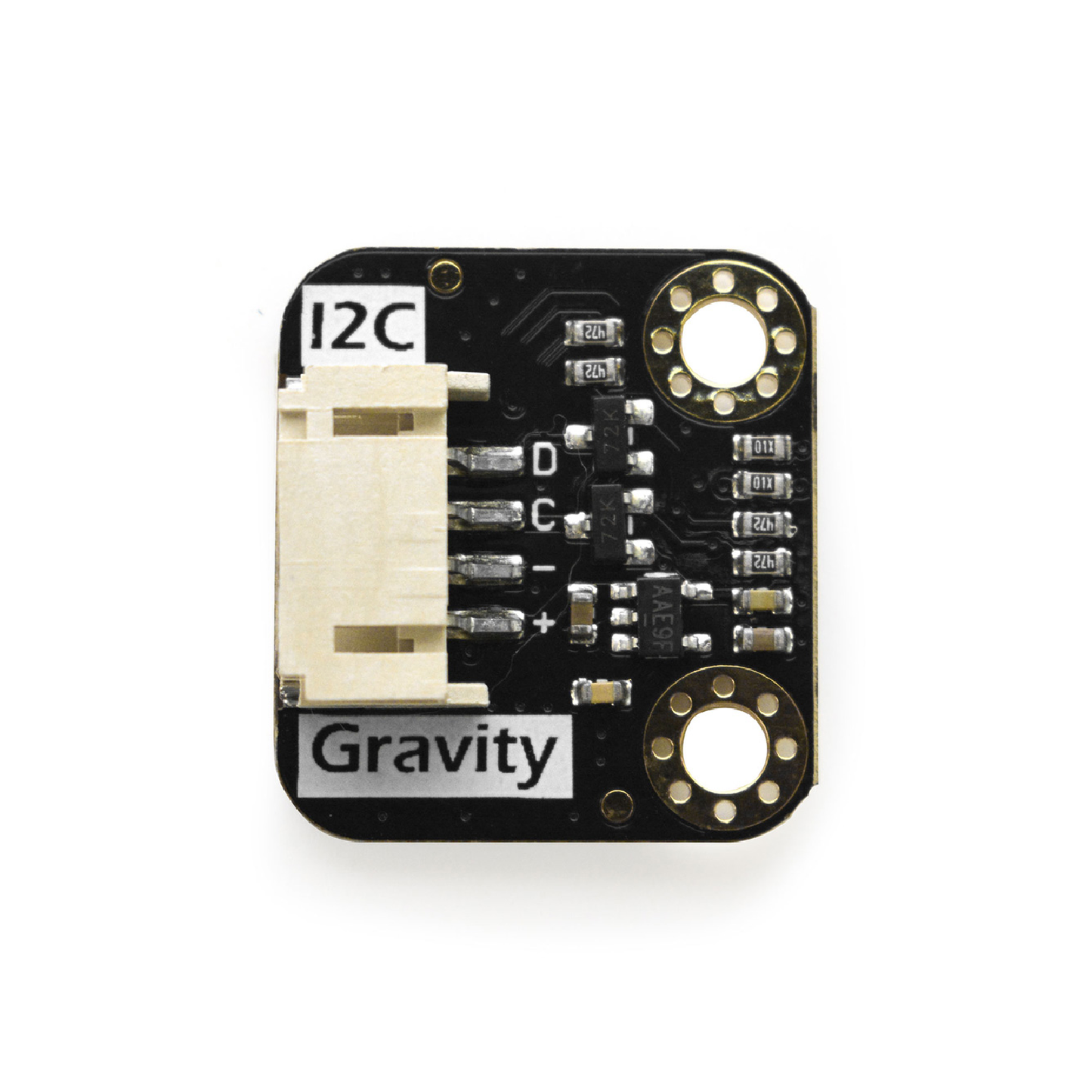

- I2C Address: 0x39
- Operating Temperature Range: -30℃~85℃
- Operating Humidity Range: 5%RH~85%RH

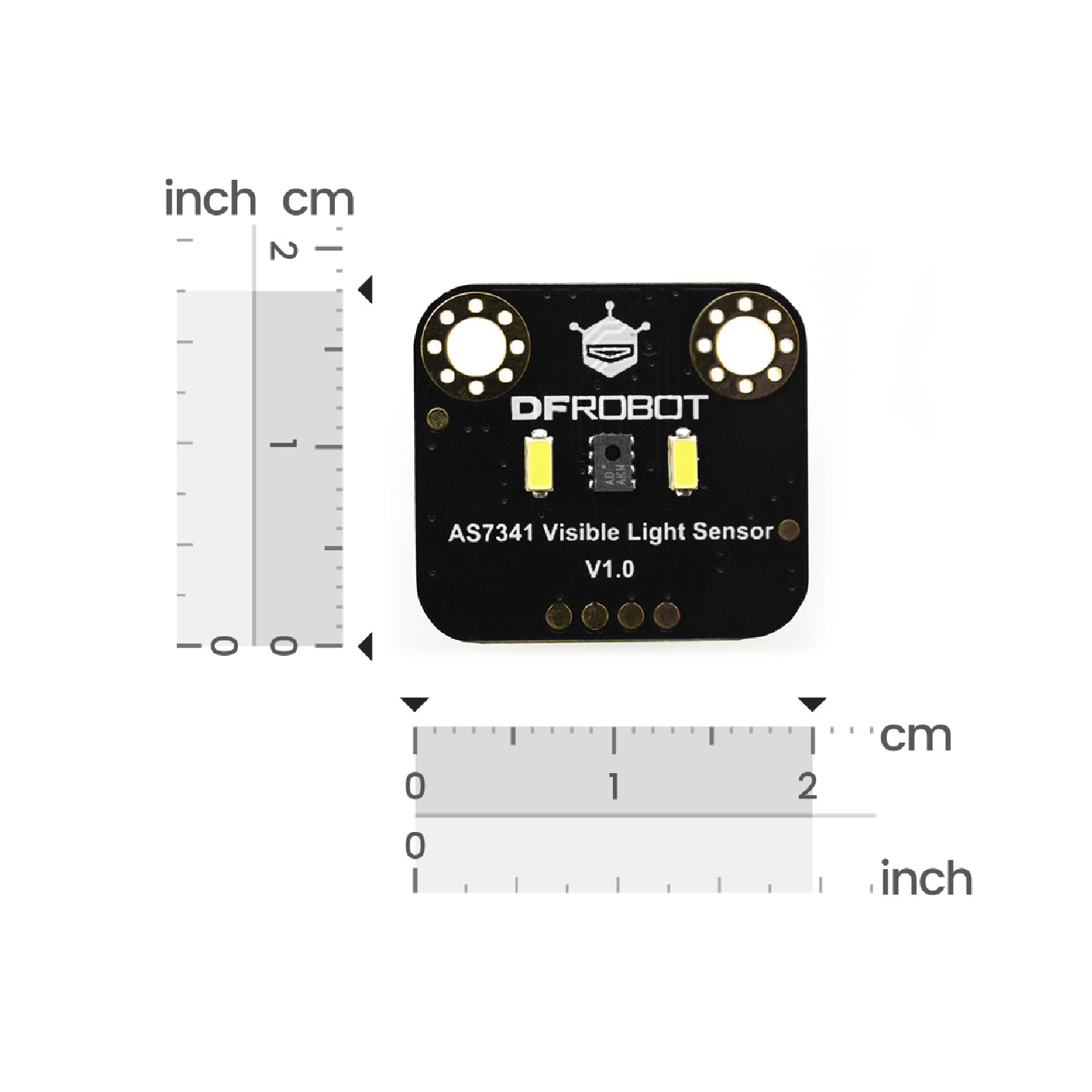

- Dimension: 22*20mm/0.87*0.79”
Features:
- 8 optical channels covering the visible spectral range
- 50Hz and 60Hz ambient light flicker detection
- 6 independent 16-bit ADC channels
Applications:
- High accuracy color detection and matching
- Color mixing effect detection
- Lighting color temperature adjustment
- Lighting atmosphere control
- Modern plant cultivation
Projects:
- Project 1. Spectrophotometer Experiment Based on AS7341 Spectral Sensor
- Project 2. Vegetables and Fruits Ripeness Detection by Color w/ TensorFlow
- Project 3. Test AS7341 Spectrual Sensor---Comparison of Common Light Sources for Household
- Project 4. Spectrophotometer Experiment Based on AS7341 Spectral Sensor
Useful Link:

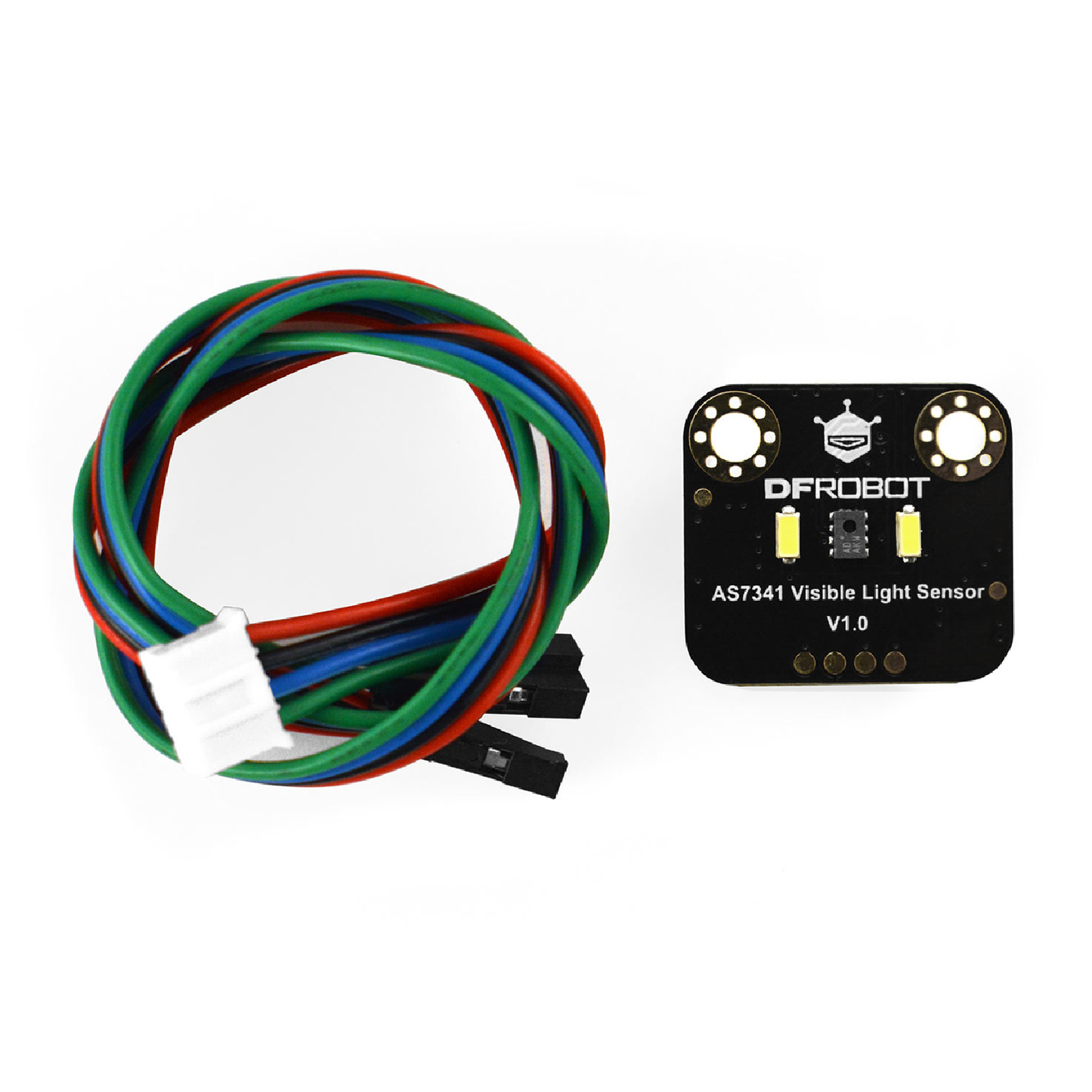

Package Included:
- 1 x Gravity: AS7341 Visible Light Sensor x1
- 1 x Gravity-4P I2C/UART Sensor Cable x1
