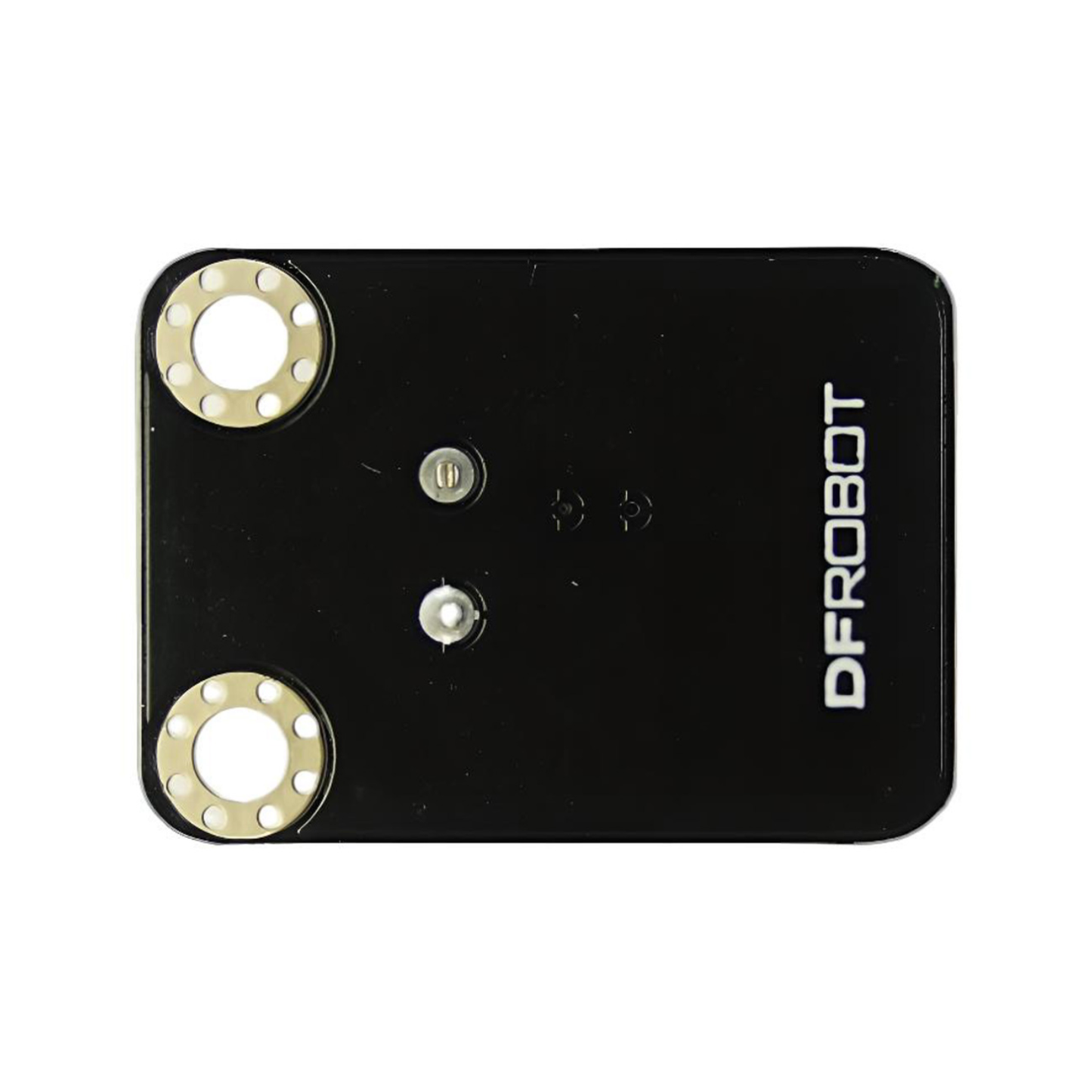

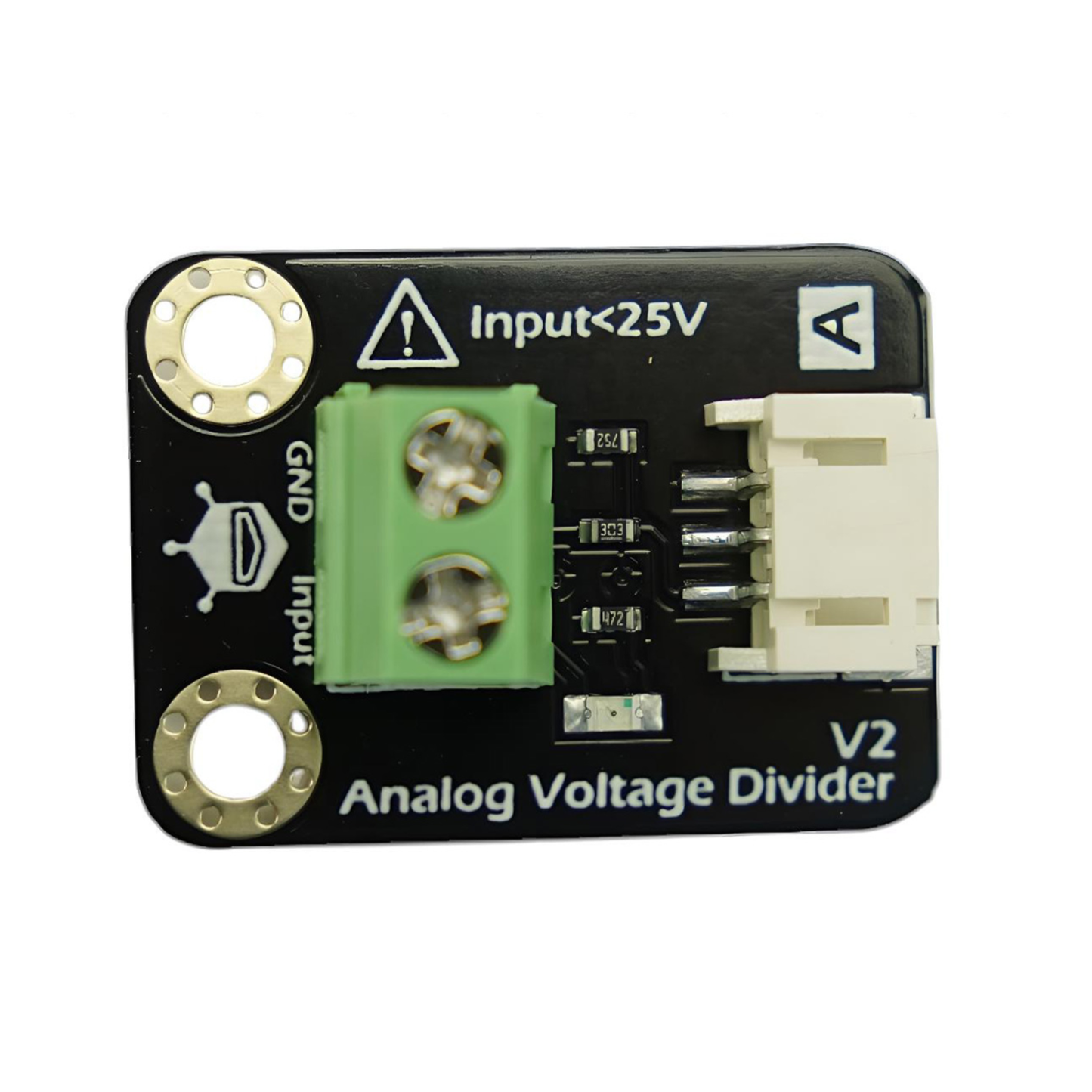

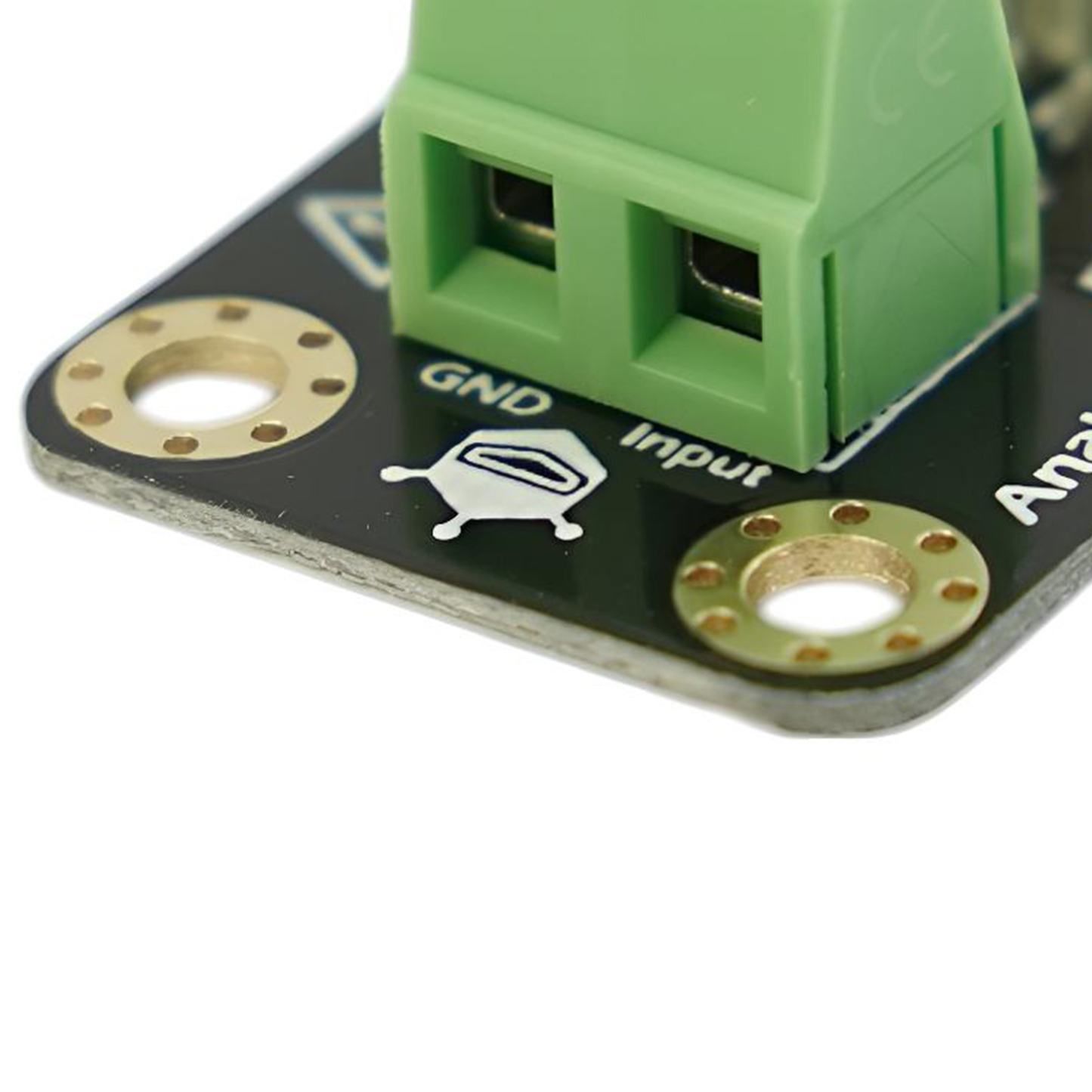

DFRobot Gravity: Analog Voltage Divider V2 5x Voltage Reduction Module For Safe Analog Input Measurement up to 25V - RS9391

DFRobot Gravity: Analog Voltage Divider V2 5x Voltage Reduction Module For Safe Analog Input Measurement up to 25V - RS9391

RS9391

Low stock: 5 left

Rs. 289.00
Rs. 289.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Analog Voltage Divider V2 provides a reliable and straightforward method for measuring higher voltage sources with your microcontroller. Based on a precise resistor divider network, this module effectively scales down input voltages, allowing you to safely and accurately monitor supplies ranging from a low 0.0245V up to 25V. By reducing the input voltage by a factor of five, it ensures compatibility with standard 5V analog inputs on platforms like Arduino, enabling the measurement of voltages that would otherwise exceed their limits.

Notice: The new version of analog sensor port pin mapping has been changed to the following two features.

Specifications:

  • Interface: Analog
  • Input voltage (DC): Maximum 25V, Minimum 0.0245V
  • Detects the supply voltage up to 25V
  • Size:22x30mm (0.87x 1.18 in)

Features:

  • Versatile power input for various microcontrollers.
  • Easy integration with common prototyping setups.
  • Instantly identify interface types.
  • Quickly understand sensor purpose.
  • Ensures reliable and stable connections.
  • Enhances conductivity and prevents corrosion.

Documents:

Package Included:

1 x DFRobot Gravity: Analog Voltage Divider V2
