Description:
The Arduino turbidity sensor detects water quality by measuring the level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. You may also check the Liquid Sensor Selection Guide to get better familiar with our liquid sensor series.
This Arduino turbidity sensor has both analog and digital signal output modes. You can select the mode according to the MCU as the threshold is adjustable in digital signal mode. Turbidity sensors can measure water quality in rivers and streams, wastewater and effluent, sediment transport research, and laboratory measurements.
Note: Please note that the top of the probe is not waterproof!
Specifications:
- Operating Voltage: 5V DC
- Operating Current: 40mA (MAX)
- Response Time: <500ms
- Insulation Resistance: 100M (Min)
- Output Method: Analog/Digital
- Analog Output: 0-4.5V
- Digital Output: High/Low-level signal (you can adjust the threshold value by adjusting the potentiometer)
- Operating Temperature: 5℃~90 ℃
- Storage Temperature: -10℃~90℃
- Weight: 30g

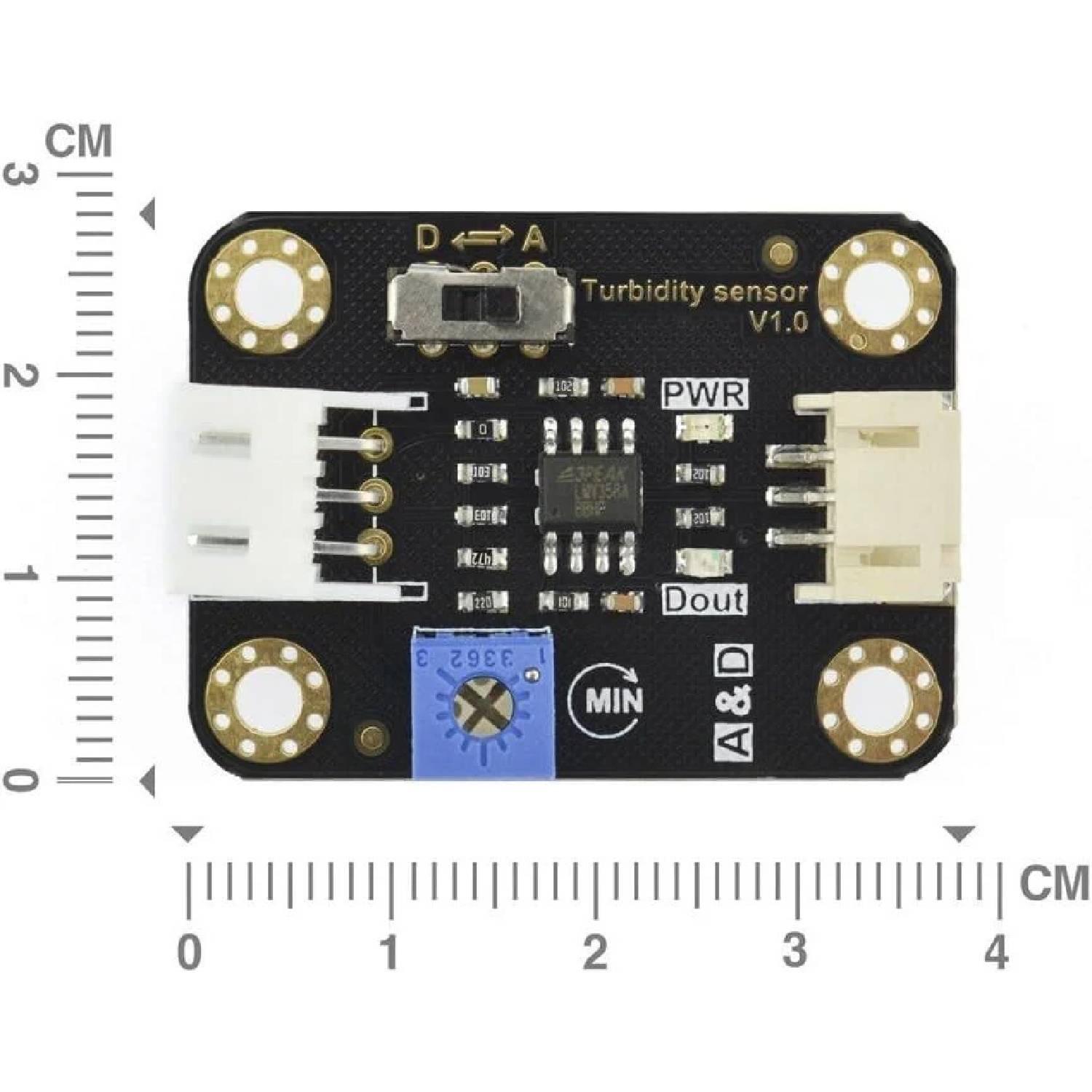

- Adapter Dimensions: 38mm*28mm*10mm/1.5inches *1.1inches*0.4inches
Features:
- Measures water quality by assessing turbidity levels.
- Detects suspended particles in water.
- Determines light transmittance and scattering to gauge TSS.
- Turbidity level increases with increasing TSS.
- Offers both analog and digital signal output.
- Digital mode allows for an adjustable threshold.
- Suitable for sediment transport research.
- Applicable in laboratory measurements.
- Compact and easy to integrate with Arduino boards
- Provides accurate and reliable turbidity readings
- Durable and built for long-term use.
- Cost-effective solution for water quality monitoring.
- User-friendly and easy to set up.
Useful Links:

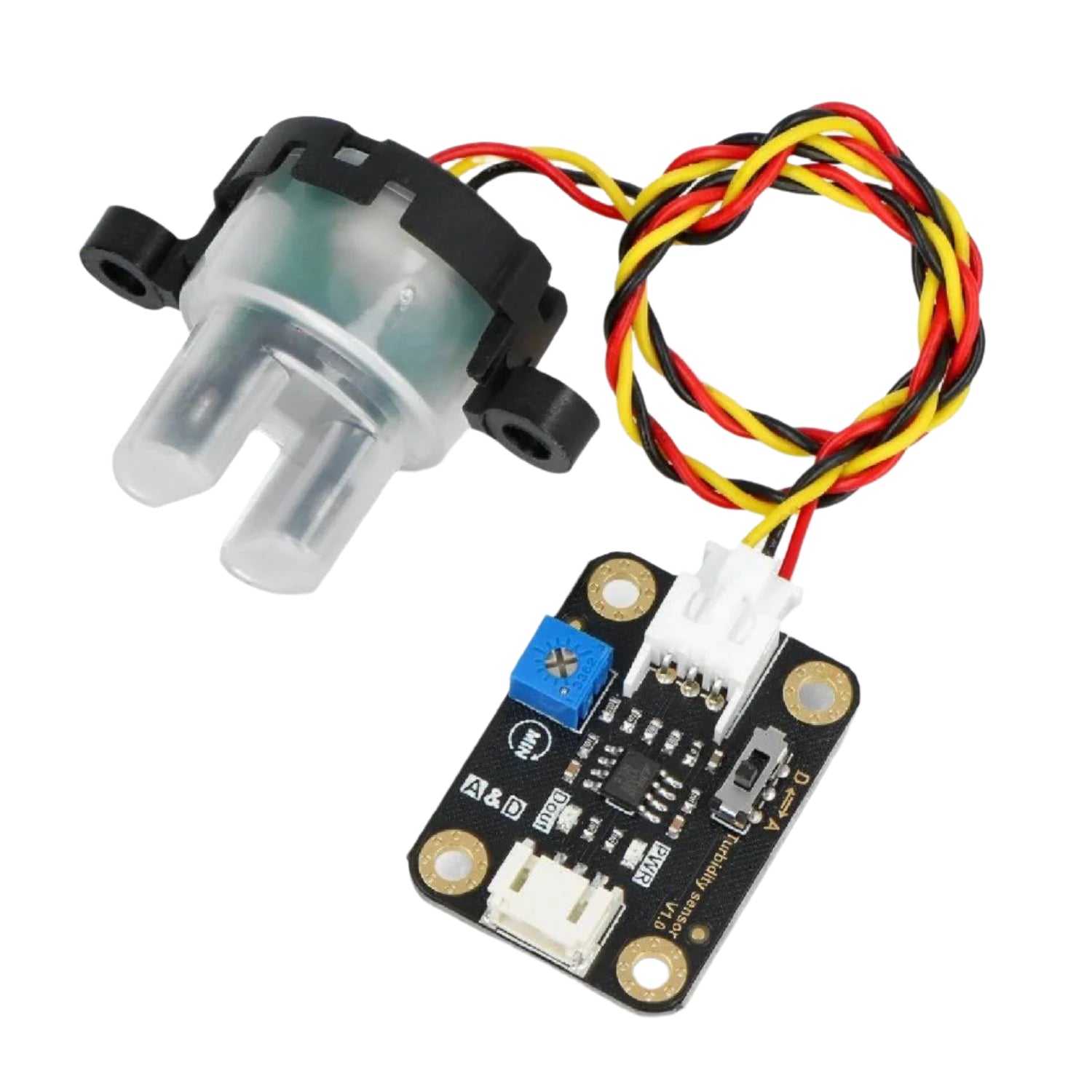

Package Included:

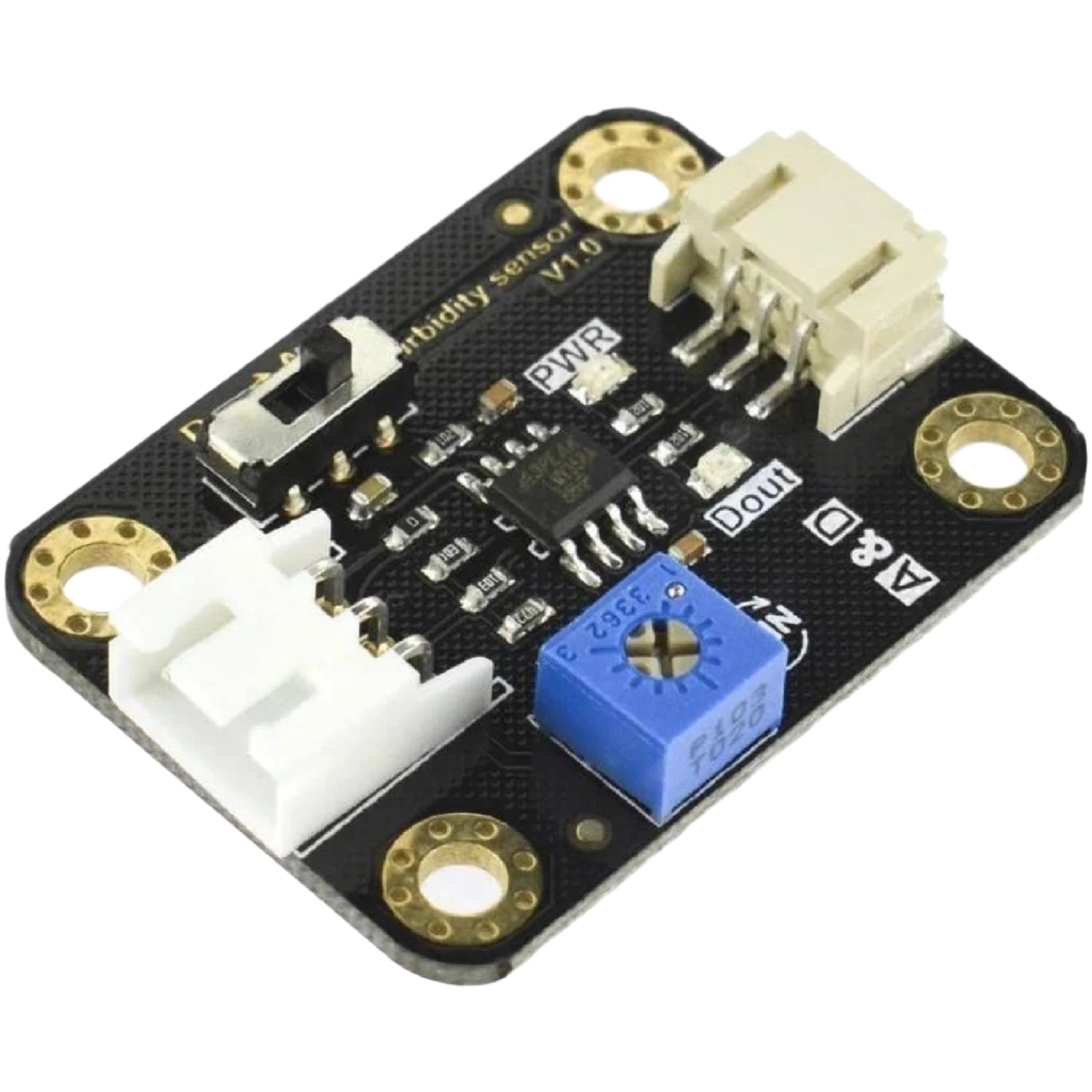

- 1 x Turbidity sensor adapter

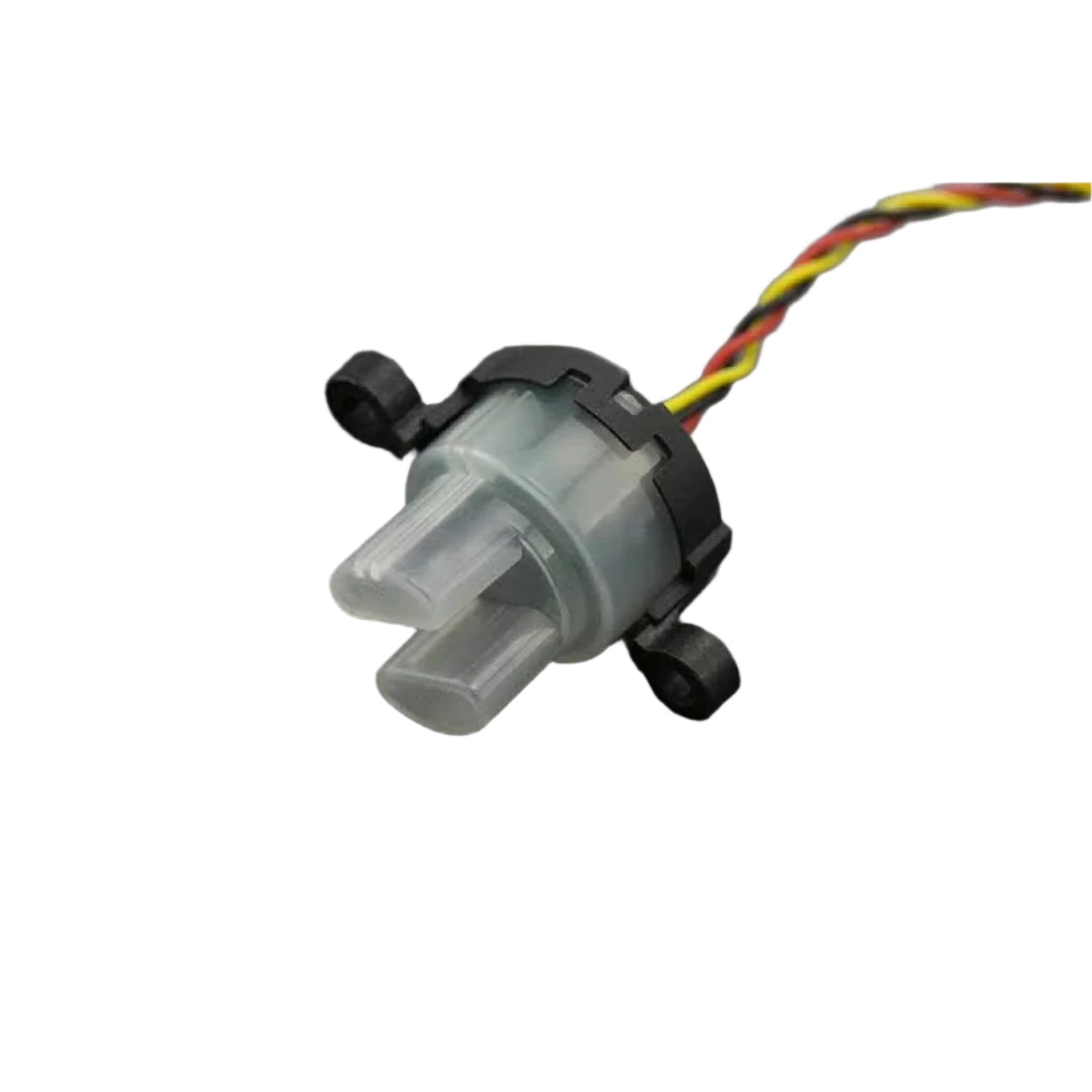

- 1 x Turbidity sensor probe
- 1 x Turbidity sensor cable
- 1 x Gravity analog sensor cable
