Description:
DFRobot Gravity: Analog TDS Sensor/Meter for Arduino is an Arduino-compatible TDS Meter Kit for measuring the TDS value of the water, to reflect the cleanliness of the water. TDS meter can be applied to domestic water, hydroponic, and other fields of water quality testing with this product, you can easily DIY a TDS detector to reflect the cleanliness of water to protect your health.
TDS (Total Dissolved Solids) indicates how many milligrams of soluble solids are dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is. Therefore, the TDS value can be used as one of the references for reflecting the cleanliness of water.
The probe can not be used in water above 55 degrees centigrade.
The probe can not be left too close to the edge of the container, otherwise, it will affect the reading. The head and the cable of the probe are waterproof, but the connector and the signal transmitter board are not waterproof. Please be careful.
Specifications:

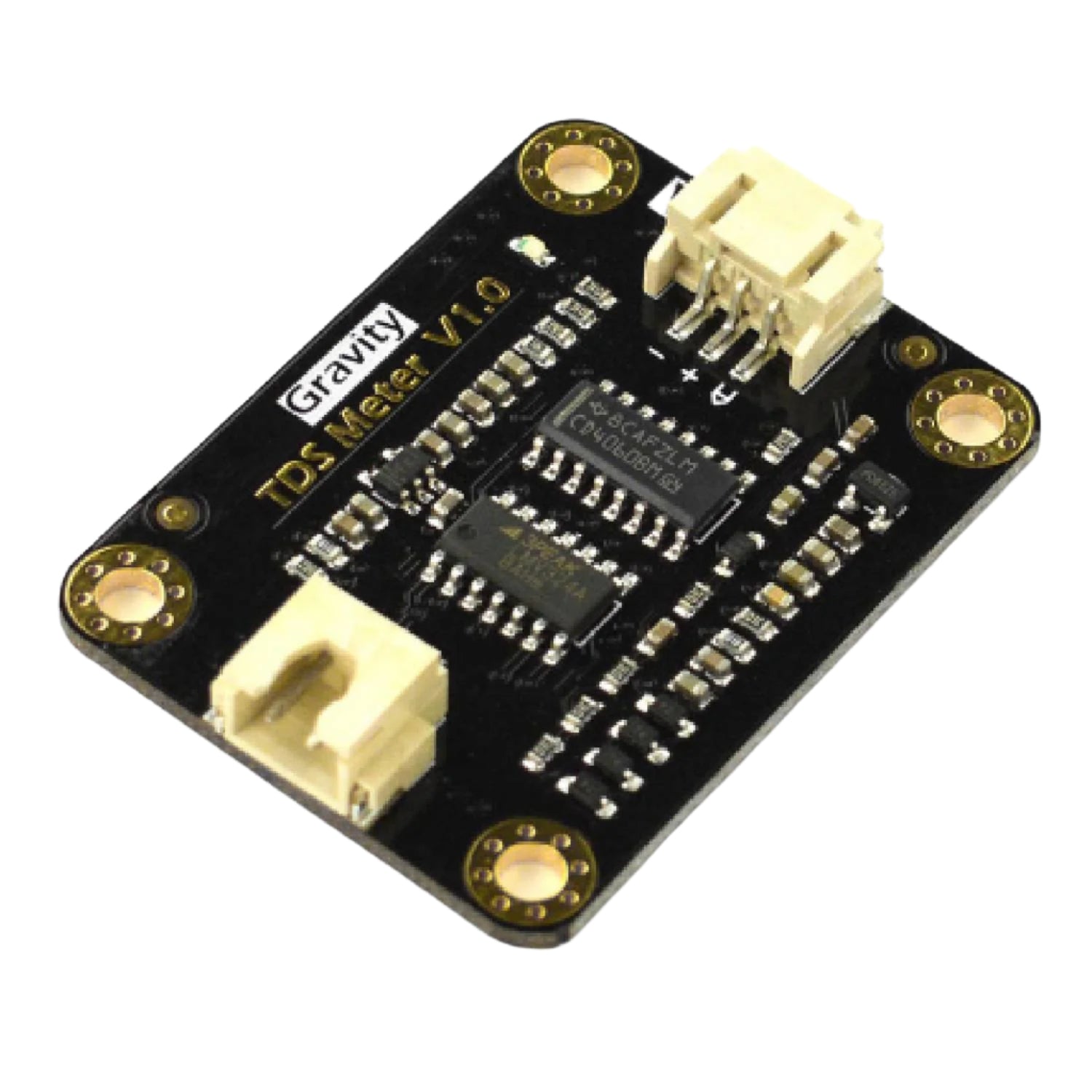

Signal Transmitter Board
- Input Voltage: 3.3 ~ 5.5V
- Output Voltage: 0 ~ 2.3V
- Working Current: 3 ~ 6mA
- TDS Measurement Range: 0 ~ 1000ppm
- TDS Measurement Accuracy: ± 10% F.S. (25 ℃)

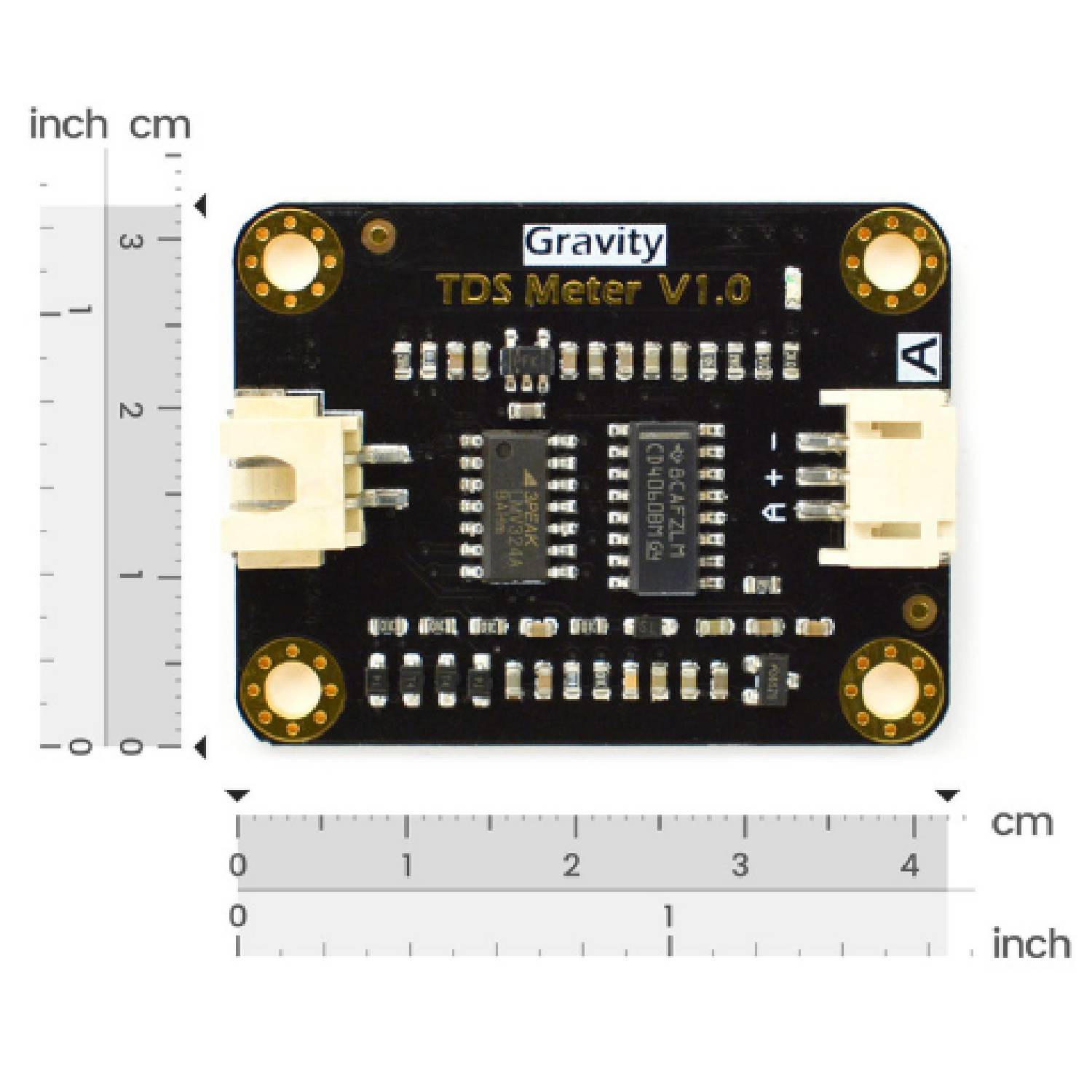

- Module Size: 42 * 32mm
- Module Interface: PH2.0-3P
- Electrode Interface: XH2.54-2P

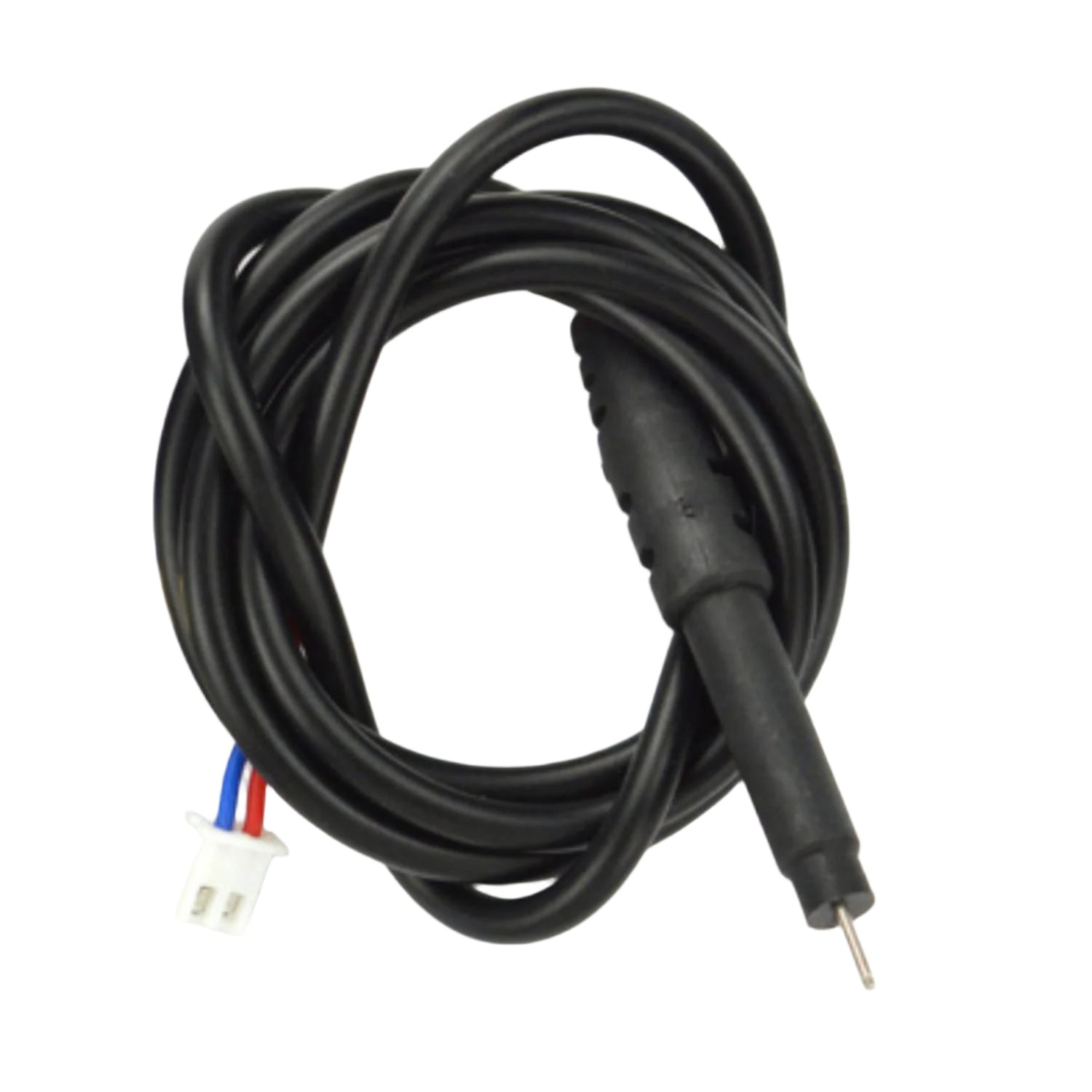

TDS probe
- Number of Needles: 2
- Total Length: 83cm
- Connection Interface: XH2.54-2P
- Color: Black
- Other: Waterproof Probe
Features:
- Wide Voltage Input: 3.3~5.5V
- Good Compatibility Output: 0~2.3V analog signal output, compatible with 5V or 3.3V controller
- AC Excitation Source: effectively prevents the probe from polarization
- Waterproof Probe
- Easy to Use: Arduino compatible, simple connection, plug, and play without soldering
Projects:
Project 1. Arduino Hydroponics, DIY Hydroponics System using pH Sensor& EC Sensor, Hydroponic
Project 2. TDS Sensor & Arduino Interfacing for Water Quality Monitoring
Introduction: This project will interface the Gravity Analog TDS Sensor with an Arduino Microcontroller and read the value in a 16×2 LCD Display.
Project 3. TDS Sensor and ESP32 IoT-based Water Quality Monitoring System, IoT TDS sensor, ESP32 TDS Sensor
Introduction: This project shows you how to make an IoT IoT-based water Quality Monitoring System using a TDS Sensor, DS18B20 waterproof one-wire digital temperature sensor, and ESP32 Wifi + Bluetooth Module.
Project 4. Make a TDS Detector for Water Testing Experiment
Introduction: This project introduces DIY a TDS meter with my analog TDS sensor, and uses the meter to detect the TDS of tap water before and after filtration. Moreover, I can use it to do some interesting experiments. Let's have a go.
Project 5. DFROBOT TDS Meter Sensor With Arduino & LCD || Measure Water Quality in PPM
Introduction: This project will interface the Gravity Analog TDS Sensor with Arduino Microcontroller and read the value in a 16x2 LCD Display.
Useful Links:

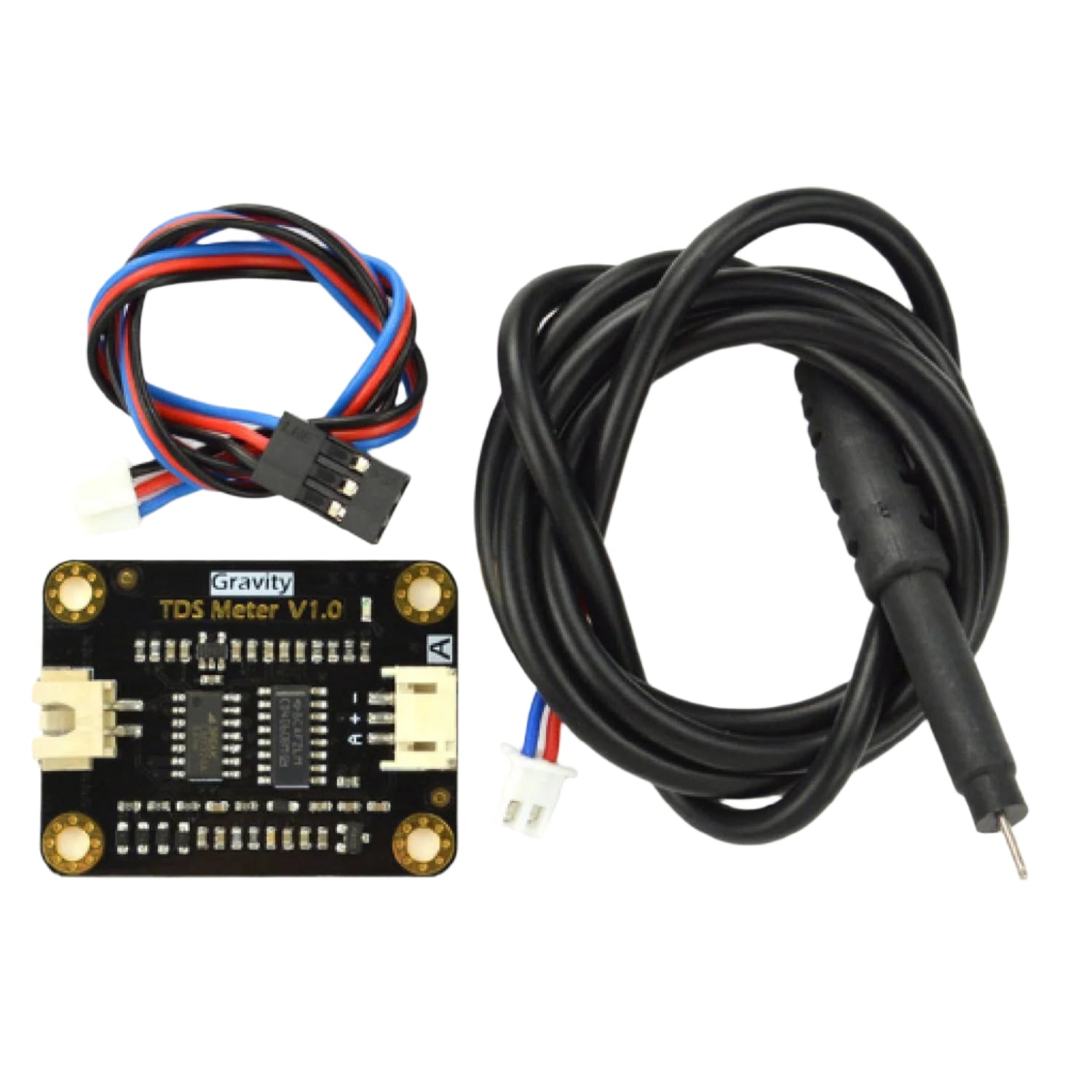

Package Included:
- 1 x Analog TDS Meter for Arduino
- 1 x Waterproof TDS Probe

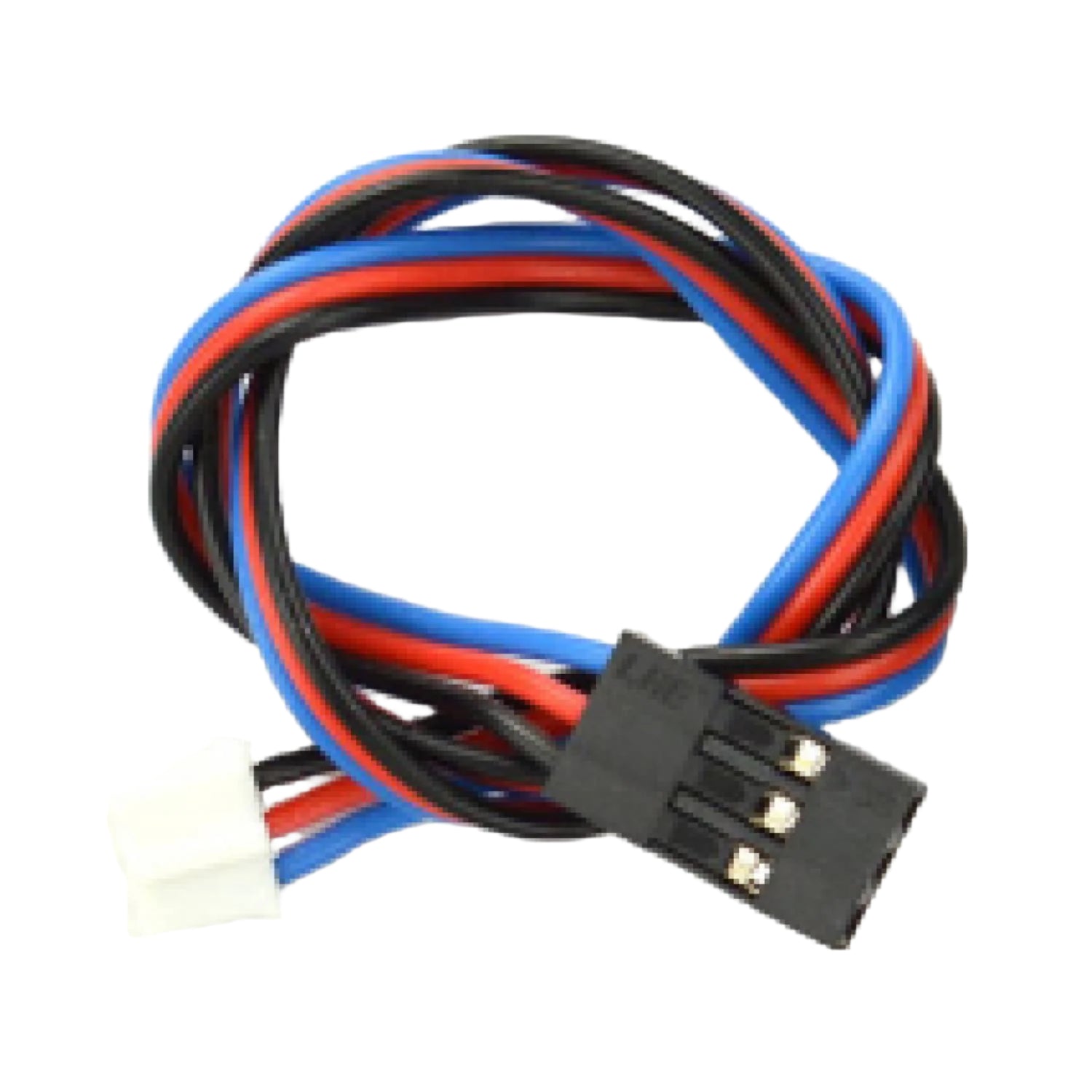

- 1 x 3Pin Analog Sensor Cable
