Description:

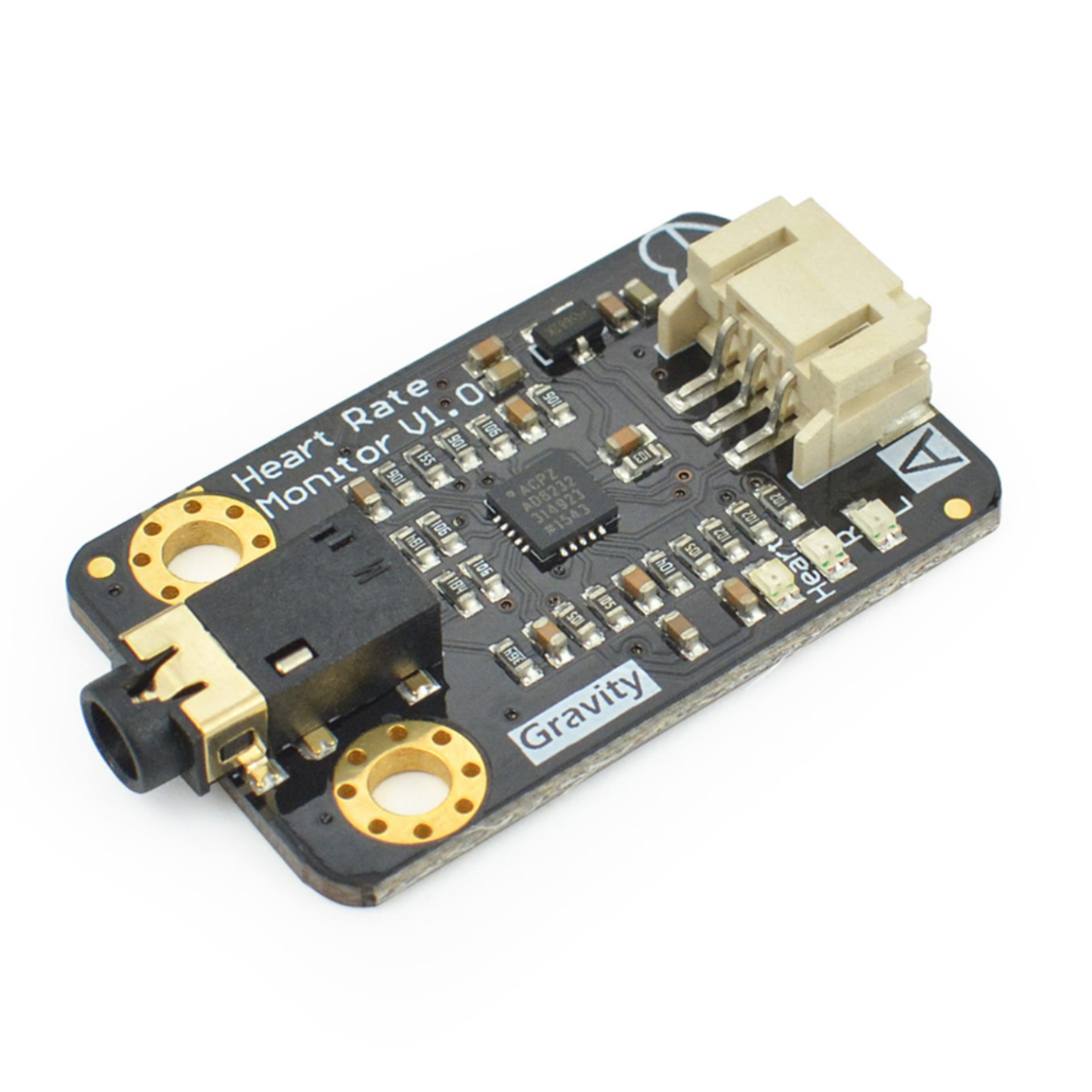

The DFRobot Gravity Analog Heart Rate Monitor Sensor (ECG). This sensor translates the complex electrical signals of the heart into an analog output, allowing for detailed ECG analysis. The integrated AD8232 chip acts as a powerful signal conditioner, effectively minimizing noise and delivering a clean, readable signal showcasing the crucial PR and QT intervals. Easily visualize your ECG waveforms in real time on your computer using the Arduino IDE's built-in Serial Plotter, simplifying data interpretation.
The Gravity interface eliminates complex wiring, offering a seamless plug-and-play experience with your Arduino. Its 3.3V operating voltage ensures compatibility with a wide range of development boards, including Raspberry Pi, Intel Edison, Joule, and Curie, making it a versatile tool for health monitoring and biomedical projects.
Specifications:
- Input Voltage: 3.3-6V (5V recommended)
- Interface: Analog
- Output Voltage: 0-3.3V
- Operating current: <10mA
- Interface Type: PH2.0-3P
- Dimension: 35 x 22(mm), 1.378" x 0.866"(in)
Features:
- Captures accurate and stable heart electrical activity.
- Ensures reliable signal acquisition.
- Works seamlessly with various microcontrollers.
- Delivers clear ECG waveforms with distinct PR and QT intervals.
Documents:

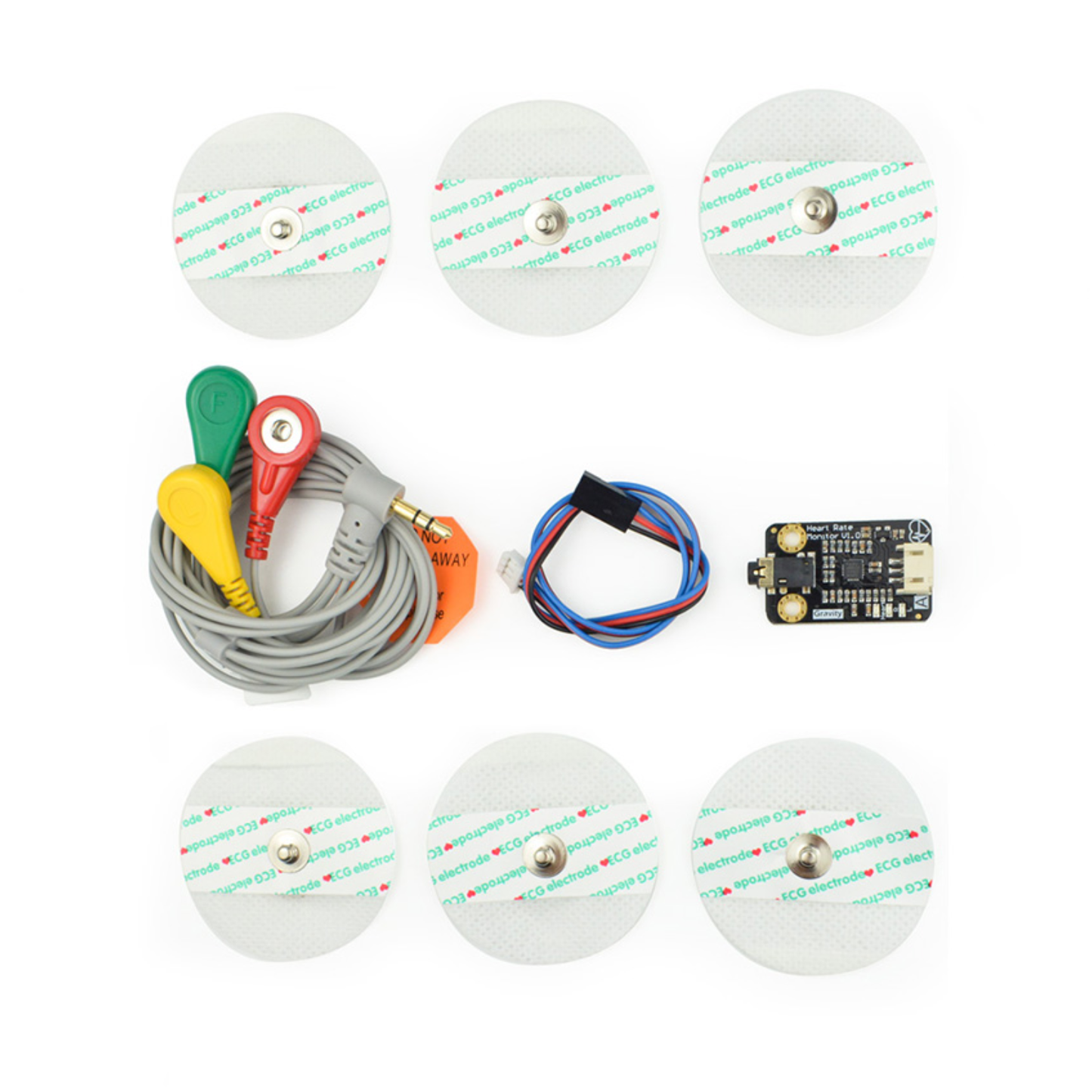

Package Included:
1 x DFROBOT Gravity: Analog Heart Rate Monitor Sensor
