Description:
This EMG sensor was launched with the cooperation of DFRobot and OYMotion, which can detect sEMG to reflect the muscle and neural activities of humans. This sensor integrates a filtering circuit and an amplified circuit. It amplifies minimal sEMG within ±1.5mV 1000 times and depresses noises (especially power frequency interference) by differential input and analog filter circuit. The output signal is analog， which takes 1.5V as the reference voltage. The output voltage range is 0~3.0V. The signal strength depends on the intensity of muscle activities. The output signal waveform indicates the muscle activity and contributes to analyzing and researching the sEMG. Specifically, we can use Arduino as a controller to detect muscle activities, e.g., check whether the muscle is tense, the muscle strength, etc.
This is an active induction sensor that can provide high-quality signal collection, and it is easy to use. Only simple preparations are needed to apply the module for either static or dynamic areas. The dry electrode is applied to the module, and good-quality signals are available even without conductive gel.
Specifications:

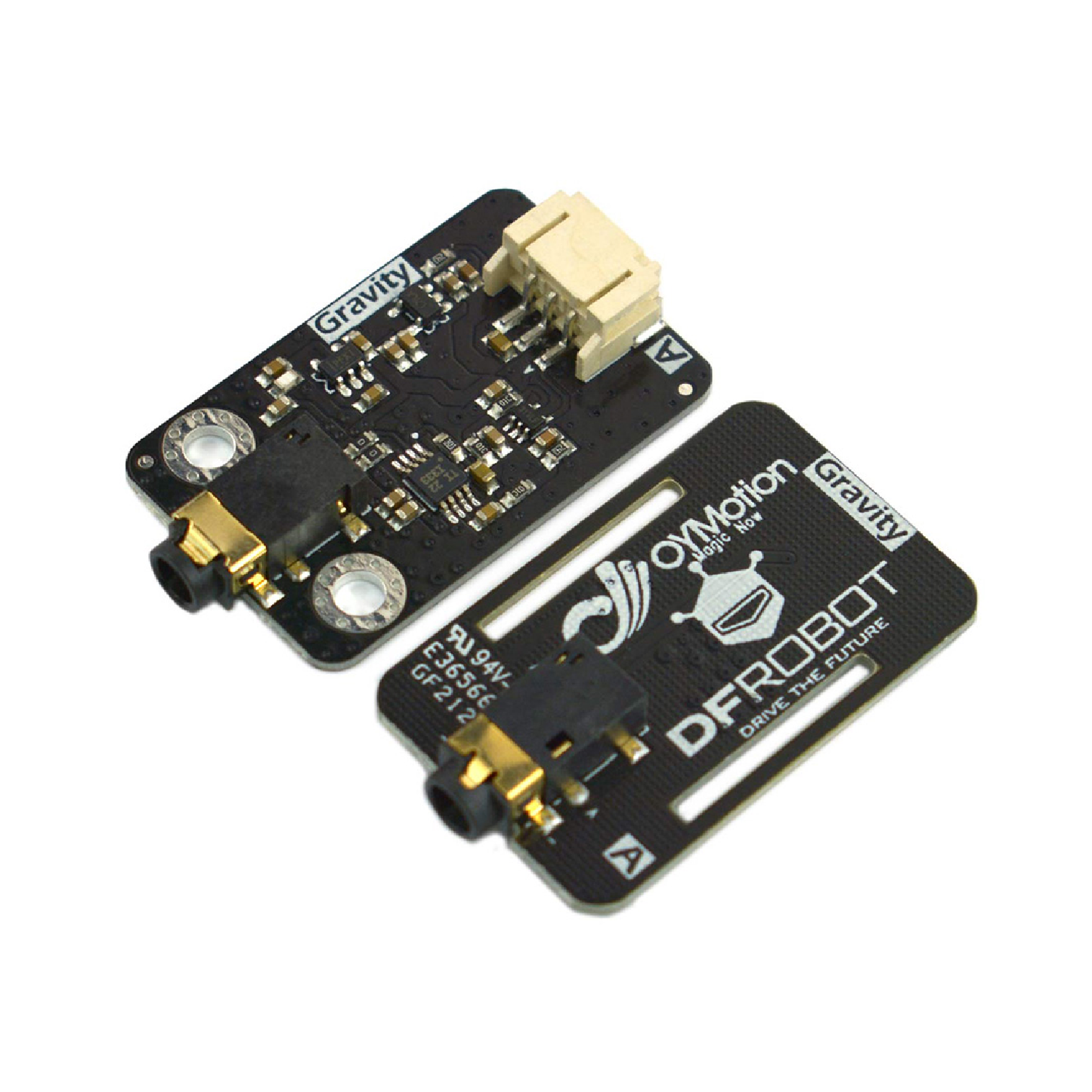

Signal Transmitter Board
- Supply Voltage: +3.3V～5.5V
- Operating Voltage: +3.0V
- Detection Range: +/-1.5mV
- Electrode Connector: PJ-342
- Module Connector: PH2.0-3P
- Output Voltage: 0～3.0V
- Operating Temperature: 0～50℃

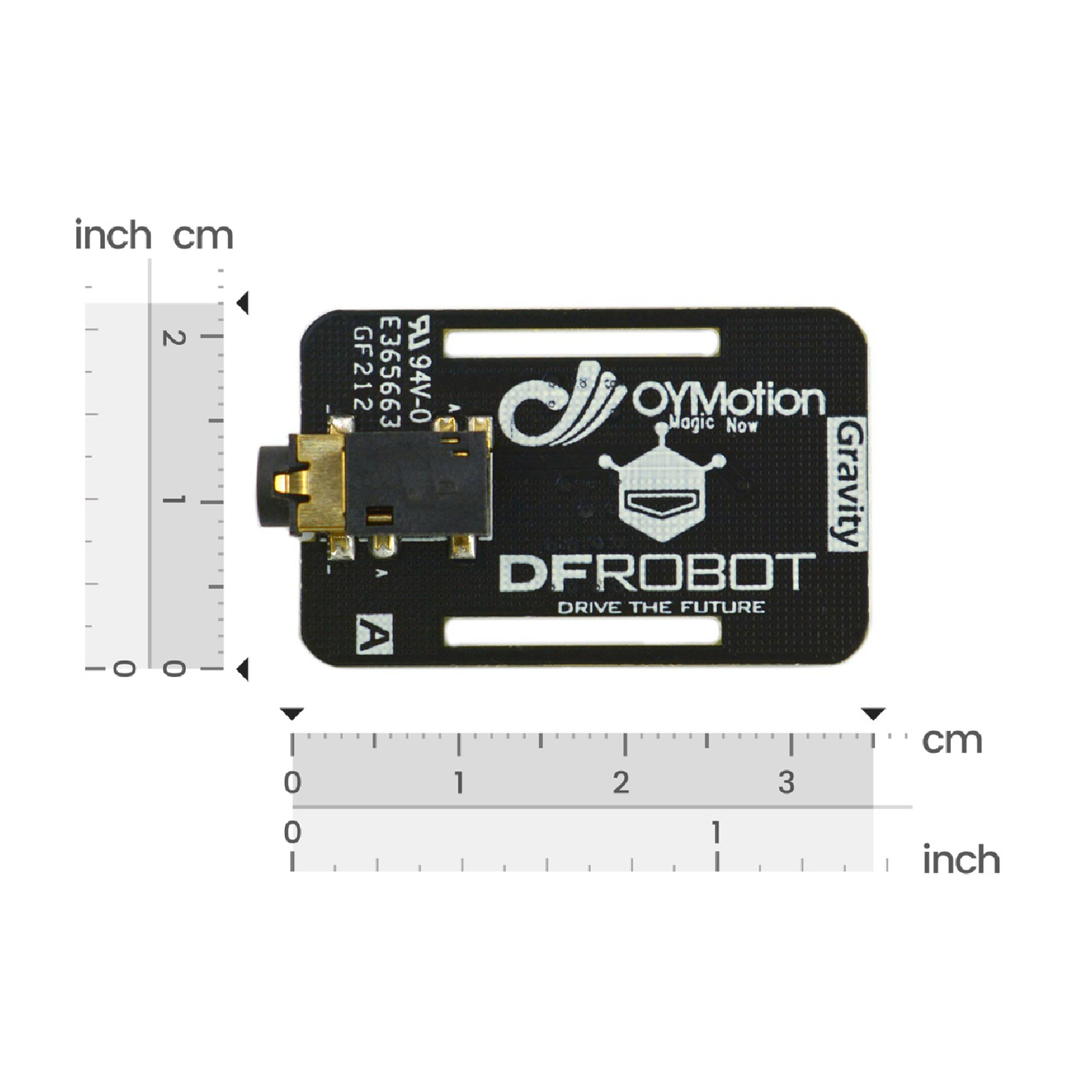

- Size: 22mm*35mm (0.87inch*1.38inch)

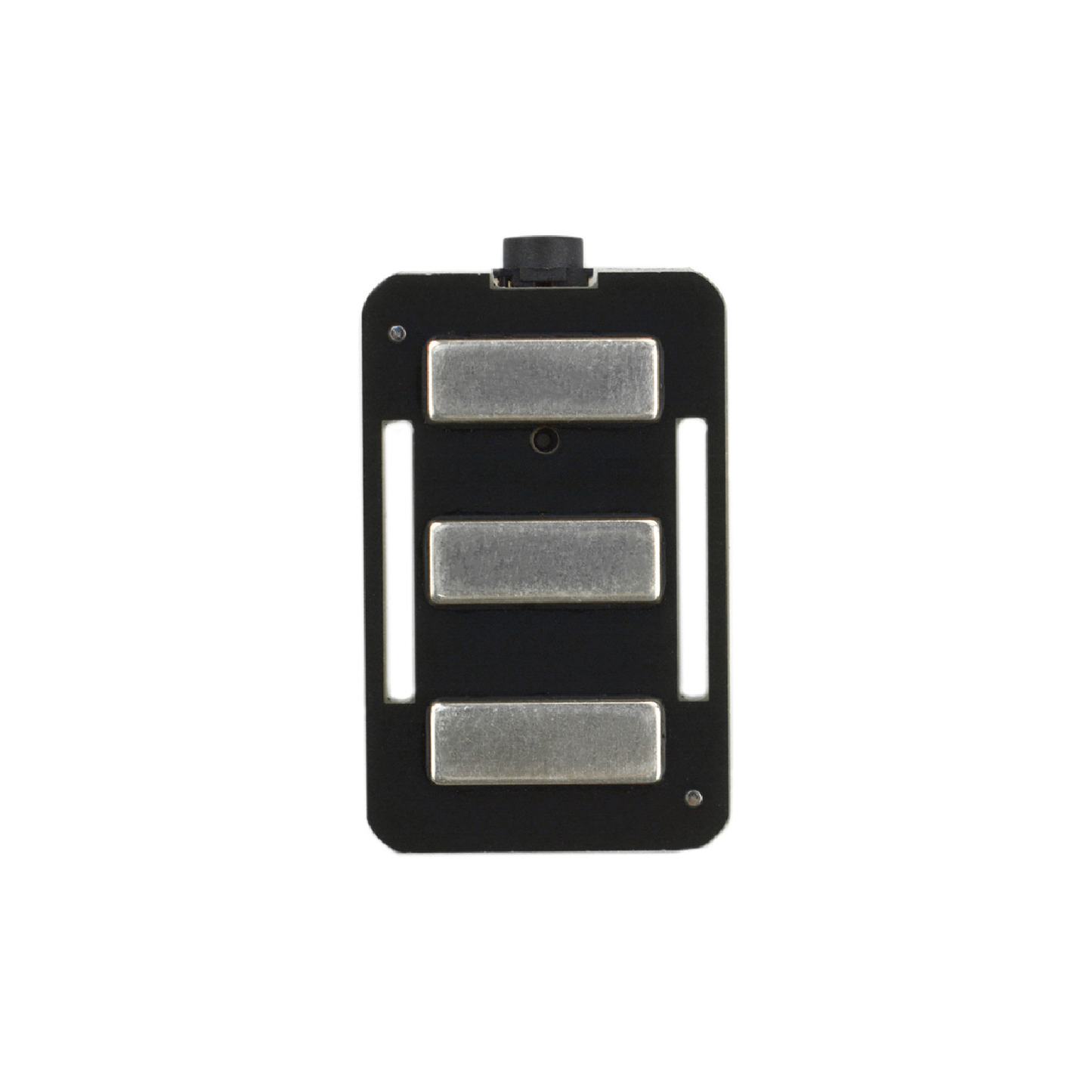

Dry Electrode Board
- Electrode Connector: PJ-342
- Wire Length: 50cm(19.69inch)
- Plate Size: 22 * 35 mm (0.87*1.38inches)
Features:
- Metal Dry Electrode: long life, easy to use
- Differential input, high common mode rejection ratio
- Low power consumption
- Single power supply
Projects:
- Project 1. Head-mounted Myoelectric Mouse
- Project 2 A Christmas present for cute kid & girl - A Clever Rabbit Hat - an EMG sensor based
Useful Links:

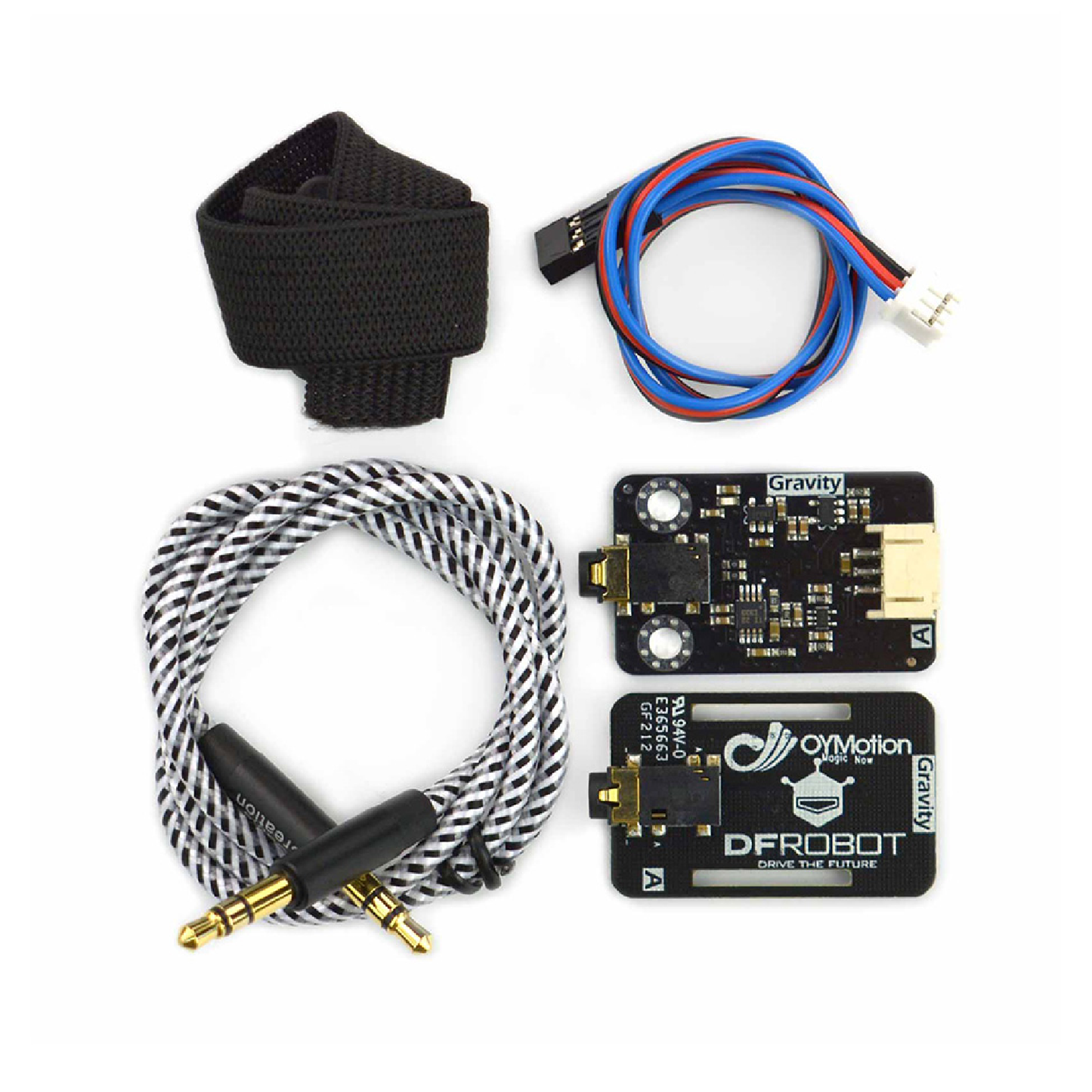

Package Included:
- 1 x EMG Dry Electrode Board
- 1 x Wrist Belt
- 1 x Electrode Cable
- 1 x EMG Signal Transmitter Board
- 1 x Gravity Analog Cable 3Pin
