DFRobot Gravity Analog CO/Combustible Gas Sensor (MQ9) Detects Gases Level For Your Arduino Projects

DFRobot Gravity Analog CO/Combustible Gas Sensor (MQ9) Detects Gases Level For Your Arduino Projects

In stock

Rs. 820.00
Rs. 820.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Integrate robust Carbon Monoxide (CO) and Combustible Gas detection into your Arduino projects effortlessly with this analog sensor module. Based on the reliable MQ-9 sensor, this cost-effective solution provides an analog output that varies with the concentration of detected gases, including CO, Methane, and Propane. The sensor's operation involves a temperature-cycling mechanism within its SnO2 sensing layer, enabling selective detection. Sensitivity can be easily fine-tuned using the integrated potentiometer, making it a user-friendly choice for a wide array of gas monitoring applications with your Arduino microcontroller.

Specifications:

  • Power supply needs: 5V
  • Interface type: Analog
  • Sensor Type: Semiconductor
  • Concentration:
  • 10-1000ppm CO
  • 100-10000ppm combustible gas
  • Good sensitivity to CO/Combustible gas
  • High sensitivity to Methane, Propane, and CO
  • Long life and low cost

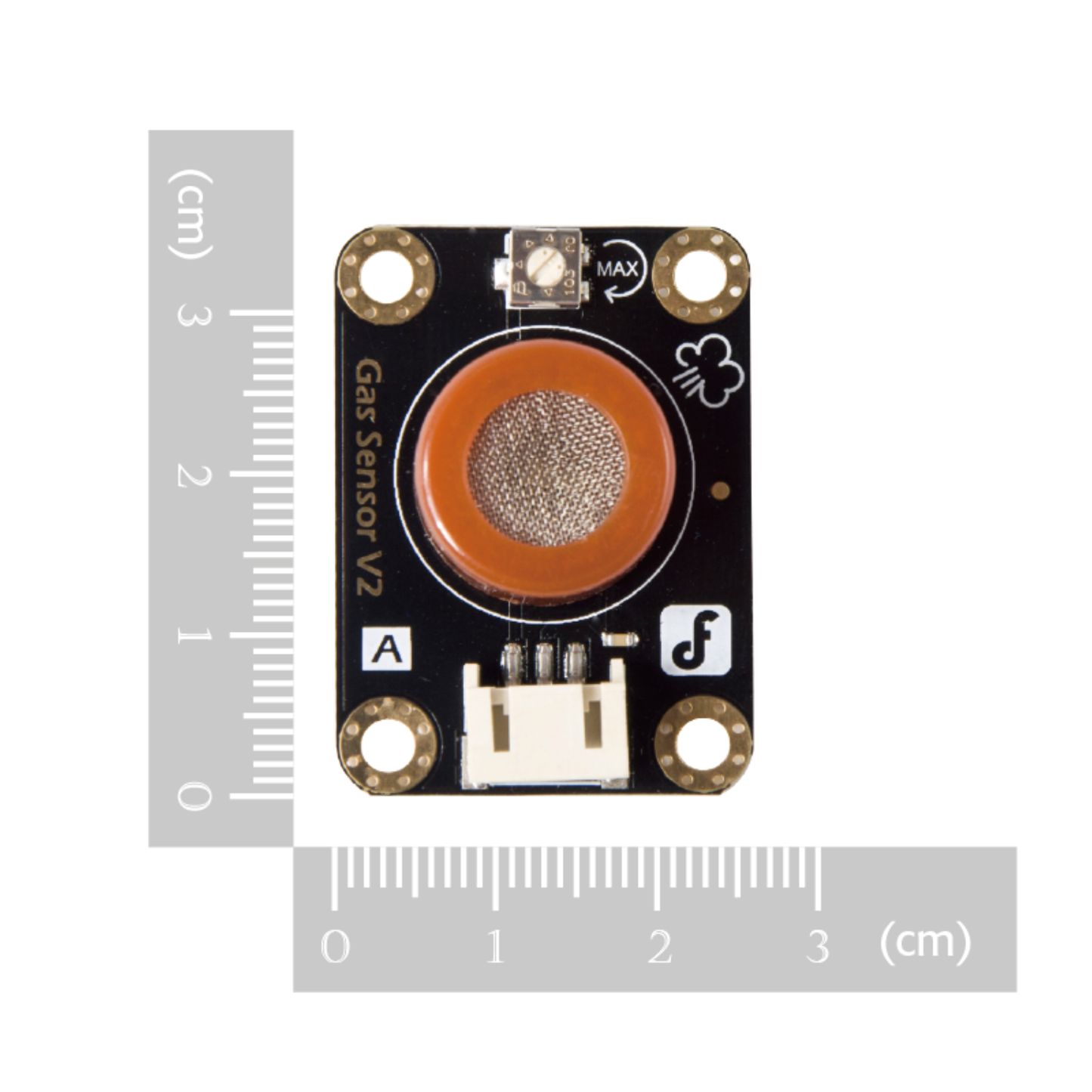

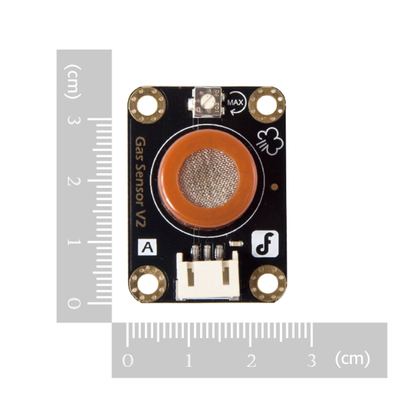

  • Size: 36.4x26.6mm(1.43"x1.05")

Features:

  • Effectively senses carbon monoxide and a range of flammable gases.
  • Specifically designed for a strong response to Methane, Propane, and CO.
  • Offers a long operational lifespan at a low cost.
  • Features a straightforward drive circuit for simple implementation.
  • Requires ≤350mW, contributing to energy efficiency.
  • Senses CO concentrations from 10 -1000ppm and combustible gases from 100 -10000ppm.
  • Demonstrates a reliable and predictable sensitivity to CO.
  • Operates effectively within standard temperature and humidity conditions (20℃±2℃; 65%±5%RH).

Applications:

  • Domestic gas leakage detector
  • Industrial gas detector
  • Portable gas detector

Documents:

Package Included:

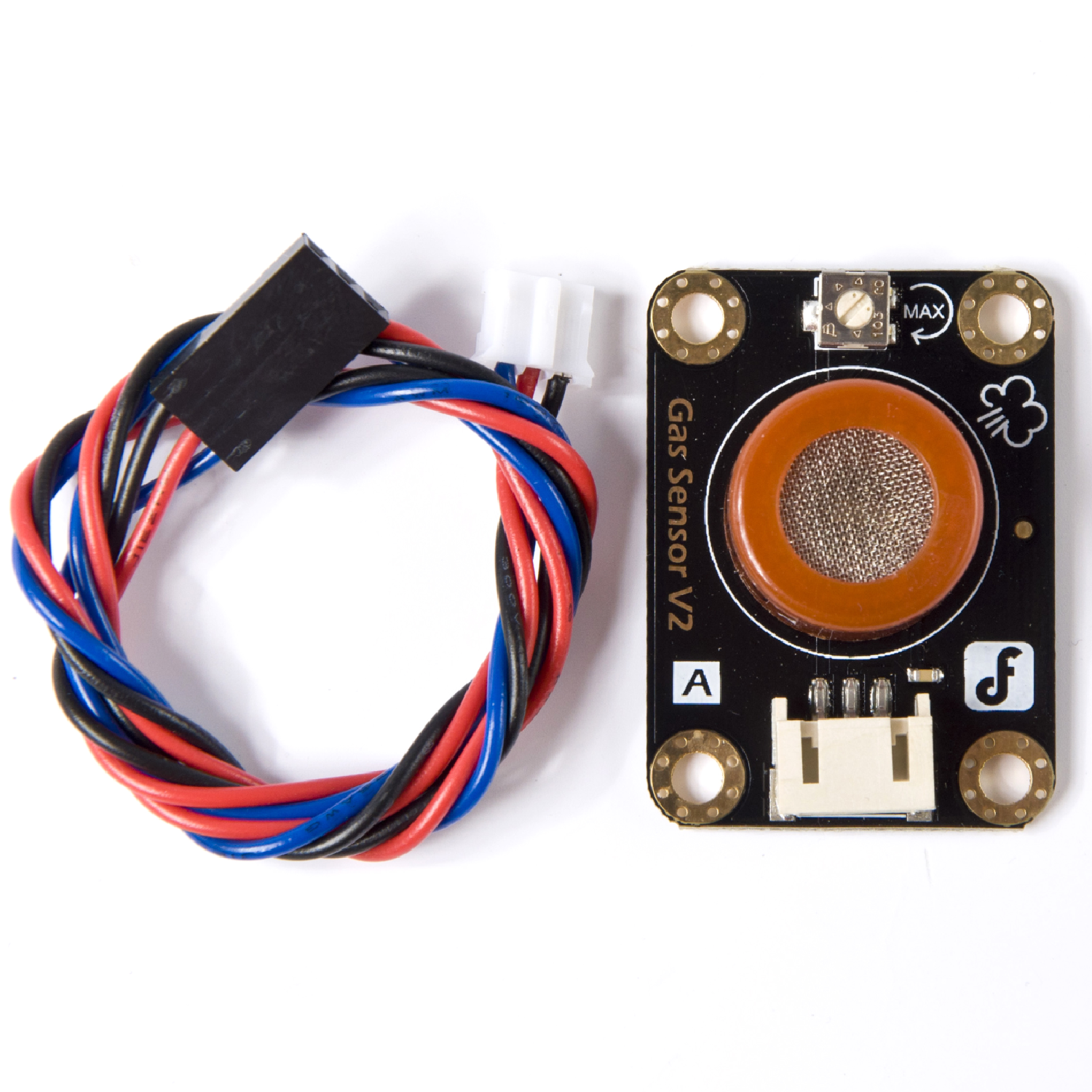

1 x DFRobot Gravity Analog CO/Combustible Gas Sensor (MQ9) For Arduino
