Description:
Gravity: Capacitive Soil Moisture Sensor is ideal for environmental science courses and indoor gardening applications. Operating within a voltage range of 3.3 to 5.5V, this sensor provides an analog output of 1.2 to 2.5V, making it compatible with low-voltage MCUs, including both 3.3V and 5V logic systems, allowing for easy integration with popular platforms such as Arduino and Raspberry Pi. It features a waterproof detection area, effectively measuring soil moisture levels while resisting corrosion for reliable performance in outdoor and controlled environments.
The capacitive design offers 2-3 times the lifespan of resistive sensors, ensuring long-term durability and dependable monitoring. This detector is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield.
Specifications:
- Operating Voltage: 3.3 ~ 5.5 VDC
- Output Voltage: 1.2 ~ 2.5V
- Interface: PH2.0-3P

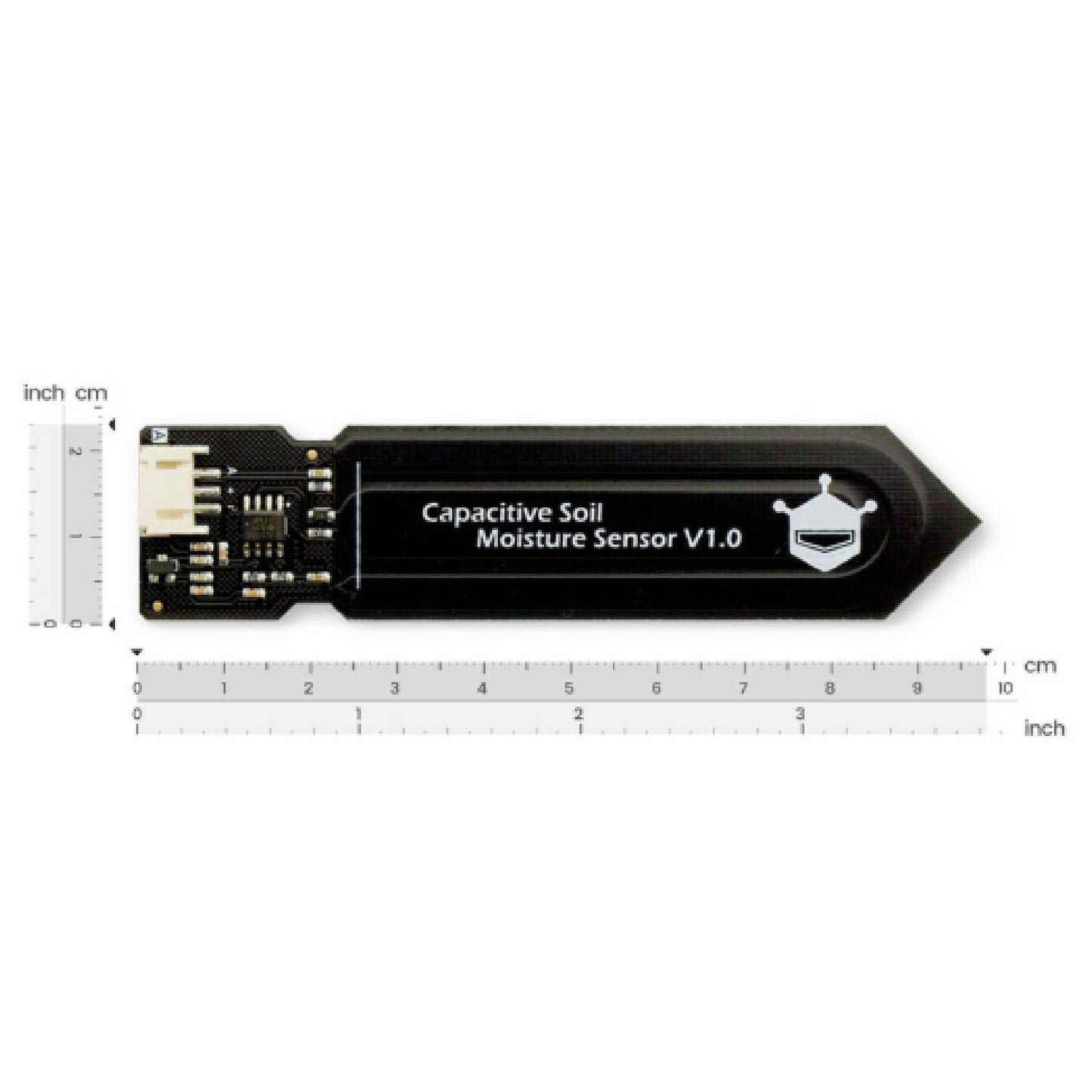

- Dimension: 98mm * 23mm (3.86in x 0.905in)
- Weight: 15g
Features:
- Supports Gravity 3-Pin Interface
- Analog Output
Projects:
- Project 1. Wireless Soil Moisture Probe with Helium and DFRobot Plants die all the time from lack of watering. You're busy and those ferns aren't going to raise their hands when feeling parched. So, for the plant enthusiast on the go, this prototype soil moisture probe is your ticket to happy and healthy ferns and ficus.
- Project 2: Annoying Soil Moisture Sensor with Photon and IFTTT Project Never forget to water your plants again with this super annoying project. It combines visual, auditory, and textual cues that will prevent you from doing anything else until you provide your plant with much-needed hydration.
Applications:
- Gardening & Farming
- Moisture Detection
- Intelligent Agriculture
Useful Link:
Package Included:

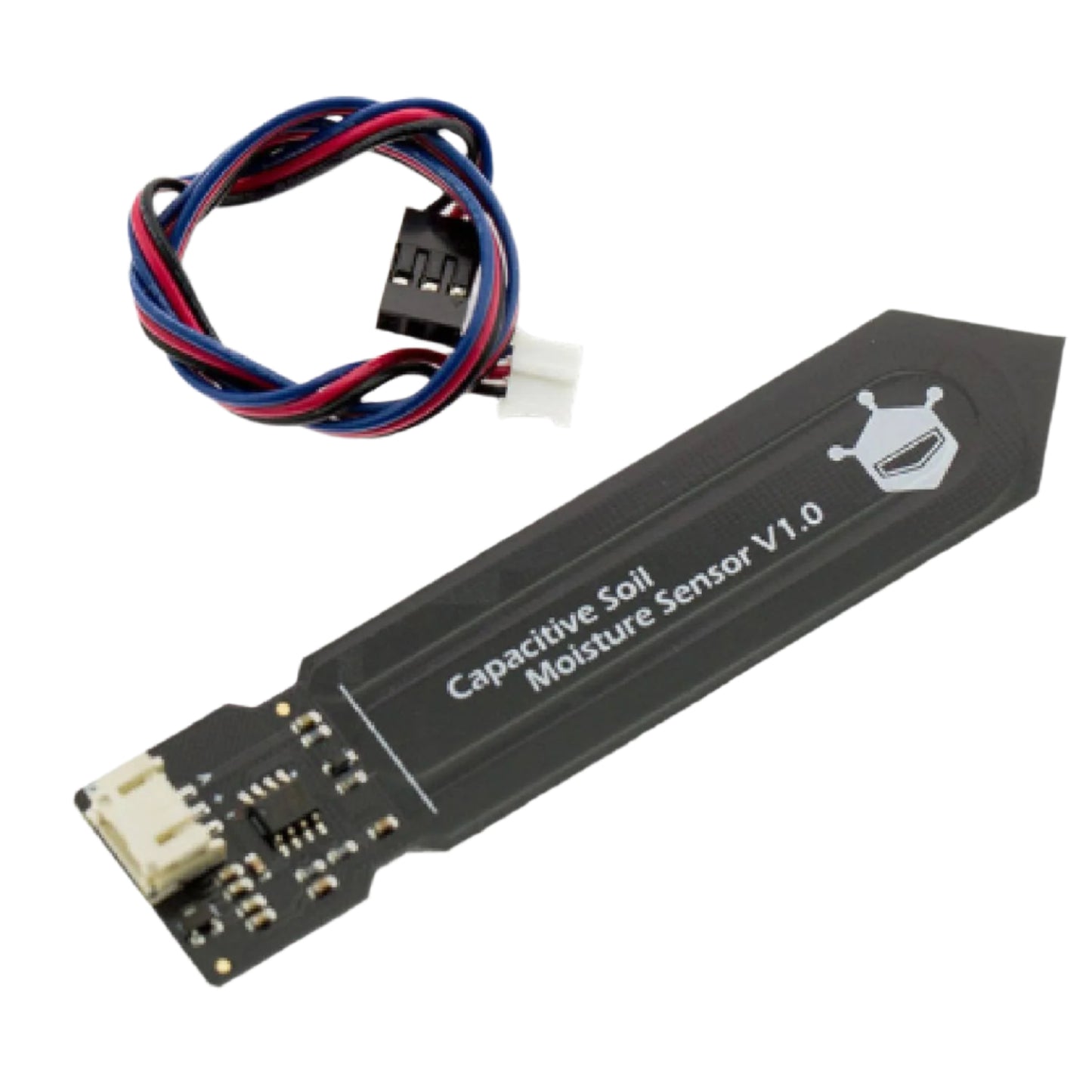

- 1 x Capacitive Soil Moisture Sensor
- 1 x Analog Sensor Cable
