Description:

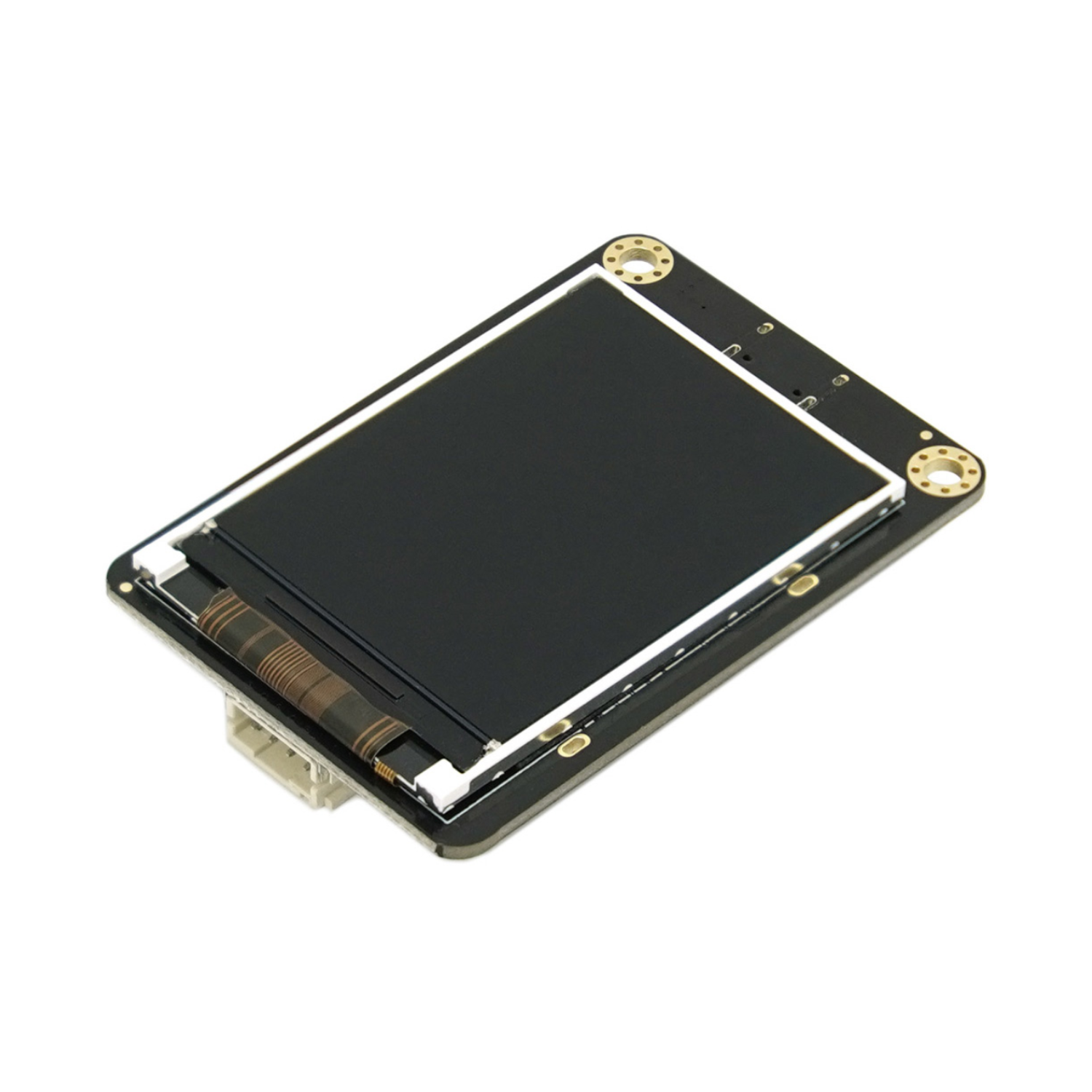

The DFRobot Gravity: 2.0 Inch IPS Color Serial Display is a compact powerhouse for adding vibrant visual interfaces to your microcontroller projects. Featuring a sharp 320×240 IPS screen with rich 16-bit RGB color, it supports both I2C and UART communication for easy integration with platforms like Arduino, ESP32, and micro: bit. This display comes packed with over 200 built-in icons, high-resolution PNG images, GIF animations, and dynamic widgets (progress bars, sliders, gauges, charts, compasses) to accelerate your development. Multilingual support and 8MB of onboard USB storage enable extensive customization with your own images and interface designs.
Ideal for wearables, data visualization, weather stations, and educational/scientific applications requiring a compact, full-color display with rich pre-loaded content and flexible communication options.
Specifications:
Basic Specifications
- Power Supply Voltage: DC 3.3V~5V
- Static Power Consumption: ＜70mA
- Power Interface: PH2.0- 4P Gravity interface

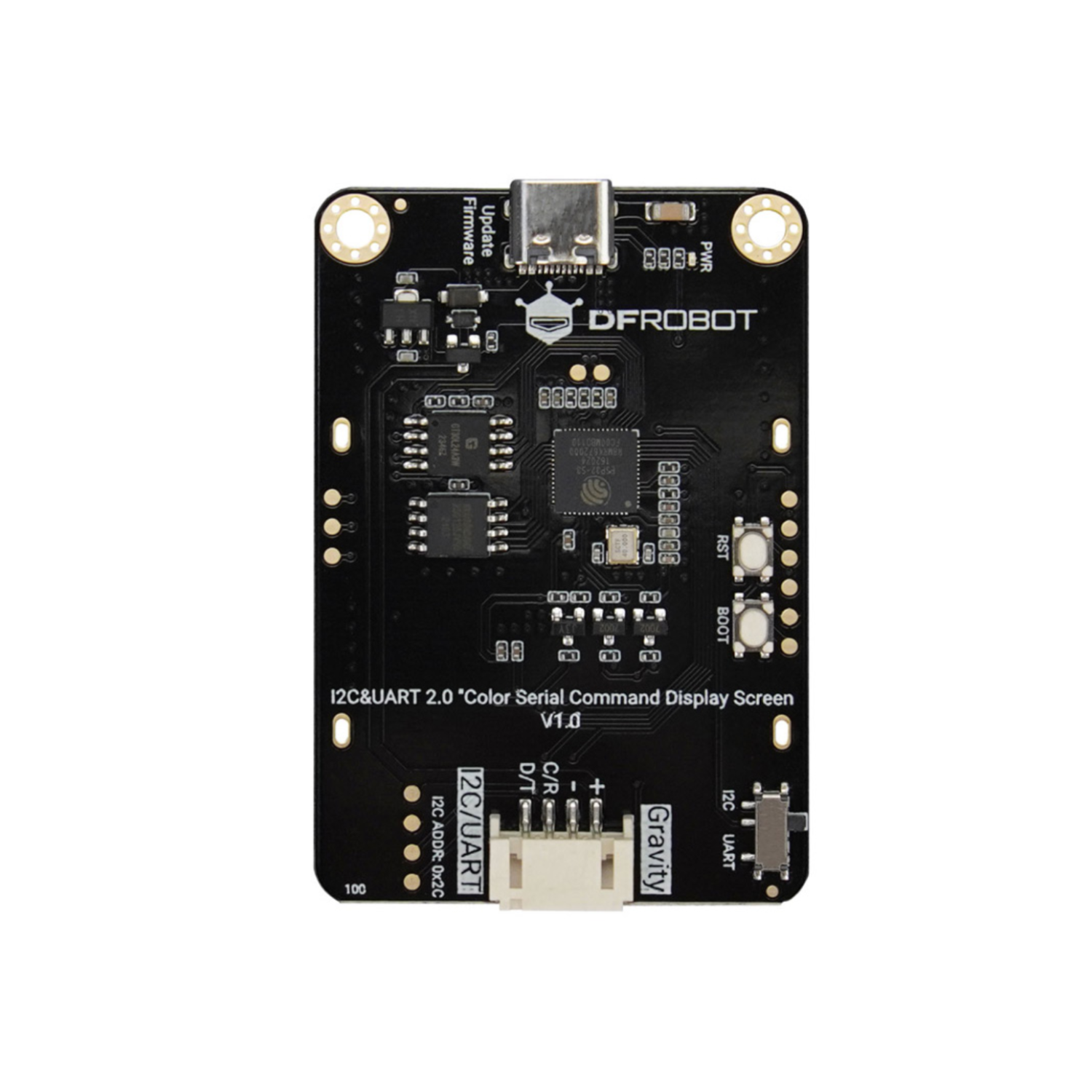

- Communication Method: I2C/UART
- Communication Interface: PH2.0- 4P Gravity interface
- USB Drive Interface: USB-C
- USB Drive Space: 8MB

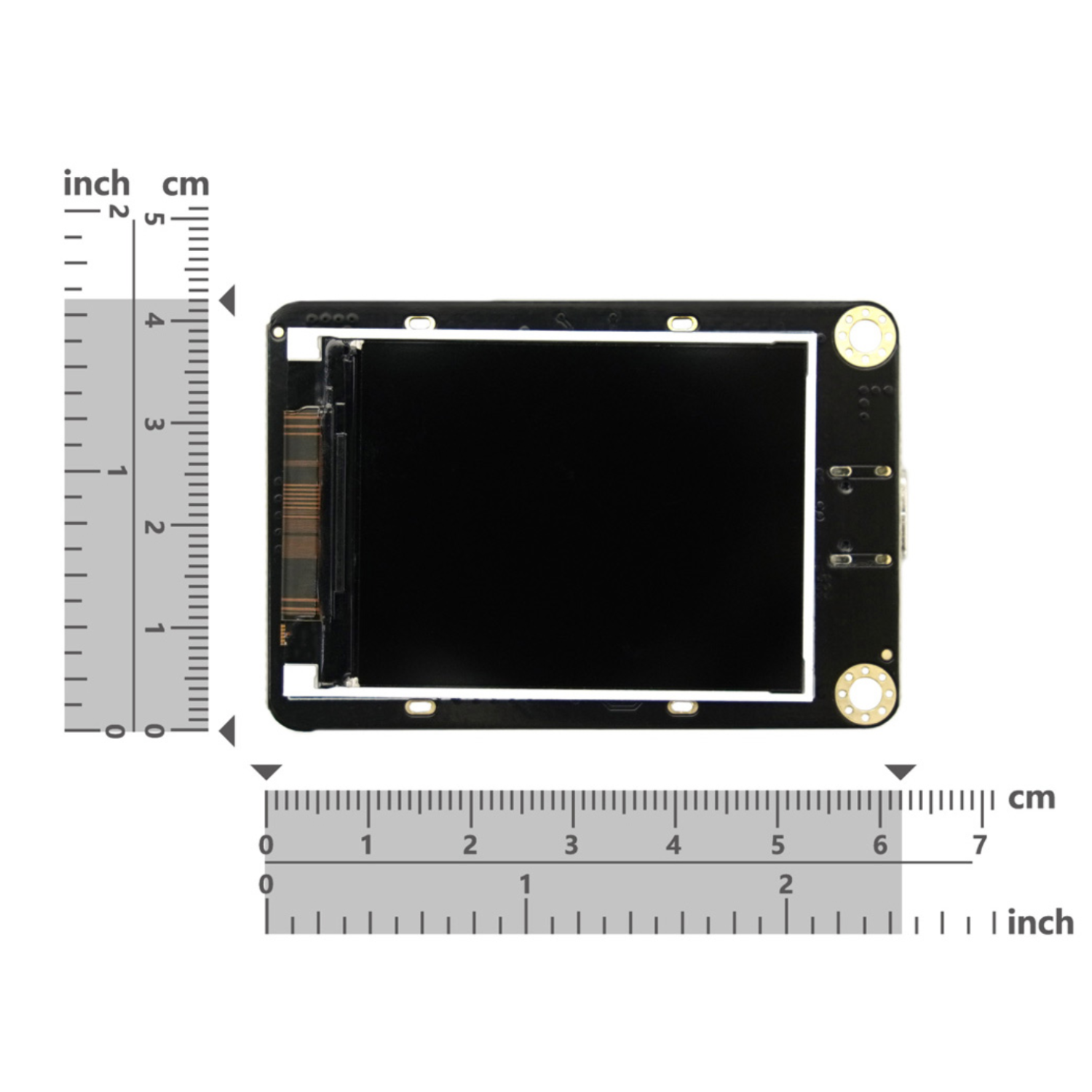

- Dimensions: 62mm×42mm×10mm
- Mounting Hole Diameter: 3.0mm
Display Specifications
- Size: 2.0 inches
- Resolution: 320×240
- Display Area: 40.8×30.6mm
- Display Color: 16-bit color depth (RGB565)
- Viewing Angle: 80/80/80/80
- Brightness: 250cd/㎡
Features:
- Flexible communication interfaces.
- Works with Arduino, ESP32, micro: bit, and others.
- 200+ built-in icons, GIF & PNG support.
- Dedicated space for custom images.
- Includes gauges, sliders, charts, etc. (powered by LVGL).
- Supports English, Chinese, Japanese, and Korean.
- Compatible with MakeCode & Mind+.
- Integrated logic for fluid performance.
- Display text, images, and animations together.
Applications:
- Wearable devices

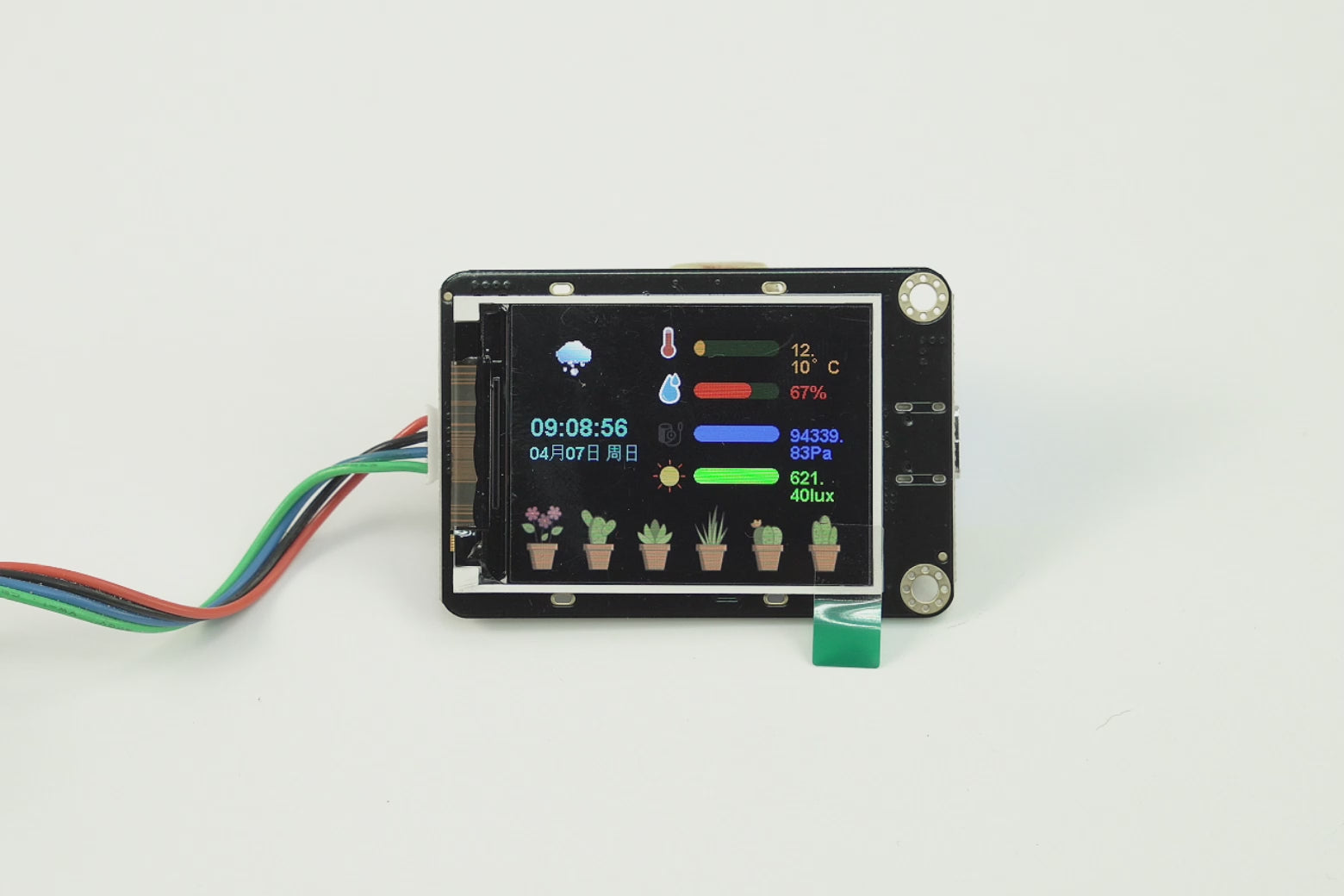

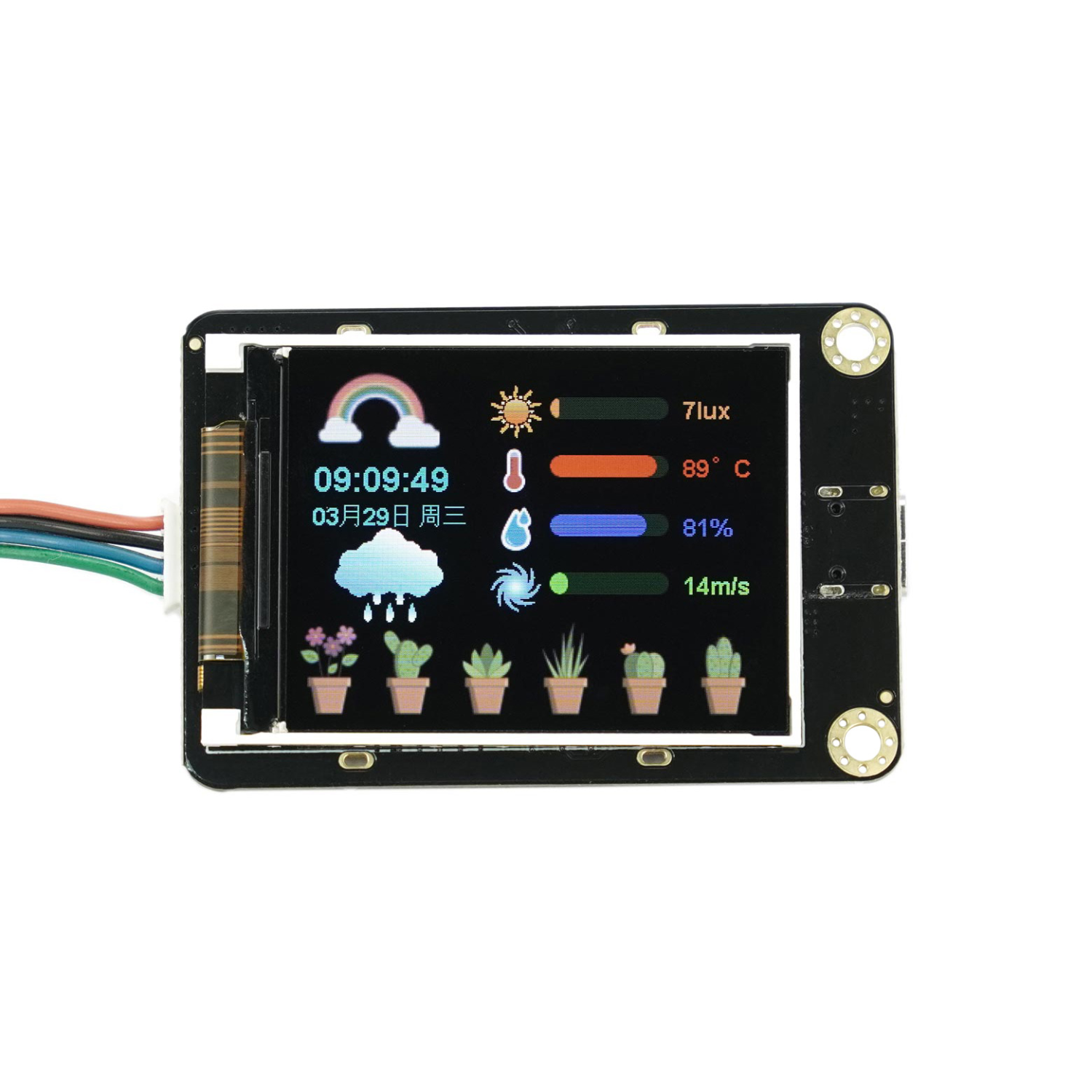

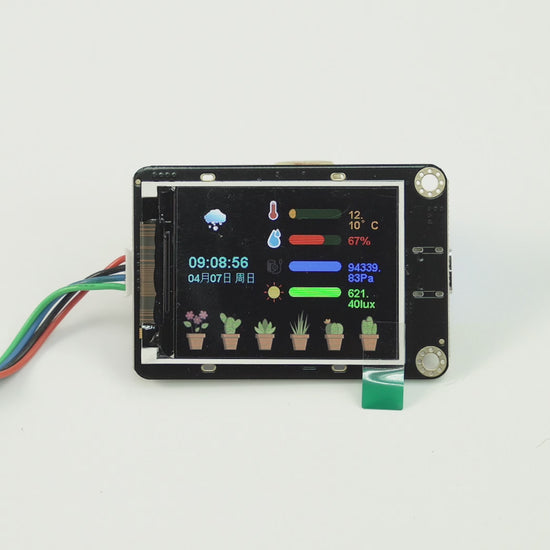

- Desktop weather station
- Data collection display
- Data visualization display
- Instrument and meter measurement
Documents:
- Product wiki
- Dimensions
- Function Description
- Arduino UNO Tutorial
- micro: bit Tutorial
- API Function Library
- 2D file

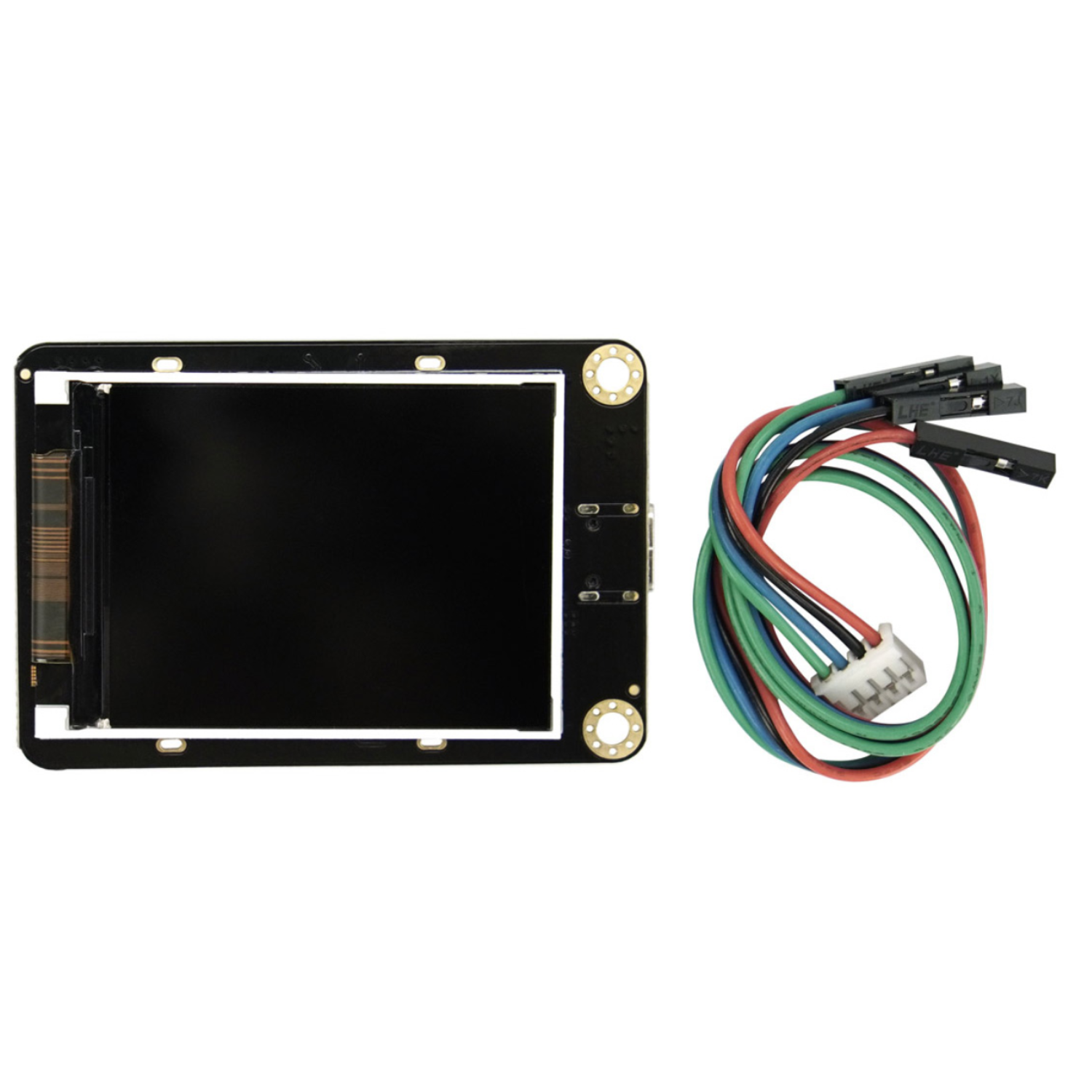

Package Included:
1 x DFRobot Gravity: 2.0 Inch IPS Color Serial Display with I2C & UART
