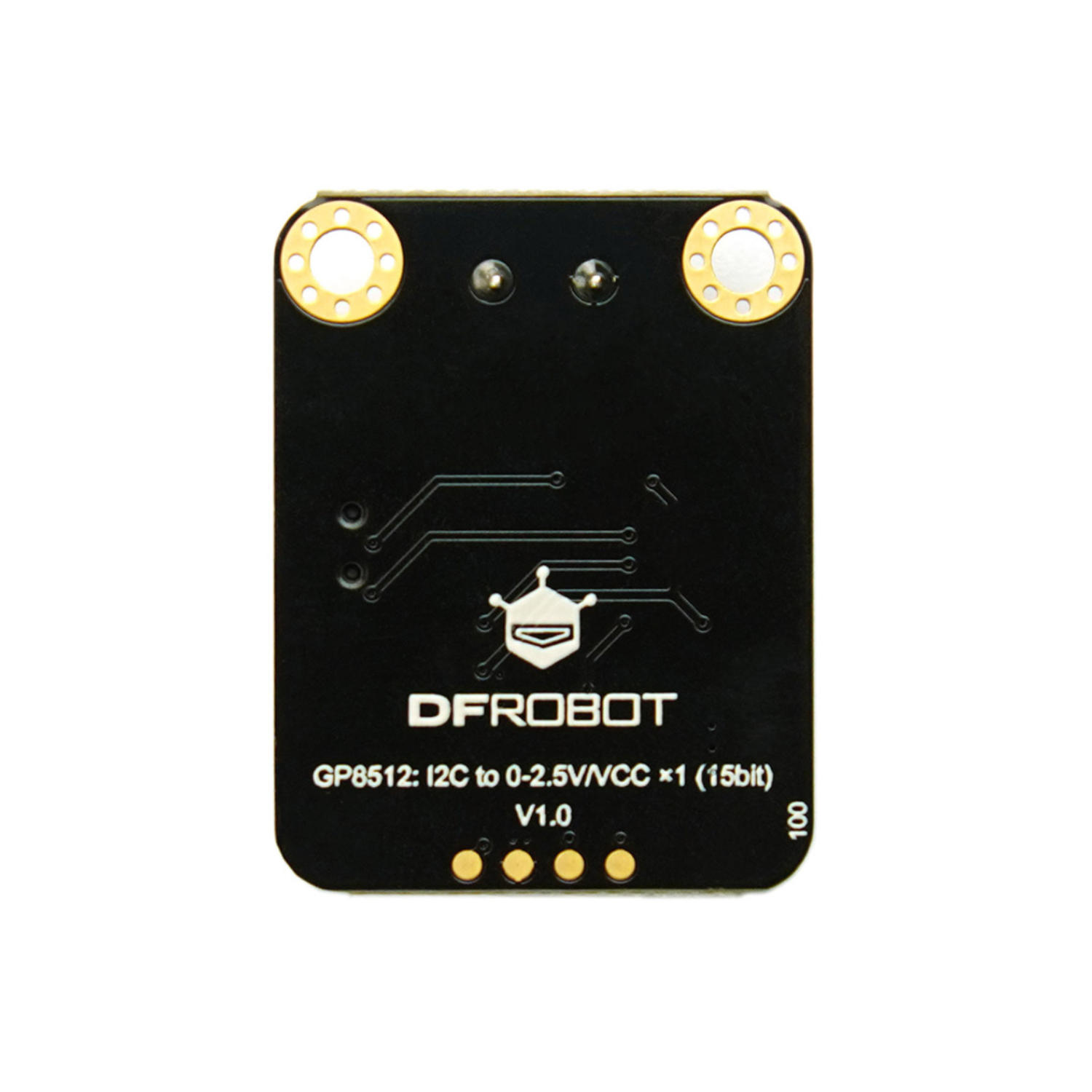

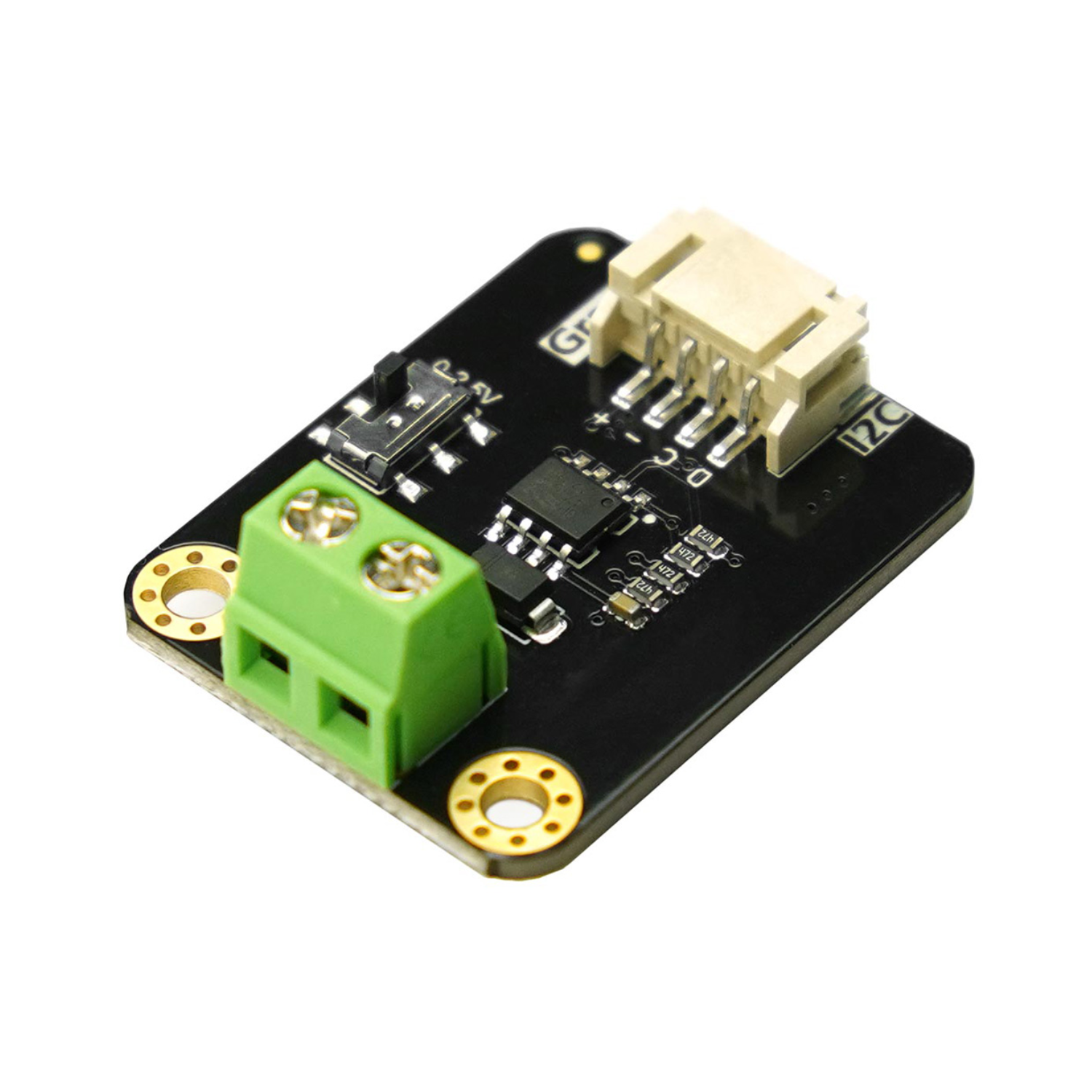

DFRobot Gravity 1-Channel 15-Bit I2C DAC Module With Selectable 0-2.5V/VCC Output High-Resolution 15-Bit I2C DAC to Analog Voltage Converter For Analog Control

Description:

This compact, single-channel analog voltage output Digital-to-Analog Converter (DAC) module leverages the simplicity and ubiquity of I2C communication for seamless integration with a wide array of popular 3.3V microcontrollers, including the ESP32, Raspberry Pi, and STM32 families. Boasting a high 15-bit resolution, this module enables fine-grained control over the output voltage, achieving an impressive 0.01% precision. This level of accuracy renders it particularly advantageous for control projects demanding precise analog signal generation. Imagine the smooth, nuanced adjustments achievable in applications like fine motor speed regulation or precise angular positioning.

As part of a versatile DAC series, this module exemplifies a broader family of products designed to generate either voltage or current output signals through convenient I2C or PWM control interfaces. This comprehensive series caters to diverse application needs by offering a spectrum of output signal ranges and providing a choice of three distinct resolutions: 8-bit, 12-bit, and the high-precision 15-bit option featured in this particular module. Furthermore, the series offers flexibility in channel configuration, with both single-channel and dual-channel options available. For applications requiring an even greater number of analog outputs, the modular design allows for the cascading of multiple DAC units, enabling the creation of sophisticated multi-channel output systems.

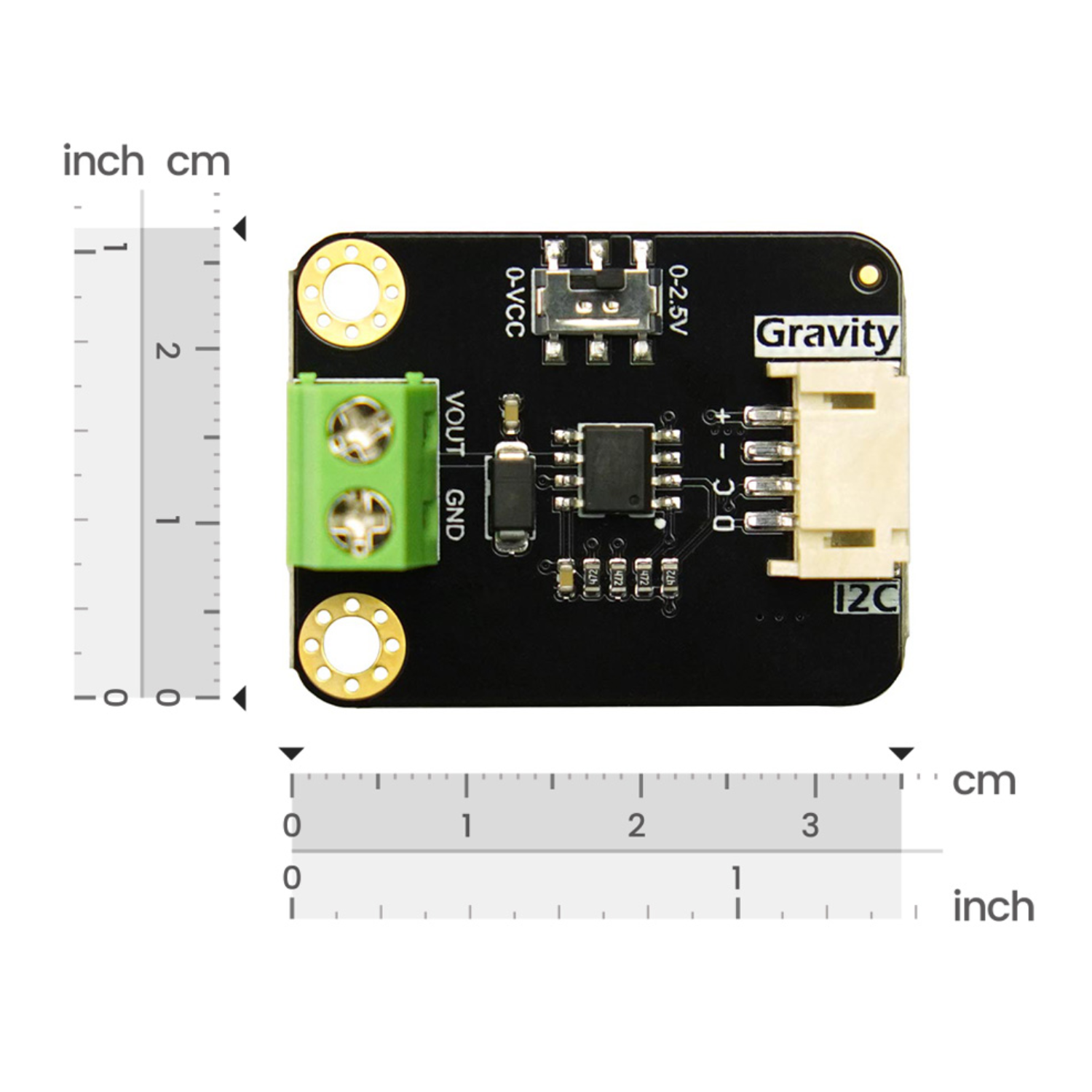

Specifications:

• Operating voltage: 3.3V to 5V
• Communication Method: I2C

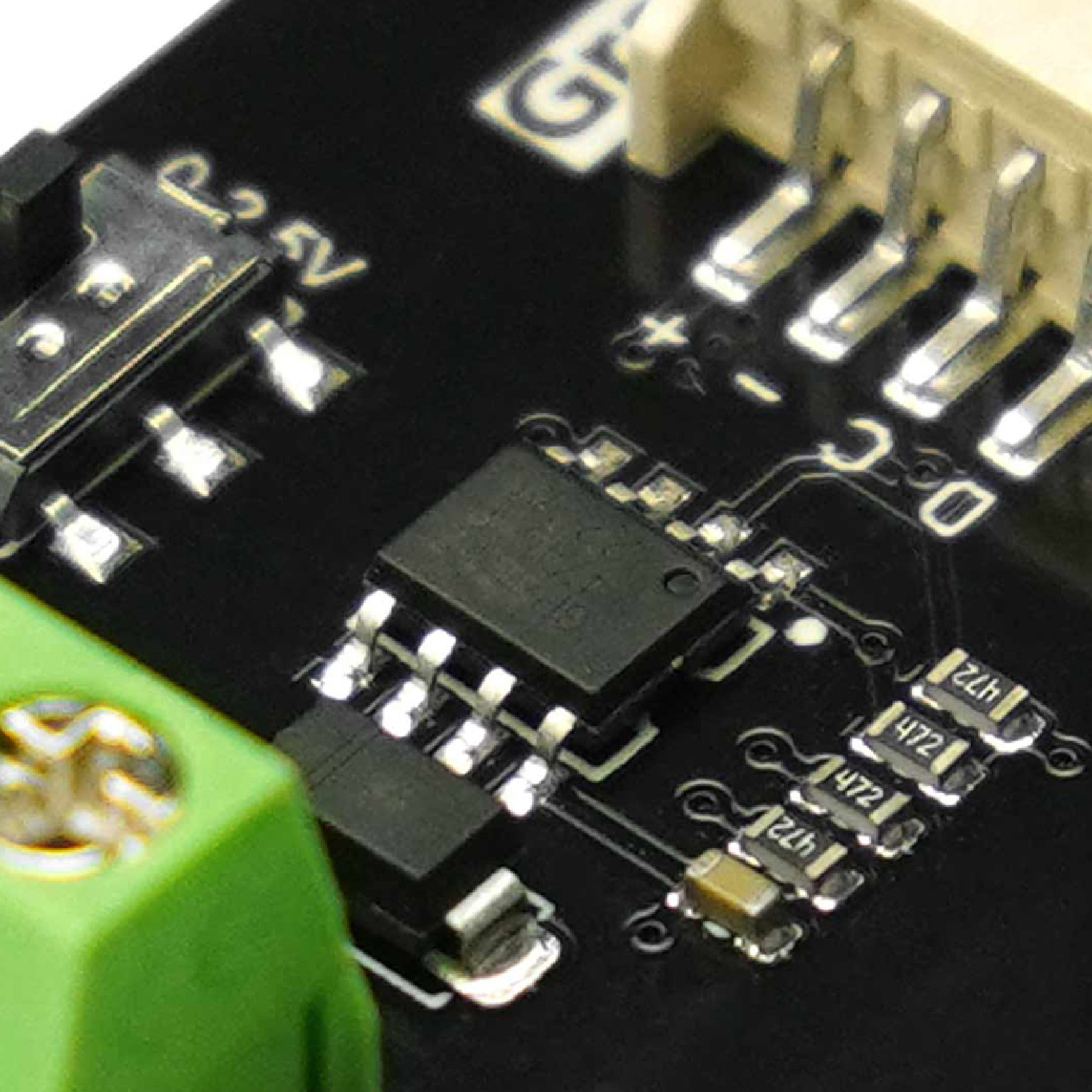

• Chip Type: GP8512
• Resolution: 15-bit
• Output Voltage: 0- 2.5V or 0-VCC
• Number of channels: 1 channel
• Value Range: 0 - 32767 corresponding to 0- 2.5V or 0-VCC
• Output voltage: 0.01%
• Output voltage linearity error: 0.01%

Features:

• Operates seamlessly with both 3.3V and 5V power supplies.
• Delivers analog voltage with less than 0.01% error.
• Guarantees accurate voltage output across the range with only 0.01% linearity error.
• Provides two independent analog output channels configurable for either 0- 2.5V or 0-VCC, ensuring compatibility with standard analog devices.
• Features a Gravity interface and utilizes I2C communication, enabling straightforward control with Arduino and other platforms for program automation.
• Designed for applications demanding superior signal accuracy and fine-tuned control.

Applications:

• Orchestrates automatic control of motor rotational speed
• Facilitates the automatic modulation of volume
• Governs temperature through automatic control mechanisms
• Commands the automatic control of indoor and outdoor illumination
• Functions as an apparatus for laboratory testing equipment

Documents:

Product wiki

Package Included:

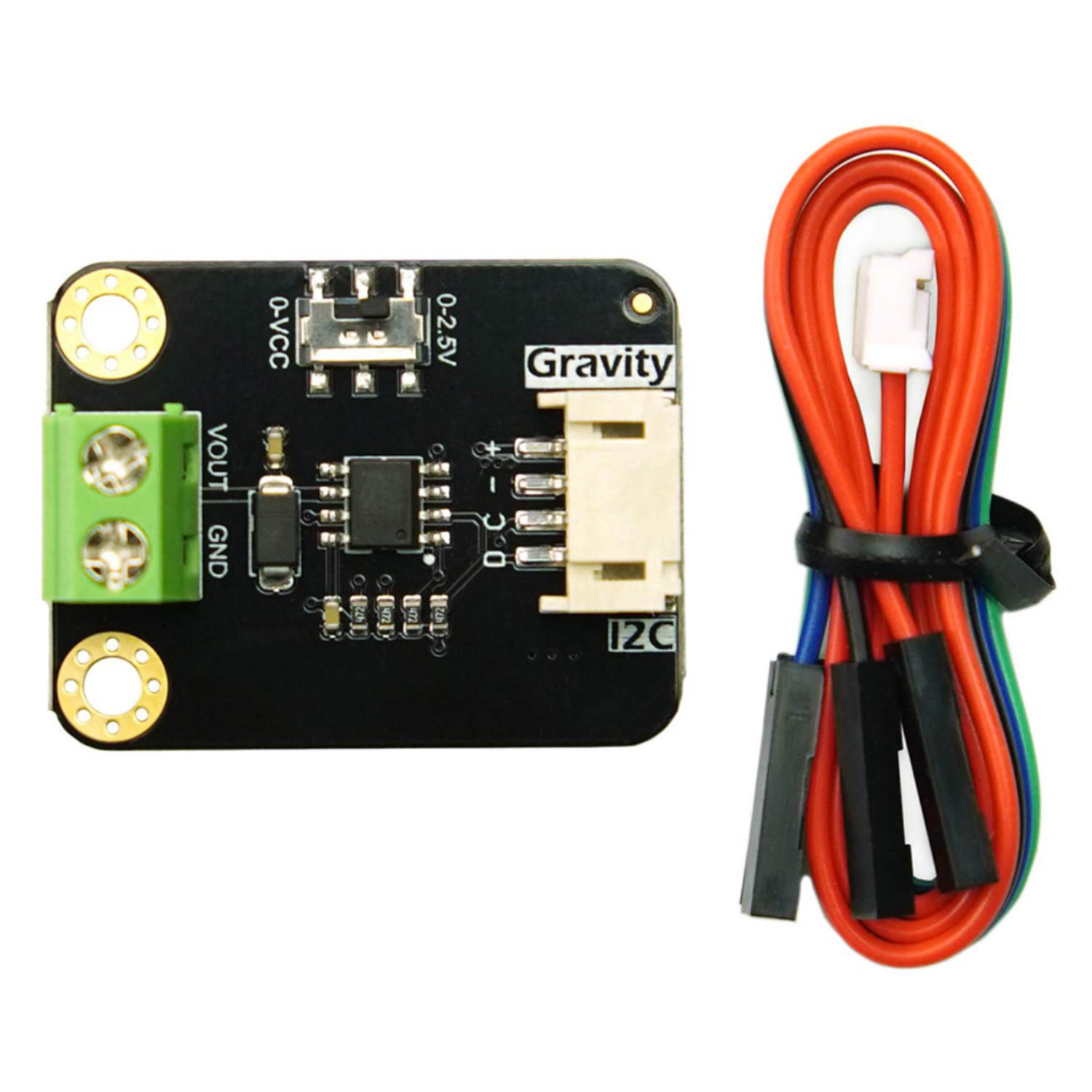

1 x DFRobot Gravity 1-Channel 15-Bit I2C DAC Module to 0-2.5V/VCC Output
