Description:

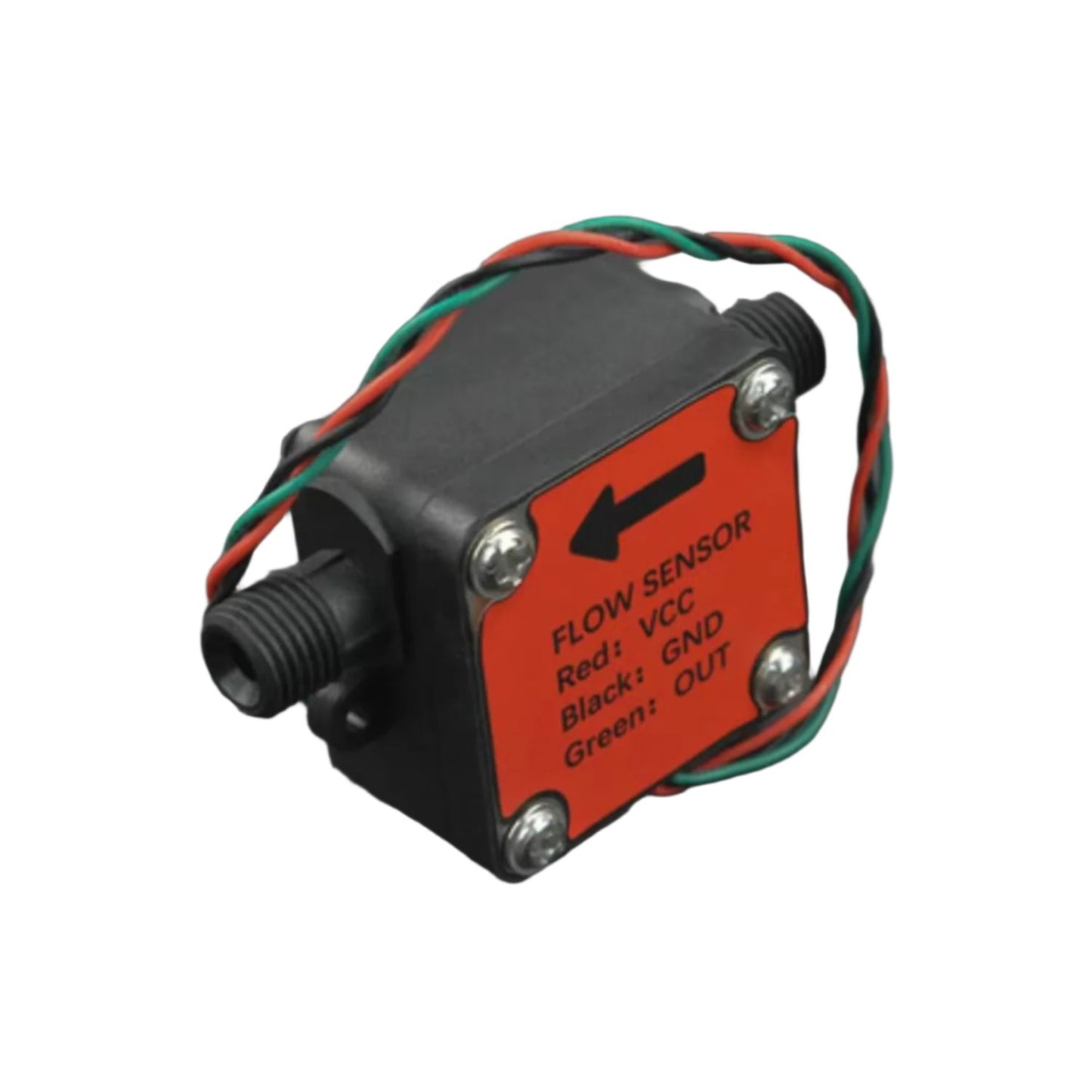

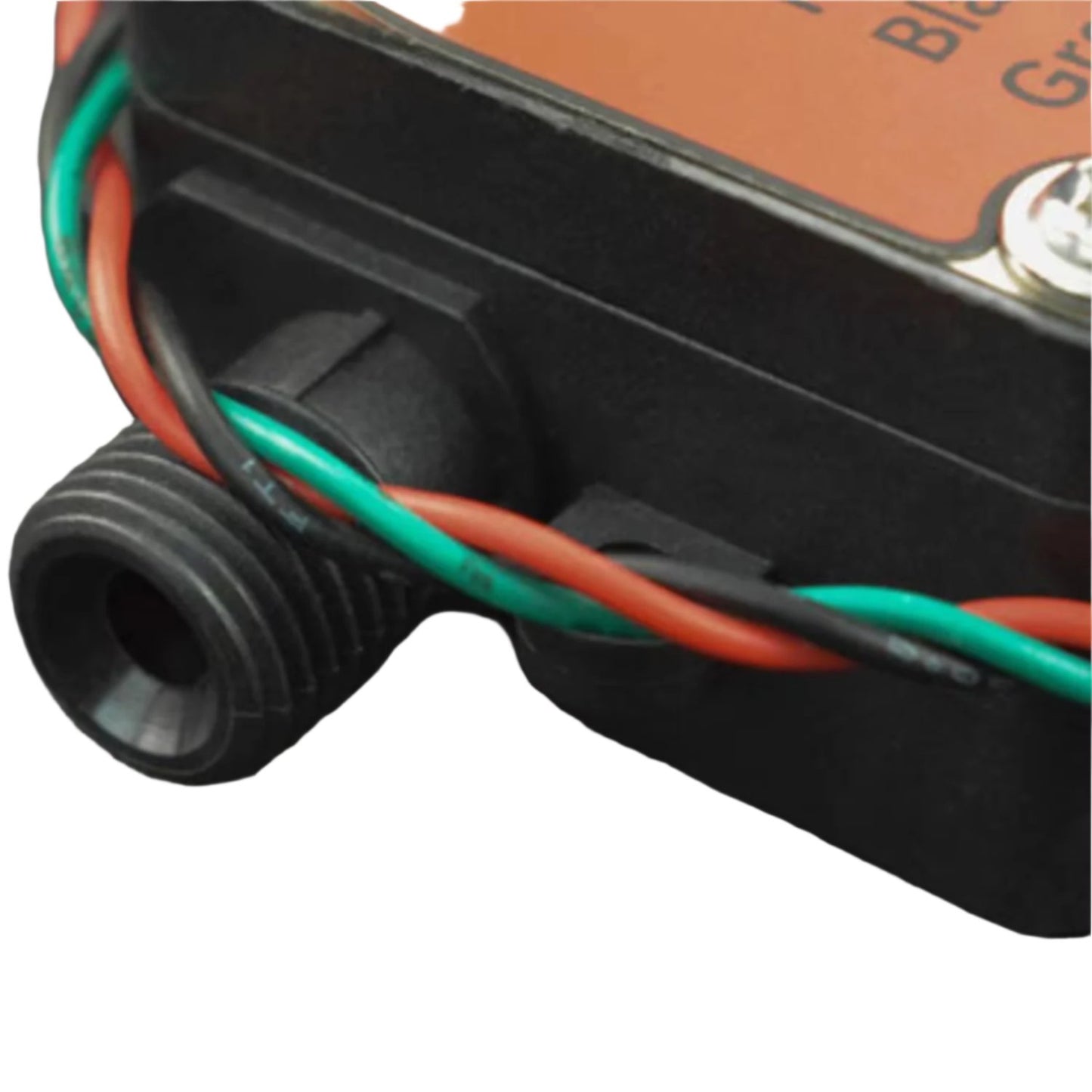

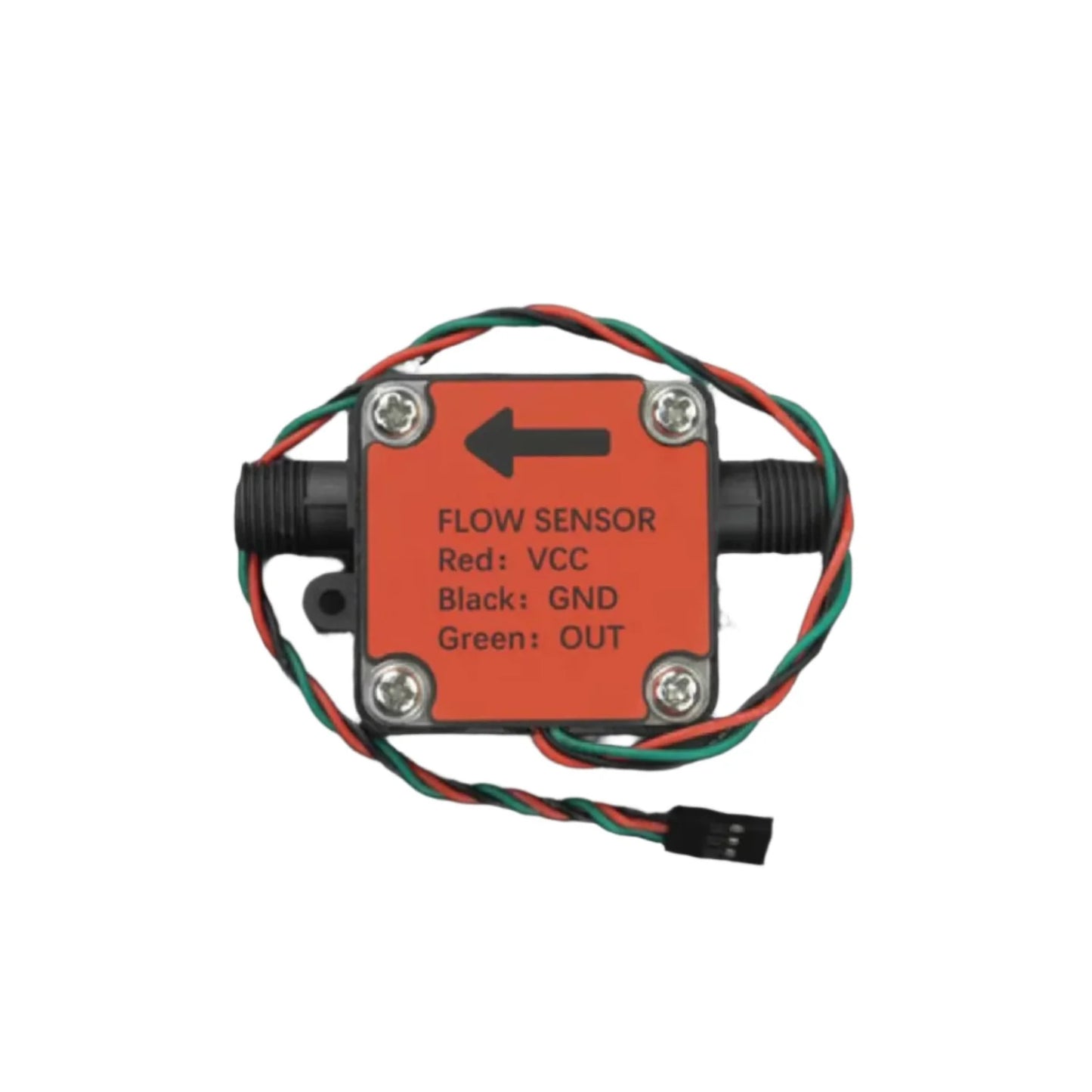

This DFRobot Gravity Liquid Flow Sensor is based on the electromagnetic principle. It adopts an O-ring rubber seal and uses silicone sealant at the outlet end to ensure good waterproofing. It embraces high anti-electromagnetic interference and anti-vibration capabilities, offering reliable performance and long service life.
The sensor can be used with microcontrollers like the Arduino UNO to measure the flow of liquids with high concentration and low viscosity like water, diesel, engine oil, milk, paint, detergent, honey and more (no impurity in liquid).
Specifications:
- Operating Voltage: DC3.5~24V
- Operating Current: ≤10mA (DC5V)
- Output Mode: NPN pulse signal
- Pipe Diameter: G1/2
- Thread I.D.: 10mm
- Thread O.D.: 20.5mm
- Thread Length: 29mm
- Water Pressure Resistance: ≤1.2MPA
- Insulation Resistance: 100MΩ
- Flow Range: 30-1200L/H
- Error: ±1% (5-600L/H)
- Output Pulse High Level: DC4.7V (input voltage DC5V)
- Output Pulse Low Level: ＜DC0.5V (input voltage DC5V)
- Output Pulse Duty Ratio: 50%±10%
- Flow & Pulse Correlation: 1L=150 pulses
- Operating Temperature: ≤80°C
- Operating Humidity: 35%~90%RH (No condensing)
- Storage Temperature: -25°~+80°C
- Storage Humidity: 25%~95%RH
- Dimensions: 80*47*37mm/3.15*1.85*1.46
Features:
- Gravity interface, easy to wire
- A wide voltage of 3.5~24
- Measure the flow of the high-concentration but low-viscosity liquid
- RoHS compliant
Package Included:
1 x DFRobot G1/2 Flow Sensor Gravity Liquid Flow Sensor Flow Rate Sensor Non-Invasive Liquid Flow Measurement
