Description:

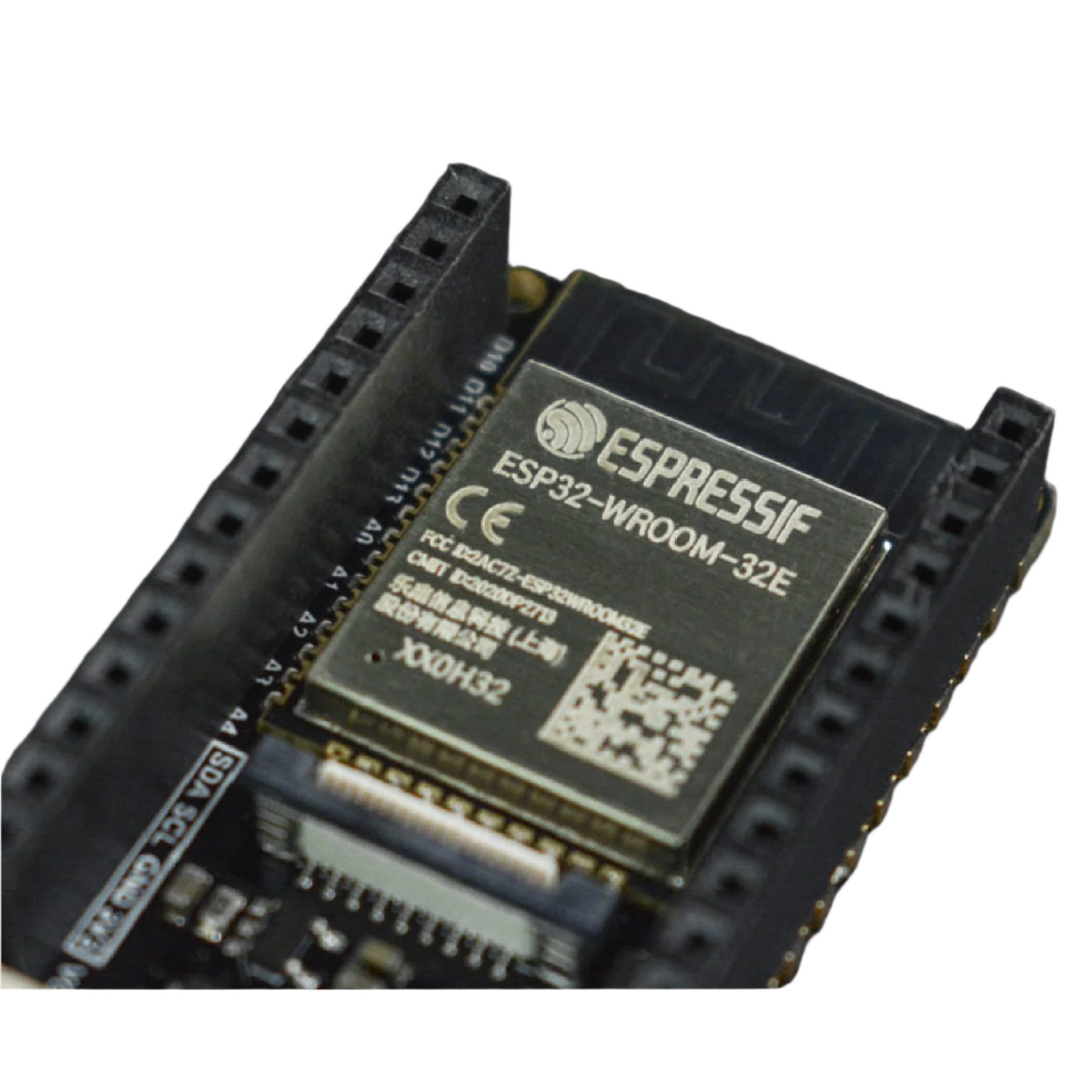

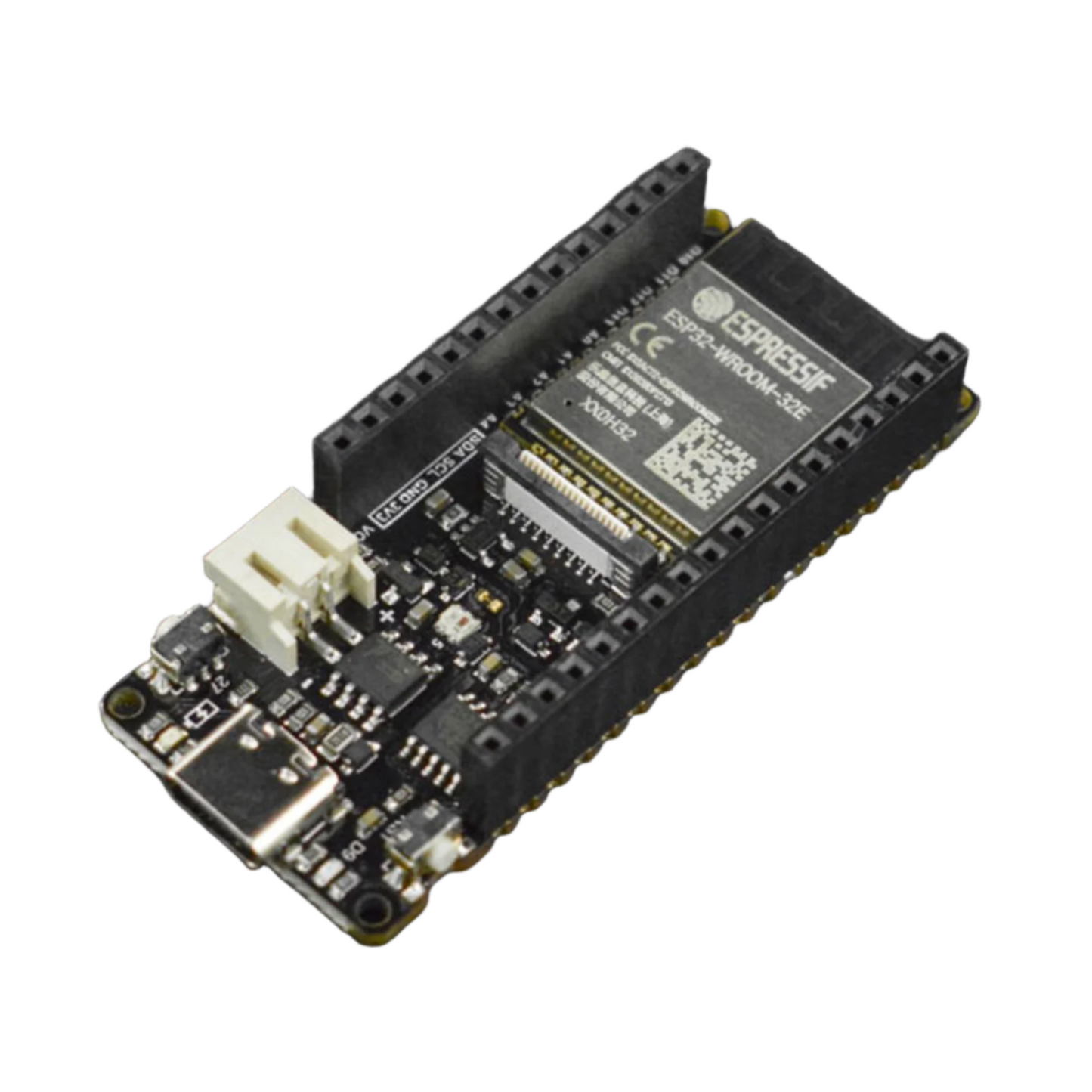

FireBeetle 2 ESP32-E, specially designed for IoT, is an ESP-WROOM-32E-based main controller board with dual-core chips.
DFR0654-F supports WiFi and Bluetooth dual-mode communication and features a small size, ultra-low power consumption, onboard charging circuit, and easy-to-use interface, which can be conveniently used for smart home IoT, industrial IoT applications, wearable devices, and so on. You can easily create your own IoT smart home system when connecting it with an IoT platform like IFTTT.
FireBeetle 2 ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming very soon. We provide you with detailed online tutorials and application cases, and there are thousands of sensors with welding-free Gravity interfaces and actuators to help you get started easily. Besides, the stamp hole design makes it able to be easily embedded in your PCB, greatly saving your costs and time to build and test a prototype.
We sell two versions of Firebeetle 2 ESP32-E unsoldered version and with header version. If you want to plug the Firebeetle shield into your Firebeetle mainboard, the Firebeetle 2 Board ESP32-E(Pre-soldered) is better for you.
Note:
FireBeetle 2 and FireBeetle pins and sizes are not compatible, and neither are the expansion boards.
Specifications:
- Operating Voltage: 3.3V
- Input Voltage: 3.3V~5.5V
- Support Low-Power: 2mA
- Max Discharge Current: 600mA@3.3V LDO
- Max Charge Current: 500mA
- Support USB Charging
- Processor: Tensilica LX6 dual-core processor (One for high-speed connection; one for independent application development)
- Main Frequency: 240MHz
- SRAM: 520KB
- Flash: 4MB
- Wi-Fi Standard: FCC/CE/TELEC/KCC
- Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n，speed up to 150 Mbps), A-MPDU and A-MSDU Aggregation, support 0.4us guard interval)
- Frequency Range: 2.4~2.5 GHz
- Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard compliant
- Bluetooth Audio: CVSD and SBC audio
- Operating Current: 80mA（Average）
- Support Arduino download with one-key
- On-chip Clock: 40MHz crystal, 32.768KHz crystal
- Digital I/O x10（Arduino default）
- Analog Input x5（Arduino default）
- SPI x1（Arduino Default）
- IIC x1（Arduino Default）
- I2S x1（Arduino Default）
- RGB_LED: 5/D8
- Connector: FireBeetle V2 series compatible
- Operating Temperature: -40℃~+85℃

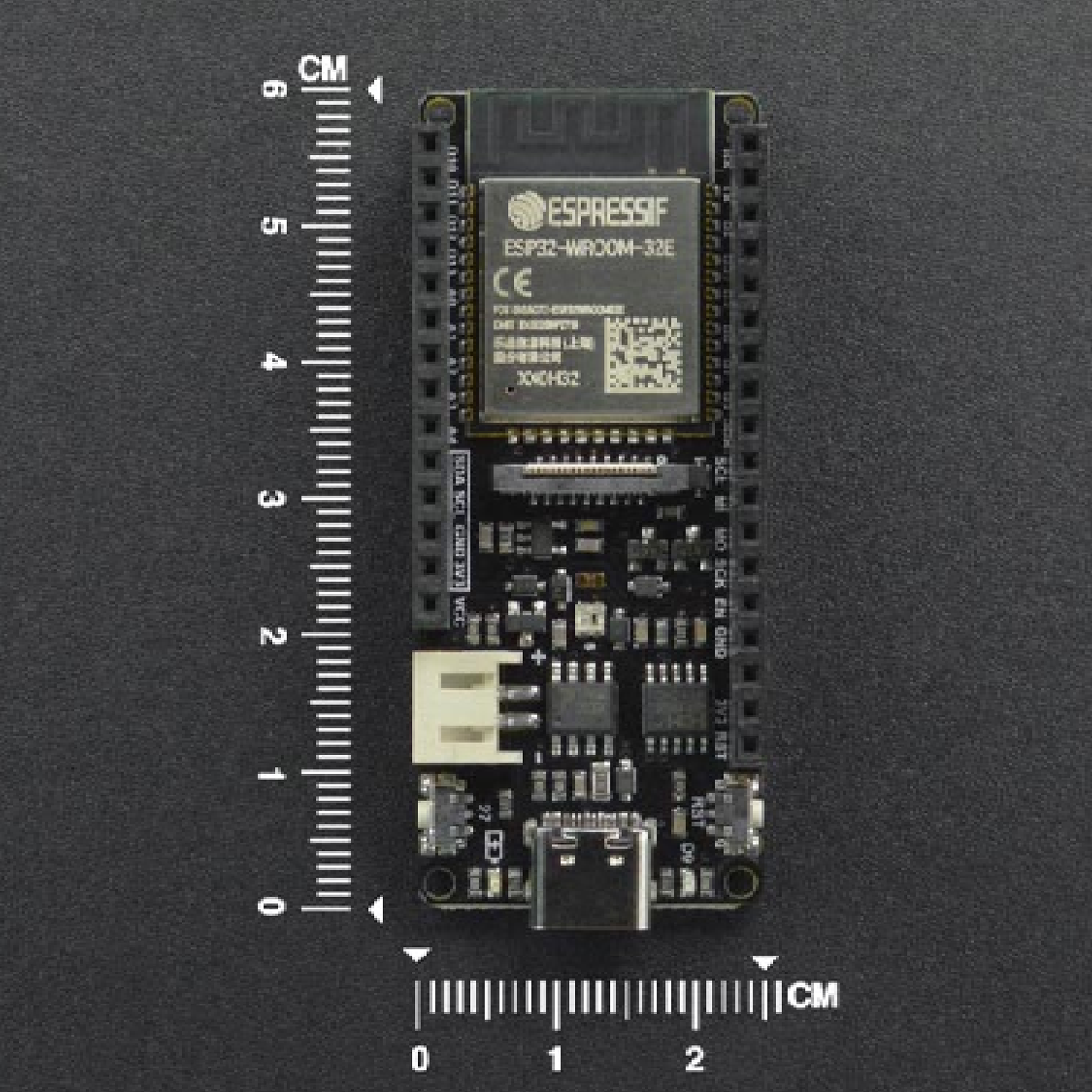

- Module Size: 25.4×60mm/1×2.36”
- Mount Hole Size: inner diameter of 2.0mm
Features:
- ESP32 Dual-core low power main controller, 10uA power consumption
- WiFi+Bluetooth 4.0 Dual-mode Module
- GDI Display Port, easy to connect
- Onboard Charging Circuit and PH2.0 lithium Battery Interface
Projects:
- Project 1: Make a Home-made Network Clock with ESP32-E
- Project 2: DIY 3D Printed IoT Weather Station Using an ESP32
- Project 3: Smart Compost Bin Monitoring System -Based on 4G IoT and SHT20
Useful Link:

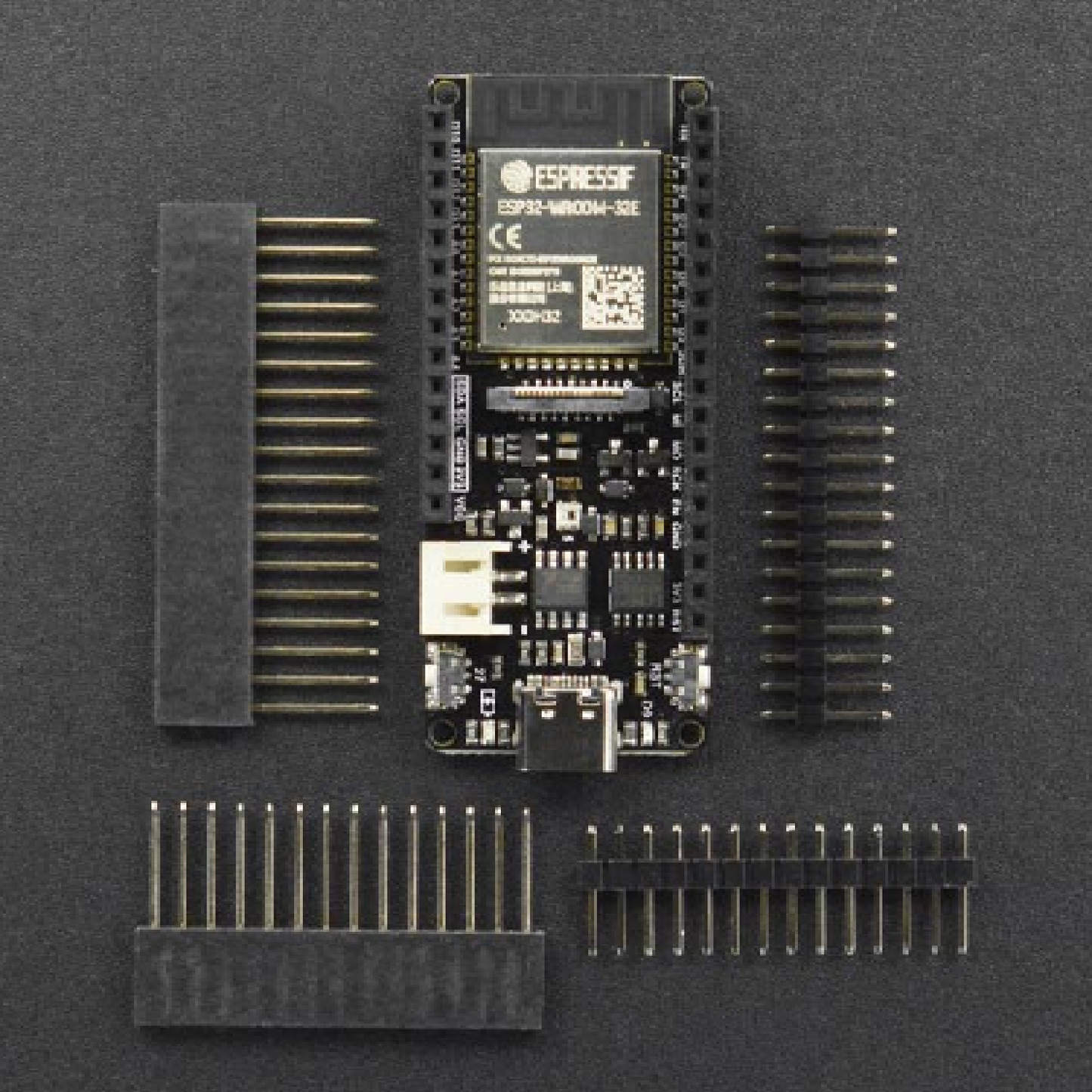

Package Included:
- 1 x FireBeetle 2 Board ESP32-E with Header
- 1 x 18pin-2.54mm Pitch Pin
- 1 x 18pin-2.54mm Pitch Pin Female
- 1 x 14pin-2.54mm Pitch Pin
- 1 x 14pin-2.54mm Pitch Pin Female
