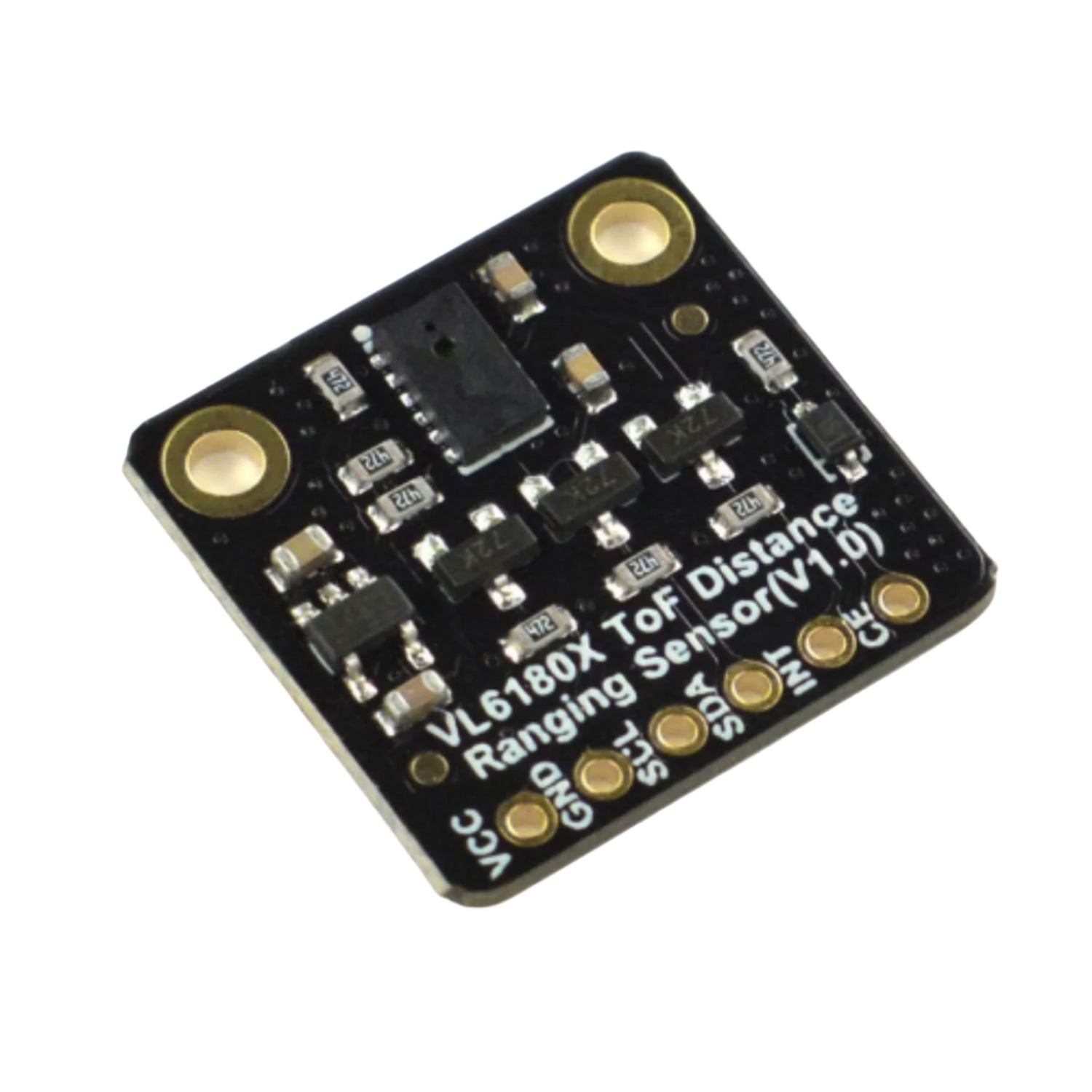

DFRobot SEN0427 VL6180X Distance and Ambient Light Sensor
The Fermion SEN0427 is a compact breakout board for short-range optical distance sensing and ambient light measurement. It uses the ST VL6180X time-of-flight sensor and communicates with a microcontroller over I2C. Use it for close-proximity detection, small robot experiments and interactive projects that need both distance and light readings.
Key features
- Rated measuring distance of 5 to 100 mm. Readings up to 200 mm may be possible under favourable conditions, but this is not the guaranteed working range.
- Built-in ambient light sensing alongside distance measurement.
- 3.3 V to 5 V breakout-board power input and a fixed 7-bit I2C address of 0x29.
- INT output for data-ready signalling and an active-low CE enable input.

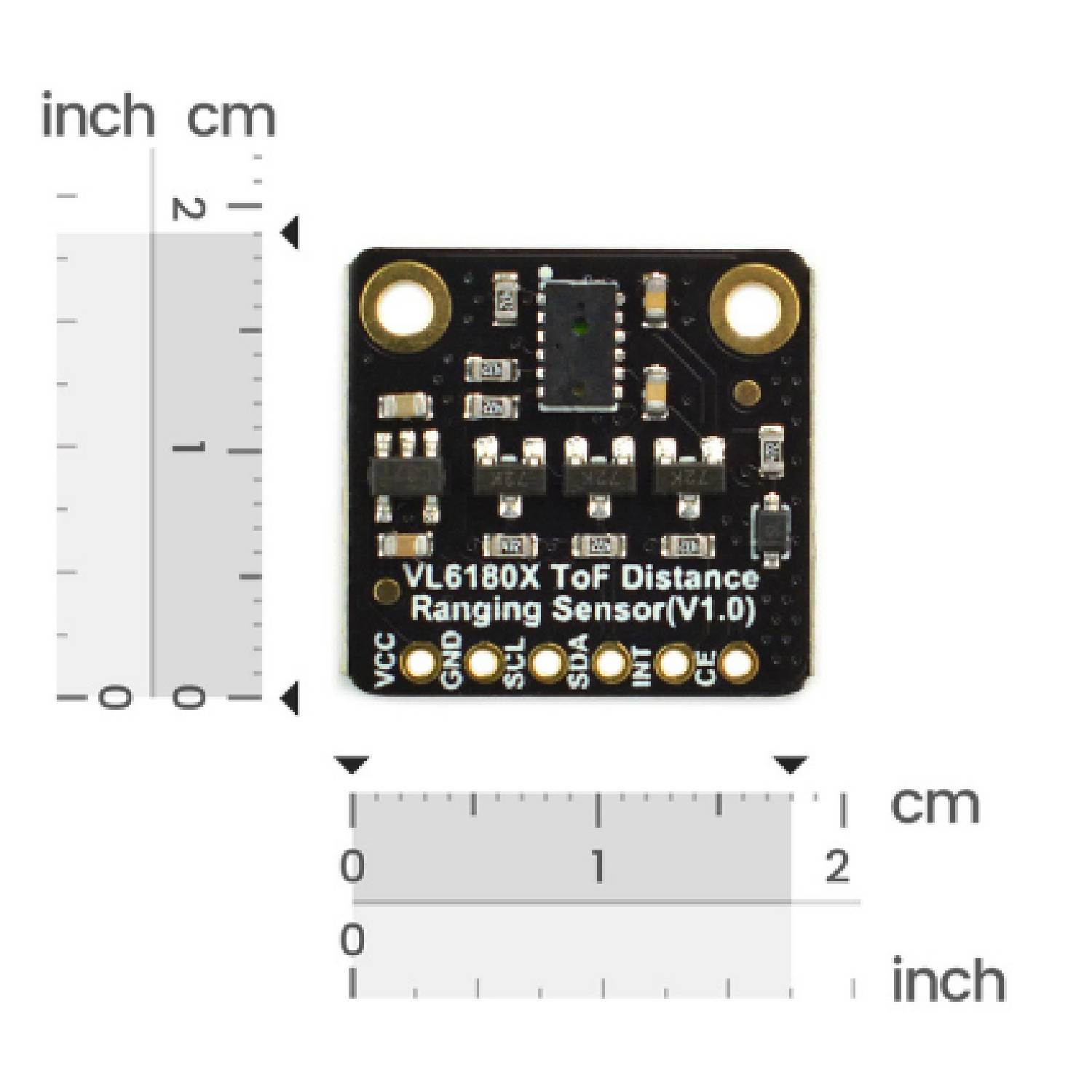

- Compact 19 × 18 mm board with a separate 2.54 mm pitch, six-pin header.
Specifications
| Manufacturer / model | DFRobot Fermion SEN0427 |
|---|---|
| Sensor | STMicroelectronics VL6180X |
| Board supply voltage | 3.3 V to 5 V |
| Operating current | Less than 5 mA, as specified by DFRobot |
| Rated measuring distance | 5 to 100 mm |
| Interface / address | I2C / 0x29 |

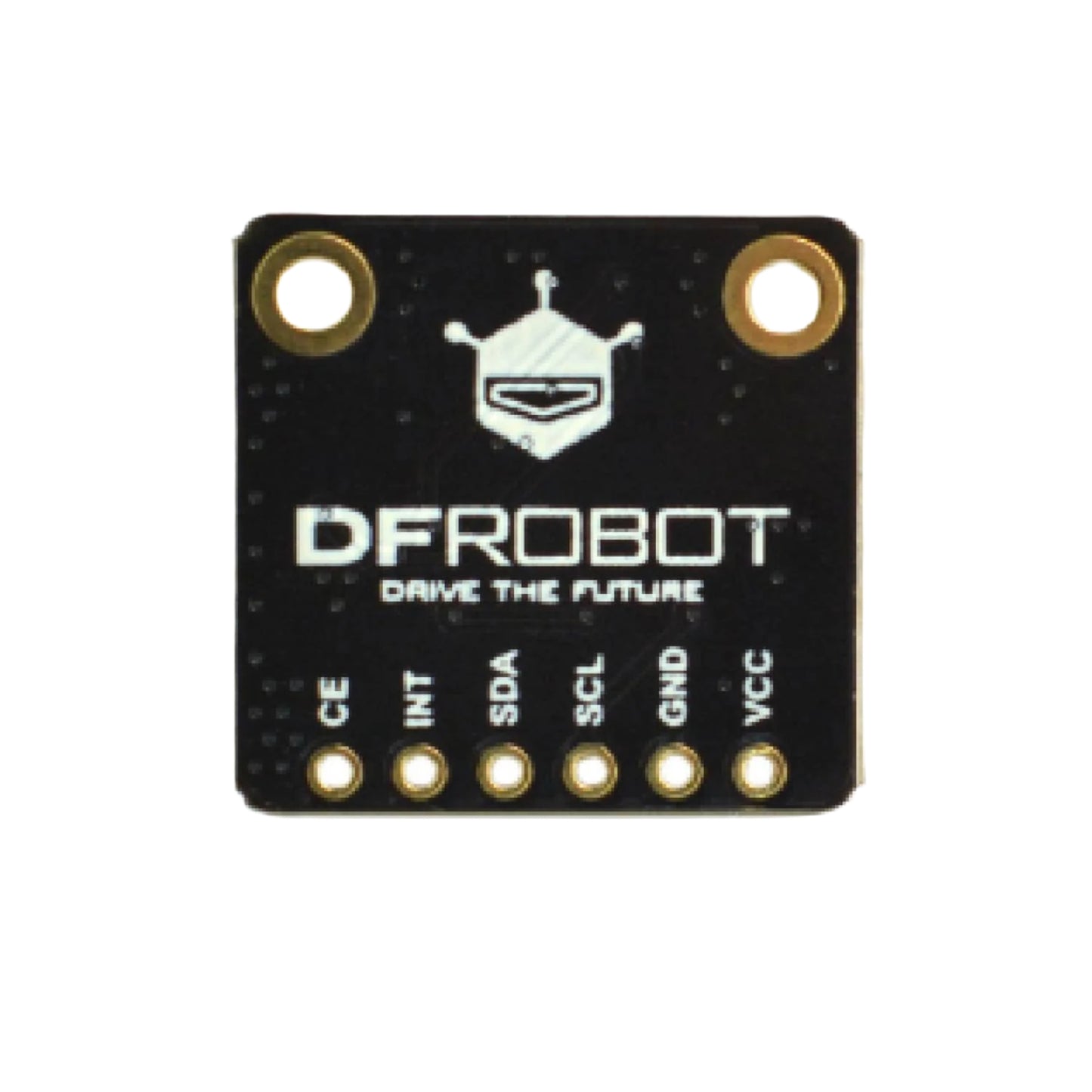

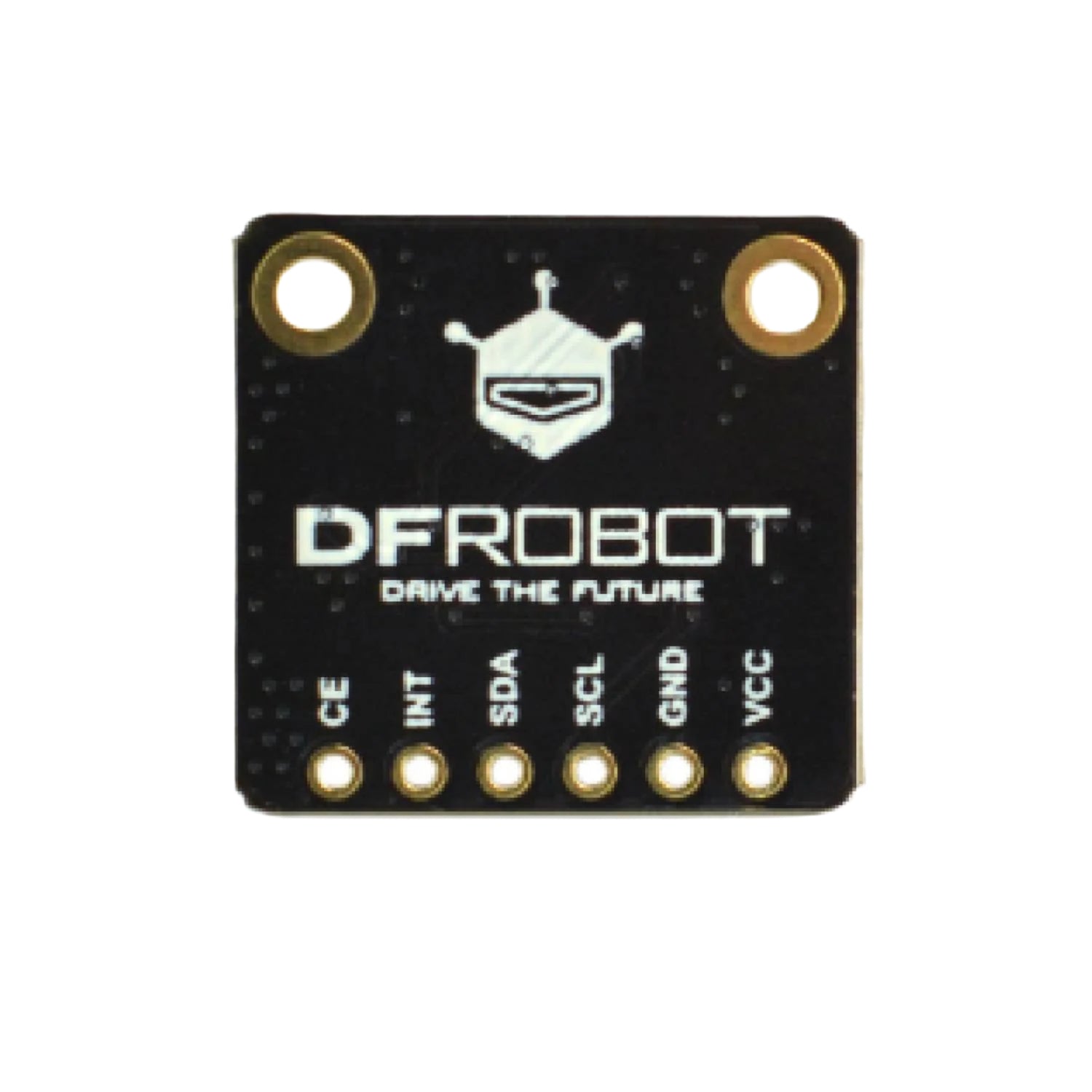

| Connections | VCC, GND, SCL, SDA, INT, CE |
| Board dimensions | 19 × 18 mm |
Connection notes
Connect VCC and GND to the supported supply, then connect SCL and SDA to the controller's I2C pins. The included header is supplied separately, so soldering is needed if you want to use header-pin connections. Follow the DFRobot tutorial and library examples for setup and reading the sensor. The wiring image shows an example controller connection only.
Package includes

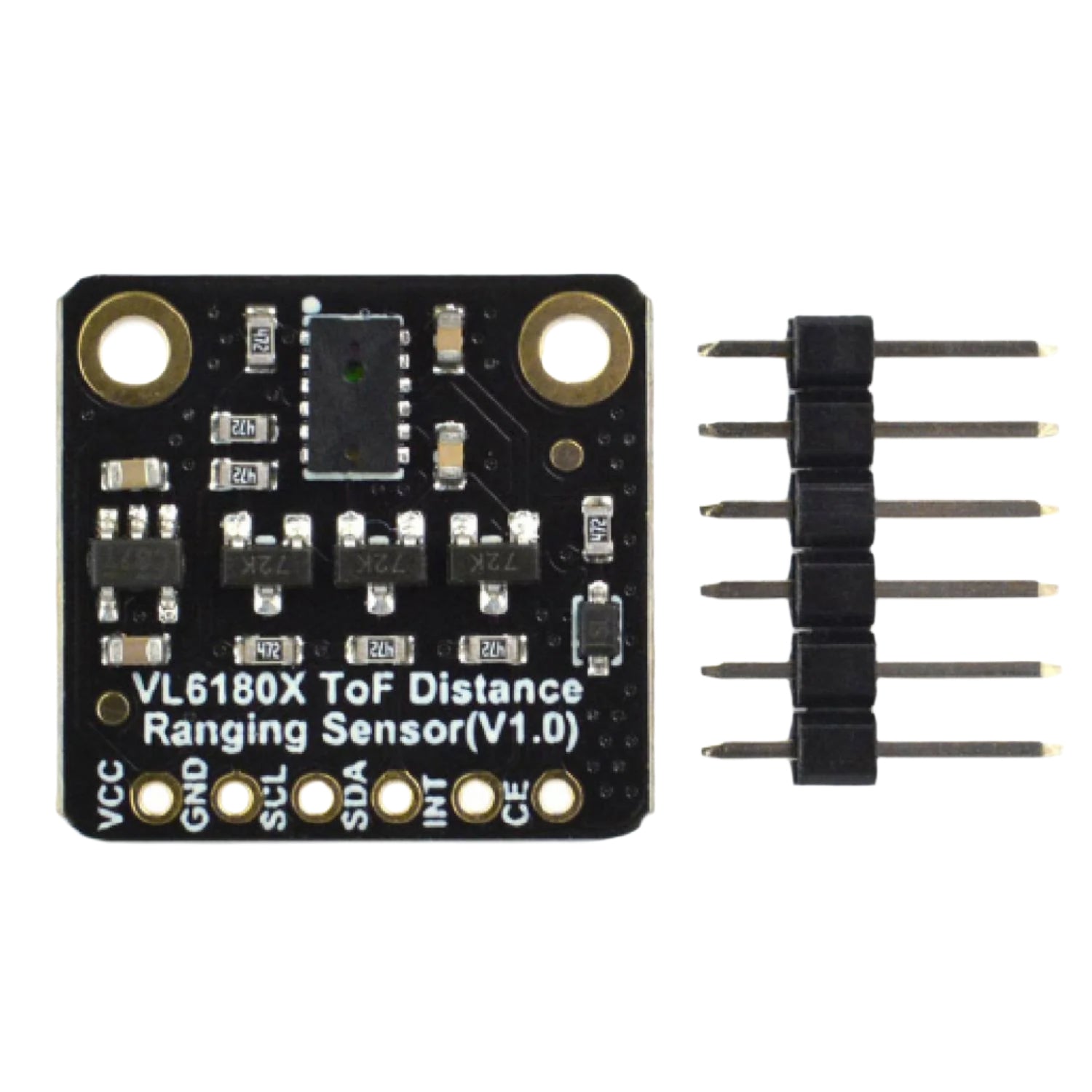

- 1 × DFRobot Fermion SEN0427 VL6180X sensor breakout board
- 1 × 2.54 mm pitch, six-pin single-row header
Controller board, USB cable, jumper wires and other demonstration hardware are not included.
