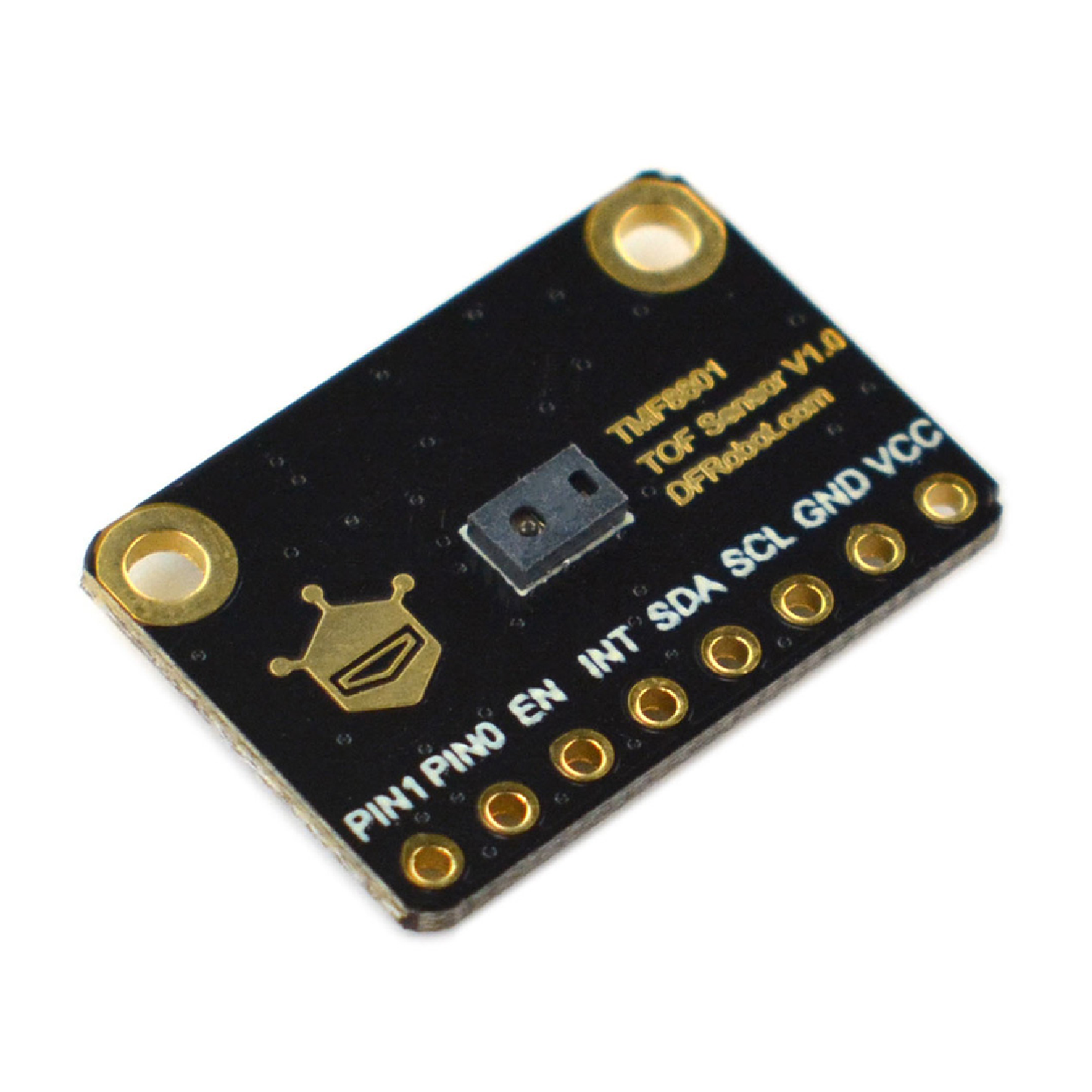

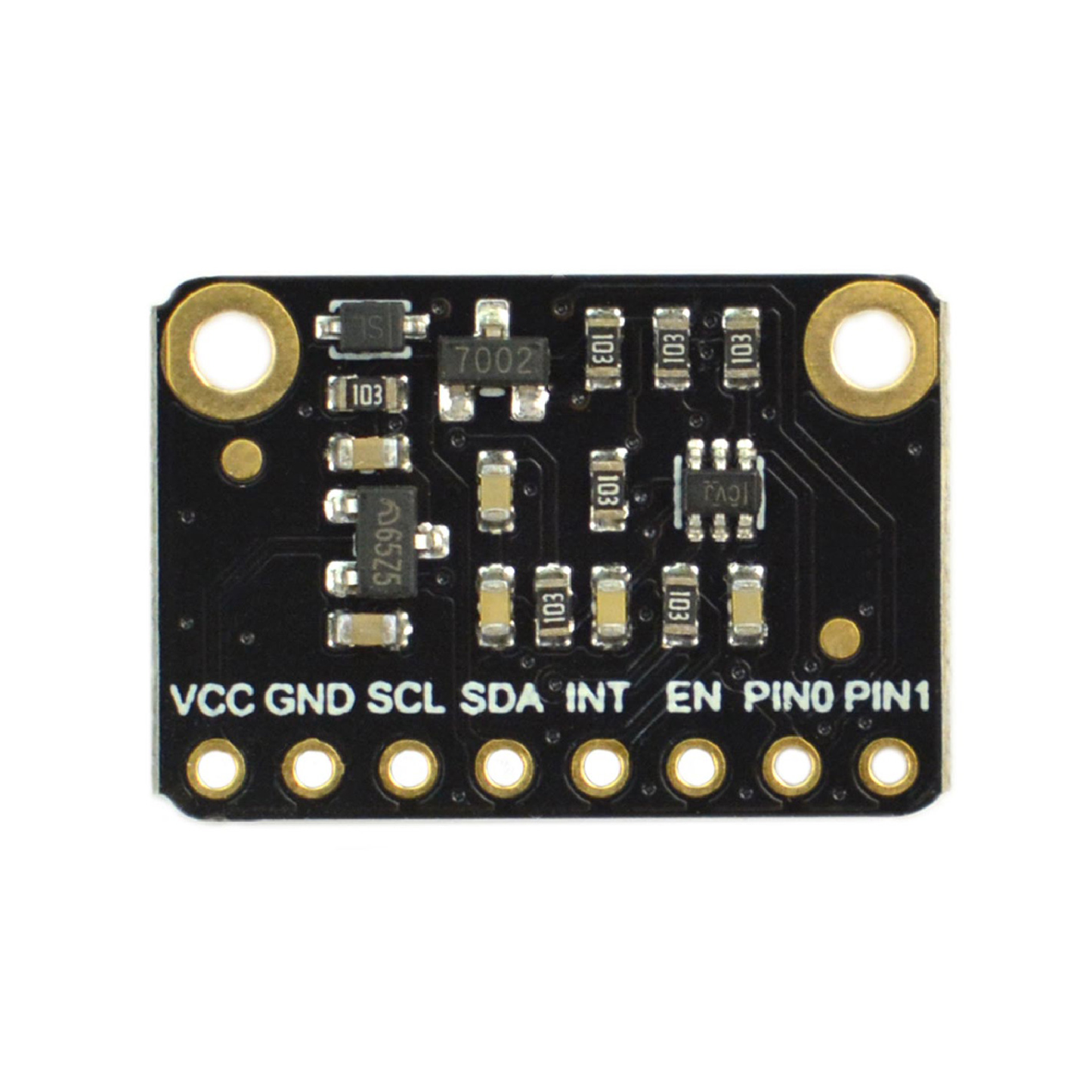

Description:
The TMF8801 is a time-of-flight (ToF) distance-ranging sensor that uses the time difference between light pulses to measure distance. It provides single-zone detection of an object irrespective of the color, reflectivity, and texture of the object. It offers high dynamic range and detection sensing measurements from 2-250cm distances. This device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and the presence of sunlight.
A built-in histogram is featured to deliver dynamic cover glass calibration and crosstalk compensation, and background light noise is minimized through on-chip sunlight rejection filters. The TMF8801 outputs data through an I2C fast-mode communications interface and an integrated microcontroller, which is featured with all algorithms included on-chip with no need for external optics.
Specifications:
- Operating Voltage: 2.7~3.3V
- Operating Current: ＜1.5mA
- Proximity Detection Range: 20-100mm
- Distance Sensing Range: 100-2500mm
- Operating Temperature: -30~60℃
- Communication Interface: Breakout 2.54mm-8Pin I2C

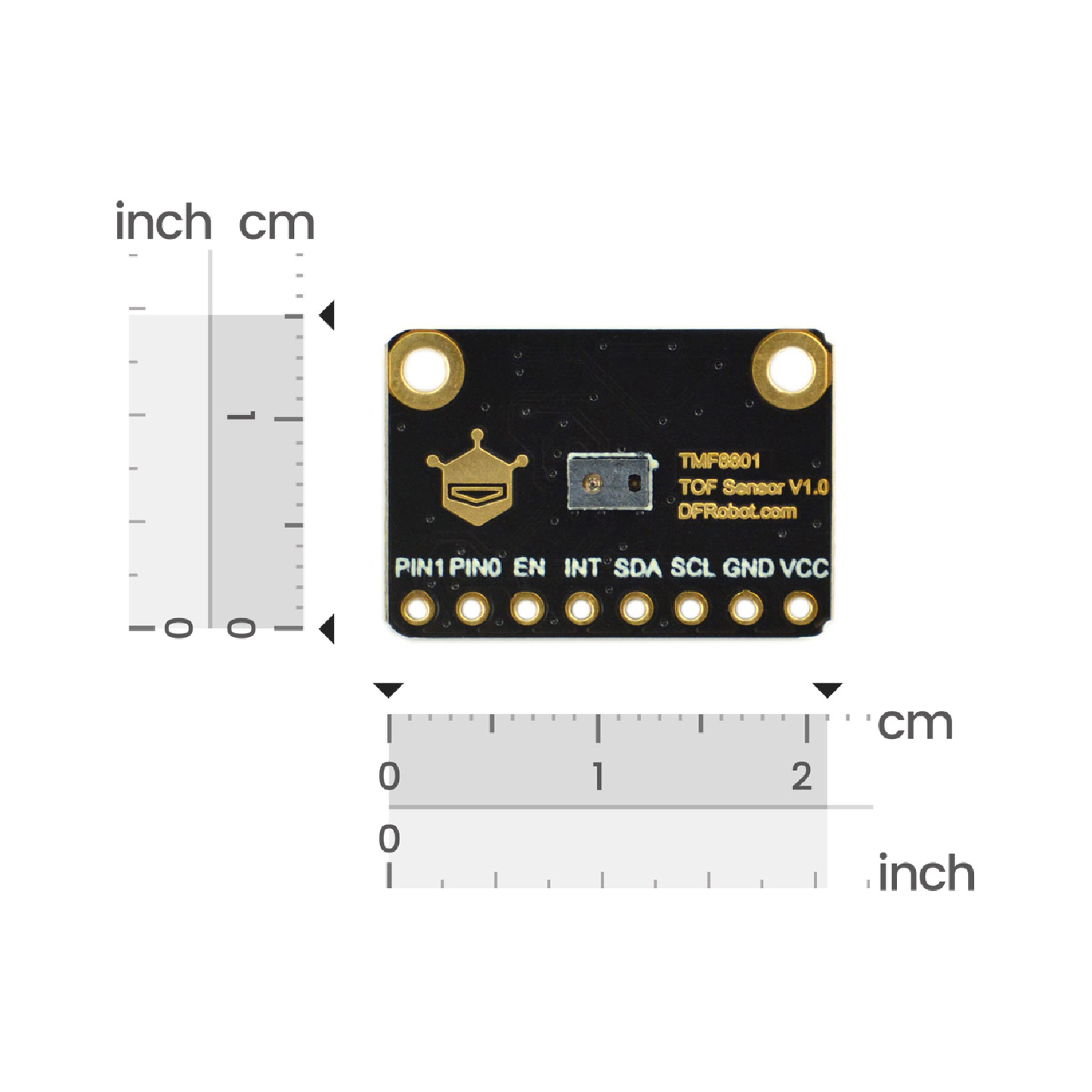

- Dimension: 21*14.5mm/0.83*0.57"
- Mounting Hole Size: 2.0mm
- Mounting Hole Pitch: 17mm
Features:
- 21º FOI, detect the object closest to the center
- 20–2500mm distance sensing
- Enables dark and sunlight environment distance measurement within ±5%
- A built-in histogram for compensating for dirt and smudges on the cover glass
- 940nm VCSEL Class 1 Eye Safety
- Low power consumption
- 940μA power consumption at 10Hz(proximity mode)
- 26mA power consumption at 60Hz (distance and proximity mode)
- 0.26μA power-down current consumption (EN=0)
Applications:
- 3D face recognition
- Proximity detection
- Presence detection
- Object detection
- Distance measurement
- Collision avoidance
Useful Links:

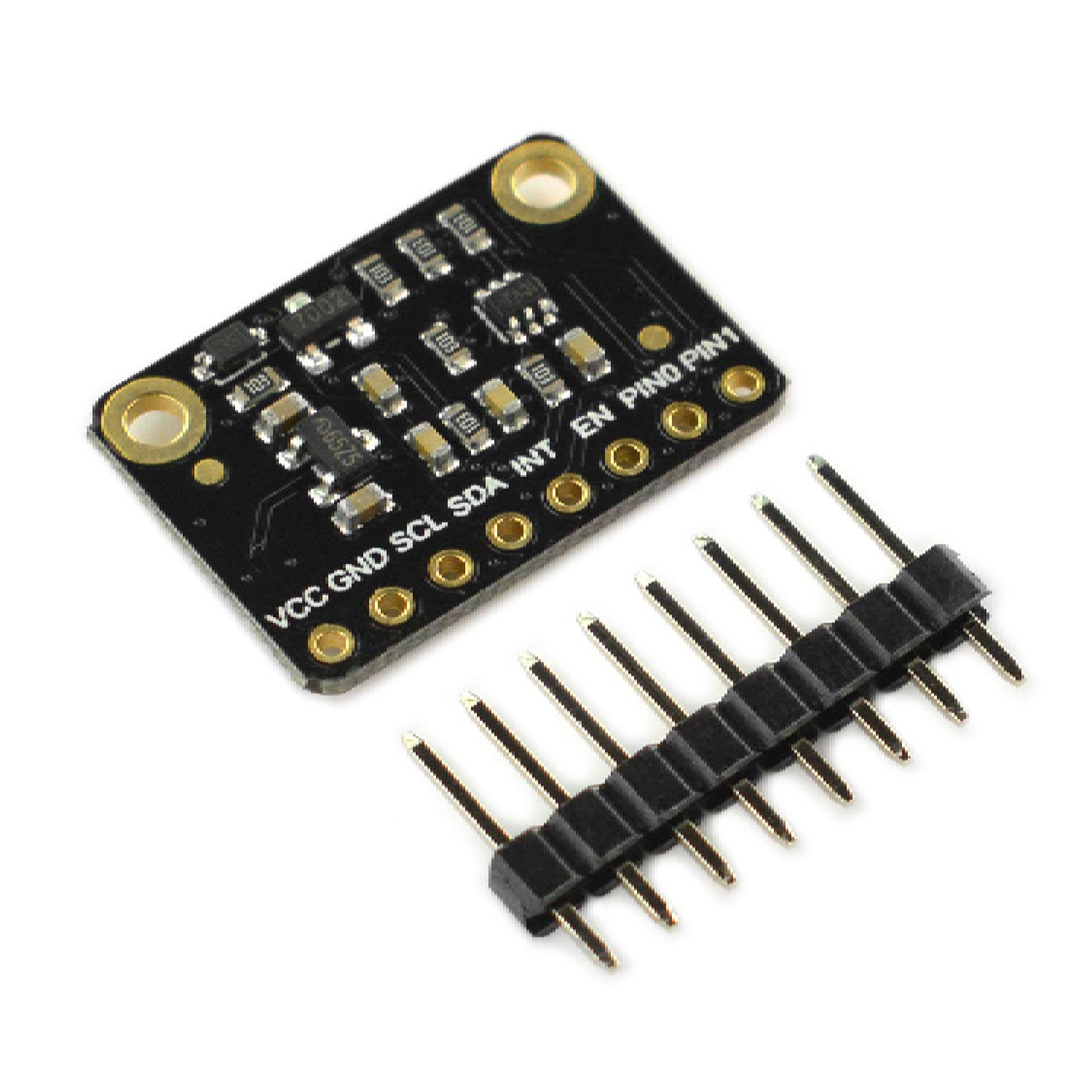

Package Included:
- 1 x ToF Distance Ranging Sensor
- 1 x 2.54-8P Black Single-row Connector
