DFRobot Fermion: Monochrome 0.91” 128×32 I2C OLED Display Small Monochrome OLED Display With Integrated Chip Pad For Easy Breakout

DFRobot Fermion: Monochrome 0.91” 128×32 I2C OLED Display Small Monochrome OLED Display With Integrated Chip Pad For Easy Breakout

In stock

Rs. 888.00
Rs. 888.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

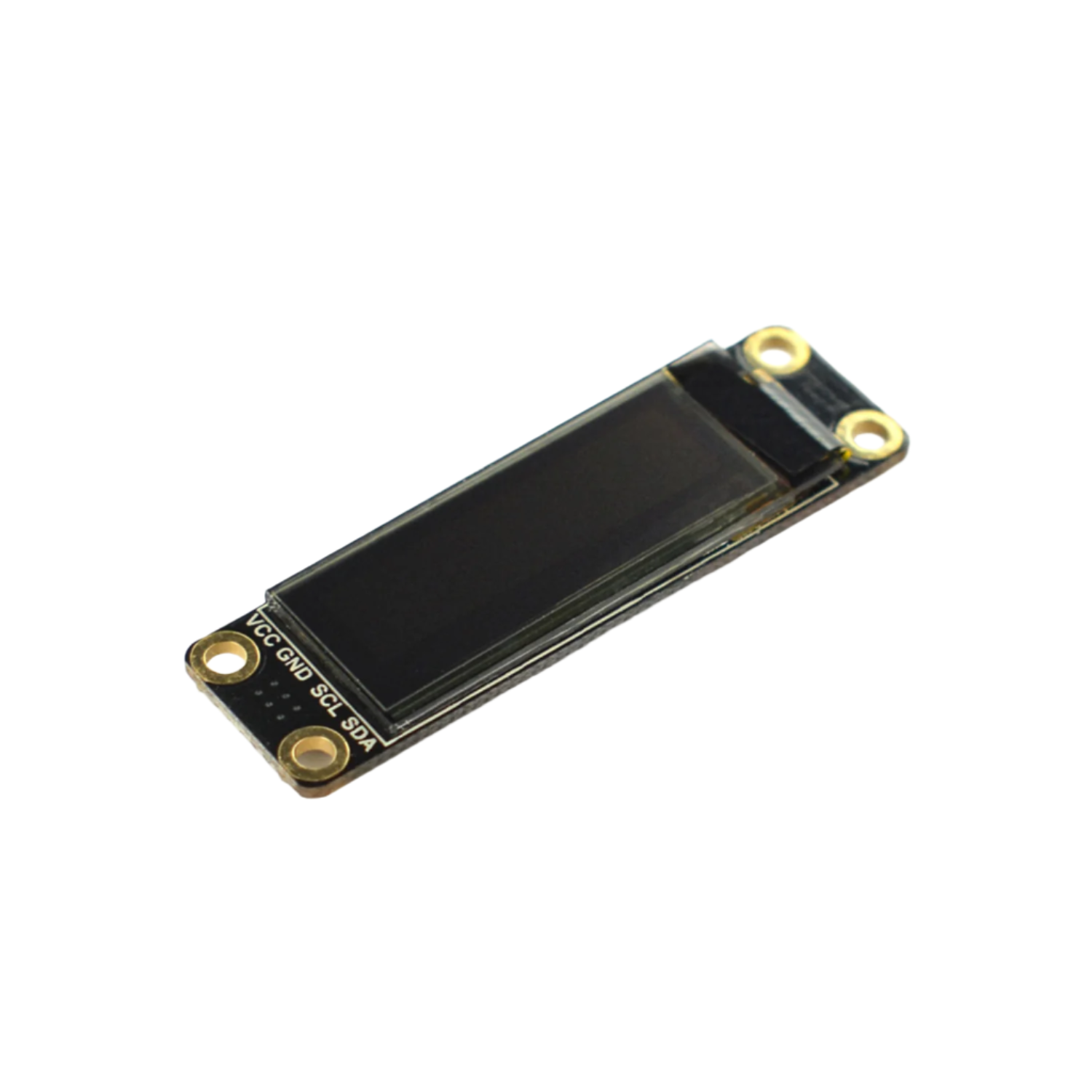

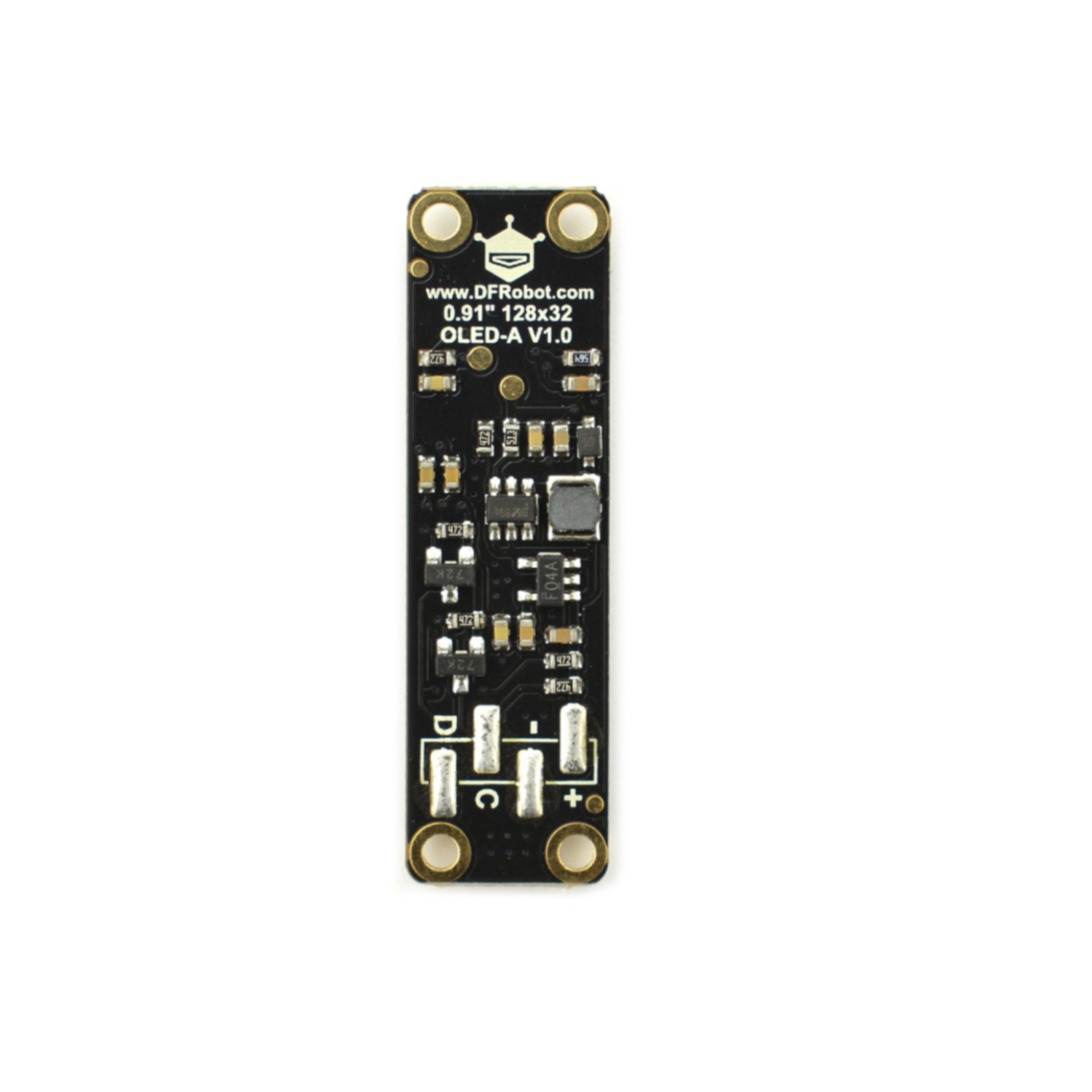

This compact OLED display module offers a high-performance visual solution based on the widely adopted SSD1306 driver IC. It features a 128×32 array of self-illuminating white organic light-emitting diodes, providing excellent contrast and wide viewing angles. The module's physical dimensions are minimized thanks to a back chip-mounting pad, resulting in a length of 33mm and a width of 20mm. This small form factor, coupled with its low power requirements (approximately 25mA at 3.3V/5V for full illumination and 2mA at 3.3V/5V when off), makes it suitable for battery-powered and space-constrained applications such as wearable technology, miniature gaming devices, and custom desktop interfaces.

Interfacing with this display is simplified through the I2C communication protocol, and an internal power-on reset circuit ensures reliable operation. It offers broad compatibility with a variety of microcontroller platforms, including the Arduino UNO and Leonardo, the ESP32 and ESP8266 SoCs, and the FireBettle-M0 development board, facilitating seamless integration into diverse embedded systems.

Note: Turn the pixels off when you are not using the display to prevent using some pixels for too long to darken them, which will cause the brightness uniformity problem.

Specifications:

  • Operating voltage: 3.3V to 5V
  • Color: White pixels
  • Number of pixels: 128 columns x 32 rows
  • Interface: I2C
  • Drive chip: SSD1306
  • Brightness: 180 (Typ) cd/m2
  • Full-screen lighting power: approx. 25mA (3.3V) 25mA (5V)
  • Full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V)
  • Operating temperature: -30°C to 70°C
  • Display area: 22.38 x 5.58 mm / 0.88”x 0.22”
  • Mounting hole diameter: 2 mm

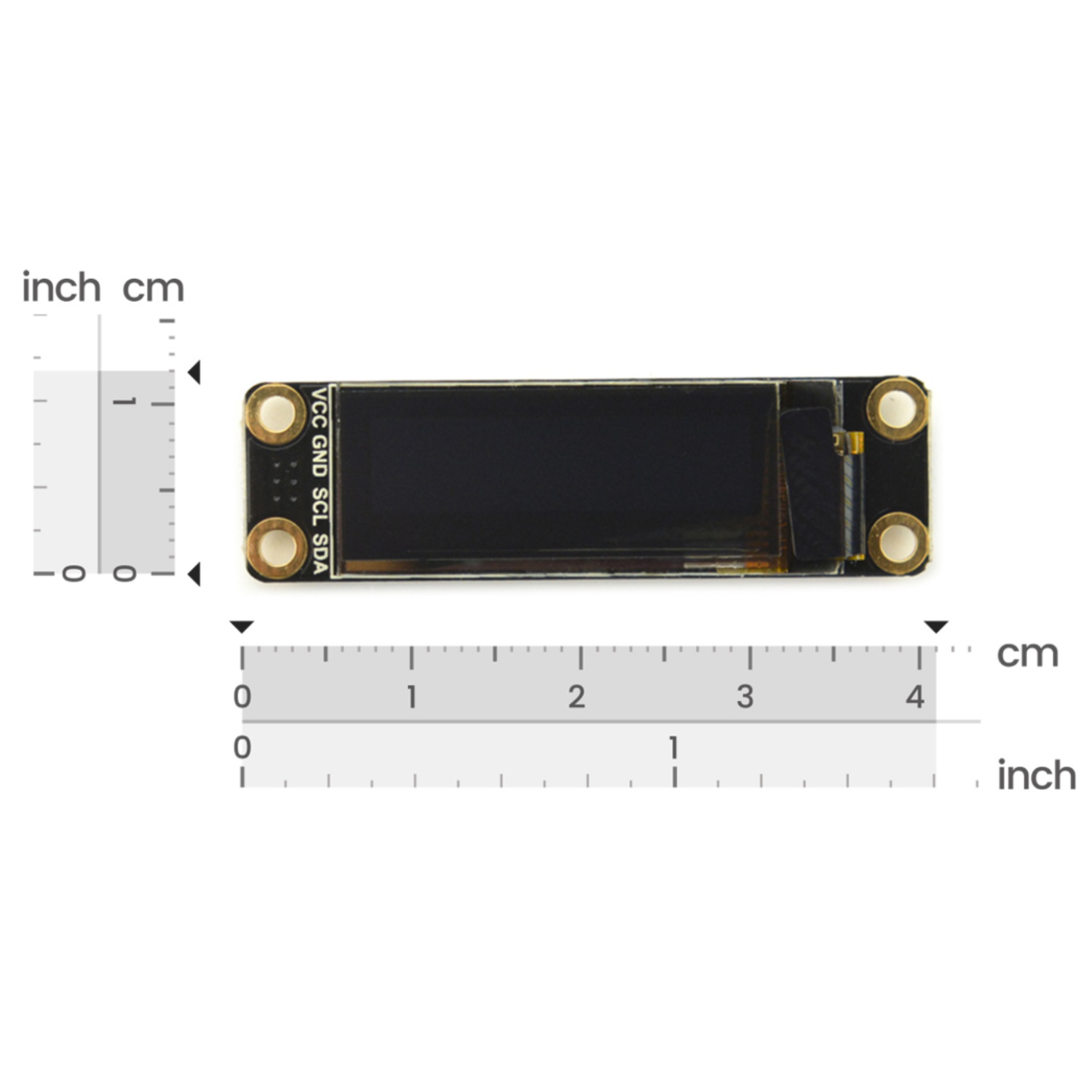

  • Size: 41x12 mm / 1.61”x 0.47”

Features:

  • Precision chip placement.
  • Vibrant, direct-light visuals.
  • Efficient, granular display control.
  • Reliable startup sequencing.

Applications:

  • Thermometer
  • Desktop weather display
  • Kitchen weighing machine
  • Air quality detector
  • Mini Game consoles
  • Wearable display

Documents:

Package Included:

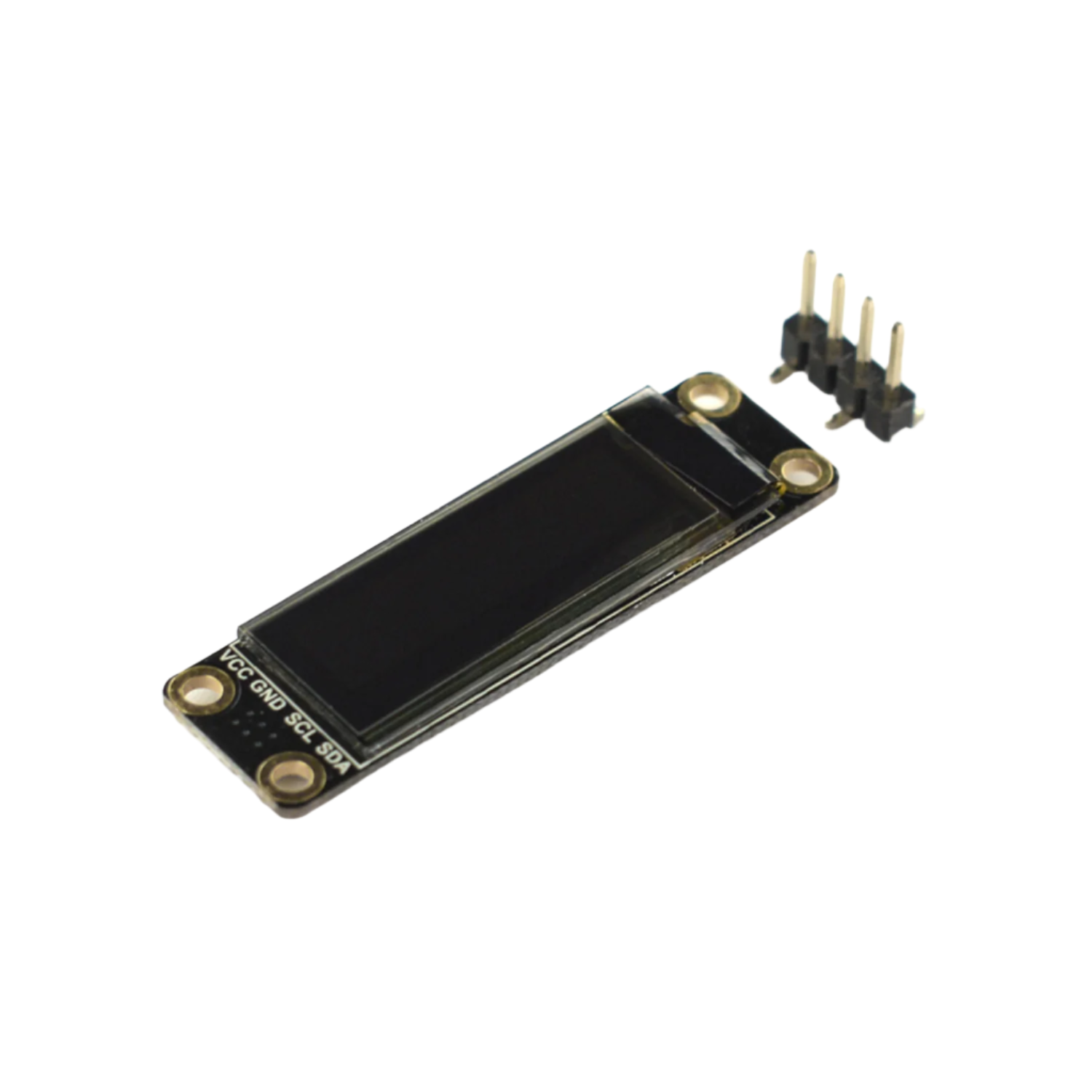

1 x DFRobot Fermion: Monochrome 0.91” 128×32 I2C OLED Display with Chip Pad (Breakout)
