Description:

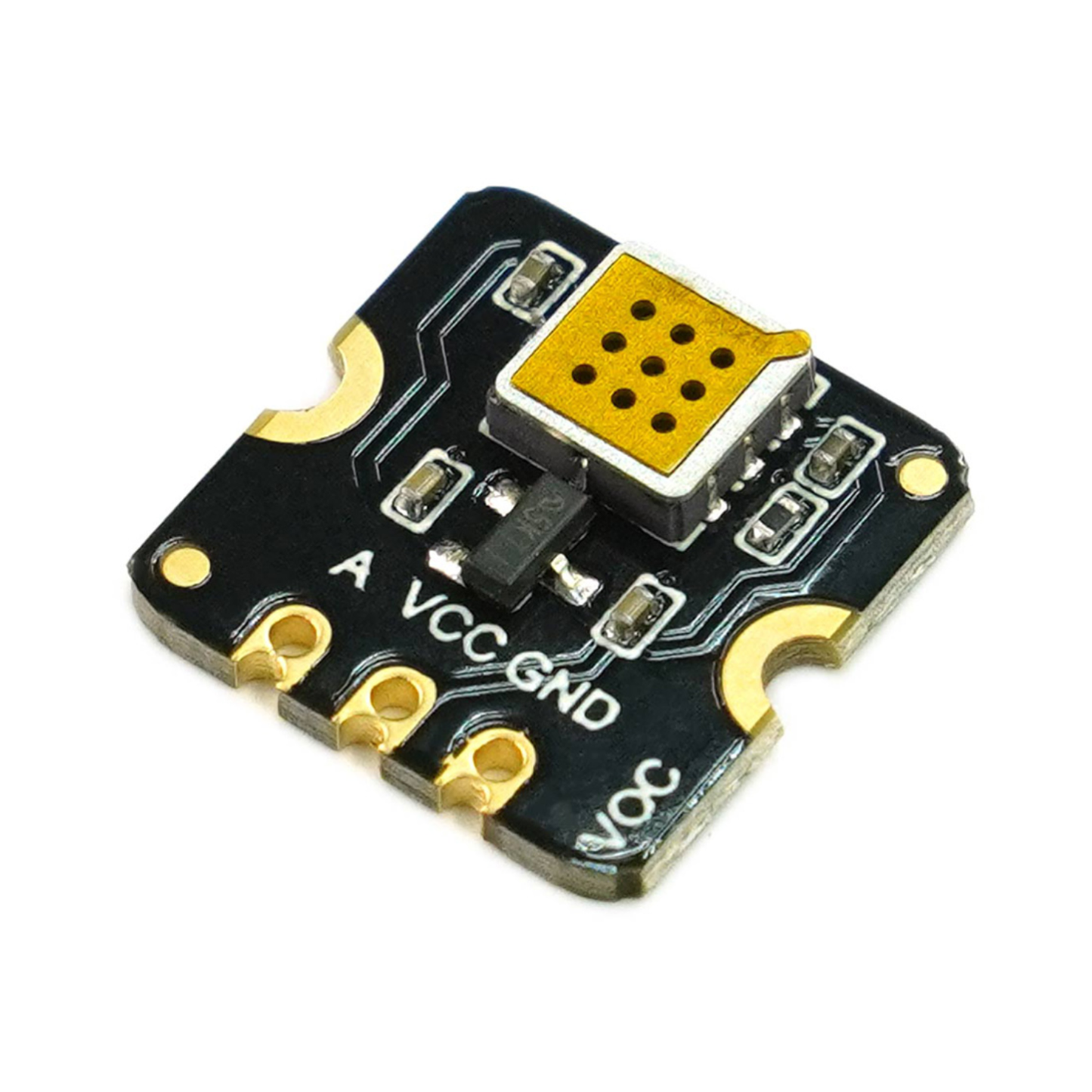

The DFRobot Fermion MEMS VOC Gas Detection Sensor (Breakout, 1-500ppm) leverages cutting-edge microelectromechanical system (MEMS) technology for highly efficient volatile organic compound (VOC) detection. This breakout module offers a compact footprint (13x13x2.5mm) and boasts low power consumption (<20mA), ensuring minimal heat generation and an extended operational lifespan. The sensor's rapid response and recovery times, coupled with a short preheating phase, make it well-suited for dynamic environments.
Designed for qualitative VOC gas concentration measurement within a 1-500ppm range, it is ideal for applications such as indoor air quality assessment, smart air purifiers, and automated fresh air systems. This sensor is part of the extensive Fermion MEMS gas sensor family, which features 11 distinct gas detection capabilities (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), allowing for customized sensor arrays to meet specific project requirements.
Specifications:
- Type: Gas Sensor
- Detecting Range: 1-500ppm
- Max. Operating Current: 20mA
- Operating Temperature: 10~50℃
- Lifespan: ≥5 years (in air)
- Operating Voltage: 3.3 to 5V
- Detection Gas: Ethanol, Formaldehyde, Toluene
- Output Signal: Analog Voltage
- Operating Humidity: 15-90 % RH (non-condensing)

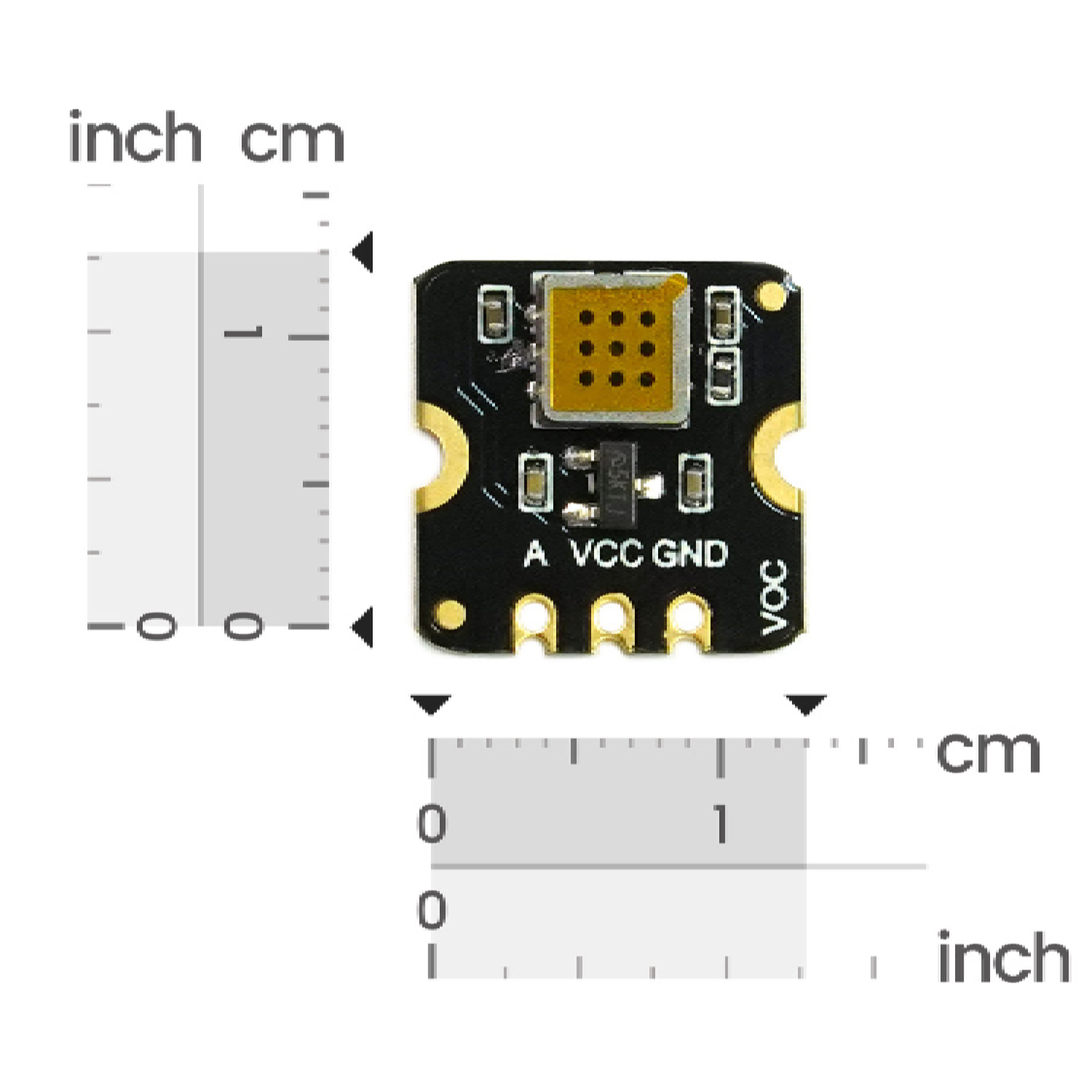

- Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"
Precautions For Use:
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, and high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Applications:
- Environmental monitoring: identify the sources and levels of benzene in the ambient air
- Indoor air quality: measure the concentration of formaldehyde in the indoor air
- Industrial safety: Detect any leaks or spills of tetrachloroethylene
- Fire detection: Detects the early signs of fire and smoke by sensing the changes in the composition and concentration of VOCs in the air.
- Health applications: measure the amount of acetone in the breath and provide feedback or guidance for diabetes management.
Features:
- Simple integration and operation.

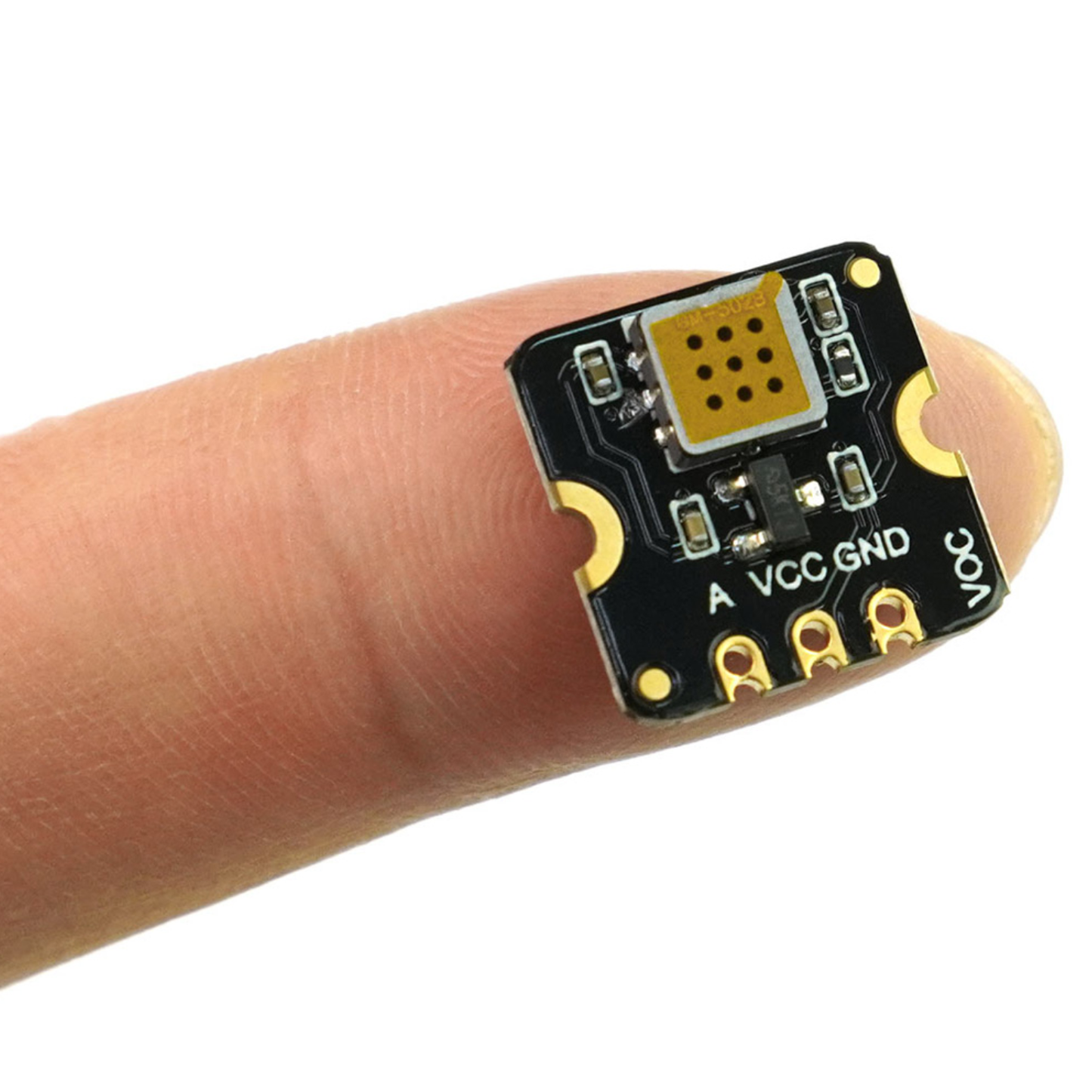

- Ultra-compact 13x13x2.5mm form factor.
- Low power consumption (<20mA).
- High sensitivity with rapid response.
- Advanced MEMS sensor technology.
- Detects various VOCs (ethanol, formaldehyde, toluene, etc.).
- Robust response to target gases.
- Durable design for 5+ years of operation.
- High-quality build and performance.
Projects:
Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform
Documents:

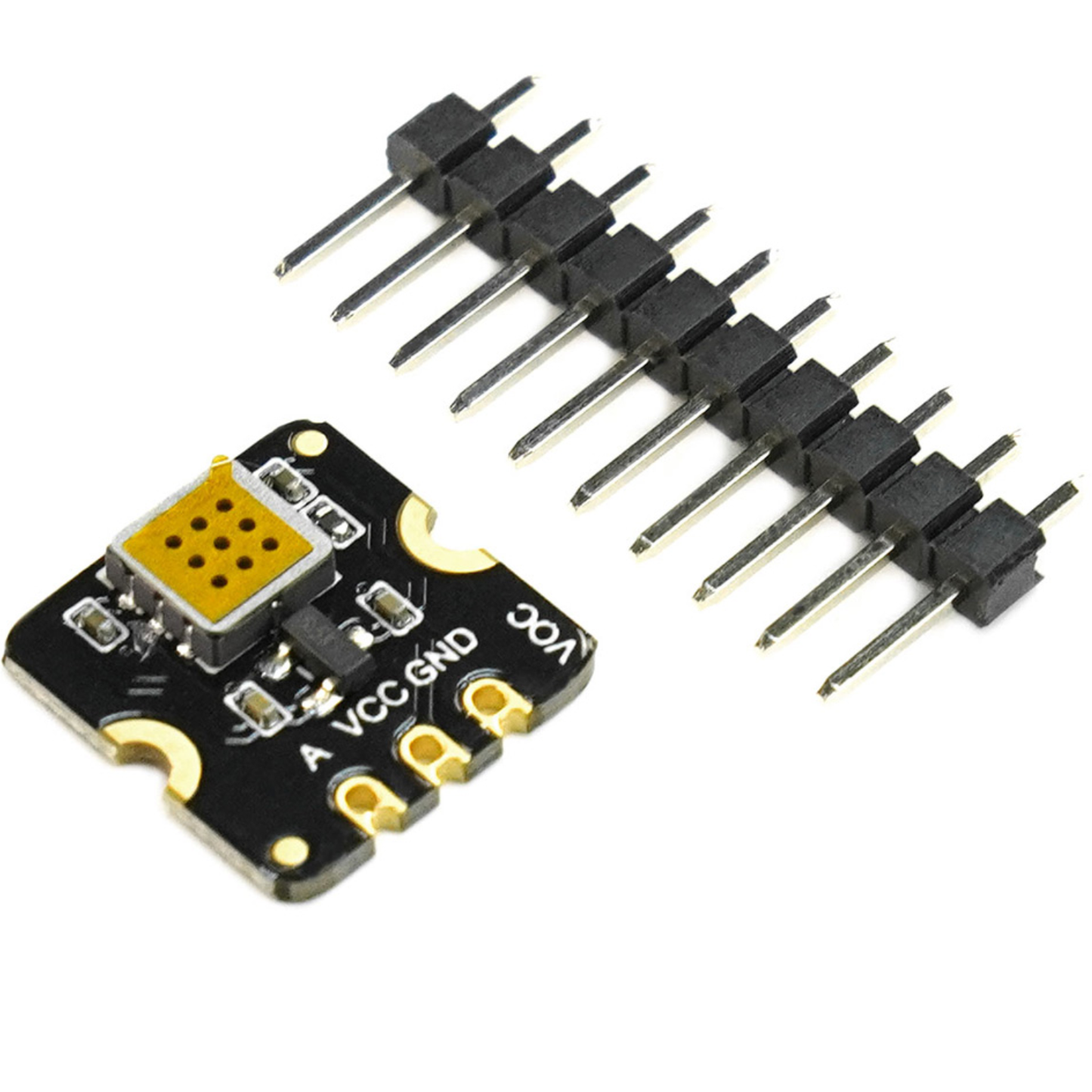

Package Included:
- 1 x DFRobot Fermion MEMS VOC Gas Detection Sensor
- 1 x 2.54mm Pitch Header Pin
