Description:

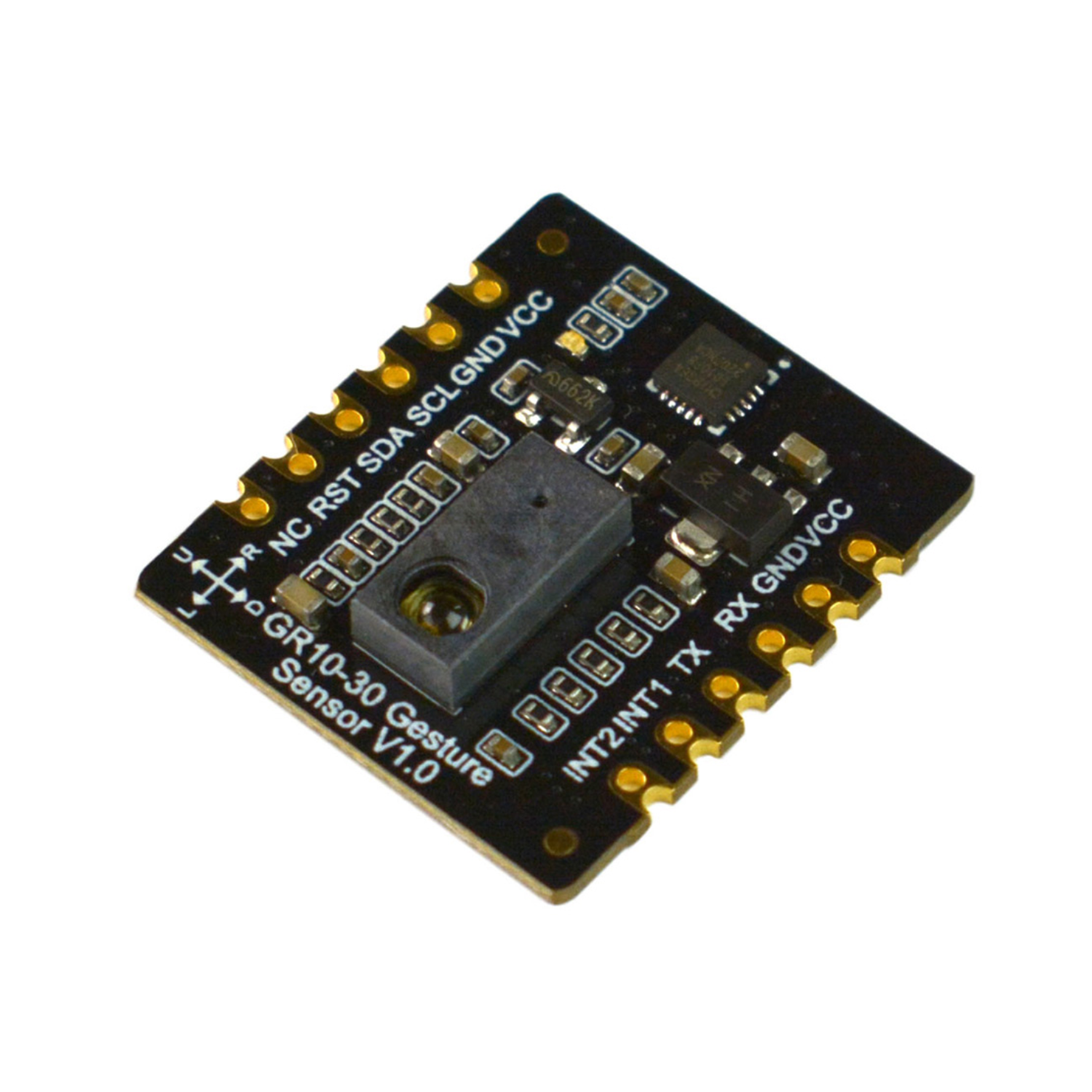

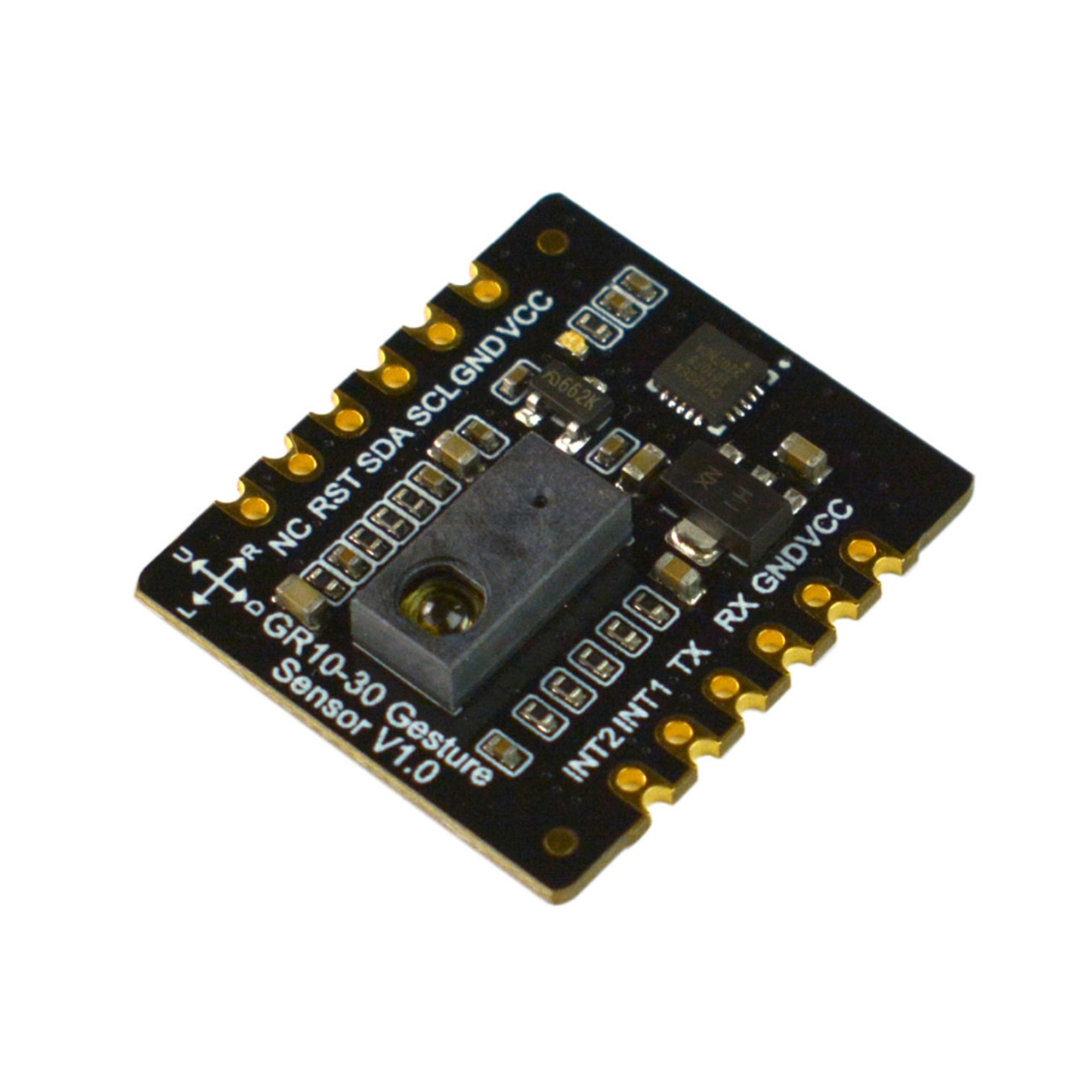

The DFRobot Fermion GR10-30 gesture sensor offers advanced contactless interaction by recognizing 12 distinct hand gestures: up, down, left, right, forward, backward, single and continuous clockwise/counterclockwise rotation, hover, and wave. Users can precisely configure gesture recognition by adjusting trigger distance, rotation angle, hover time, and detection window size. Delivering stable and accurate performance within a 0-30cm sensing range, this sensor also provides two interrupt outputs for gesture and object detection. Unlike many sensors utilizing the PAJ7620U2 (9 gestures, 20cm range), the GR10-30 expands functionality with its additional continuous rotation and hover gesture detection. It's an excellent choice for non-contact control in gesture remotes, robot interaction, human-machine interfaces, lighting control, and gesture-based gaming.
Specifications:
- Supply Voltage: 3.3V to 5V
- Operating Current: ＜10mA
- I2C Address: 0x73
- Serial Baud Rate: 9600
- Maximum Recognition Distance: 30cm
- Operating Temperature：0℃ to 70℃
- Operating Humidity：5%RH to 85%RH

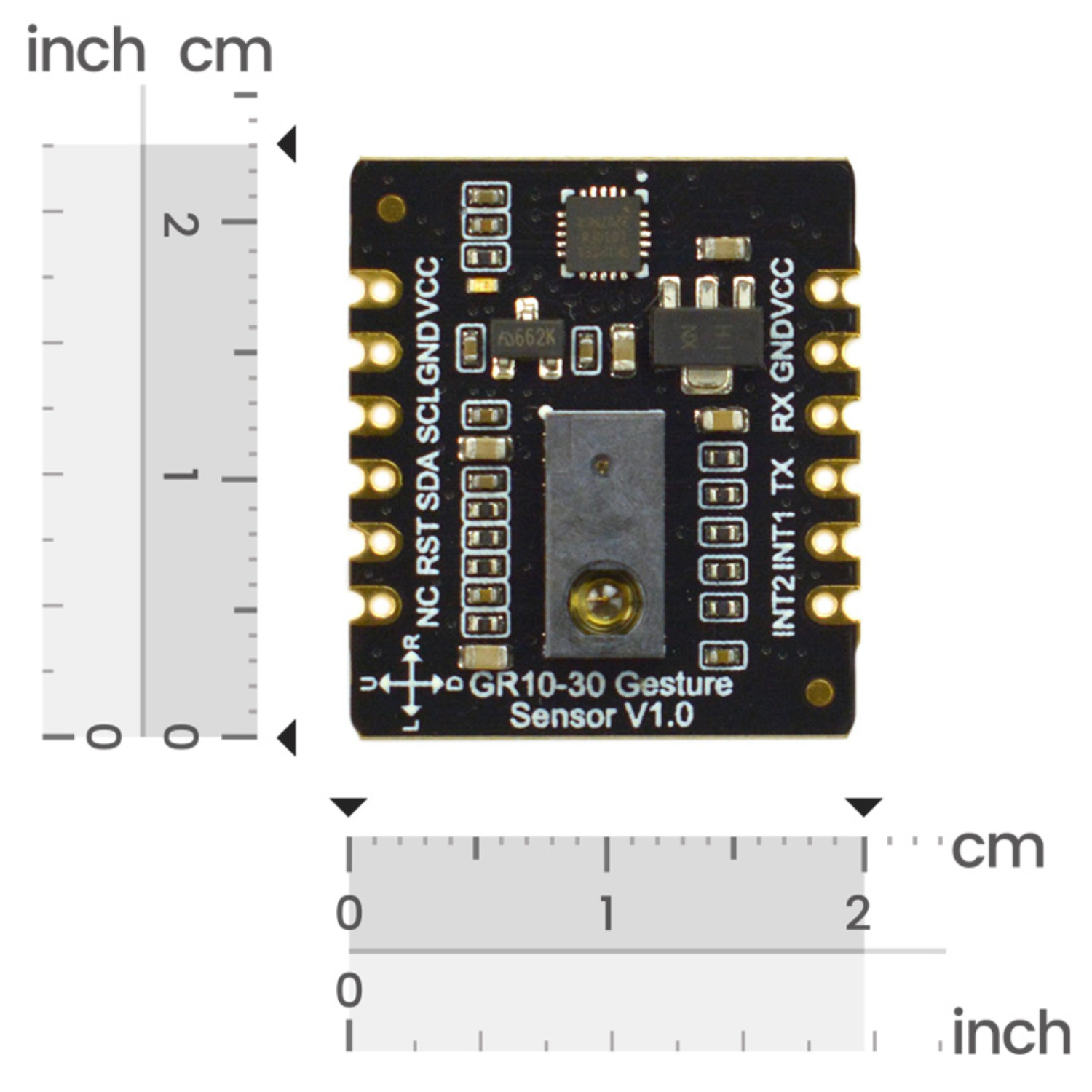

- Dimension：20.5×23.5mm/0.81×0.93
Features:
- Enables contactless interaction from a comfortable distance.
- Offers a wide vocabulary for intuitive control (Up/Down/Left/Right/Forward/Backward, CW/CCW Rotate, Continuous CW/CCW Rotate, Hover, Wave).
- Allows fine-tuning of detection distance, rotation angle, hover time, and sensing window for accurate results.
- Provides versatile interfacing options for various microcontroller platforms.
- Offers convenient signaling for recognized gestures and presence within range.
- Detects continuous rotations and hover gestures, expanding interaction possibilities.
- Ensures reliable and precise gesture recognition within its operating range.
- Suited for applications like remote controls, robotics, HMIs, lighting, and gaming.
Applications:
- Gesture Remote Controller
- Robot Interaction
- Human-Machine Interface Control
Documents:
Package Included:

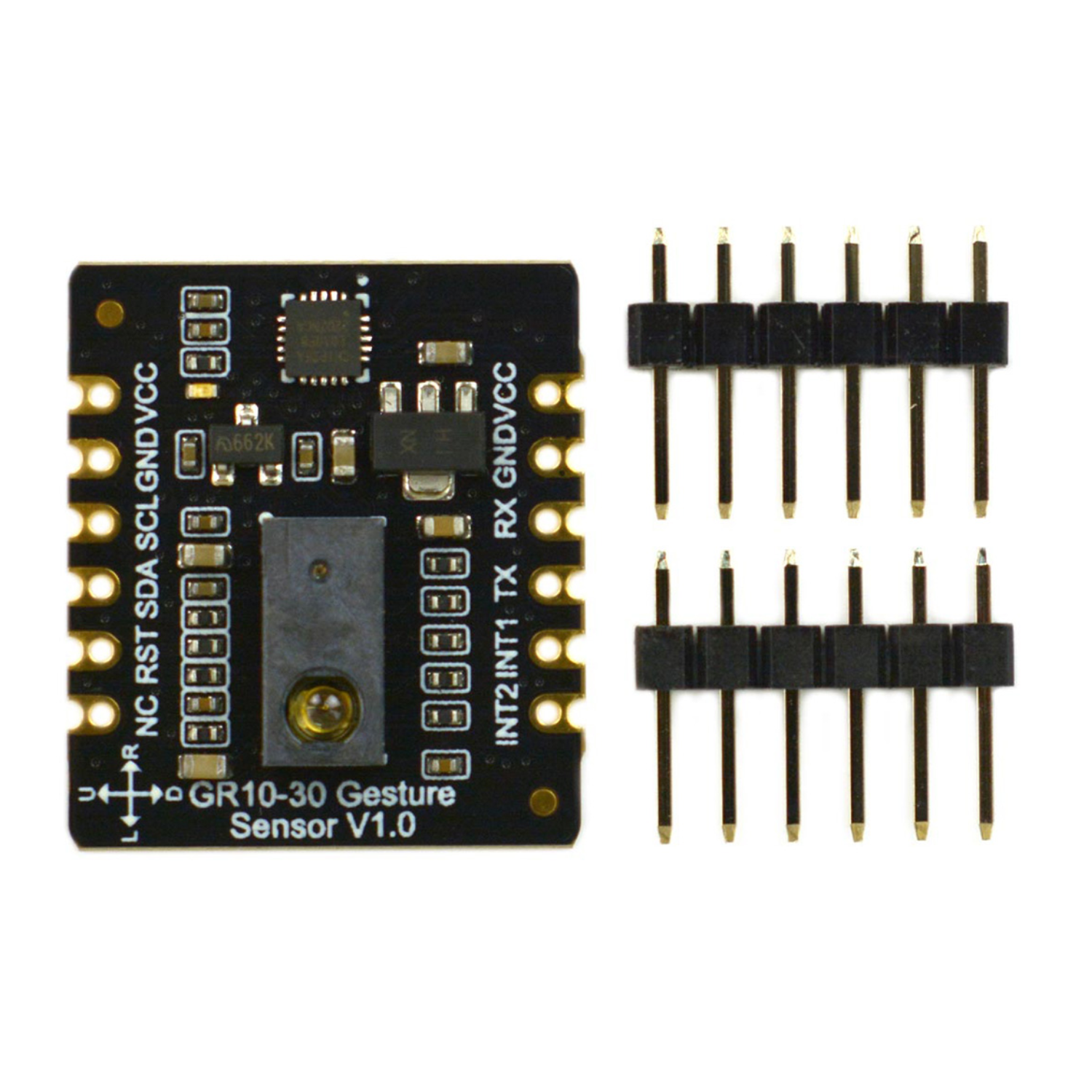

1 x DFRobot Fermion: GR10-30 Gesture Sensor (Breakout)
