Description:

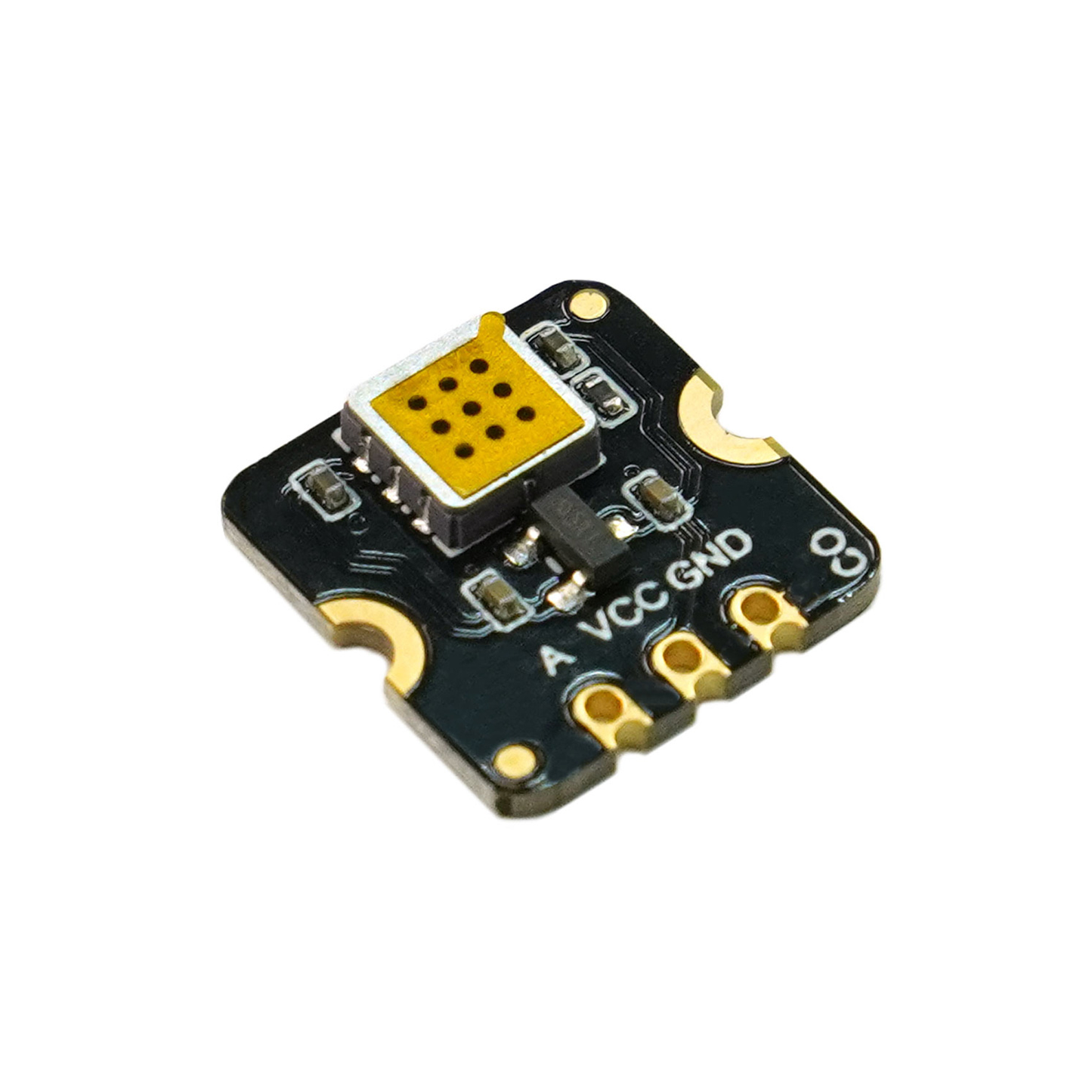

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20 mA), minimal heat generation, a short preheating time, and swift response recovery. The sensor can measure carbon monoxide gas concentrations qualitatively and is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, and NO2), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).
Specifications:
- Gas detected: CO
- Detection range: 5-5000ppm
- Operating voltage: 3.3-5V
- Operating current: ＜20 mA
- Output signal: Analog voltage
- Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3
- Operating temperature: -10-50℃
- Operating humidity: 15-90%RH (non-condensing)
- Lifespan: ≥5 years (in air)

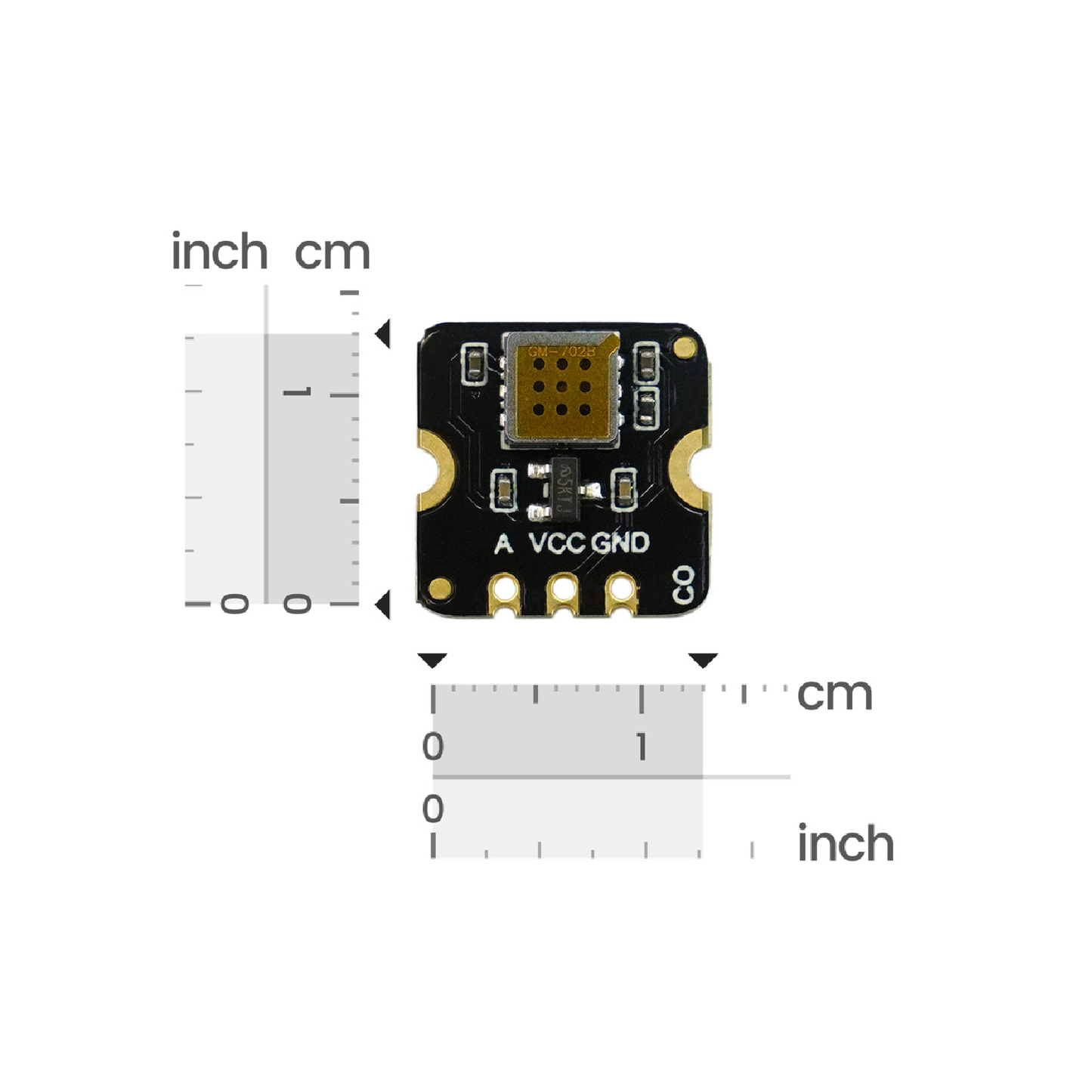

- Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"
Features:

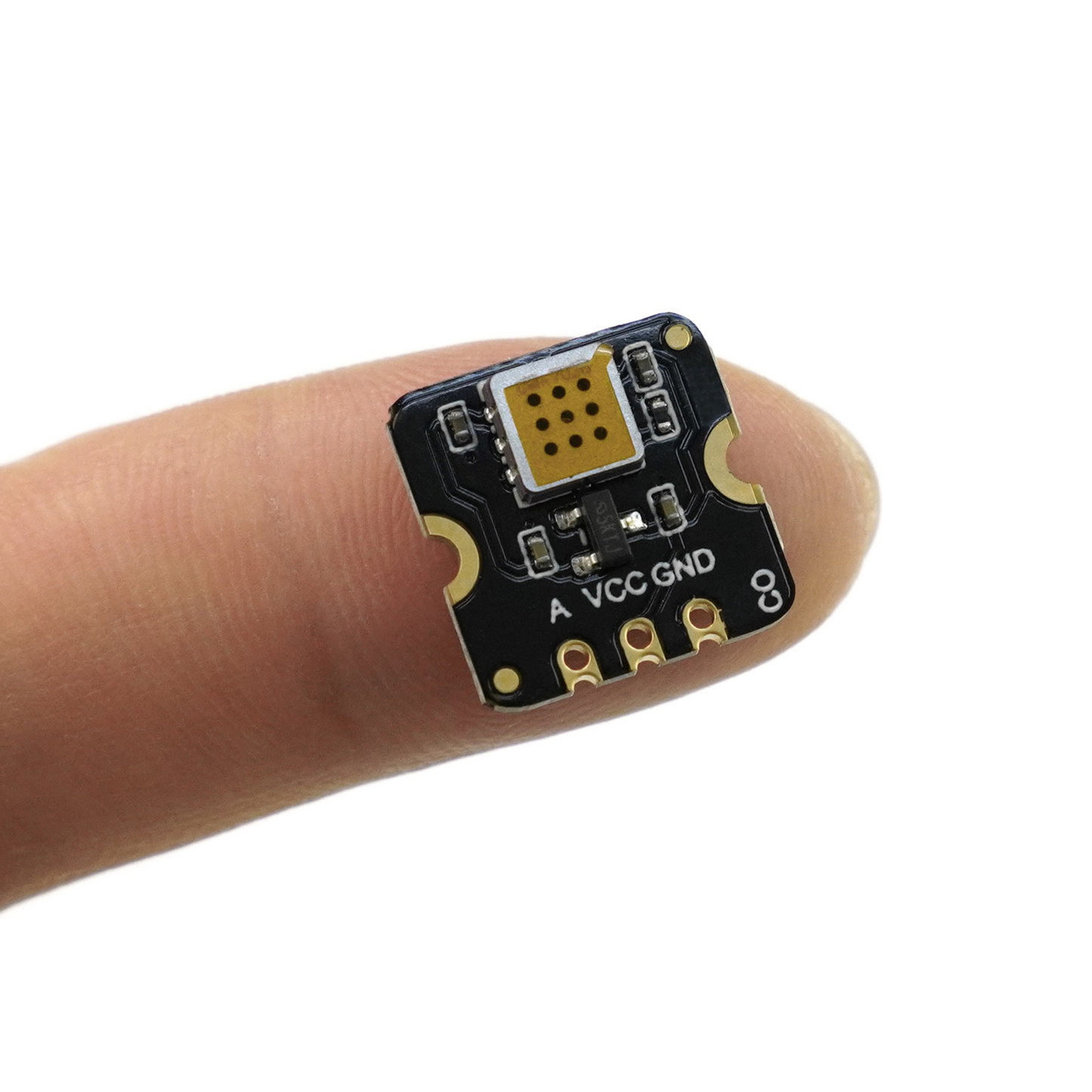

- Compact size, measuring only 13*13*2.5mm
- Low power consumption
- High sensitivity and rapid response recovery
- Advanced MEMS technology
Precautions For Use:
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, and high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Applications:
- Petrochemical carbon monoxide detection
- Metallurgy carbon monoxide detection
- Mining carbon monoxide detection
- Environmental protection
Projects:
- Project: Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform
Introduction: In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which can identify the scents of beverages and fruits.
Useful Links:

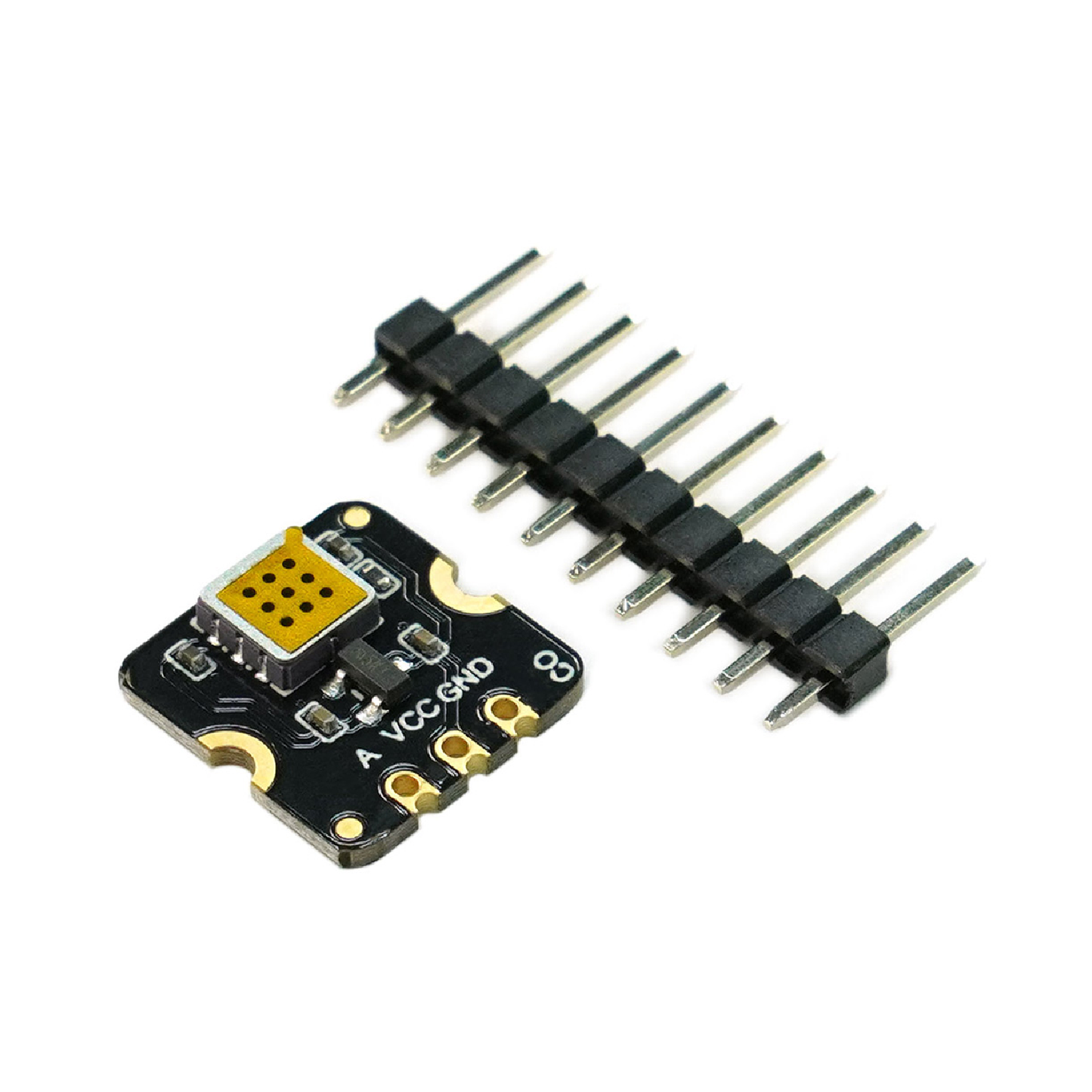

Package Included:
- 1 x Fermion: MEMS Carbon Monoxide CO Sensor (breakout)
- 1 x 2.54mm pitch header pin
