Description:
BME680 is a 4-in-1 multi-functional MEMS environmental sensor that integrates a VOC (Volatile Organic Compounds) sensor, temperature sensor, humidity sensor, and barometer. It is designed for air quality monitoring, and due to the MEMS technology, BME680 has a small size and low power consumption. It can be widely used in environmental monitoring, home automation and control, Internet of Things (IoT) wearable devices, GPS enhancement, etc.

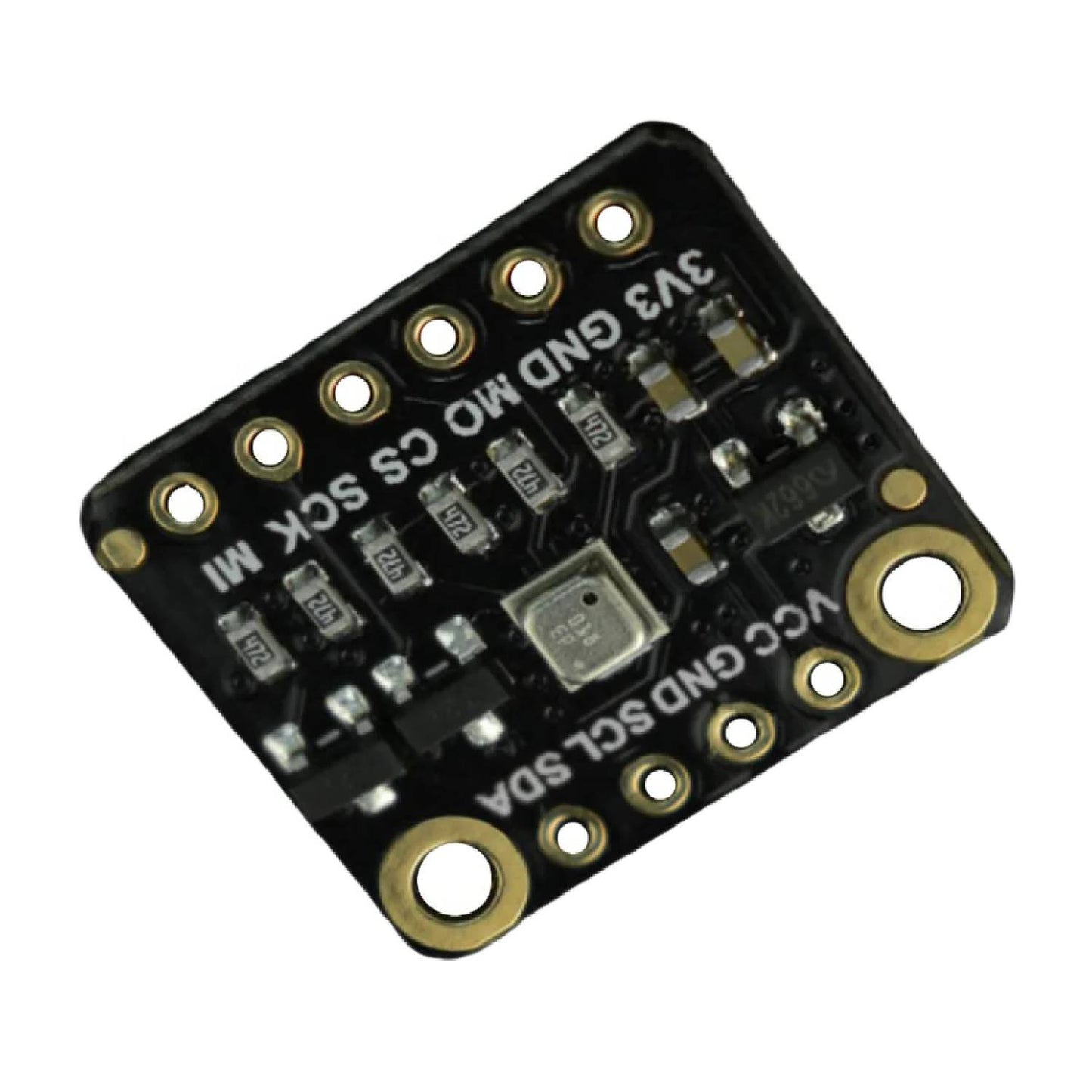

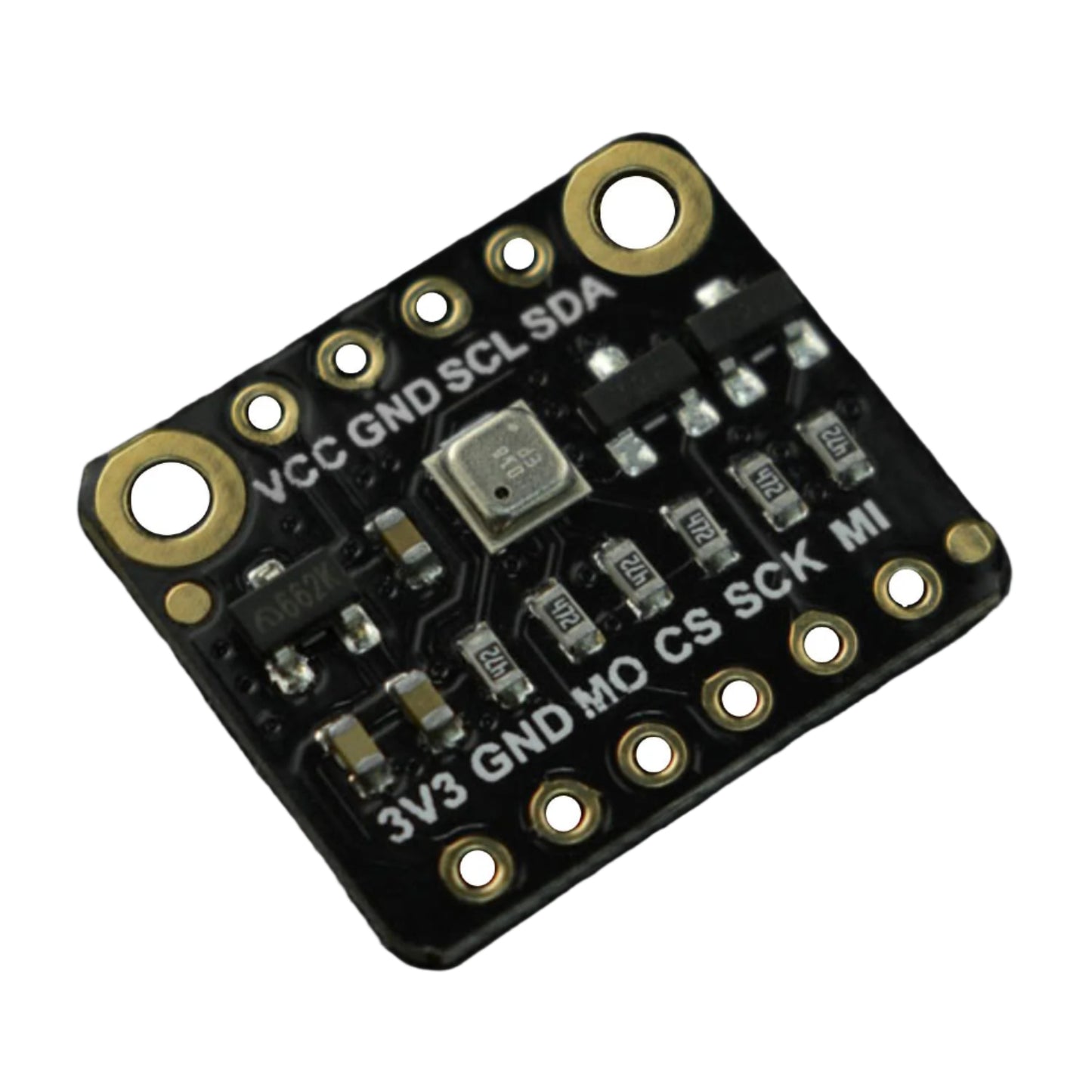

This BME680 Sensor adopts a more simplified breakout design and leads out pitch 2.54 pin/female and SPI connectors. It has an onboard voltage regulator IC and I2C level translator circuit, which makes this sensor more convenient to integrate into various applications.
With the development of industrialization, air pollution is getting worse and worse. Toxic chemical odors are even common with new furniture. These invisible killers are destroying your health day by day. You do need to be concerned about your health as soon as possible and this DFRobot Breakout BME680 environmental sensor can help you make an air quality monitor to take good care of your health!
Specifications:
- Input Voltage: 3.3V~5.5V
- Operating Current: 5mA (25mA in VOC Measurement)
- Communication Interface: I2C(Support 3.3V/5V) or SPI(other non-I2C ports only support 3.3V)
- Default I2C Address: 0x76
- Temperature Measurement Range: -40℃~+85℃
- Temperature Measurement Precision: ±1.0℃(0~65℃)
- Humidity Measurement Range: 0-100%r.H.
- Humidity Measurement Precision: ±3%r.H.(20-80% r.H.,25℃)
- Atmospheric Pressure Measurement Range: 300-1100hPa
- Atmospheric Pressure Measurement Precision: ±0.6hPa(300-1100hPa,0~65℃)
- IAQ (Indoor Air Quality) Range: 0~500 (the larger, the worse)

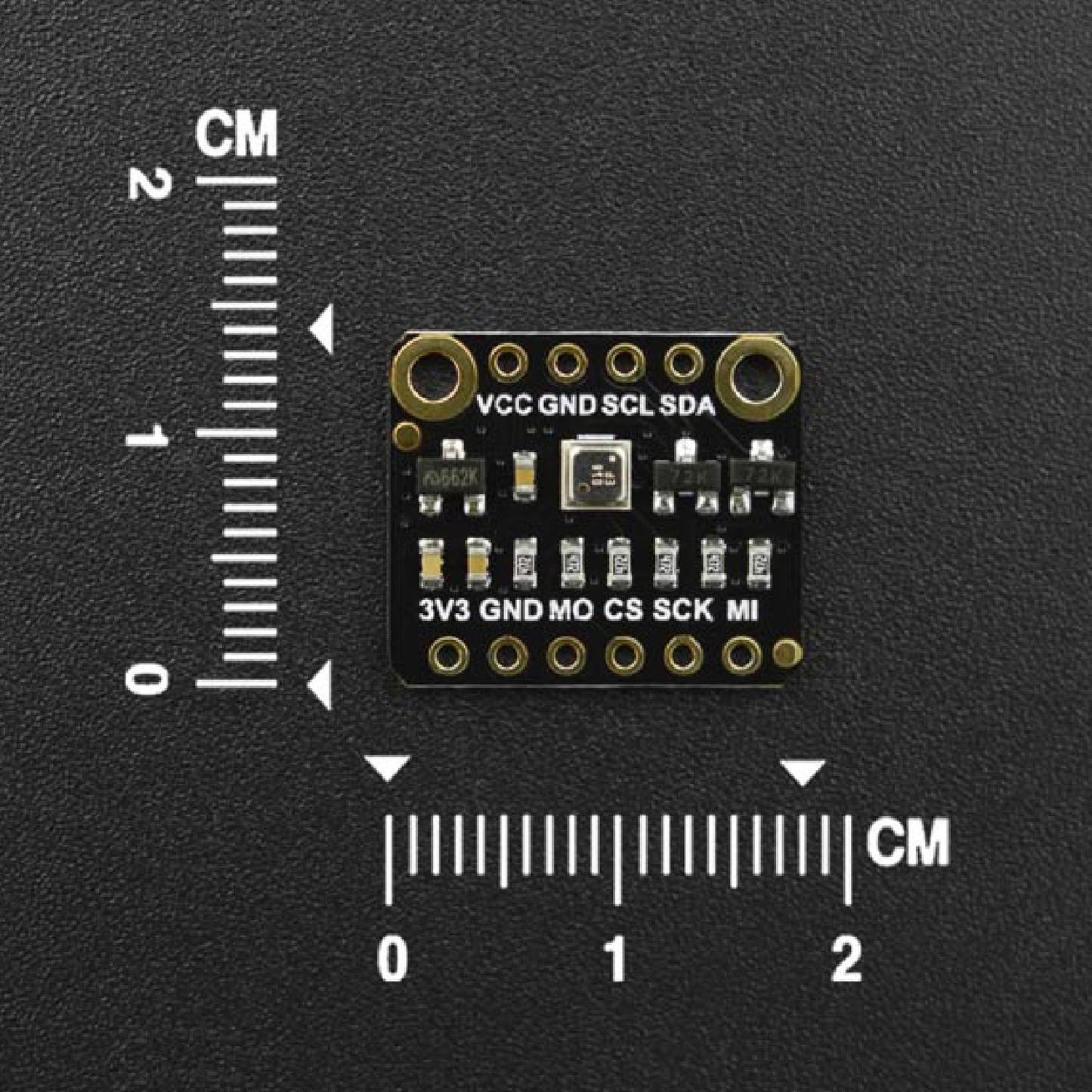

- Dimension: 18×15.6(mm) /0.71x0.61(inches)
Features:
- MEMS sensor, small size, low power consumption, high reliability
- Wide voltage input, compatible with 3.3V and 5V controller
- Highly integrated environmental sensor: temperature, humidity, barometer, and VOC, four-in-one environmental parameter monitoring
- I2C connector, plug and play
- Small size and easy to install
Projects:
Introduction: Transform your bathroom into a smart space with this DIY project featuring ESPHome and Home Assistant for automated lighting control.
Useful Links:

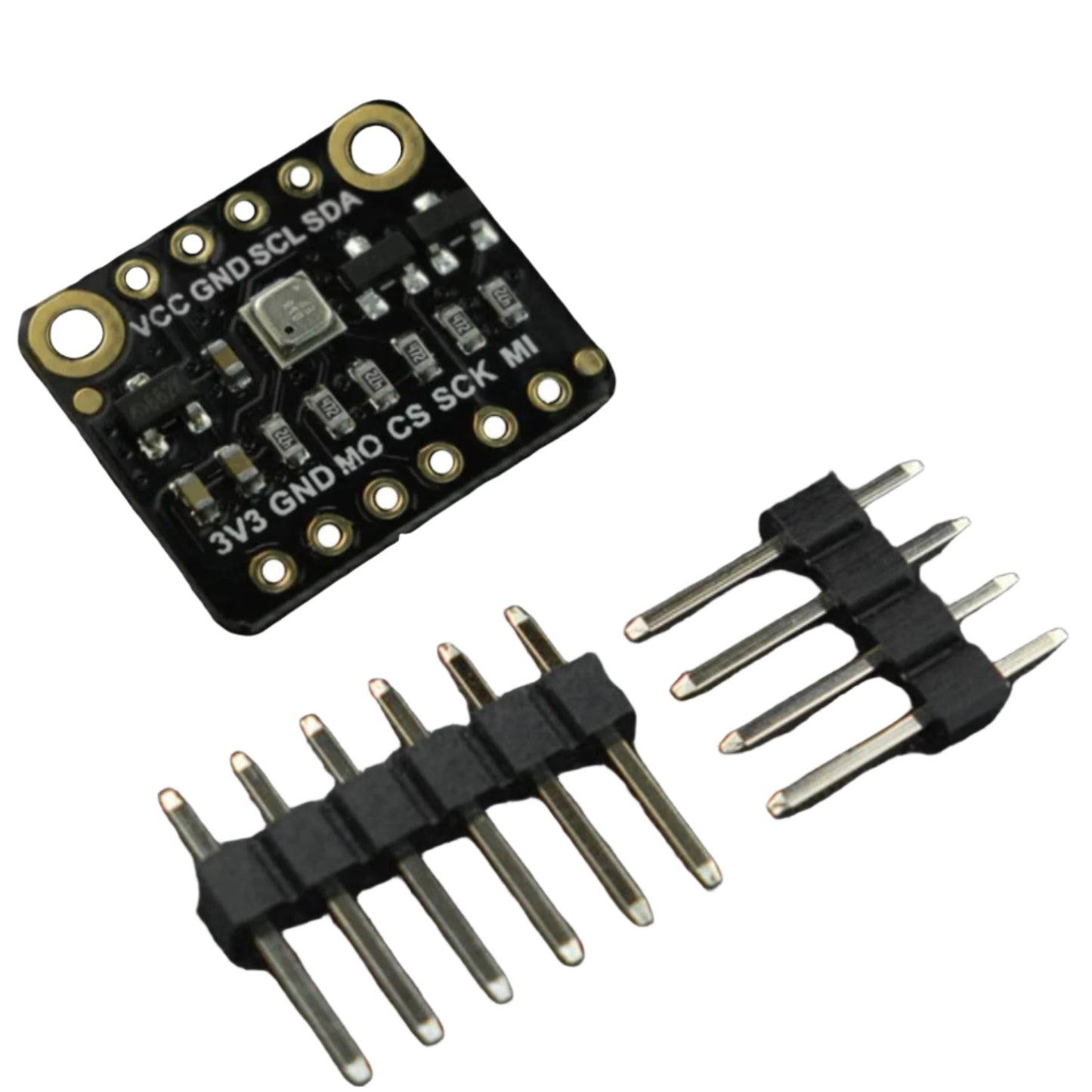

Package Included:
- 1 x BME680 Environmental Sensor Module
- 1 x 2.54 Single Row 4PIN Connector
- 1 x 2.54 Single Row 6PIN Connector
