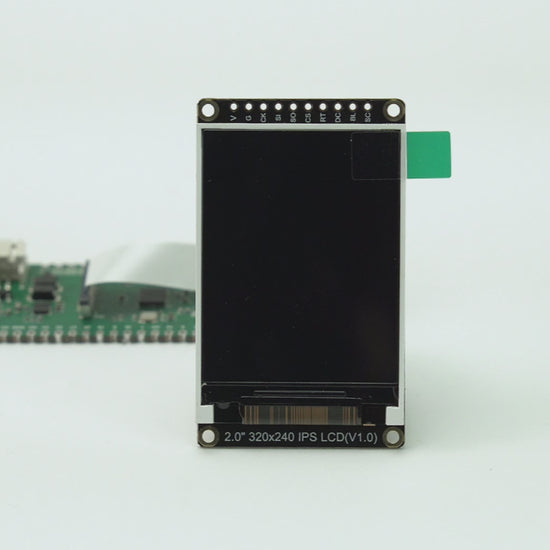

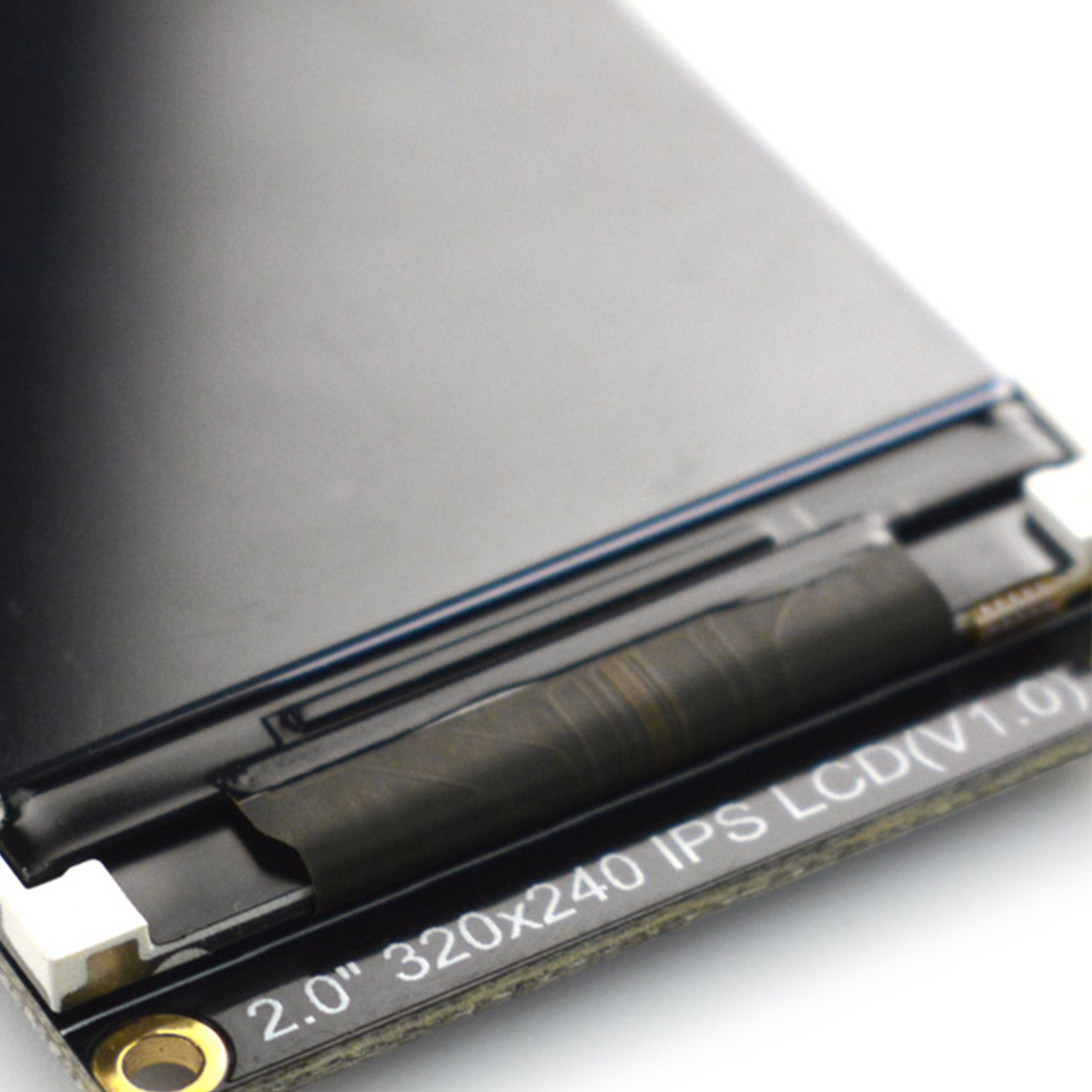

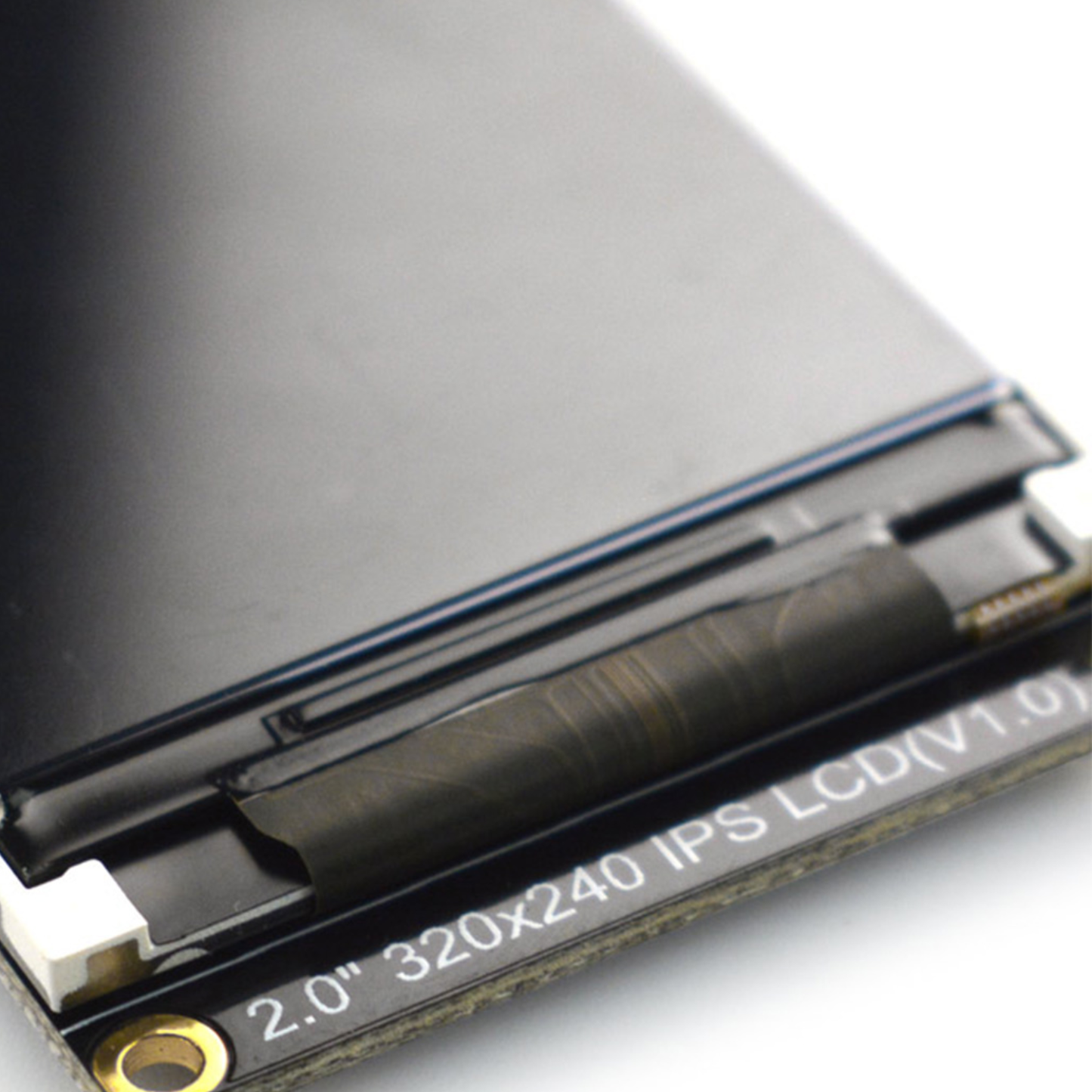

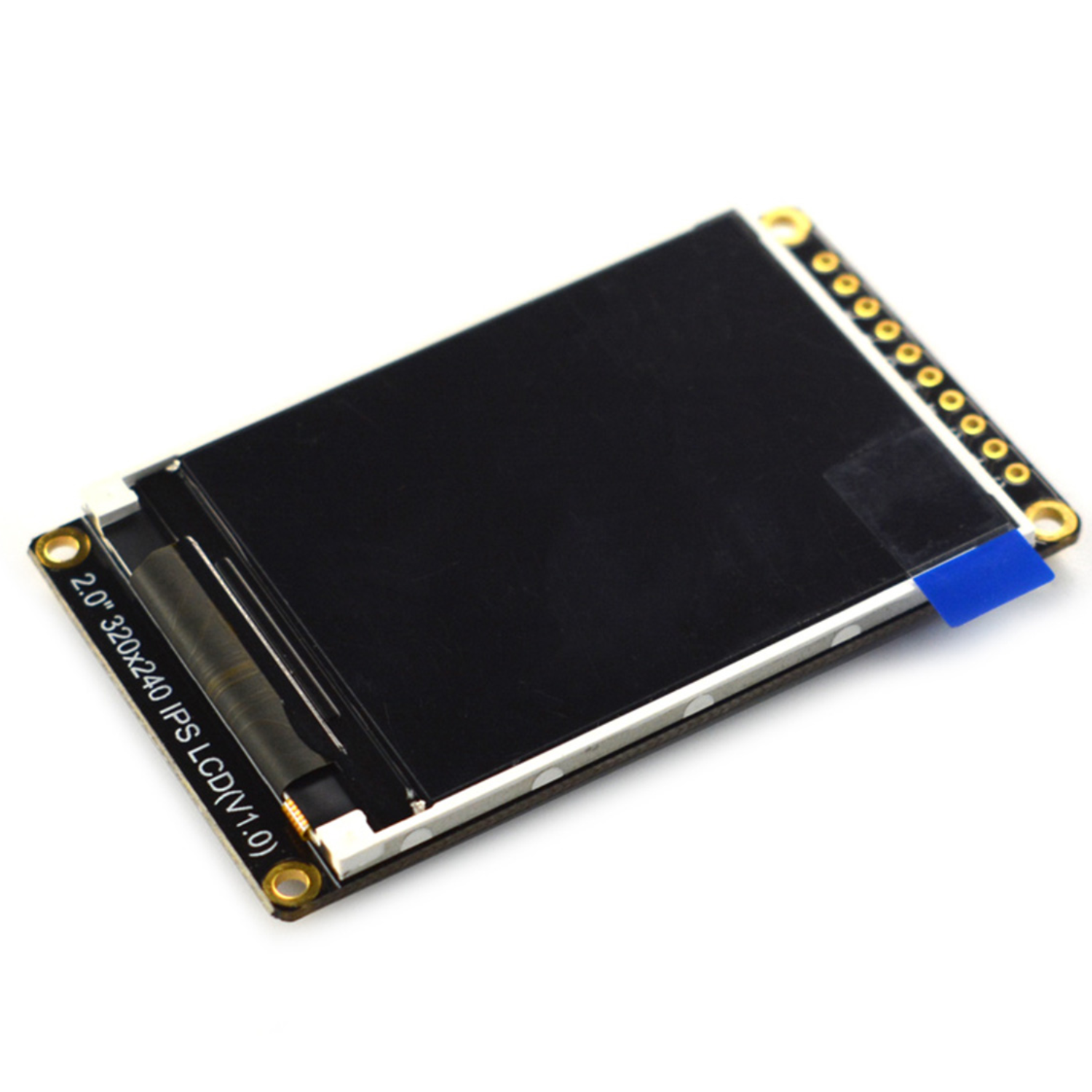

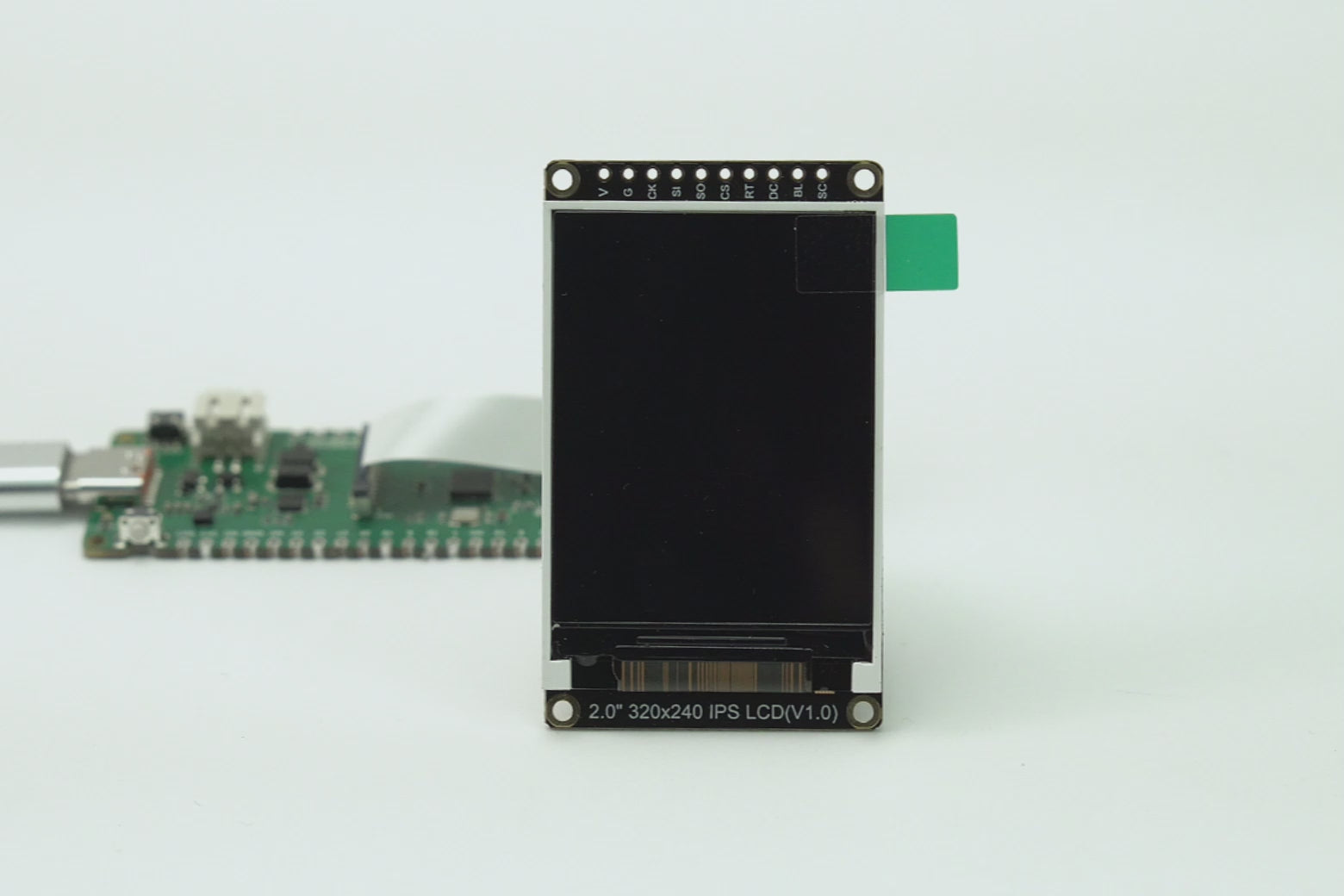

DFRobot Fermion: 2.0″ 320×240 IPS TFT LCD Display With Integrated MicroSD Card Reader For Arduino & Microcontrollers (Breakout)

Description:

This vibrant 2.0-inch LCD brings your projects to life with crisp detail and rich color. Driven by the reliable ST7789V chip, it boasts a sharp 320x240 pixel resolution, rendered in vivid RGB565 format. Experience consistent and clear visuals from virtually any perspective thanks to its impressive 80/80/80/80 viewing angles (left/right/up/down).

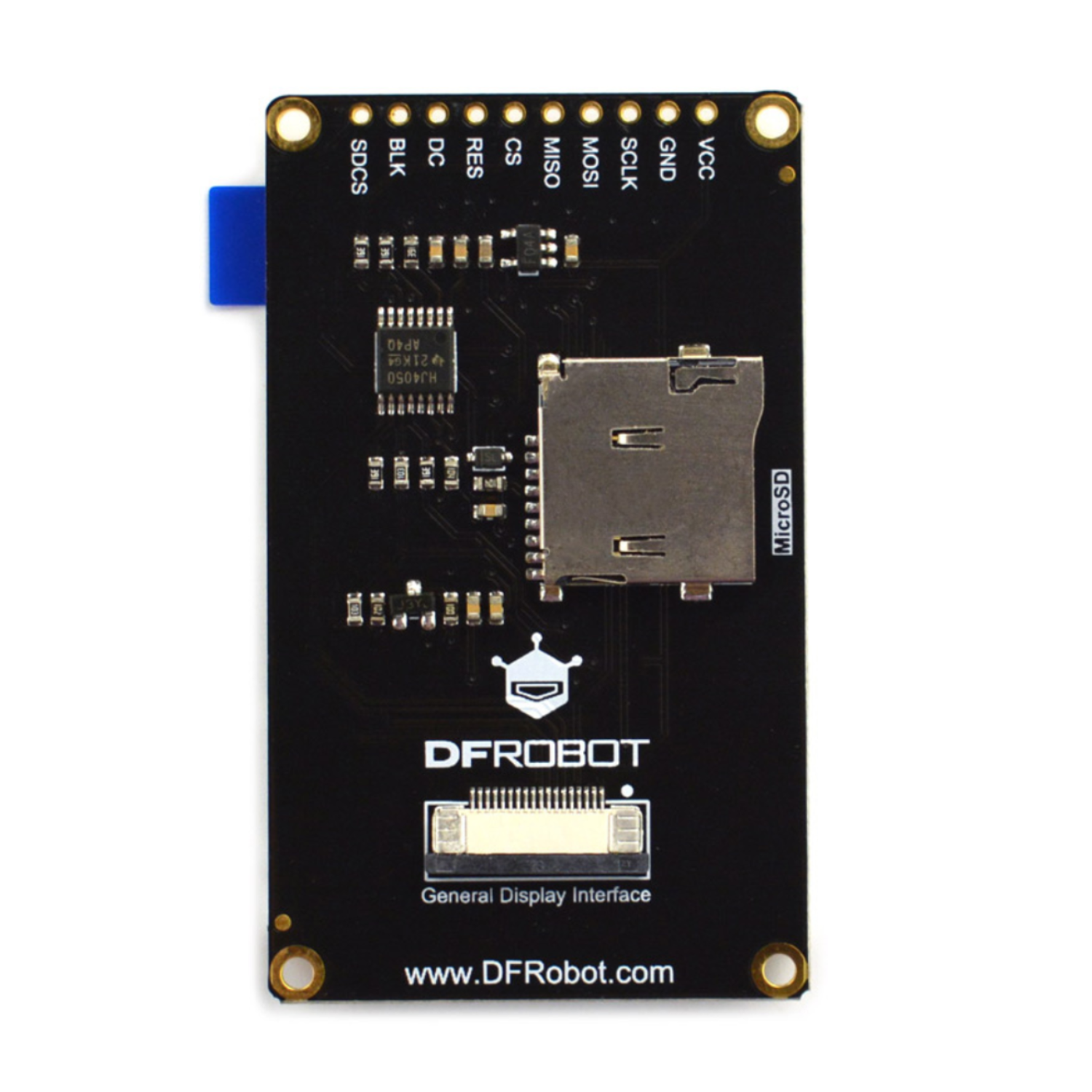

Seamless integration is key, and this display offers flexible communication options. Utilize the high-speed SPI (4-wire) interface for efficient data transfer, or leverage the convenient GDI port for direct connection to compatible main controllers. Setting up is a breeze with its true plug-and-play functionality.

Powering the module is equally straightforward, accepting a wide voltage range of 3.3V to 5V, ensuring compatibility with a broad spectrum of popular development boards. Whether you're using an Arduino UNO or Leonardo, an ESP32 or ESP8266, or a FireBeetle M0, this display is ready to connect. For M0 users, the GDI interface significantly simplifies wiring, streamlining your project.

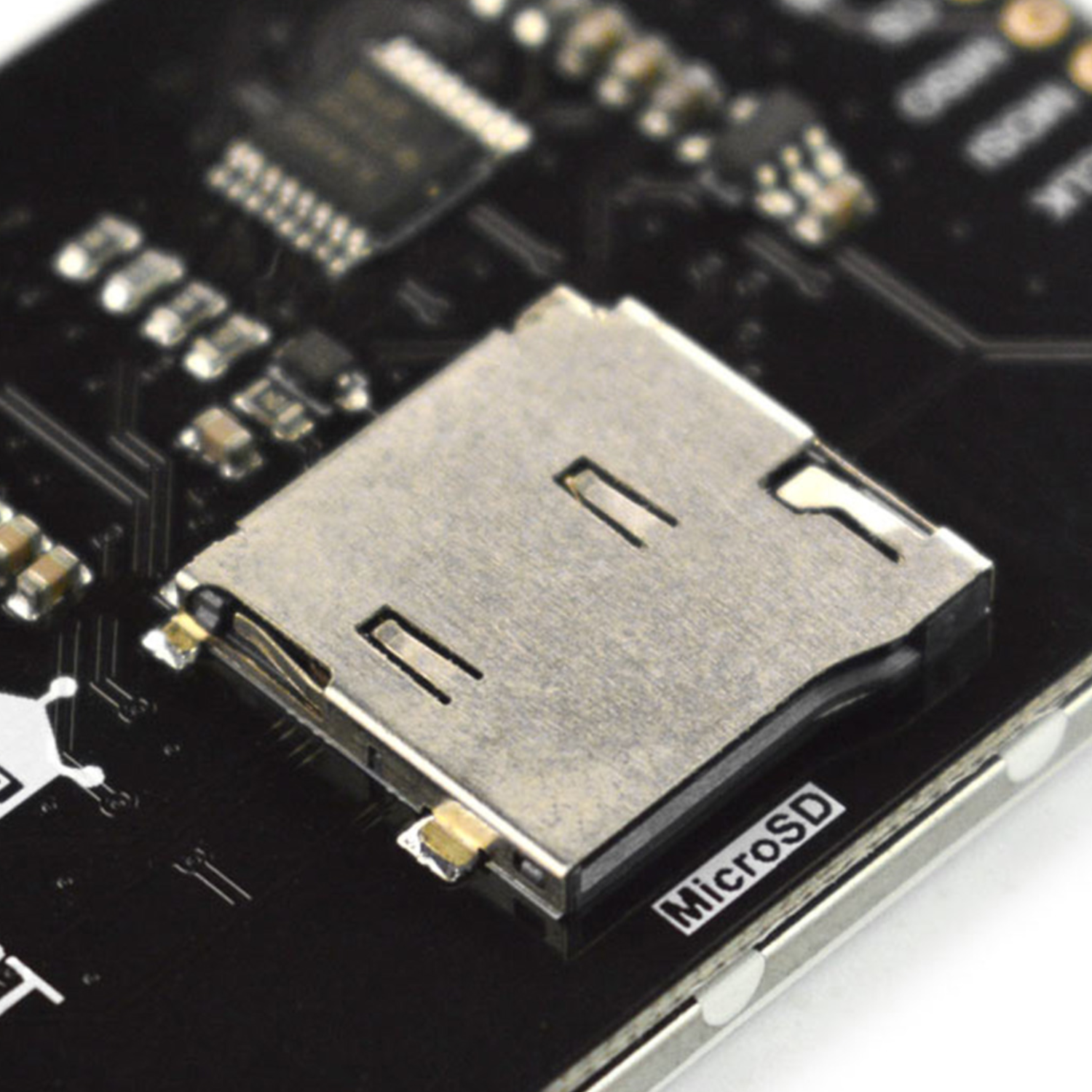

Expand your display possibilities with the integrated MicroSD card slot, allowing you to effortlessly showcase a multitude of images. This module combines high resolution, expansive viewing angles, and simplified wiring, making it an ideal choice for diverse display applications such as detailed waveform monitors, engaging electronic gift boxes, informative electronic weather stations, and much more.

NOTE: MicroSD Card is not included

Specifications:

• Operating Voltage: 3.3V-5.5V
• Color Depth: 16-bit (RGB565)
• Pixels: 240 x 320
• Communication: SPI
• Brightness(cd/m2): 250 (TYP) cd/m2
• Full-screen Consumption: about 29mA (3.3V)/ 29mA (5V)(Typ)
• Operating Temperature: -30℃~+70℃
• Display Dimension: 1.20 x1.61inch / 30.6 x 40.8 mm

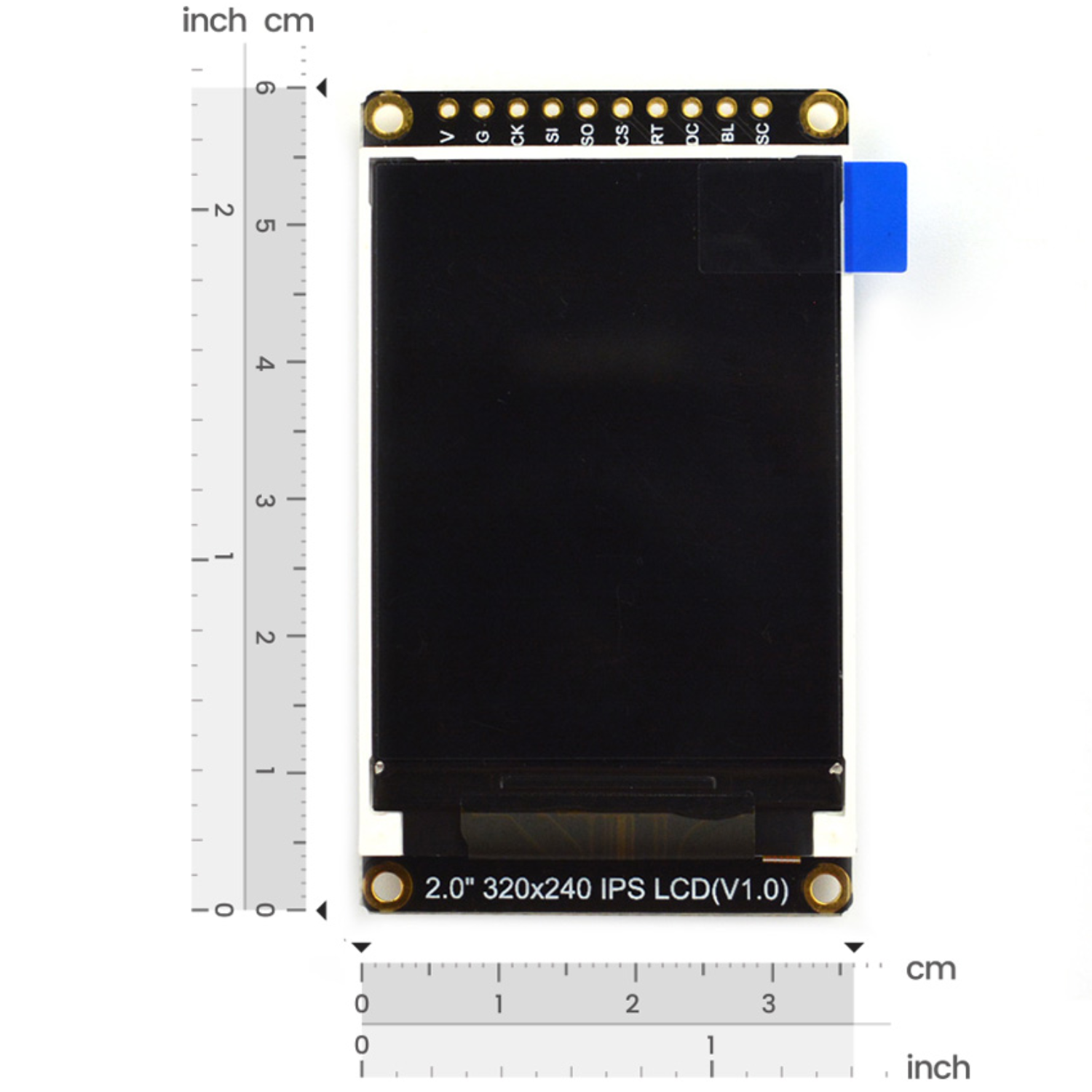

• Module Dimension: 1.41x2.36inch / 35.70 x 60.00 mm
• Mount Hole Diameter: 2mm

Features:

• Experience consistent, vibrant visuals from nearly any direction (80° left/right/up/down).
• Enjoy crisp, detailed images and text with vibrant RGB565 color.
• Effortlessly connect and display with compatible main controllers, reducing wiring complexity.
• Easily display a multitude of images directly from an onboard MicroSD card.

Applications:

1. Waveform monitor display
2. Electronic gift box
3. Electronic weather decorations
4. Alarm clock display

Documents:

Product wiki

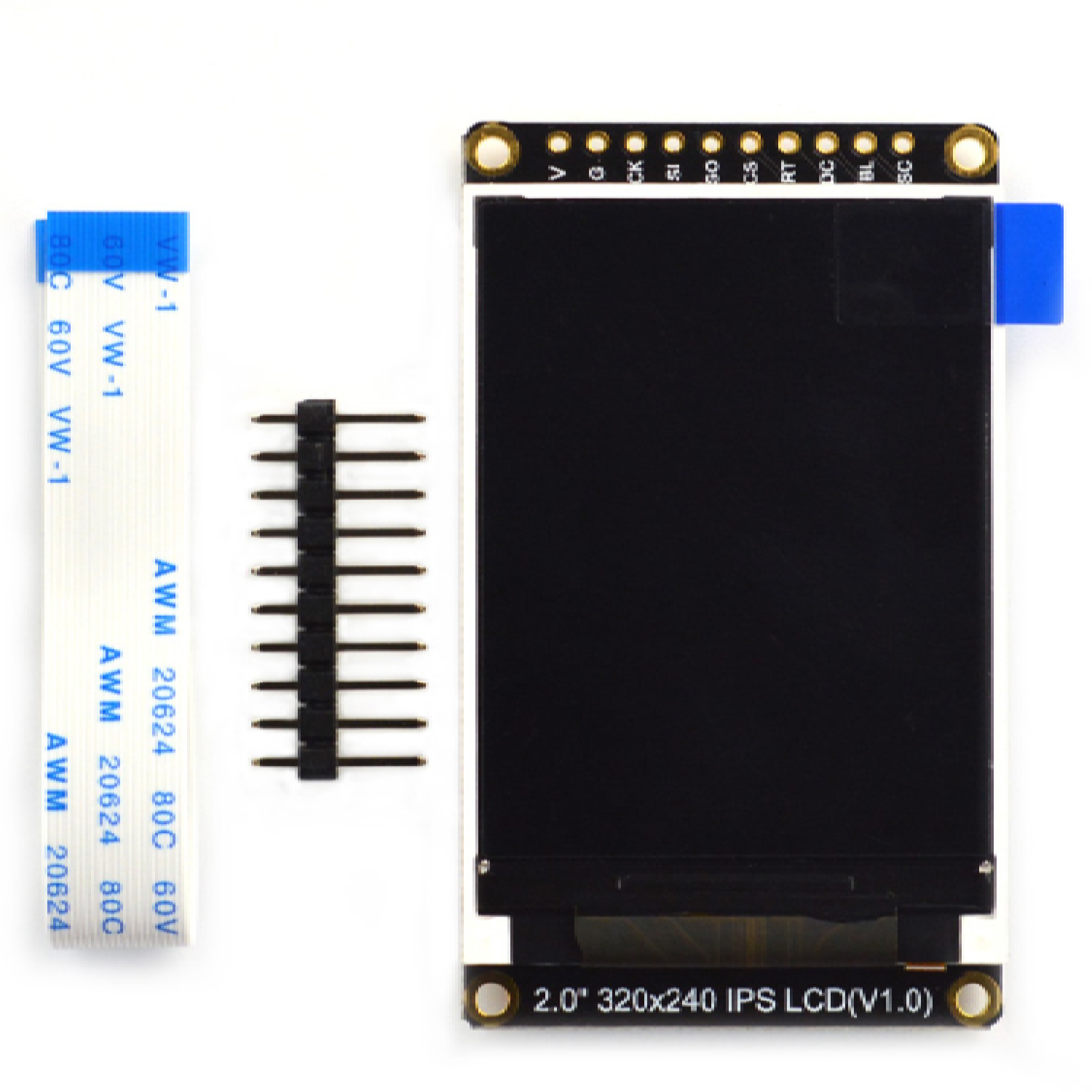

Package Included:

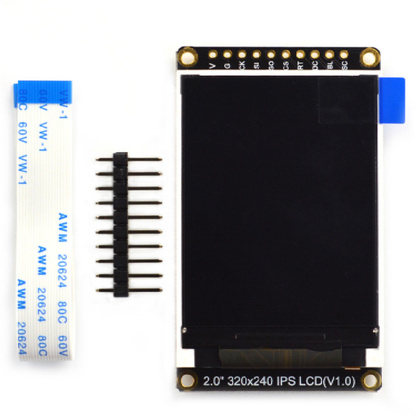

1 x DFRobot Fermion: 2.0″ 320×240 IPS TFT LCD Display (Breakout)
