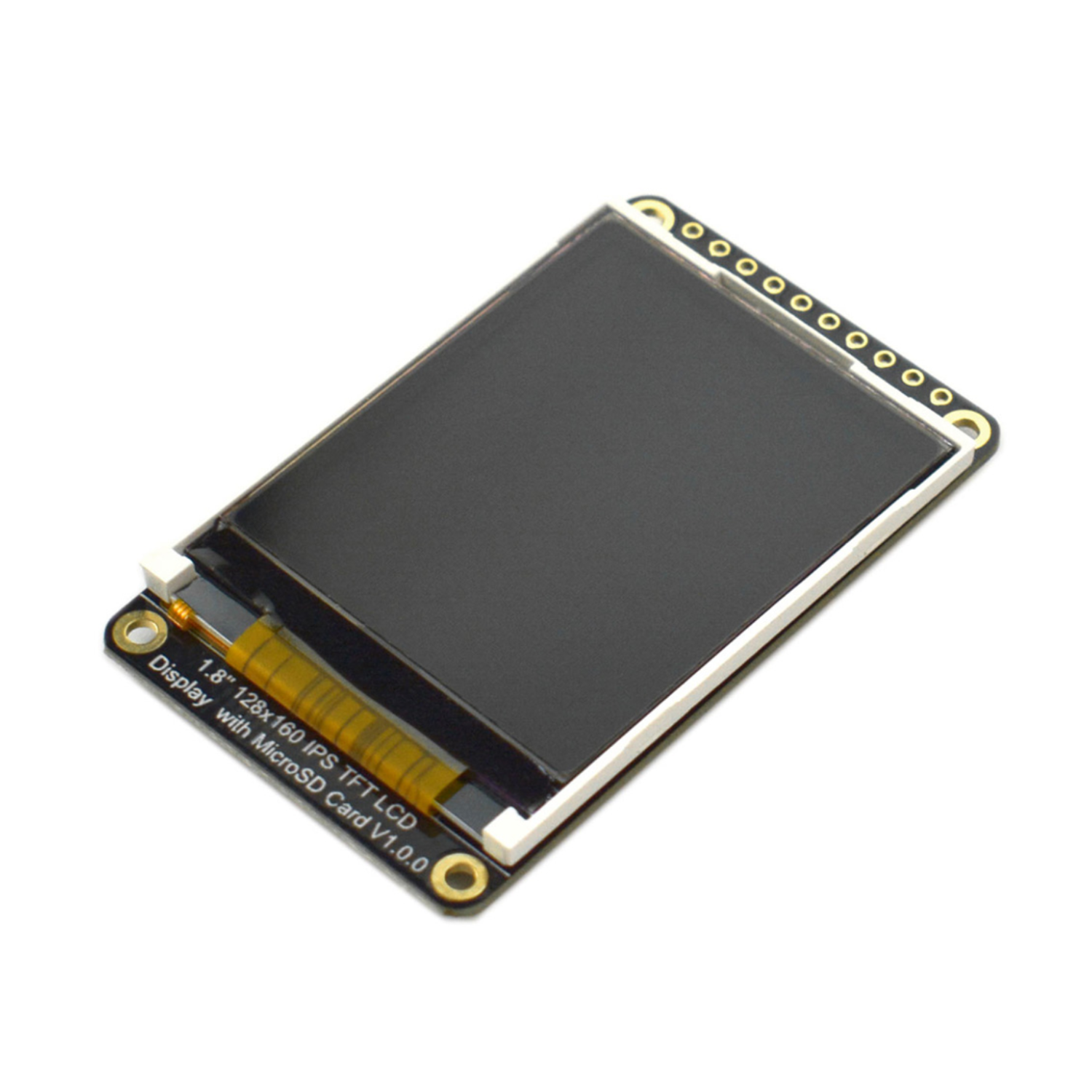

Description:
This compact 1.8-inch TFT LCD display, driven by the ST7735S controller, offers a vibrant full-color visual output with a resolution of 128x160 pixels. Communication with the display is streamlined through a 4-wire Serial Peripheral Interface (SPI), enabling efficient data transfer for graphical rendering. An integrated microSD card slot expands its functionality, allowing for the direct display of bitmap images stored on the card, simplifying the presentation of complex visuals.

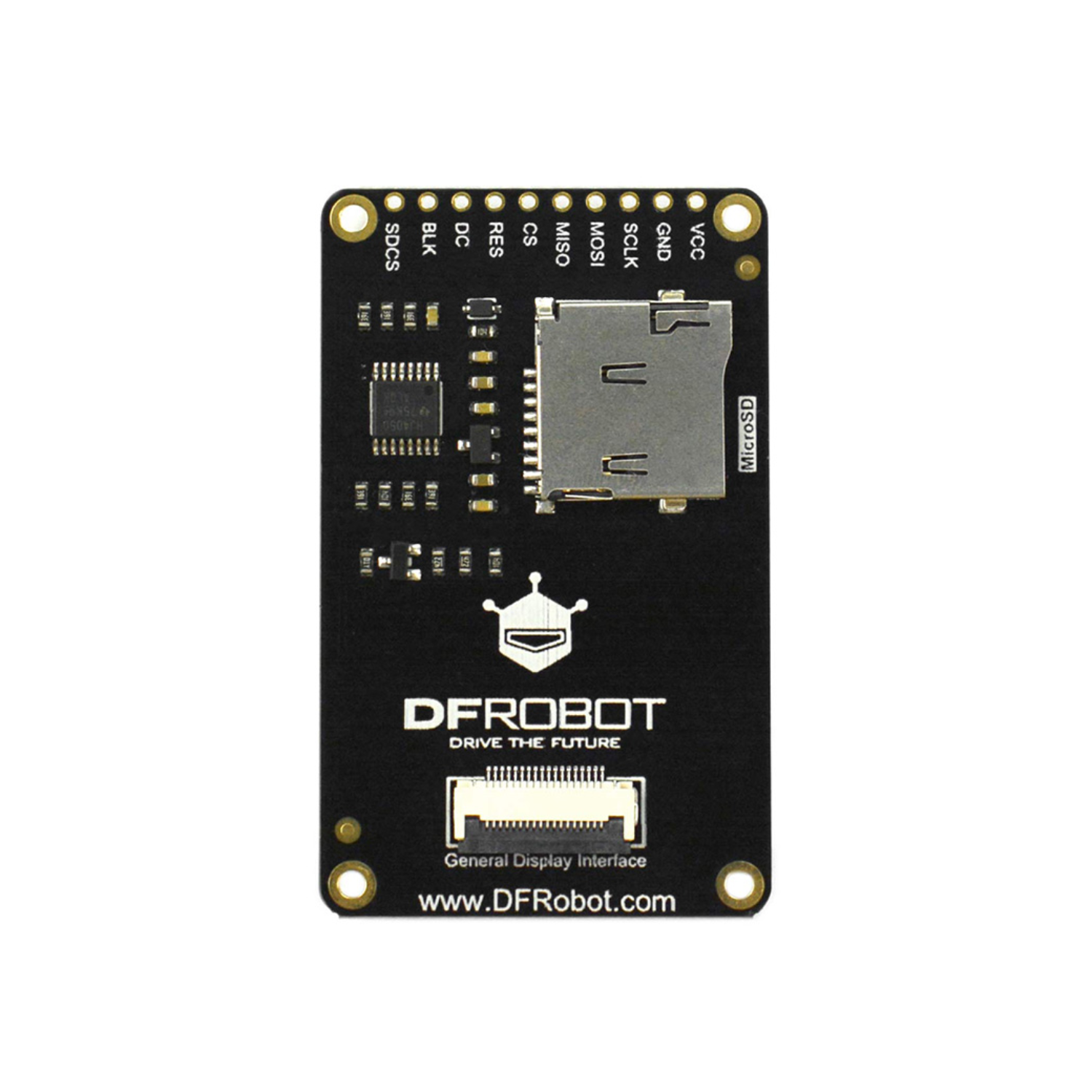

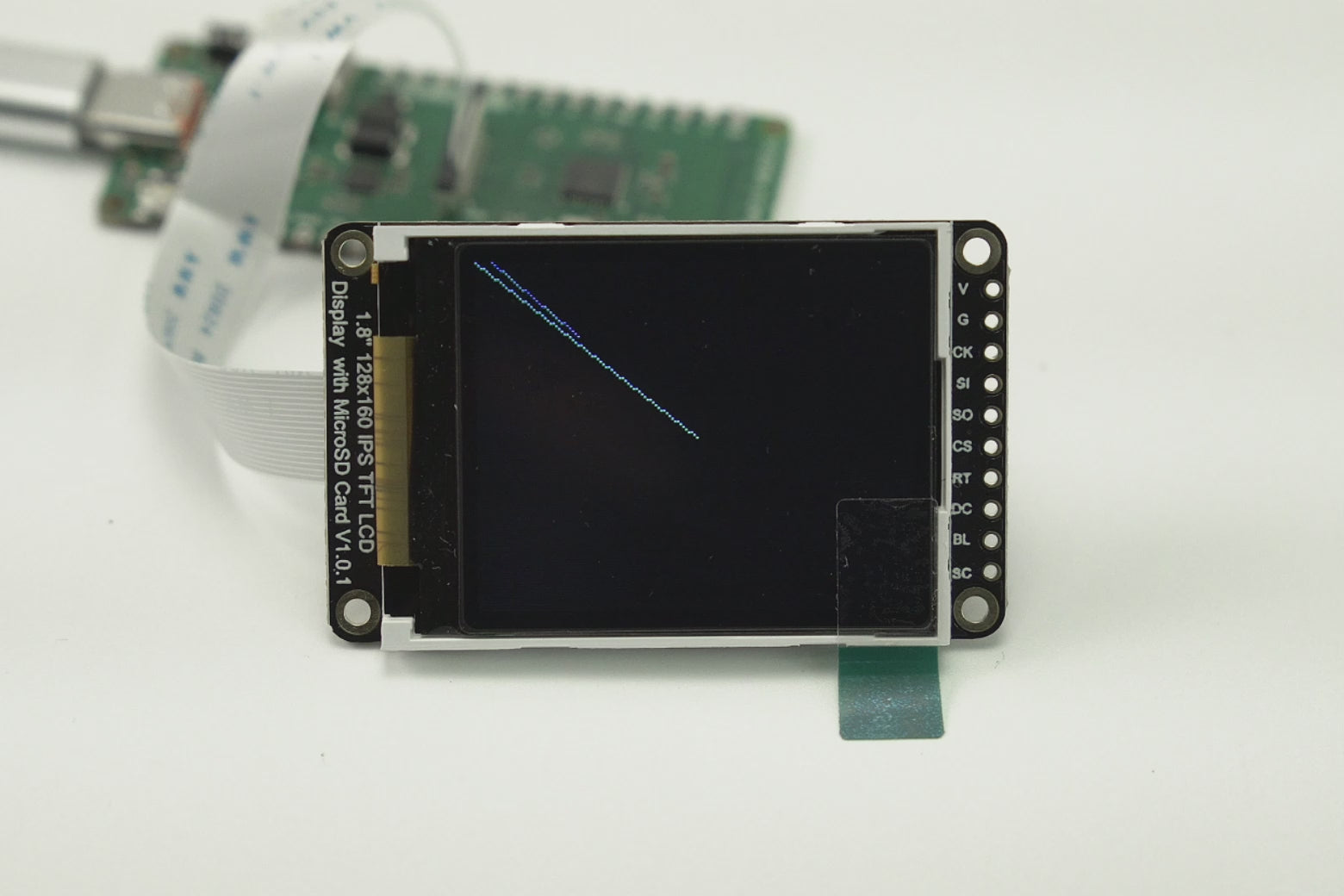

To cater to diverse project requirements, this module provides flexible connectivity options. Users can choose between traditional pin header wiring for breadboard or custom circuit integration, or utilize the General Display Interface (GDI) for a more streamlined connection. Notably, it's designed for seamless integration with FireBeetle main controllers via an FPC (Flexible Printed Circuit) cable, offering a plug-and-play experience that minimizes wiring complexity and setup time.
Engineered for optimal performance, this display boasts a low refresh rate, contributing to a stable and flicker-free visual output, ensuring a comfortable viewing experience. Its strong versatility makes it suitable for a wide range of applications, including Sensor Monitoring and Alarm Systems, Arduino Temperature Monitors, Fan Controllers, Any embedded system requiring compact, color graphical user interface.
Specifications:
- Operating Voltage: 3.3 V - 5 V
- TFT Viewing Angle: 120 degrees
- Pixels: 128 columns x 160 rows
- Communication: SPI
- Interface Mode: GDI, pin header
- Driver Chip: ST7735S
- Full-screen Power Consumption: 0.11 W
- MicroSD Slot x 1
- Operating Temperature: -10℃ - +60℃

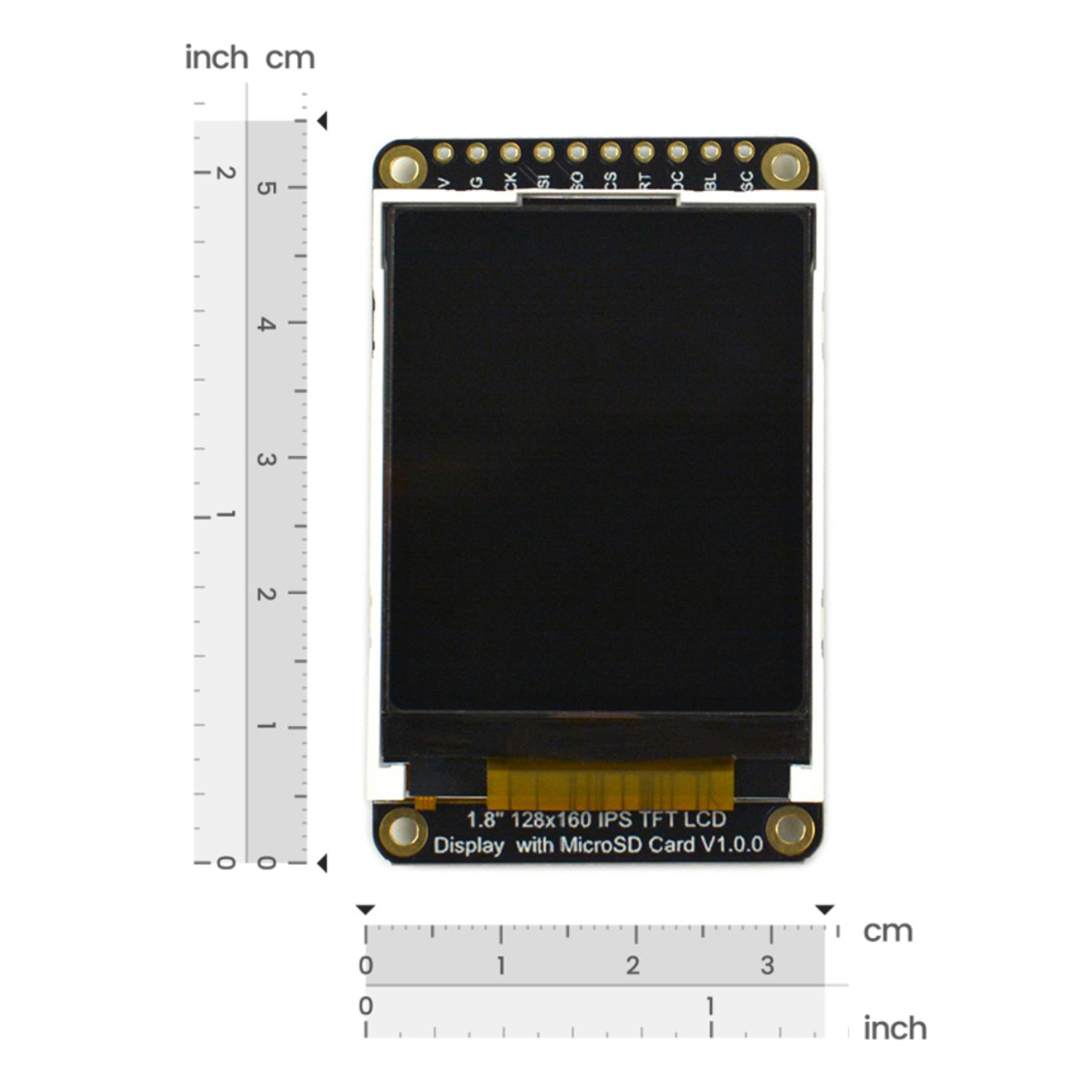

- Display Area: 26 mm x 35 mm/1.02x1.38
- Module Dimension: 34 mm x 55 mm/1.34x2.17
- Mounting Hole Pitch: 29 mm/1.14", 50 mm/1.97
- Mounting Hole Size: 2 mm/0.08
Features:

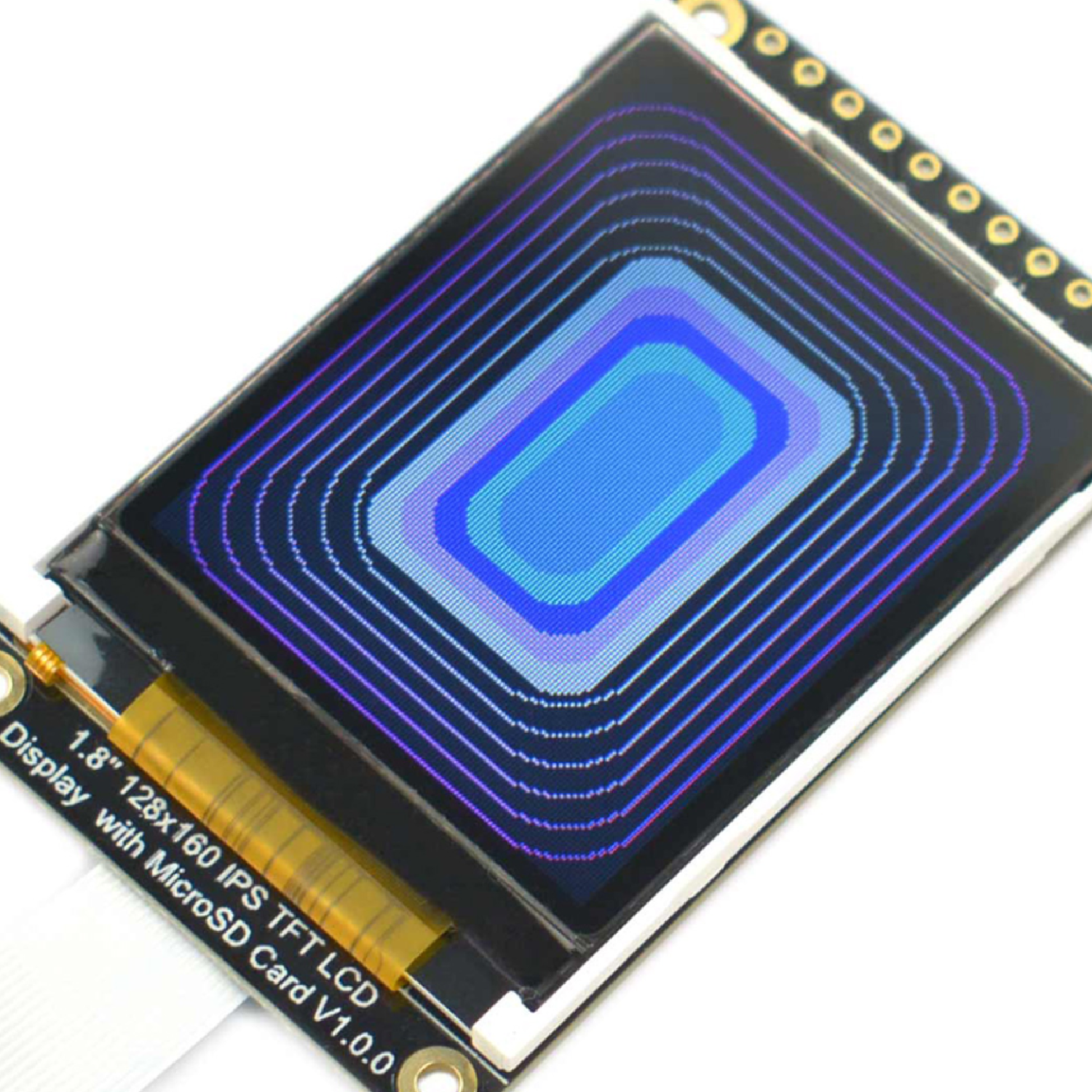

- Delivers crisp, full-color visuals for detailed graphics.
- Enables fast and streamlined data transfer for smooth image rendering.
- Allows direct display of bitmap images, simplifying complex visual presentations.
Applications:
- Sensor monitoring and alarm
- Arduino temperature monitor
- Fan controller
Documents:
Package Included:

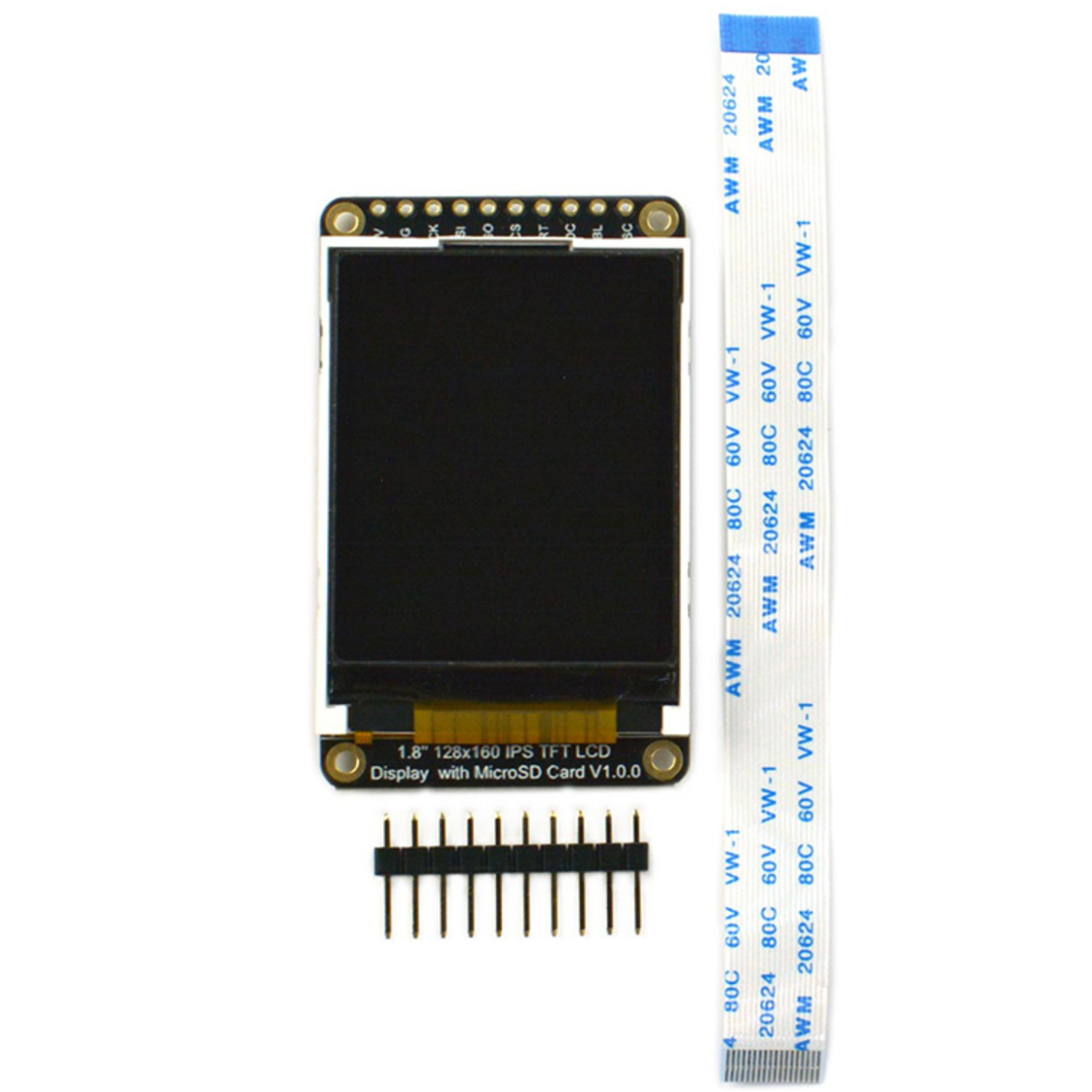

1 x DFRobot Fermion: 1.8″ 128×160 IPS TFT LCD Display (Breakout)
