Description:
For optimal maneuverability in your smart robot car, consider employing Mecanum wheels. These specialized wheels are designed to provide true omnidirectional movement, enabling your robot to translate in any direction – forward, backward, sideways (laterally), diagonally, and even perform zero-radius rotations. This exceptional flexibility allows for complex navigation patterns, including S-curves and precise positioning, essential for navigating confined or intricate environments.
Beyond their versatility, Mecanum wheels offer smooth and relatively quiet operation. This stability and reduced noise are achieved through the unique arrangement of rollers along the wheel's circumference. Each wheel comprises a set of individually rotating rollers, typically angled at 45 degrees relative to the wheel's plane. By carefully controlling the rotational speed and direction of each wheel, the robot can achieve precise and controlled motion in any desired direction.

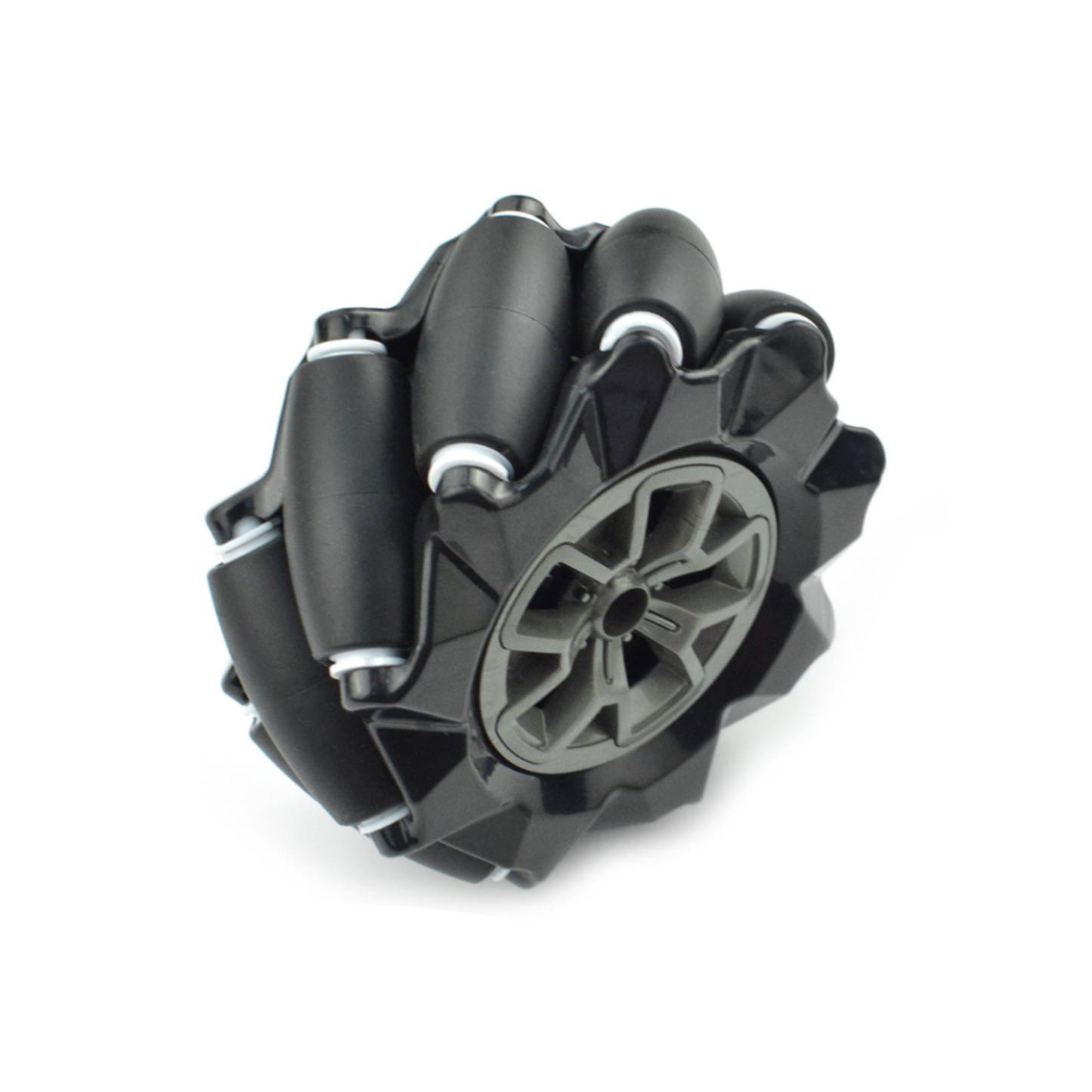

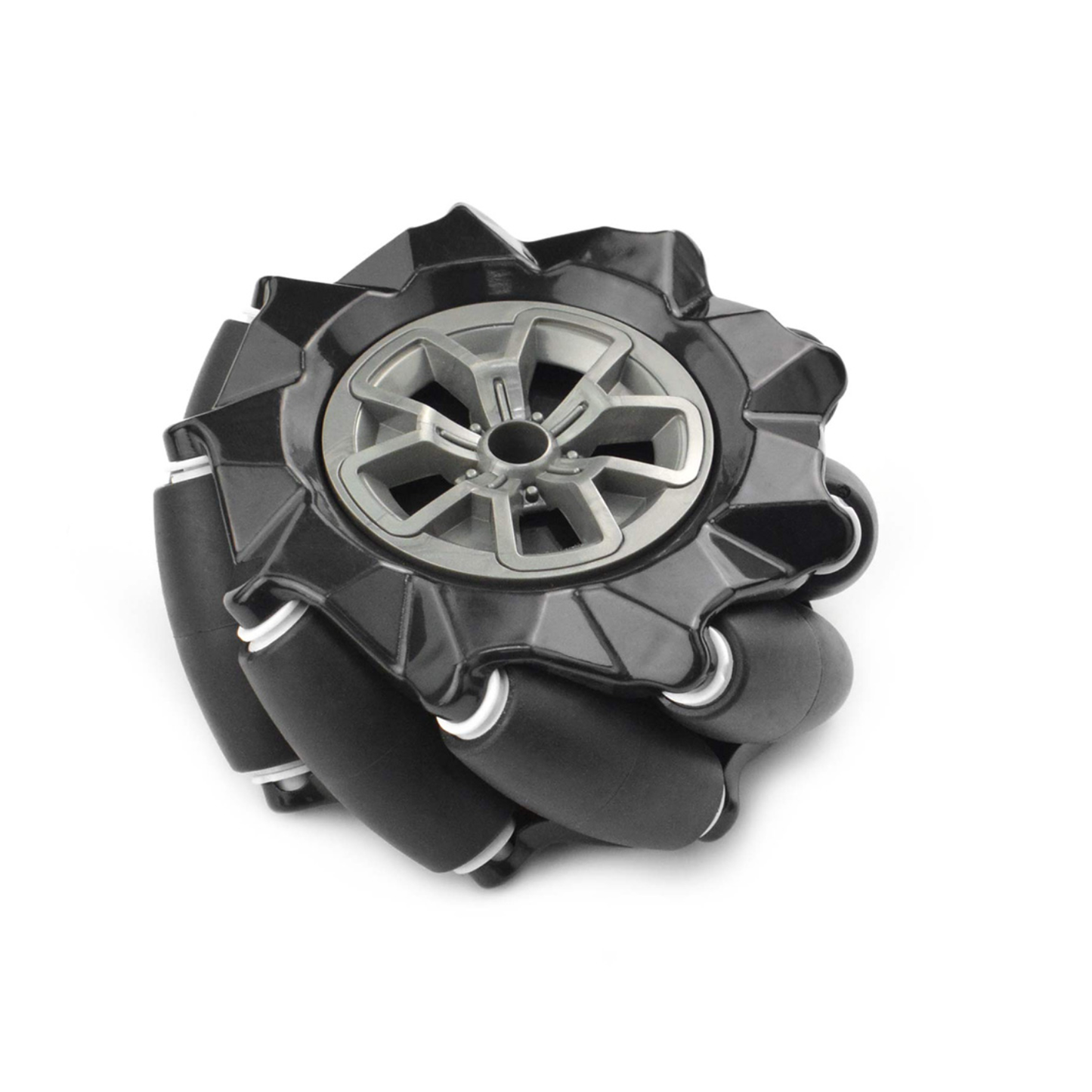

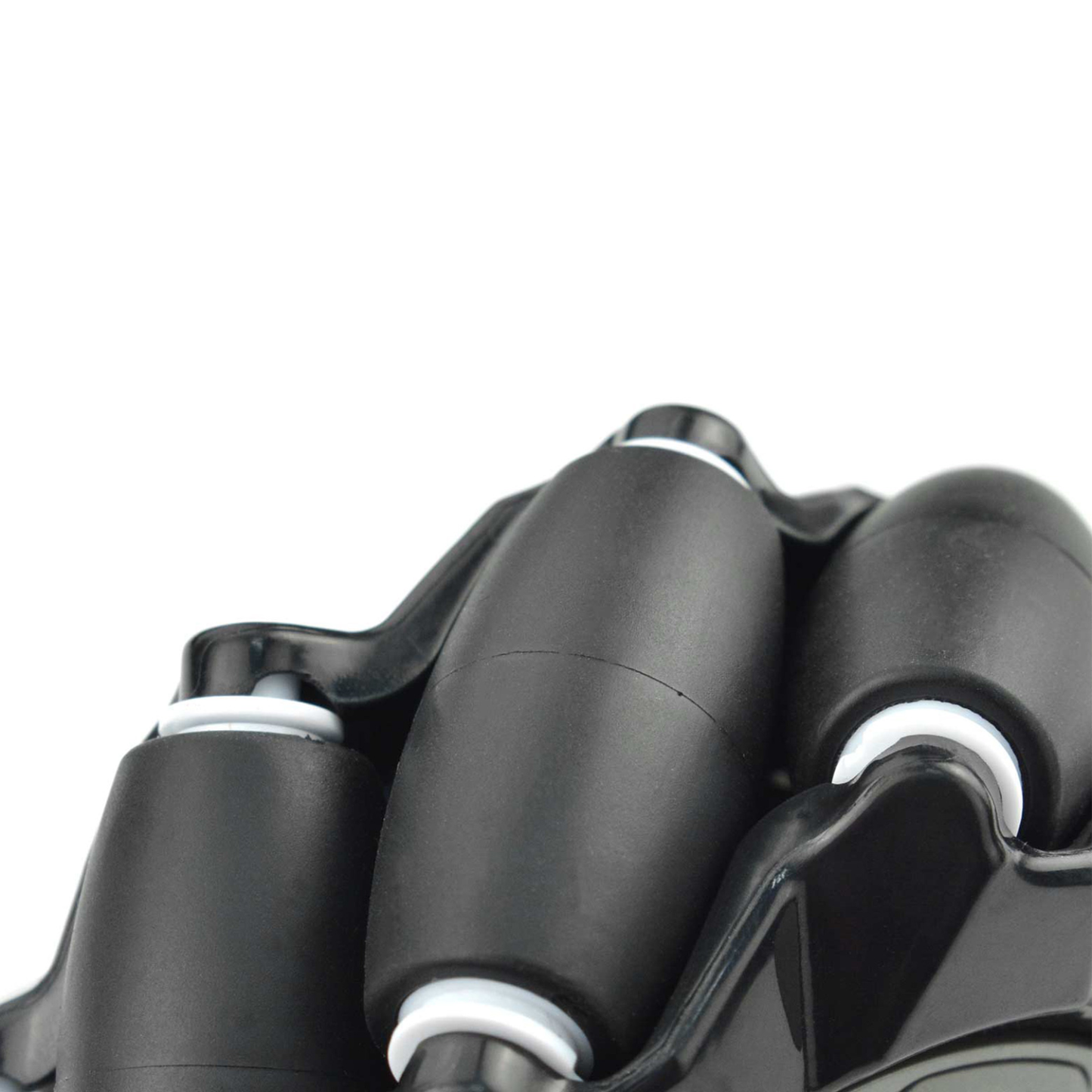

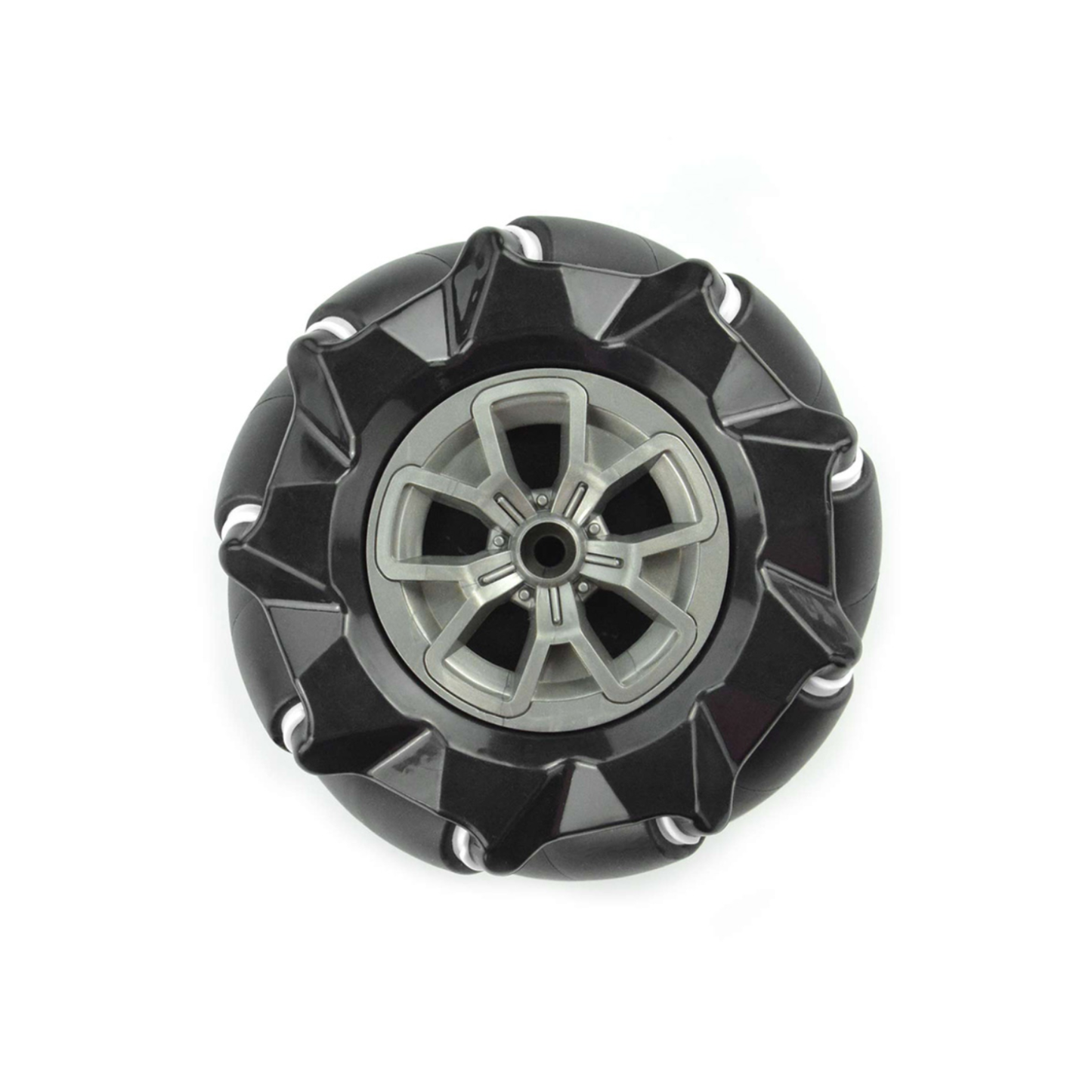

Specifically, the type of Mecanum wheel we are detailing possesses a 97mm diameter, and each wheel is fitted with 9 small rollers. These rollers are constructed from durable plastic and enhanced with a high-friction silicone rubber coating. This combination ensures a robust, impact-resistant wheel that can maintain traction across various surfaces. The application of these wheels, which rely on omnidirectional drive technology gives the user an ability to have complete control of the robot, even when working in very small spaces.

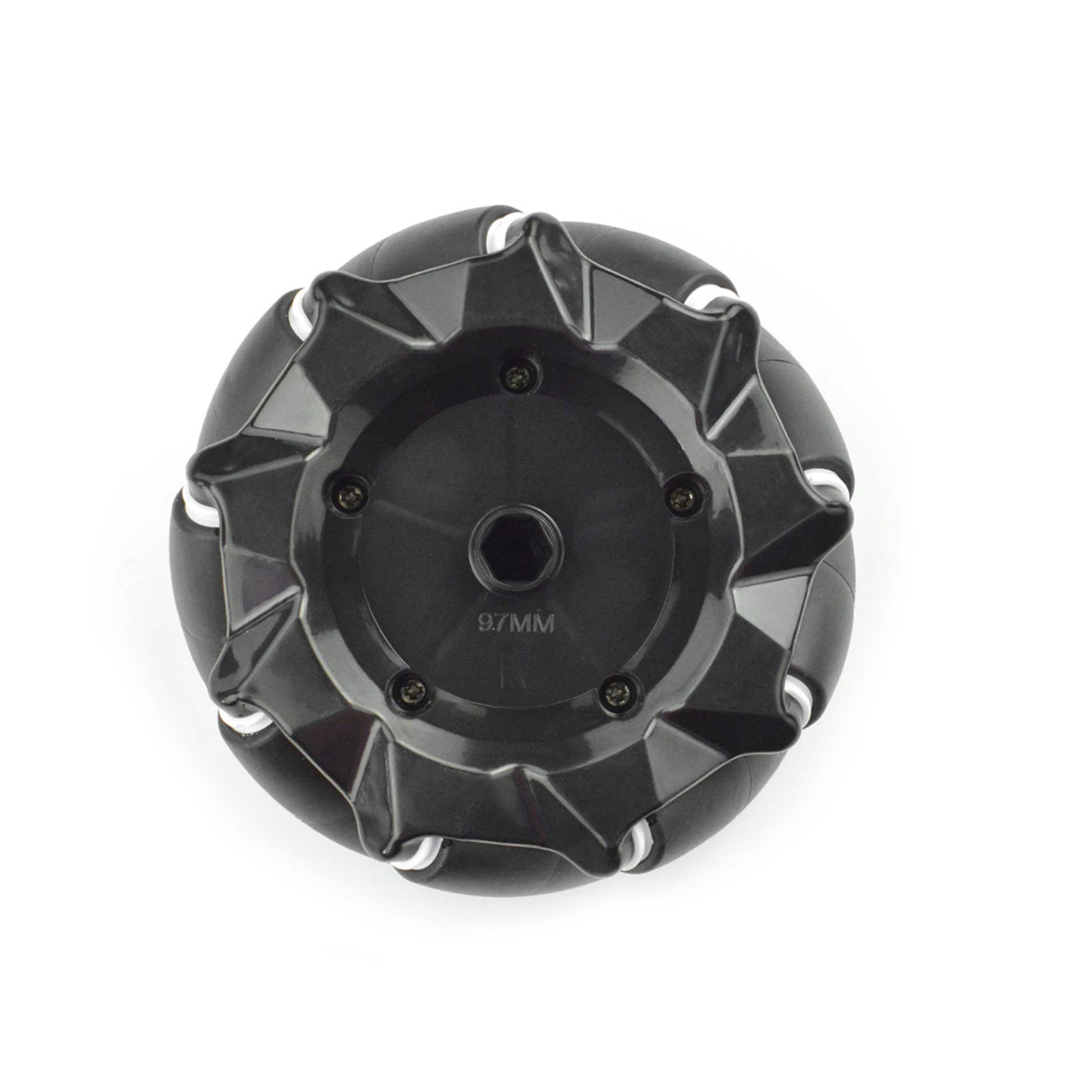

Note: There are two types of Mecanum wheels: left-handed wheel and right-handed wheel. Please pay attention to the L and R noted on the back of the product when purchasing, and we recommend you to buy them in pairs.
Specifications:
- Diameter: 97mm
- Thickness: 44.9mm
- Number of Rollers: 9
- Angle: 45°
- Load Capacity: 15kg
- Color: Black
- Material: plastic + silicone rubber
Features:
- Robust plastic and rubber build.
- Omnidirectional Mecanum wheels.
- Moderate payload support.
Package Included:
1 x DFRobot Black Mecanum Wheel 97mm Right
