DFRobot Beetle RP2350 Mini Dual-Core Development Board With ARM Cortex-M33 & Hazard3 RISC-V), 520KB RAM, 2MB Flash For C/C++, MicroPython, And Arduino Development

The DFRobot Beetle RP2350 Mini Development Board redefines compact performance with the Raspberry Pi RP2350 dual-core microcontroller (Arm Cortex-M33 & RISC-V, 150MHz). Despite its tiny 25×20.5mm footprint, it boasts 520KB RAM and 2MB Flash. Ideal for low-power embedded systems, wearables, and IoT, it integrates essential lithium battery charging and voltage monitoring. Offering 11 GPIO pins, support for C/C++, Arduino, and MicroPython, and a space-saving semi-hole single-sided design for SMT mounting, the Beetle RP2350 is the ultimate choice for developers demanding high processing power in a miniature format.

• Core Frequency: 150MHz
• Memory: 520KB RAM, 2MB Flash

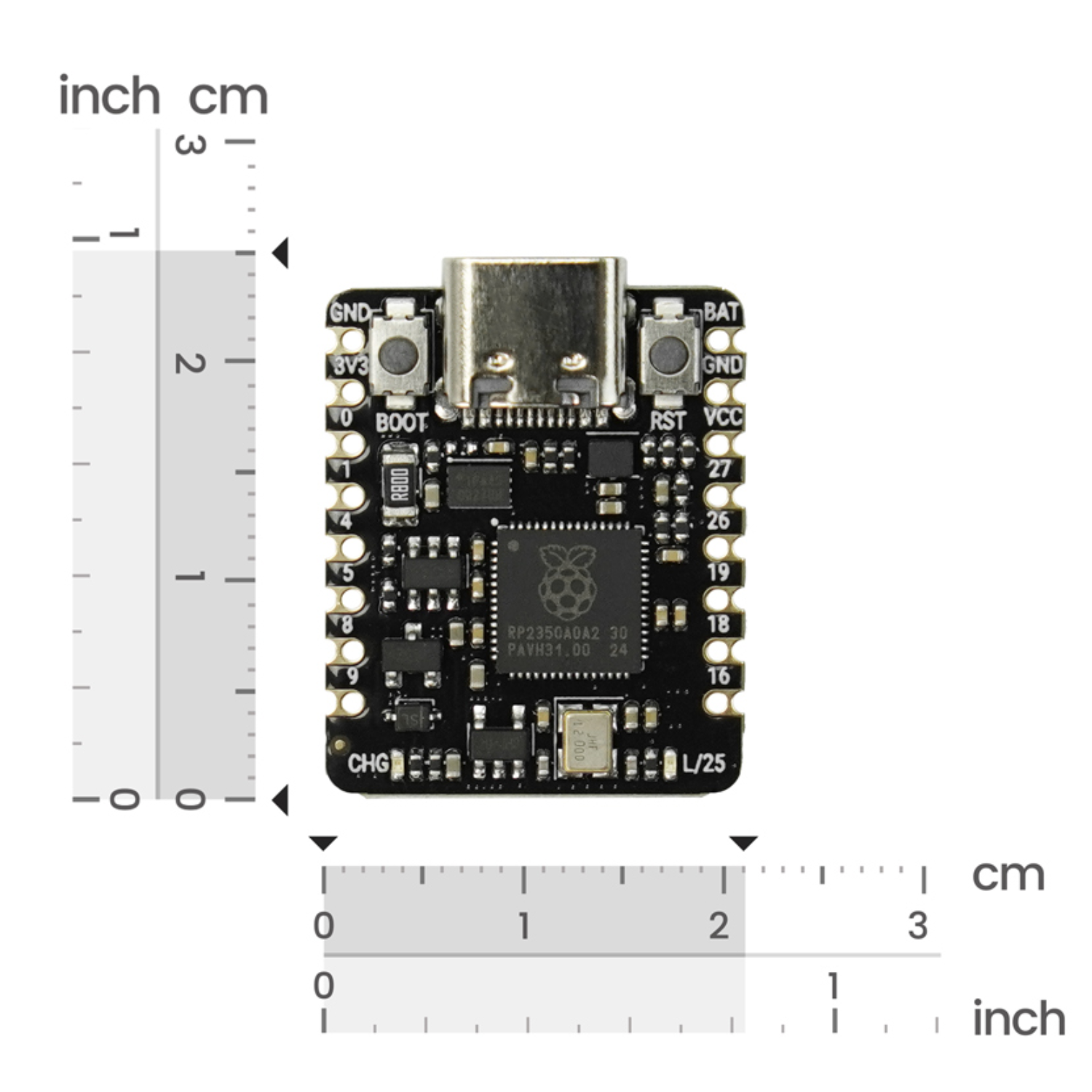

• Dimensions: 25×20.5mm (module size)
• Operating Voltage: 3.3V
• Input Voltage:
       Type-C Port: 5V DC
       VIN Pin: 5V DC
• Operating Temperature: -10℃ to 60℃

Features:

• High-performance processing.
• Switch between Arm Cortex-M33 and Hazard3 RISC-V.
• Space-saving integrated design.
• Onboard Li-ion charging and voltage monitoring.
• C/C++, MicroPython, Arduino compatible.
• Versatile interface options.

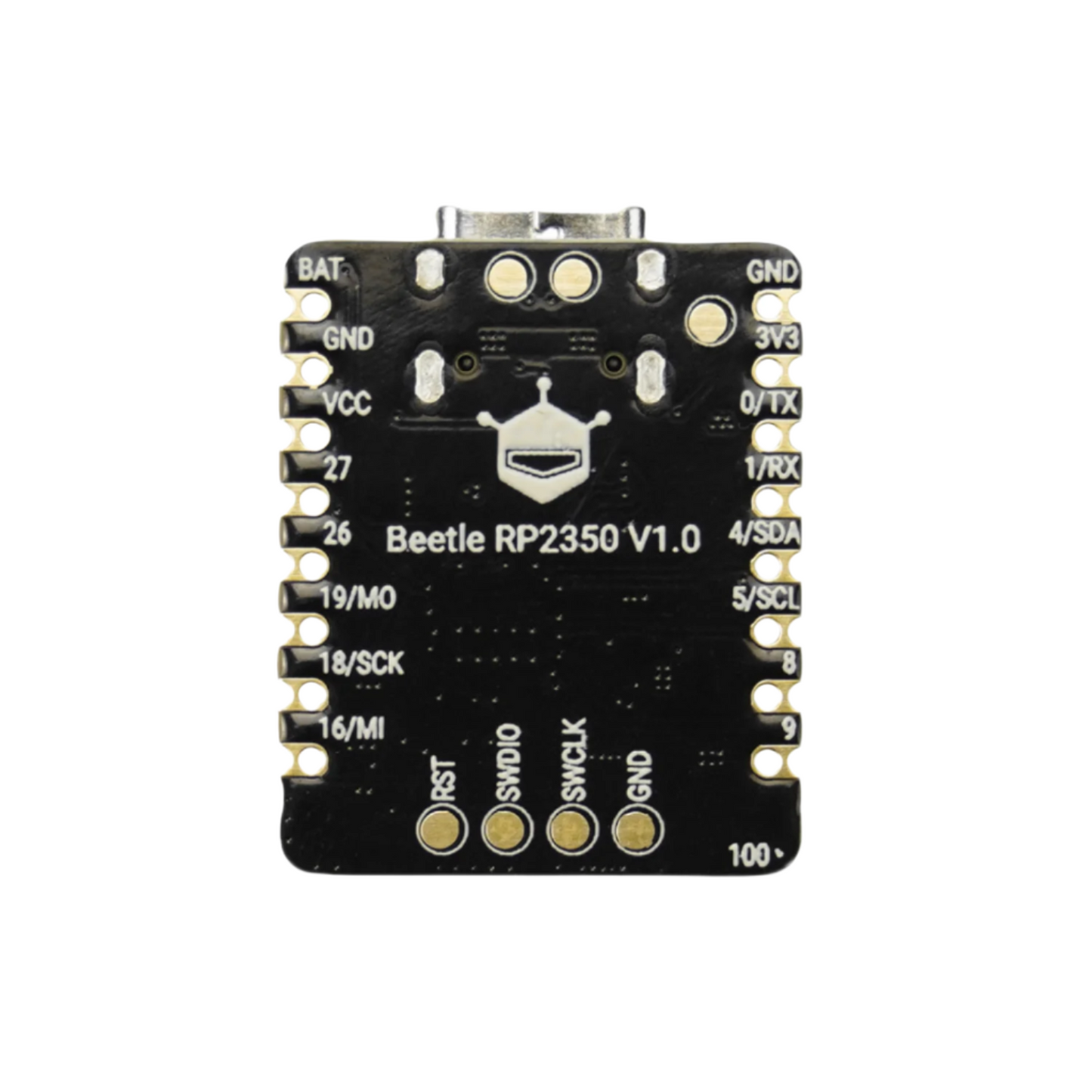

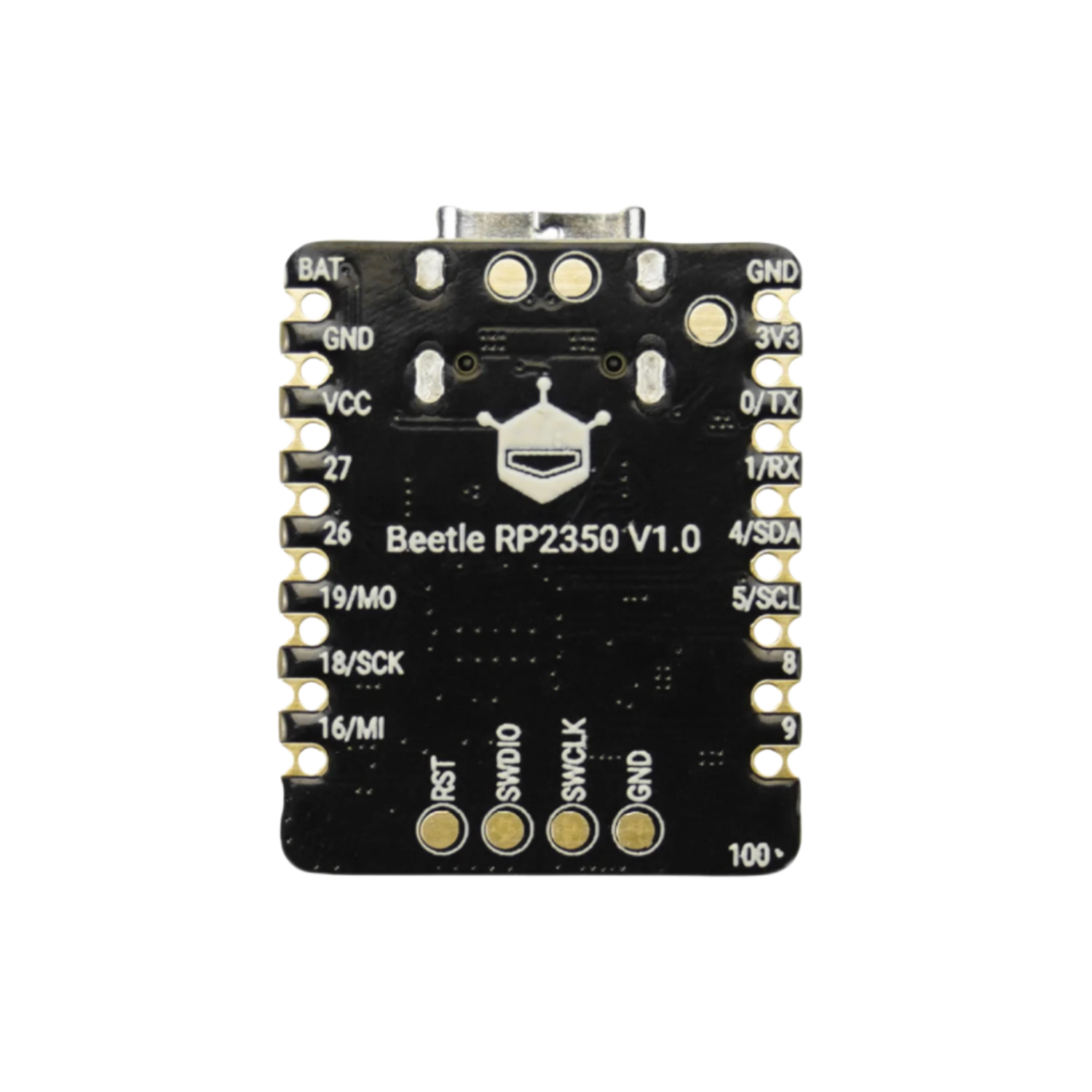

• Single-sided PCB with half-holes.

Applications:

• DIY Retro Computers and Game Consoles
• Programmable lighting control
• Stage prop control

Documents:

• Product wiki
• Function Pin Diagram
• Arduino Tutorial
• RP2350 Chip Manual
• Schematic Diagram
• Dimensional Drawing

Package Included:

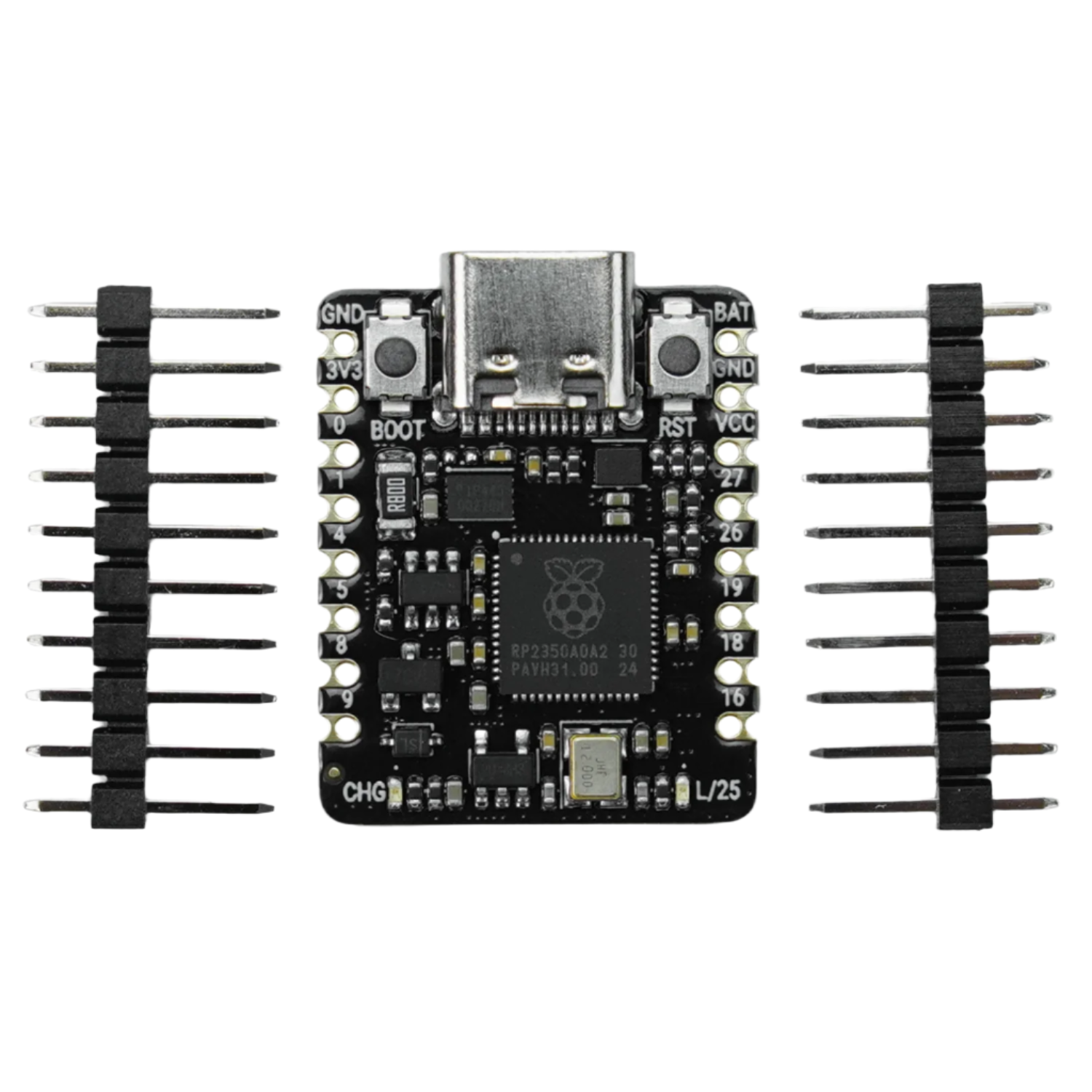

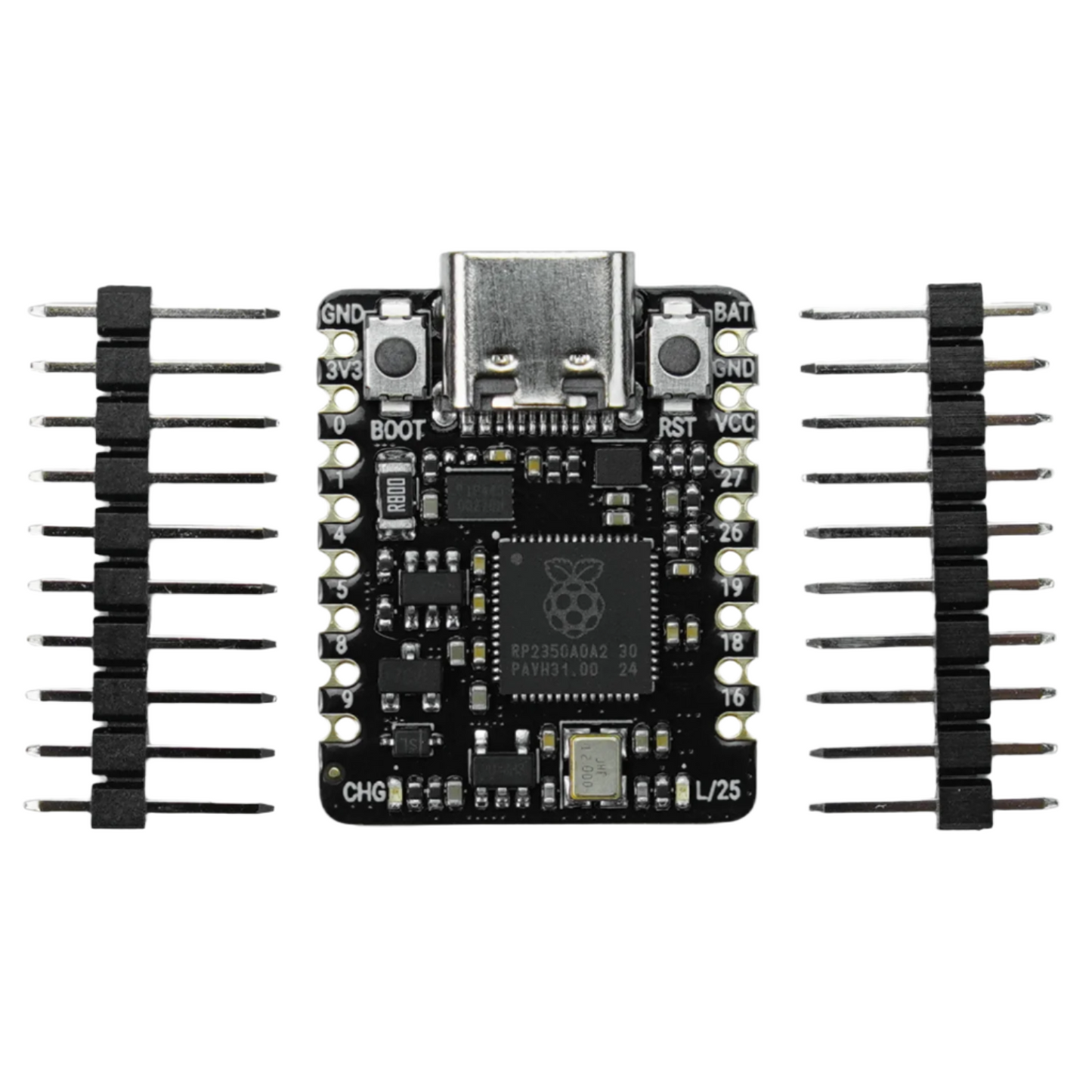

1 x DFRobot Beetle RP2350 Mini Dual-Core Development Board (ARM Cortex-M33 / RISC-V)
