DFRobot Beetle ESP32-C6 Mini IoT Development Board
Build compact wireless buttons, wearable prototypes and sensor nodes around the ESP32-C6. The DFR1117 Beetle board combines a 160MHz RISC-V processor, USB-C programming, lithium-battery charging and battery-voltage monitoring in a 25 x 20.5mm footprint.
Wireless development
The ESP32-C6 supports 2.4GHz Wi-Fi 6, Bluetooth Low Energy and IEEE 802.15.4 for Thread and Zigbee development. Matter endpoint projects need suitable firmware, a supported development environment and the relevant network/controller. The board is not a preconfigured Matter accessory, a cellular tracker or a GPS receiver.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer model | DFRobot DFR1117, Beetle ESP32-C6 |
| Processor | Single-core 32-bit RISC-V, up to 160MHz |
| Memory | 4MB Flash, 512KB SRAM, 320KB ROM and 16KB RTC SRAM |
| Board operating voltage | 3.3V |
| USB-C / VIN input | 5V DC |
| Battery charging | Onboard lithium-battery charging, maximum 0.5A |
| Digital I/O | 13 pins; peripheral functions share pins as shown in the official pinout |
| Interfaces | SPI, UART, I2C, I2S, PWM, ADC and USB 2.0 CDC |
| Infrared peripheral | Two transmit and two receive channels; external optical hardware required |
| Wireless bands | 2.4GHz Wi-Fi and BLE; IEEE 802.15.4 for Thread 1.3 / Zigbee 3.0 |
| Size | 25 x 20.5mm |
| Operating temperature | -10 to 60 degrees C |
Power and setup notes
- Use 5V for the USB-C or VIN input and follow the manufacturer's pinout for 3.3V I/O connections. Do not treat VIN and GPIO as interchangeable power inputs.
- Check battery chemistry, voltage and polarity against the official hardware guide before connecting a battery. A battery is not included.
- Deep-sleep current depends on board revision: DFRobot's wiki lists 14 microamps for V1.0 and 37 microamps for V1.1 when battery-powered. These are sleep-mode figures, not active Wi-Fi current or a battery-life guarantee. The supplied hardware revision is not specified here.
- For Arduino development, use the DFR1117 getting-started guide for ESP32 board-package installation, board selection and USB CDC settings. GPIO functions depend on the chosen pins and firmware.

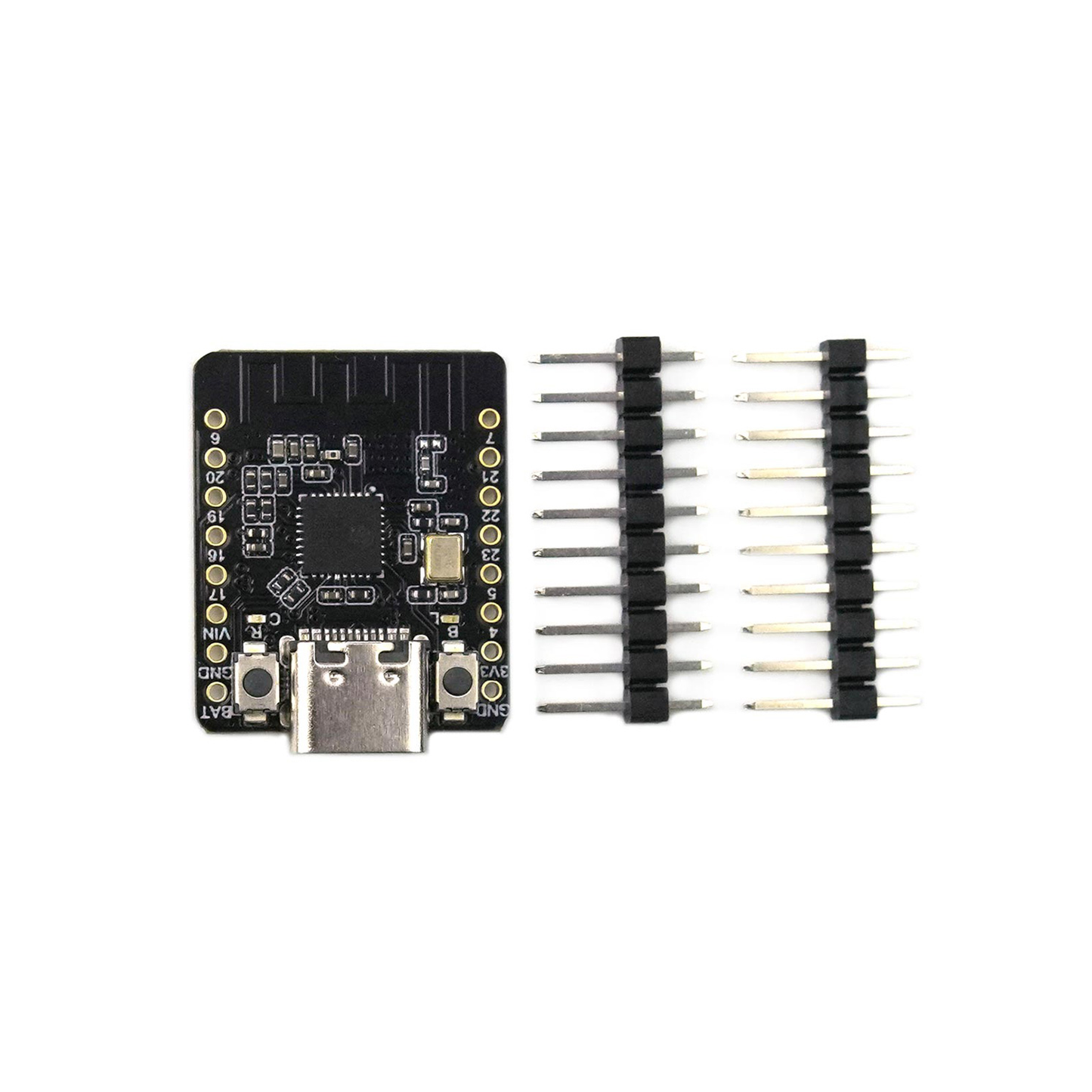

Package includes
- 1 x DFRobot Beetle ESP32-C6 mini development board.
- 2 x 10-pin, 2.54mm header strips.
USB-C cable, lithium battery, sensors, display, enclosure and other example-project parts are not included. Header strips require soldering if used. Reference diagrams show connection labels, not additional included parts.
