Description:

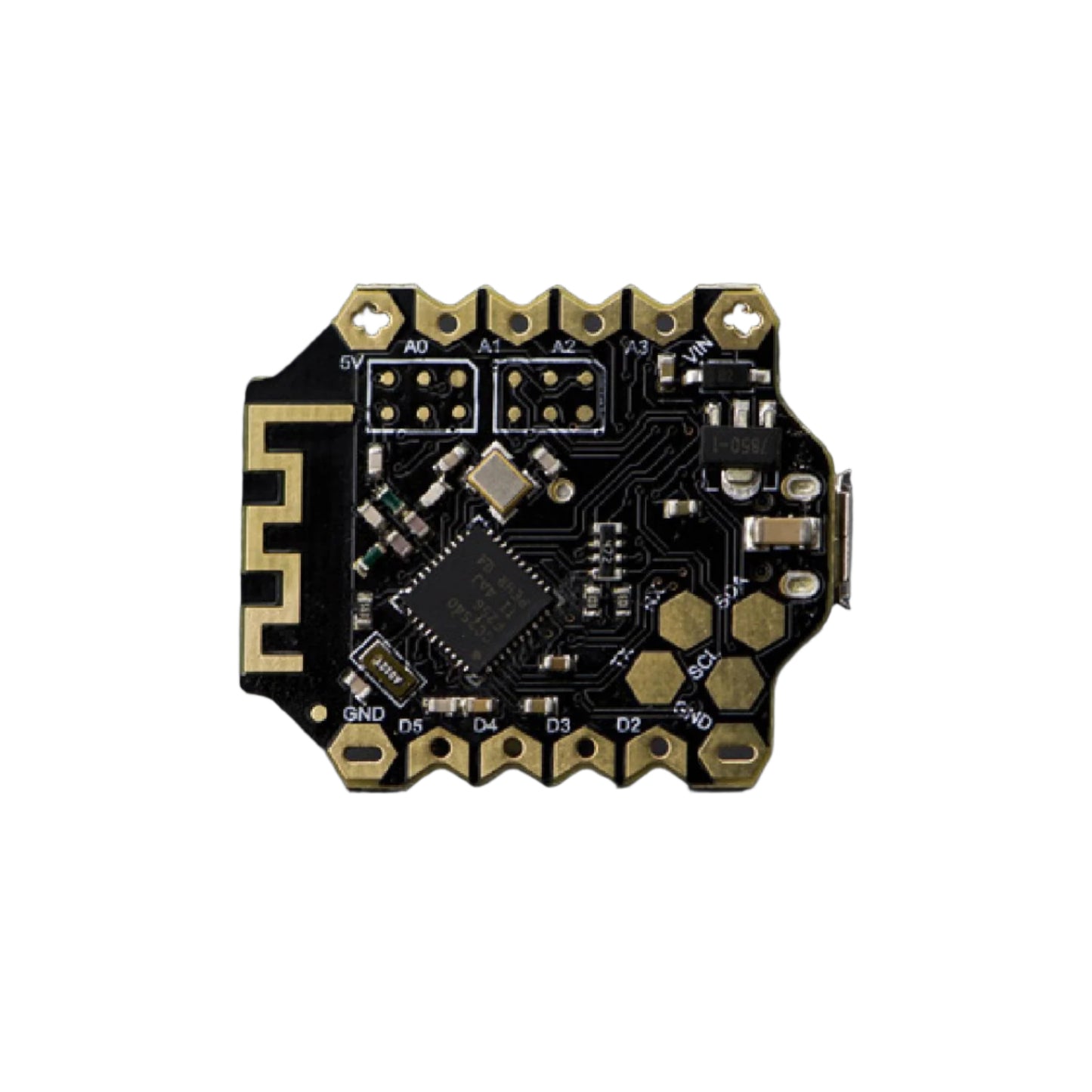

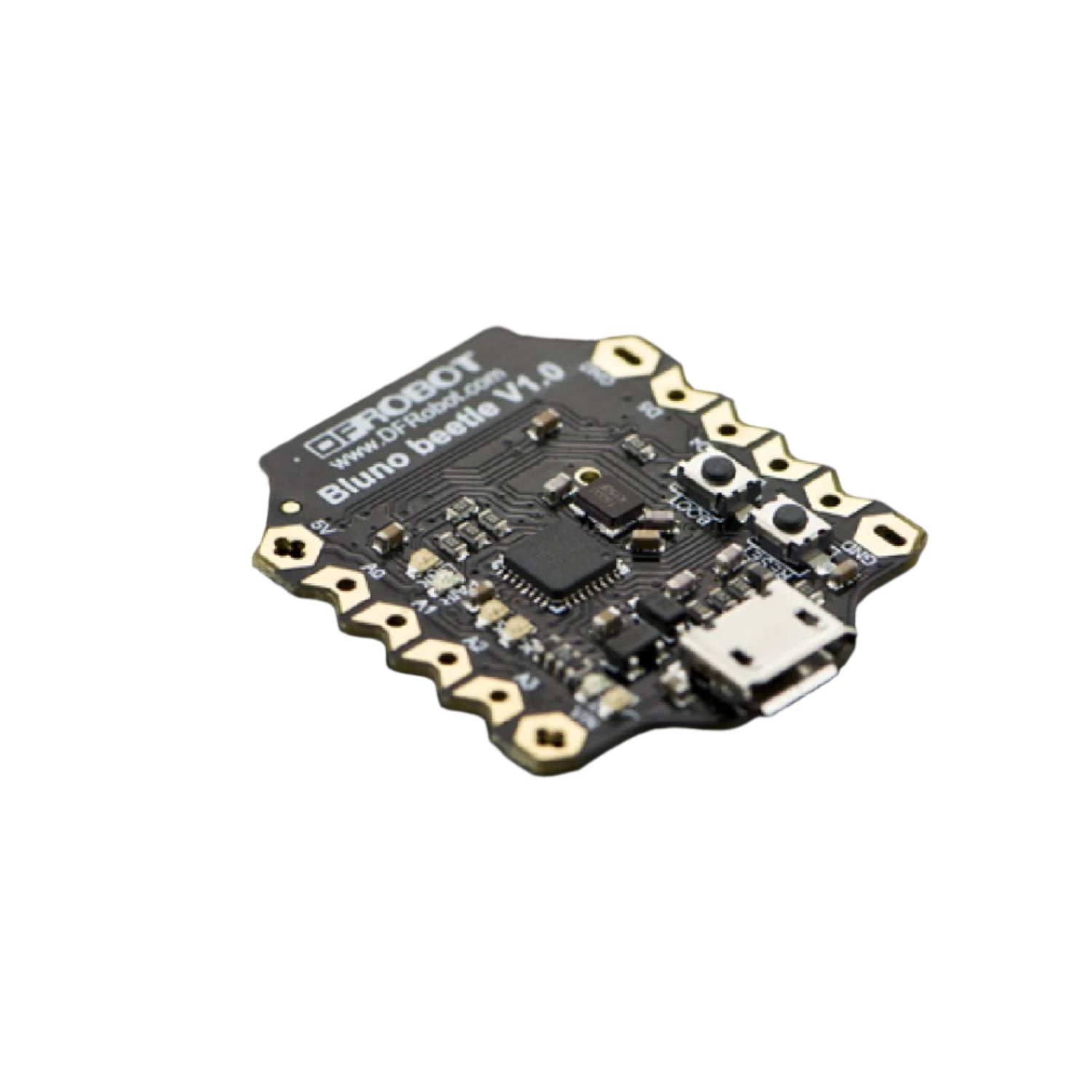

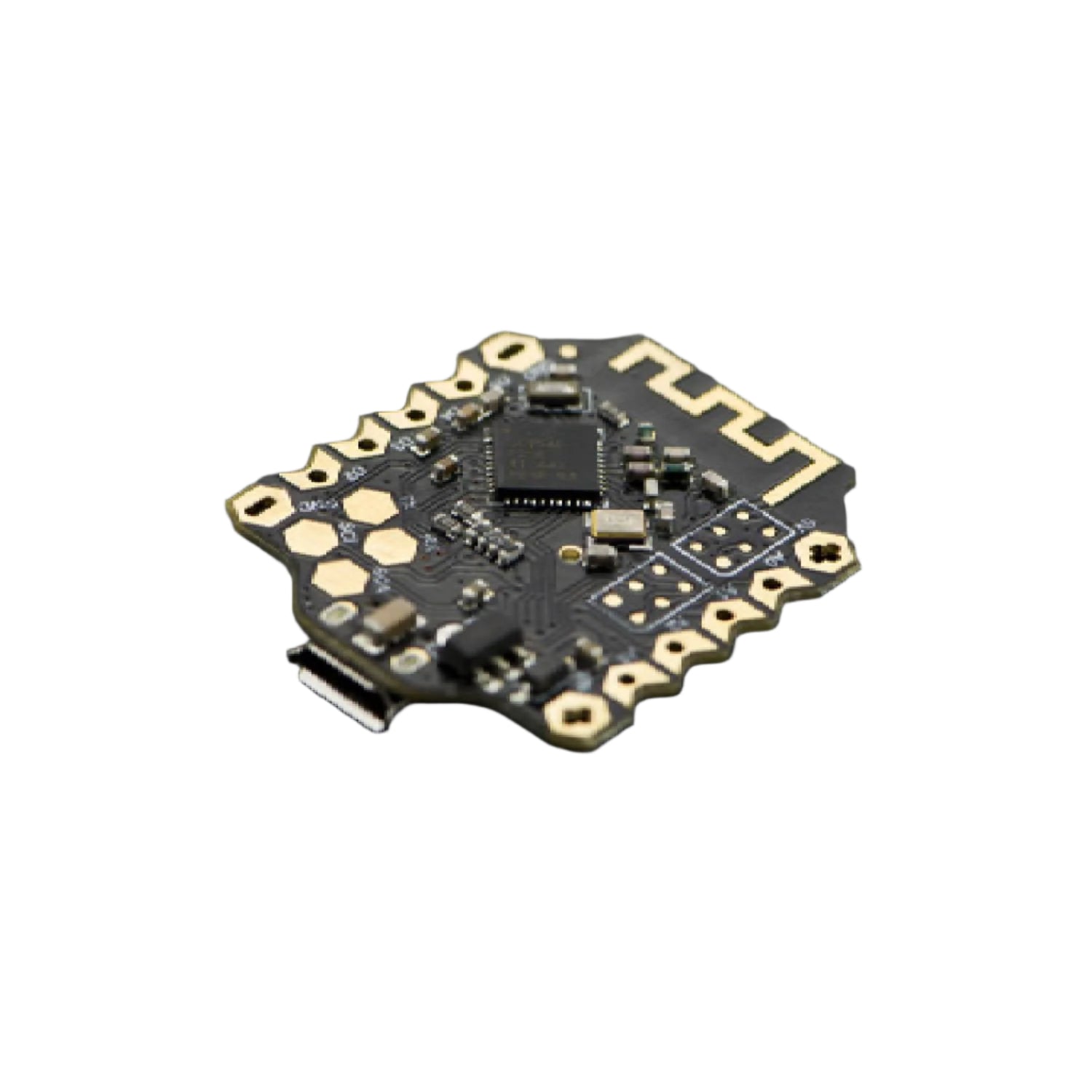

Beetle BLE (formerly known as Bluno Beetle) is a miniature development board based on the Arduino Uno prototype. Equipped with Bluetooth 4.0 (BLE), it boasts a compact design and can be programmed and code uploaded through micro USB using the Arduino IDE. Additionally, it supports Bluetooth remote programming updates, eliminating the need for complex development environments and driver installations, and simplifying the development process. It is fully compatible with Bluno's commands and procedures. The board also supports Bluetooth HID and iBeacon modes. For more detailed information, you can refer to the selection guide.
Beetle BLE, as an ultra-compact development board compatible with Arduino Uno, is particularly well-suited for makers, students, and other enthusiasts. It is ideal for DIY projects, creative development in gift projects, and other designs. Due to its tiny size and sewable features, along with V-shaped gold-plated I/O interfaces for easy screw-type wire connections, it is suitable for creating wearable devices such as smart bracelets and smart clothing. Additionally, it can be utilized through Bluetooth 4.0, paired with the Play Bluno application on iOS or Android, enabling remote control of devices and Arduino program updates.
Just like a native Arduino board, but with Bluetooth 4.0. An APP called Play Bluno is available on IOS and Android which gives quick access to this little tiny board. It not only supports USB programming but also wireless uploading methods. With the V-shaped gilded I/O interface, it is convenient to screw conductor wire on it, which could be a good choice in the wearable market.
Beetle BLE can be optionally paired with the Beetle BLE Expansion Board, providing users with convenient access to Beetle BLE port resources. This allows for the direct connection of DFRobot 3-pin sensors and other expansion devices. By combining the expansion board with sensors and following the basic Arduino usage tutorials for the respective sensors, users can easily fulfill various requirements and achieve a wide range of applications.
Specifications:
- Bluetooth Chip: CC2540
- Sensitivity: -93dBm
- Working Temperature: -10 ℃ ~ +85 ℃
- Maximum Distance: 50m(1968.50")(Open field)
- Microcontroller: ATmega328
- Clock frequency: 16 MHz
- Operating voltage: 5V DC
- Input voltage: ＜8V (Vin ＜ 8V)
- Digital Pin x4
- Analog Pin x4
- PWM Output x2
- UART interface x1
- I2C interface x1
- Micro USB interface x1
- Power port x2

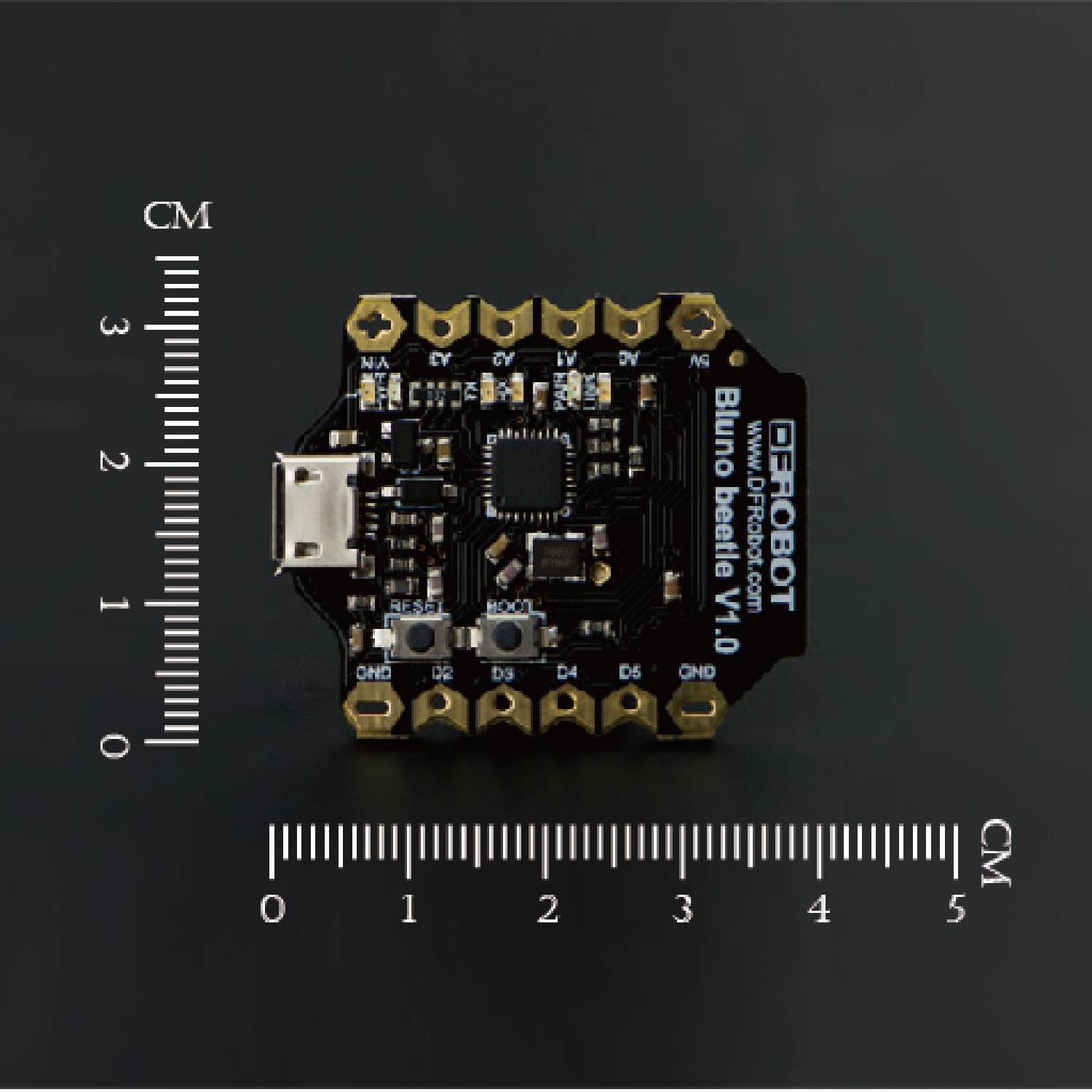

- Size: 28.8mm X 33.1mm(1.13" x 1.30")
- Weight: 10g
Features:
- ATmega328@16MHz
- Bluetooth Low Energy (BT 4.0)

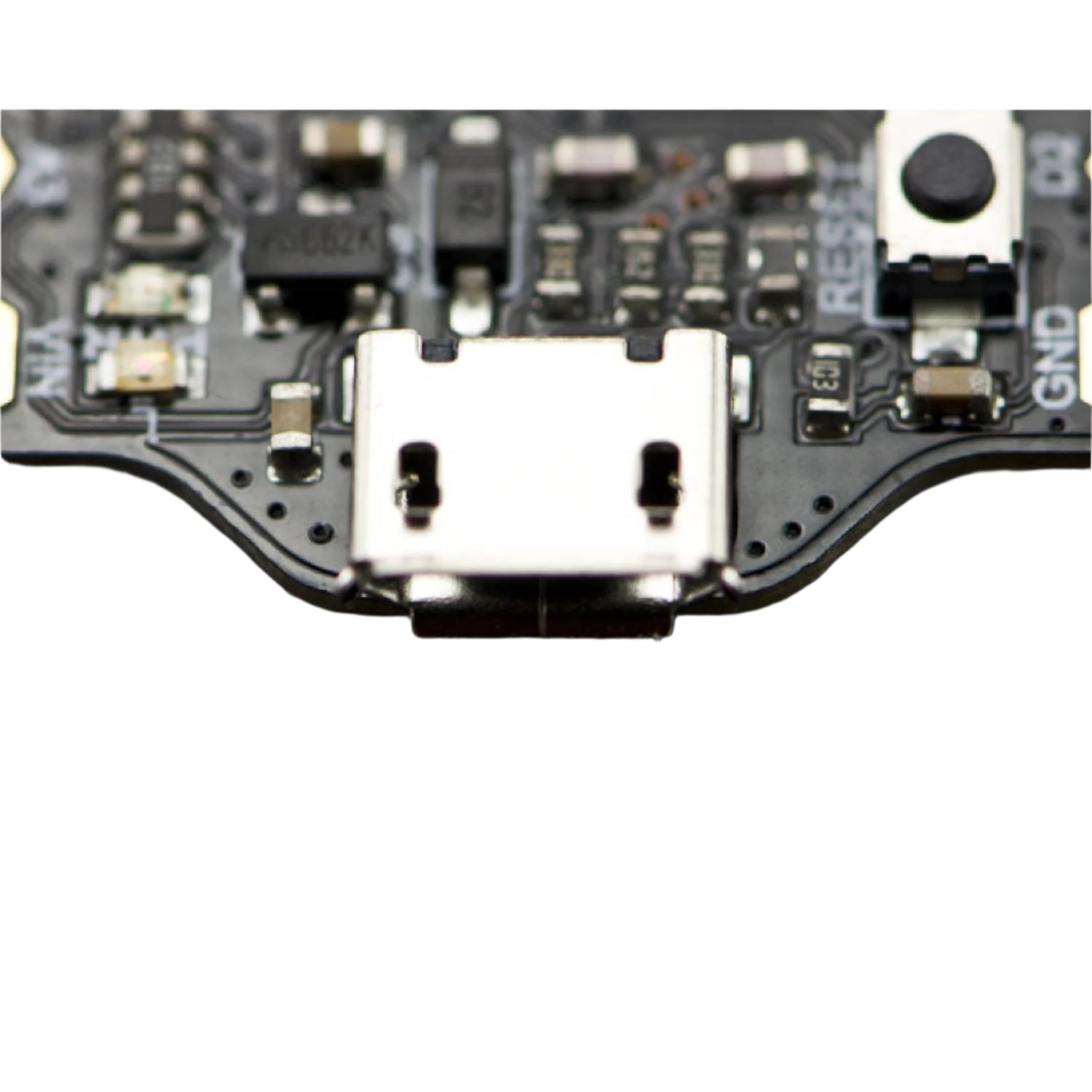

- Micro USB port

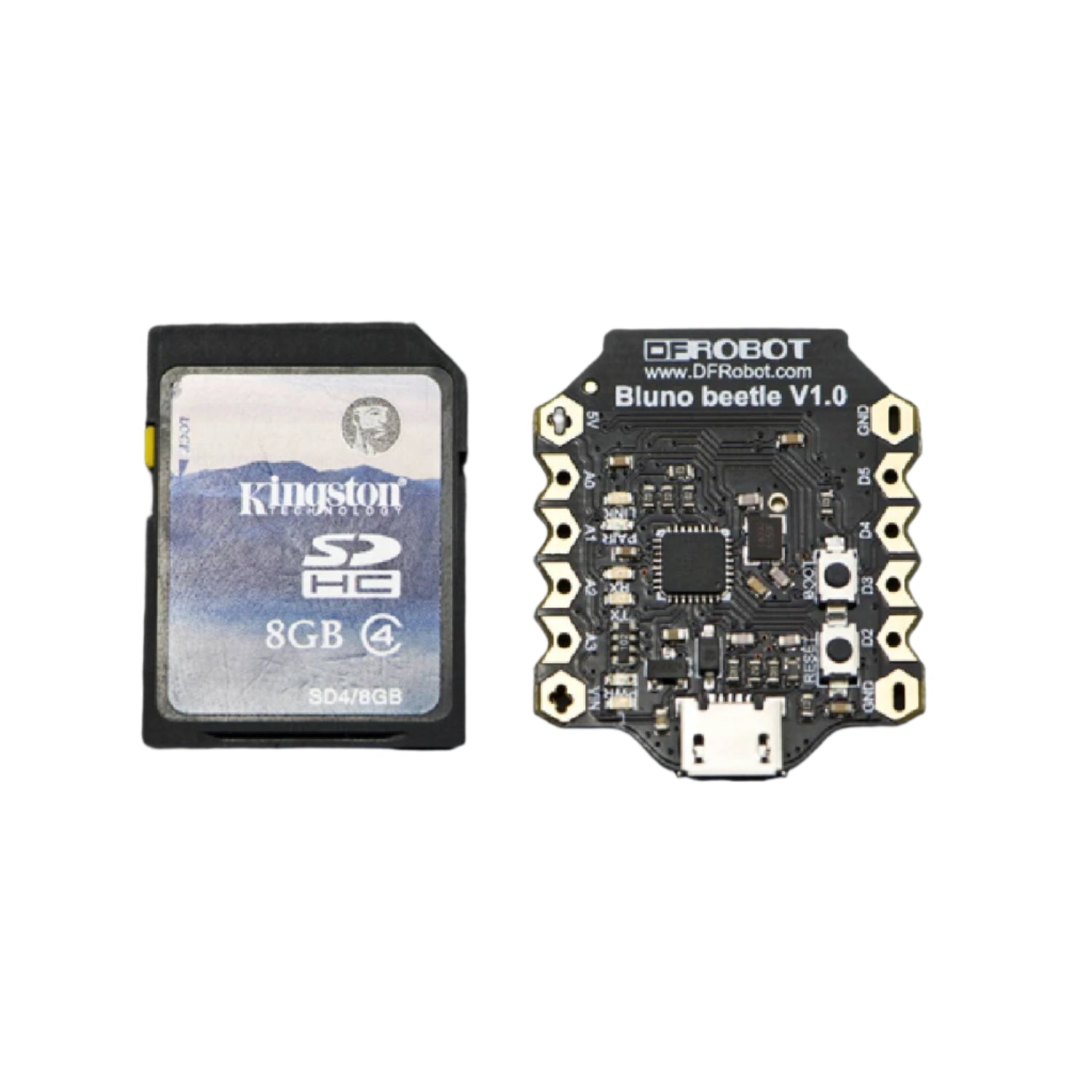

- Super Compact Size
- Support Bluetooth HID and beacon
- Compatible with all DFRobot Bluno Series
- Support Wireless Programming
Projects:
- Project 1: How to Make a Jumping Paper Frog
Introduction: Back in the 80’s and 90’s kids made their toys like paper planes and spinning tops. These toys accompanied them throughout their childhood. Now let's make a frog.
Introduction: This test will design a toy Iron Man Power Supply which can be worn on the chest as an accessory or on the hand, to simulate the flickering of the launching weapon by use of the 6-axis sensor.
- Project 3: DIY Deer Clock
Introduction: We are going to make a table clock showing time in a lovely way. This product has quite a cute look and the LED screen makes it cool.
Introduction: What you have seen is a smart plugboard that is converted by the ESP32 master board and controlled by the BLE of ESP32.
- Project 5. How To Make A Smart Clock with ESP32?
Introduction: I’ve always dreamed of making a desktop clock without complex functions, just smaller and able to display time.
Useful Links:
Package Included:
1 x Beetle BLE
