DFRobot 8.8″ 480 x1920 IPS Bar Touch Display With DSI Interface And 5-Point Touch For Raspberry Pi 4B, 3B+, And 3B Projects

DFRobot 8.8″ 480 x1920 IPS Bar Touch Display With DSI Interface And 5-Point Touch For Raspberry Pi 4B, 3B+, And 3B Projects

SKU:

In stock

Regular price Rs. 7,848.00
Regular price Sale price Rs. 7,848.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

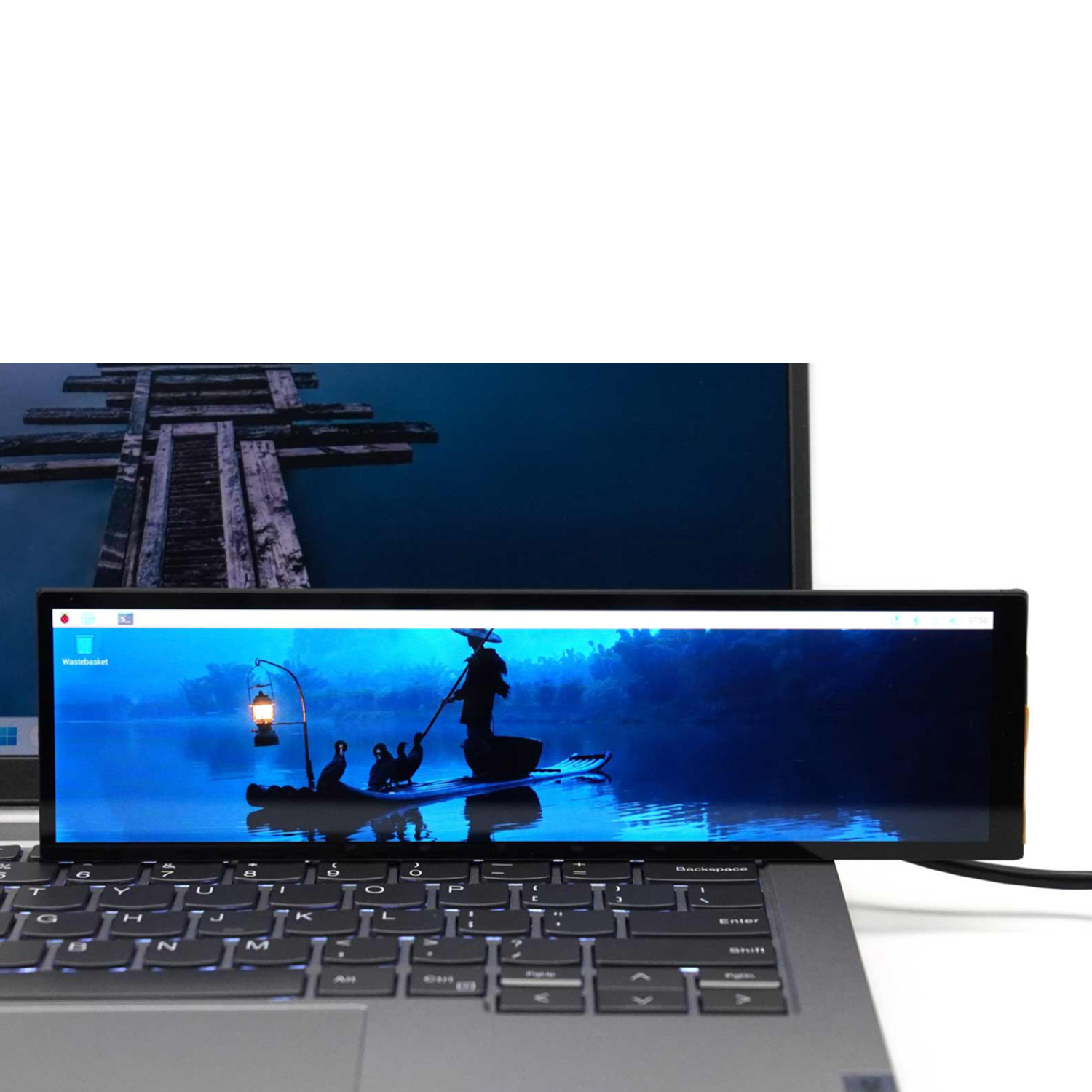

The unique 8.8-inch bar-type capacitive touchscreen boasts a sharp 480×1920 resolution and a distinctive 4:1 aspect ratio. Designed for rapid Raspberry Pi development via its DSI interface, this IPS panel display delivers bright (600cd/m²), vibrant visuals with wide viewing angles and fast response times. Its five-point capacitive touch enhances intuitive interaction for information display projects in various applications like advertising, smart homes, and in-vehicle systems.

Specifications:

Basic Parameters

  • Operating Voltage: 5V

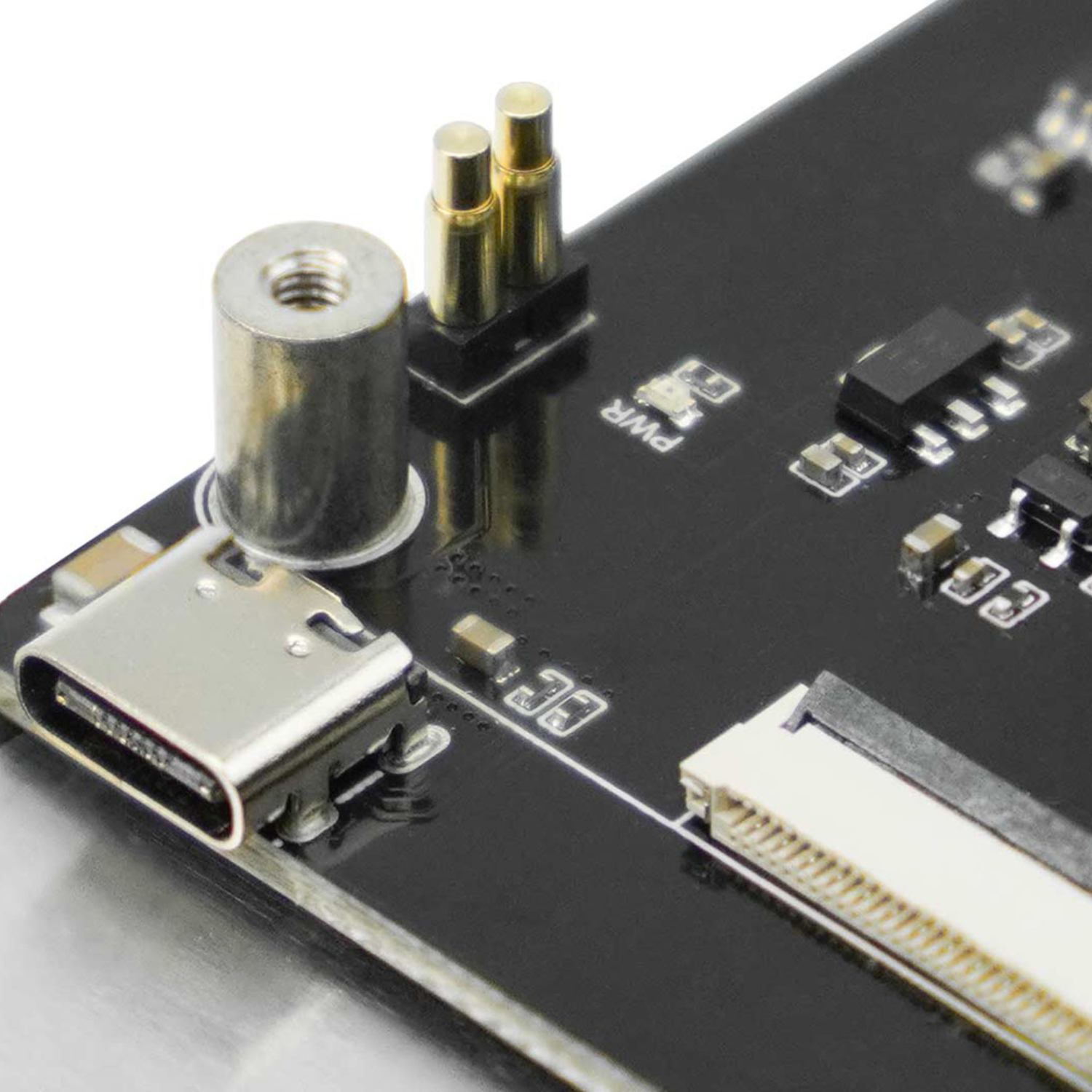

  • Power Interface: USB-C
  • Static Working Current: Approximately 700mA

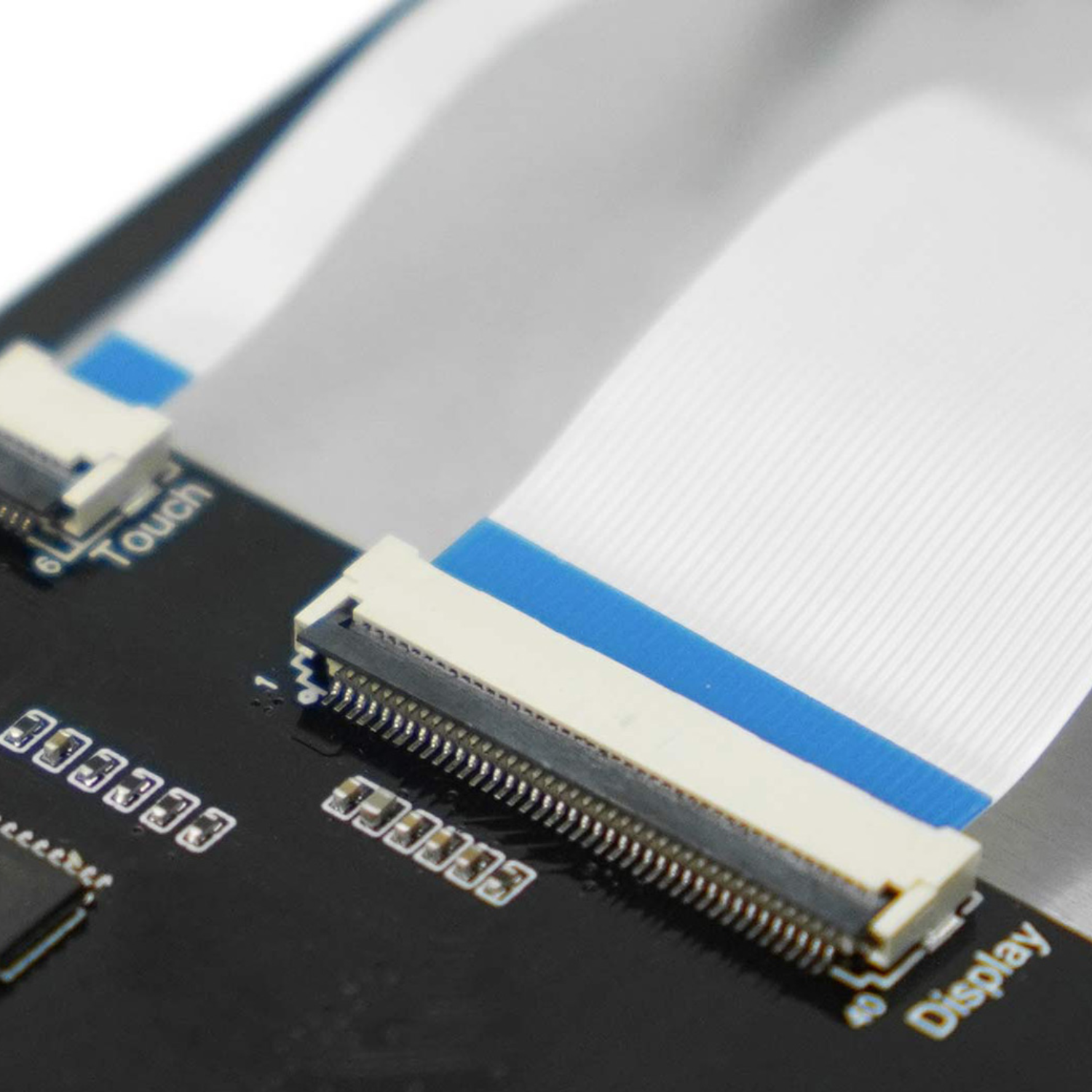

  • Display Interface: Raspberry Pi DSI
  • 2P - Spring Plunger: Power Interface, 5V 1.5A
  • Raspberry Pi Mounting Hole Size: 58mm x 49mm

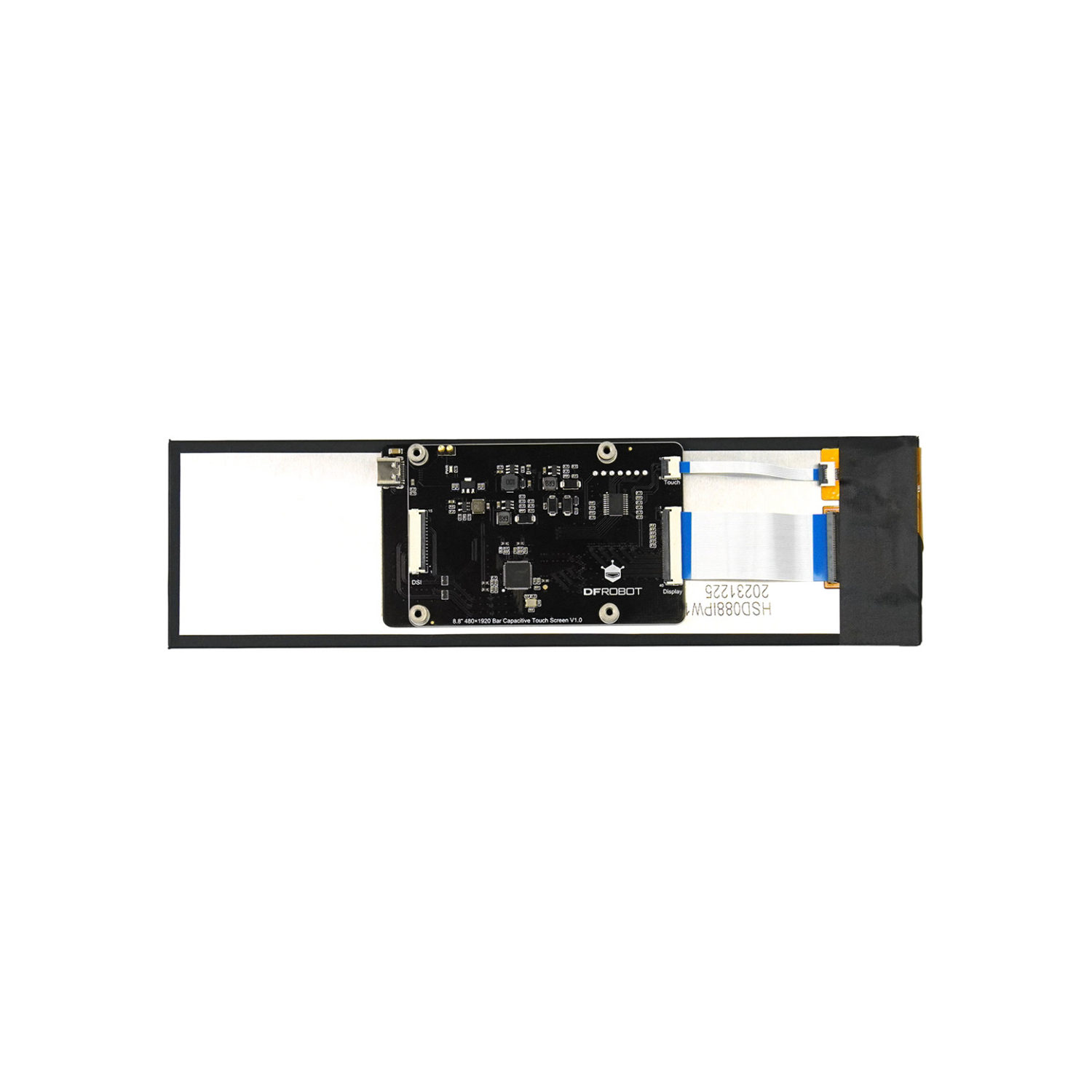

  • Driver Board PCB Size: 93mm×51mm×1.6mm

Screen Parameters

  • LCD Size: 8.8 inch
  • Resolution: 480×1920
  • Pixel Pitch (mm): 0.114(H) x 0.114(V)
  • Pixel arrangement: RGB Vertical stripe
  • NTSC: 50%
  • Viewing Angle: 170°
  • Refresh Rate: 60Hz
  • Contrast Ratio: 800:1
  • Response Time: 30ms
  • Brightness: 600cd/m²
  • Bonding Method: Optical bonding
  • Touch Points: 5-point capacitive
  • Viewing Area (mm): 54.72(W)×218.88(H)

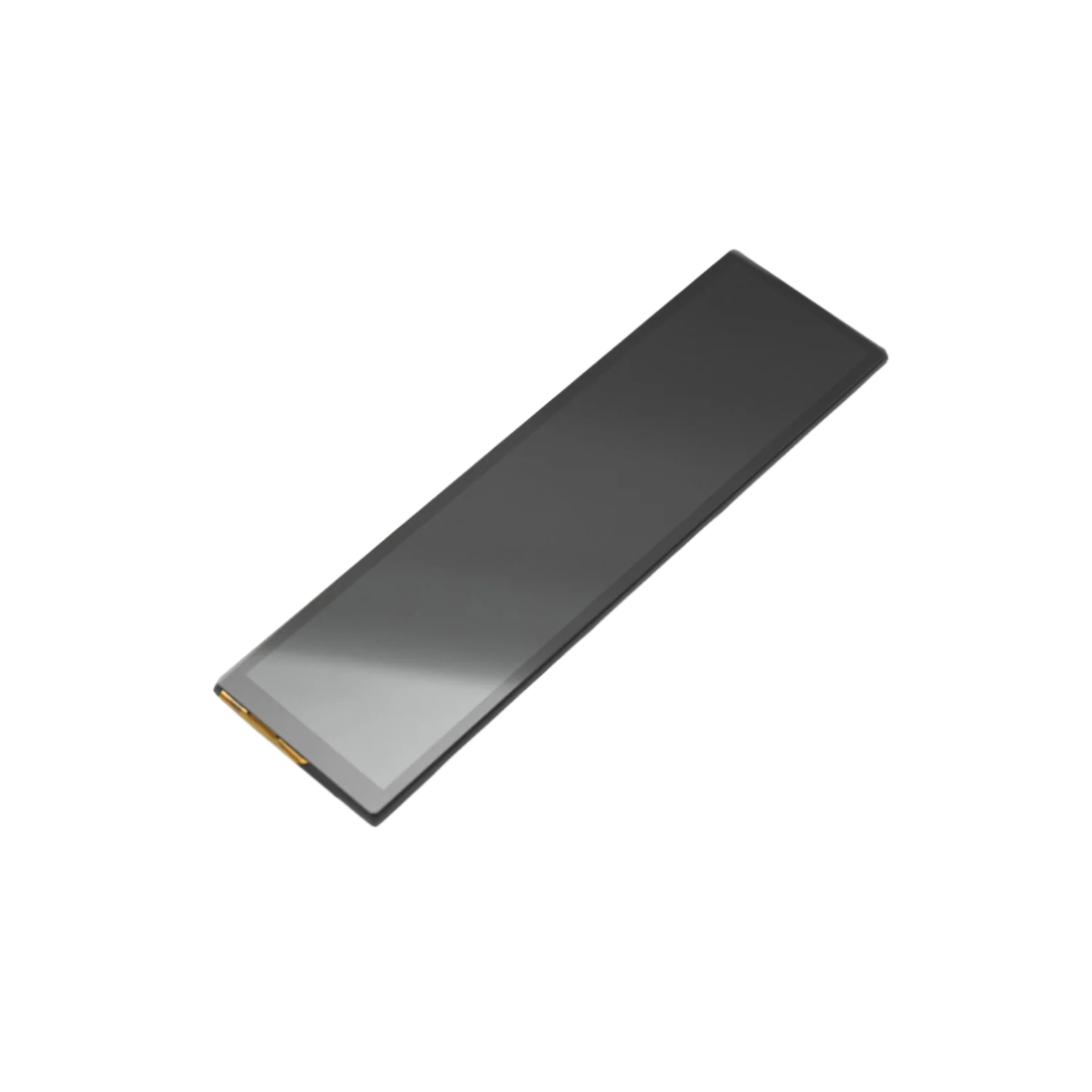

  • Dimensions (mm): 64.3(W)×231.3(H)×18(T)

Features:

  • 480x1920 resolution for crisp visuals.
  • 1:4 bar-type display offers a distinctive elongated view.
  • 600 cd/m² brightness ensures excellent readability.
  • The IPS panel provides consistent colors from any perspective.
  • The full bonding process reduces reflections and improves contrast.
  • 5-point capacitive touch for smooth multi-finger interaction.
  • Utilizes the Raspberry Pi DSI interface.
  • Works with Raspberry Pi 4B, 3 B+, and 3B models.

Applications:

  • Music spectrum analyzer
  • Advanced calculator
  • Mini weather station
  • Simulator gaming console
  • IoT terminal data panel
  • Electronic photo album
  • Touchscreen digital control panel
  • Car modification dashboard
  • Measurement instrument panel
  • Robot display panel

Product Interface:

Documents:

Package Included:

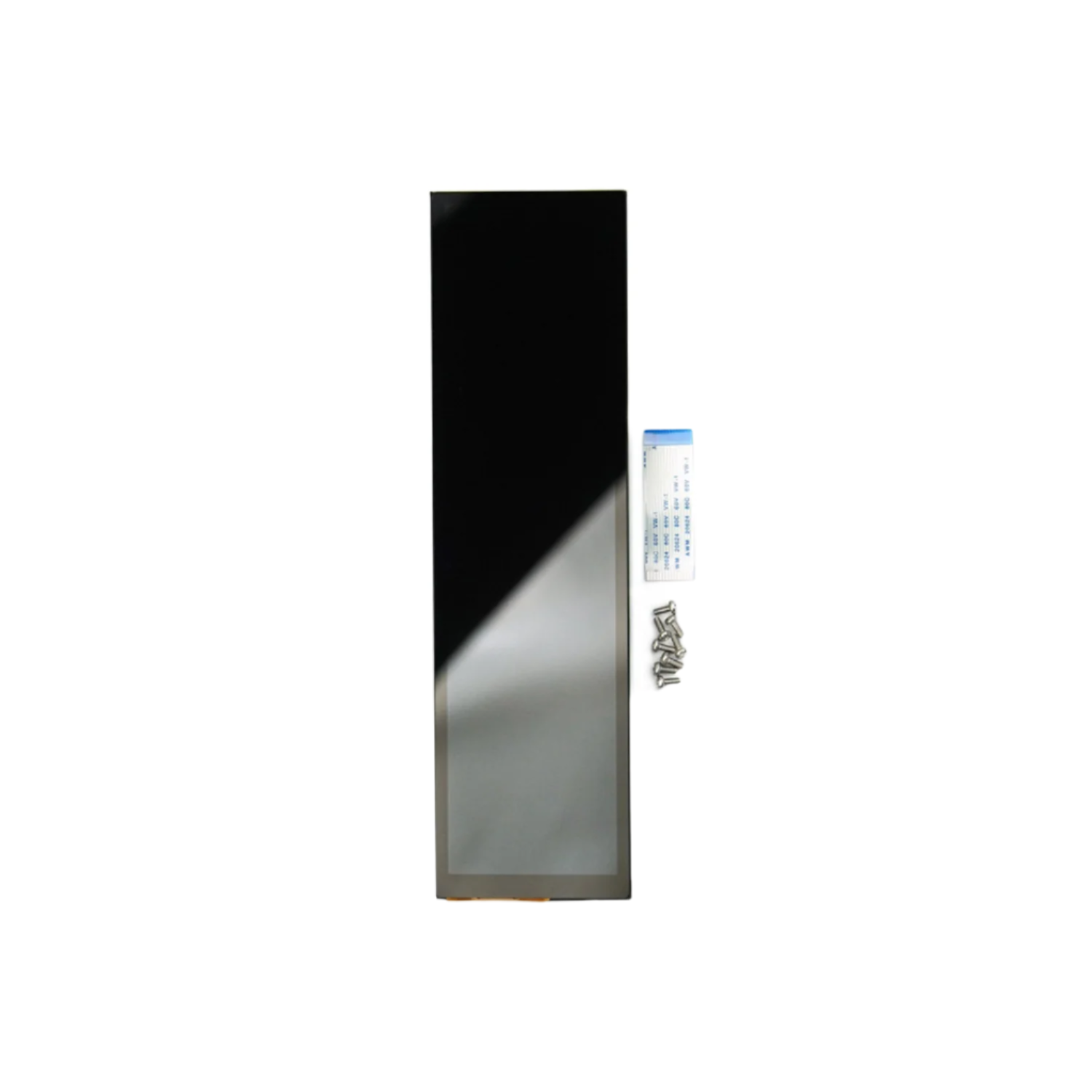

1 x DFRobot 8.8″ 480 x1920 IPS Bar Touch Display (Compatible with Raspberry Pi 4B / 3 B+ / 3B)
