Description:

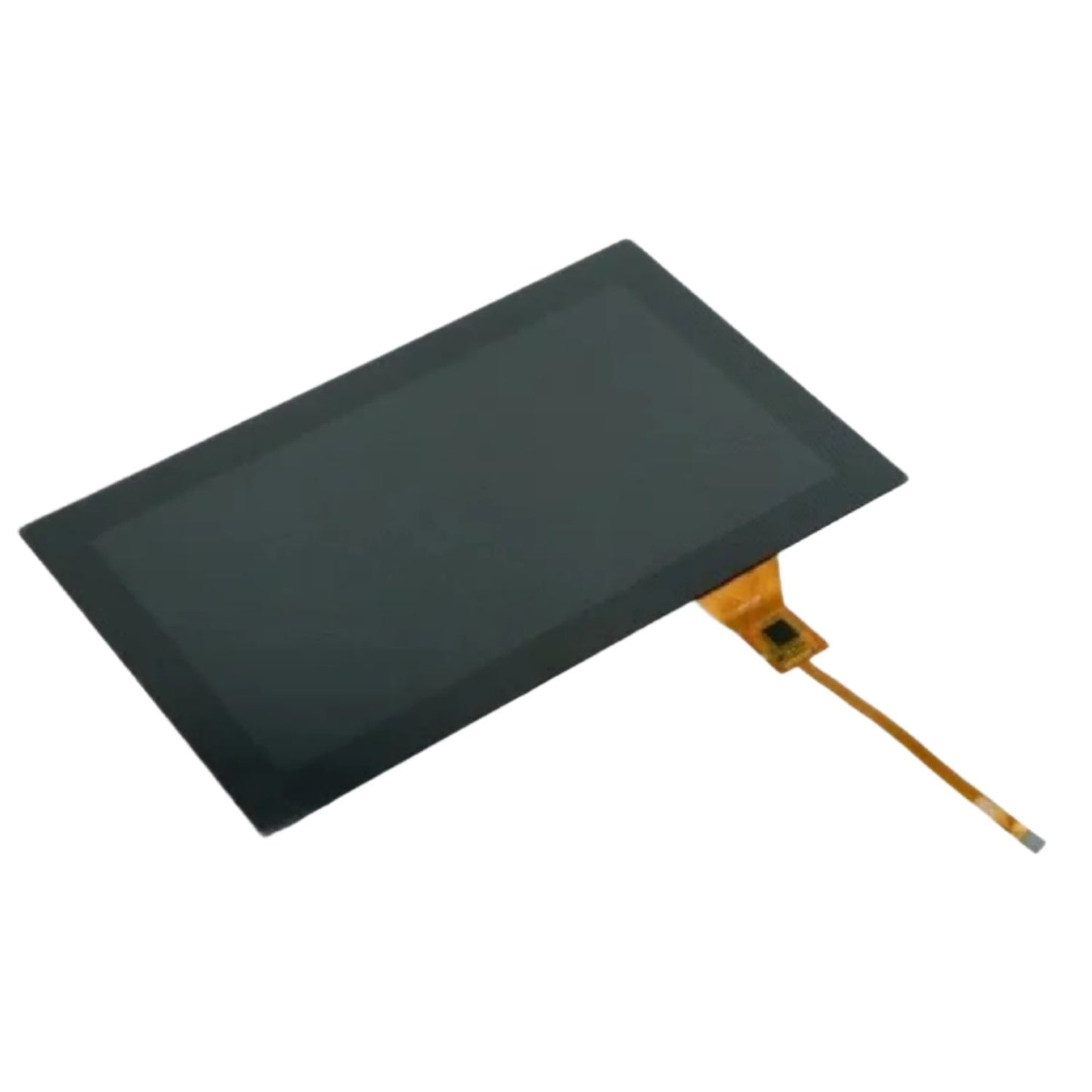

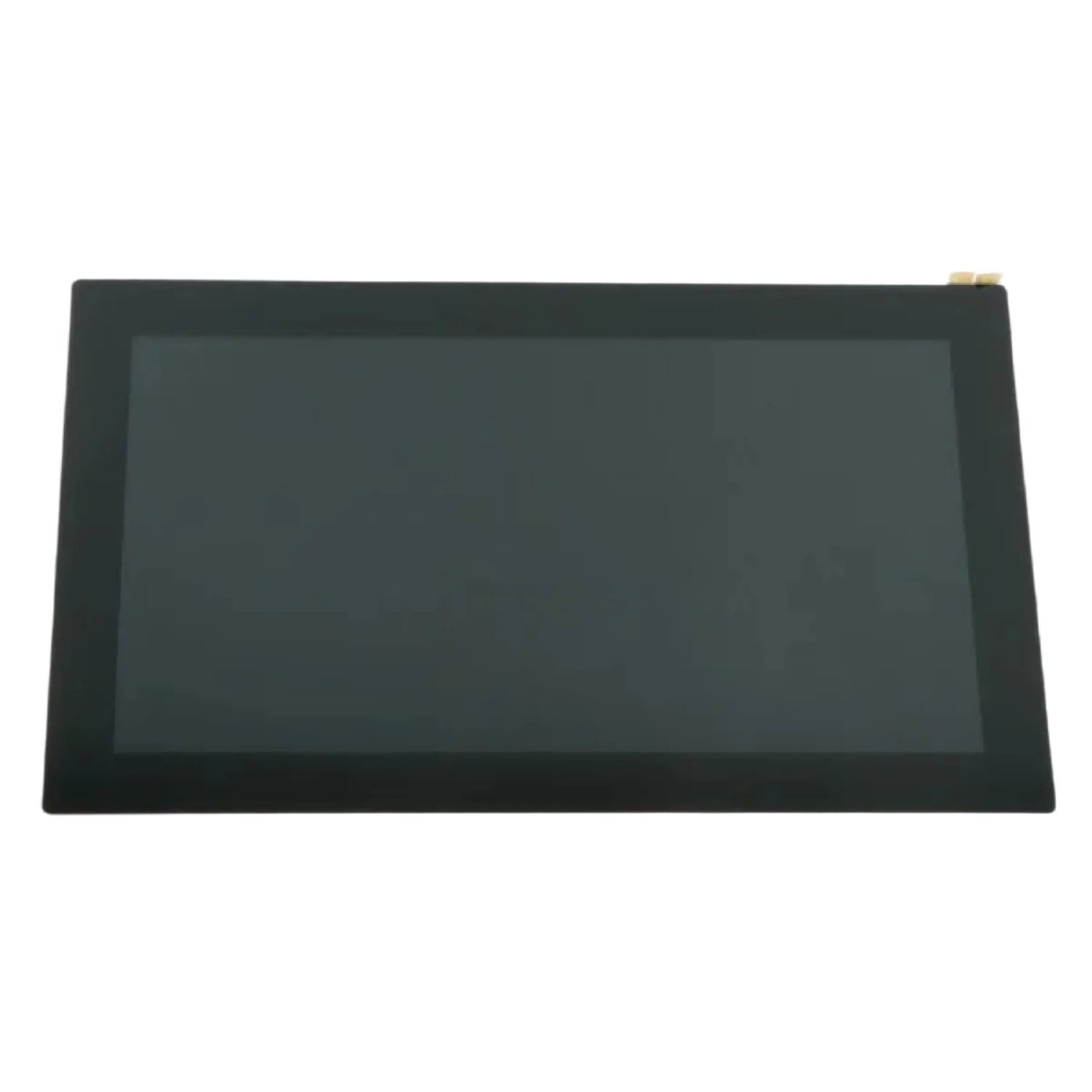

DFRobot 7" Capacitive Touch 7" IPS matrix screen with a 1024 x 600 px resolution designed for the LattePanda minicomputer with Windows 10. The IPS screen offers better color reproduction compared to many other technologies, which is important for applications requiring accurate color reproduction, e.g. in graphic design - the image remains clear and legible at wide viewing angles.
The panel's 7-inch screen diagonal and compact dimensions will remain ideal for stationary use and travel. Recommended for reading e-books, browsing the Internet, operating mobile applications, or displaying video. Connected via dedicated ribbon connectors.
Specifications:
- Capacitive Touch Control
- Transmittance: 85%
- Surface Hardness: 6H
- Response Time: ≤16ms
- Tapping Durability: 200,000,000 times
- Supports LattePanda V1 (not compatible with LattePanda Alpha & Delta)
- 10cm FPC Extension Cable
- Dimensions: 164.0mm x 96.0mm
Features:
- Capacitive Touch Control
- Transmittance: 85%
- Surface Hardness: 6H
- Response Time: ≤16ms
- Tapping Durability: 200,000,000 times
- Supports LattePanda V1.0 (not compatible with LattePanda Alpha & Delta)
- 10cm FPC Extension Cable
- Dimensions: 164.0mm x 96.0mm
Package Included:
1 x DFRobot 7-Inch Capacitive Touch Panel 7-Inch Capacitive Touch Panel Overlay Touch Panel Upgrade For LattePanda V1 7″ Capacitive Touch Panel Overlay for LattePanda V1 IPS Display
