Description:

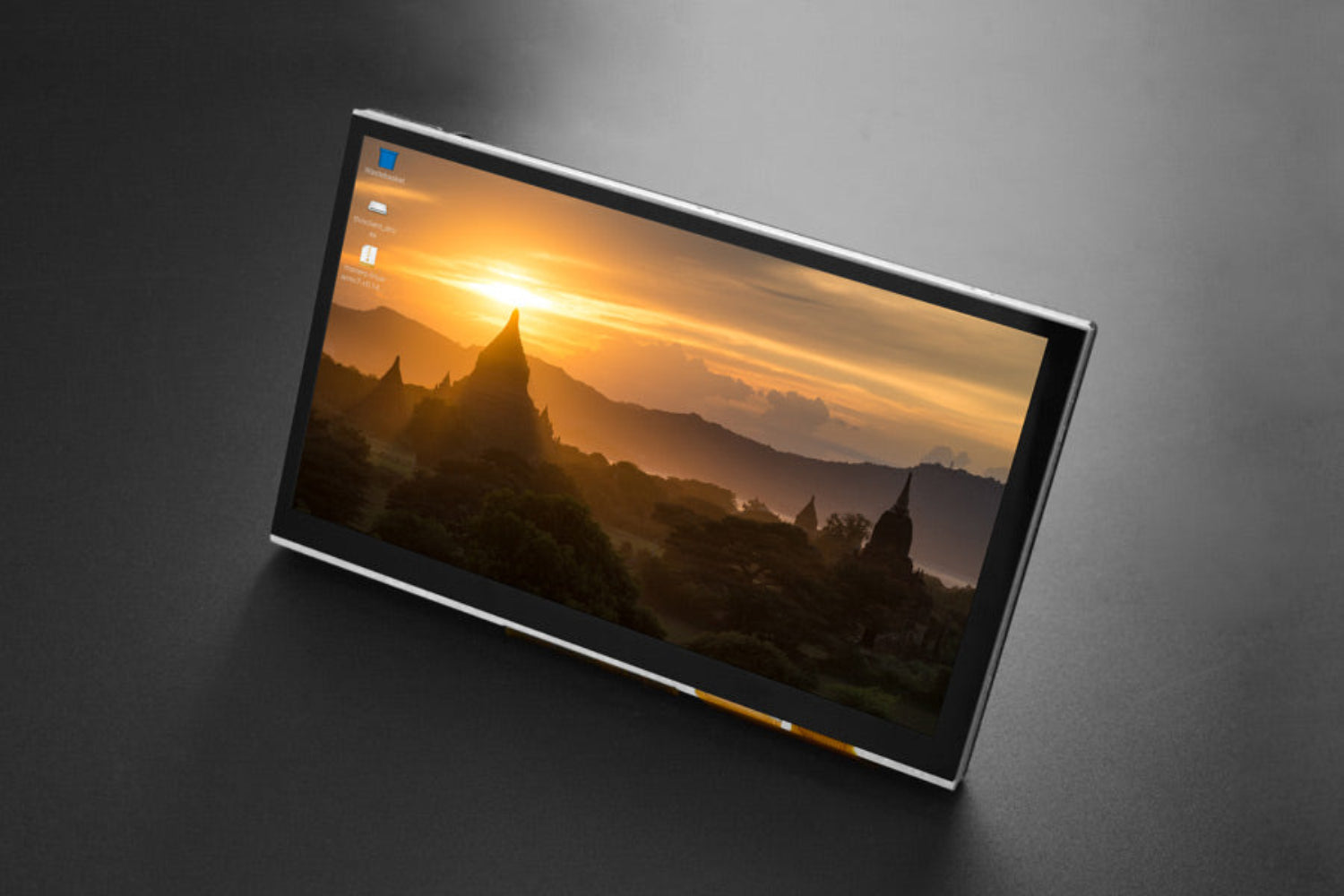

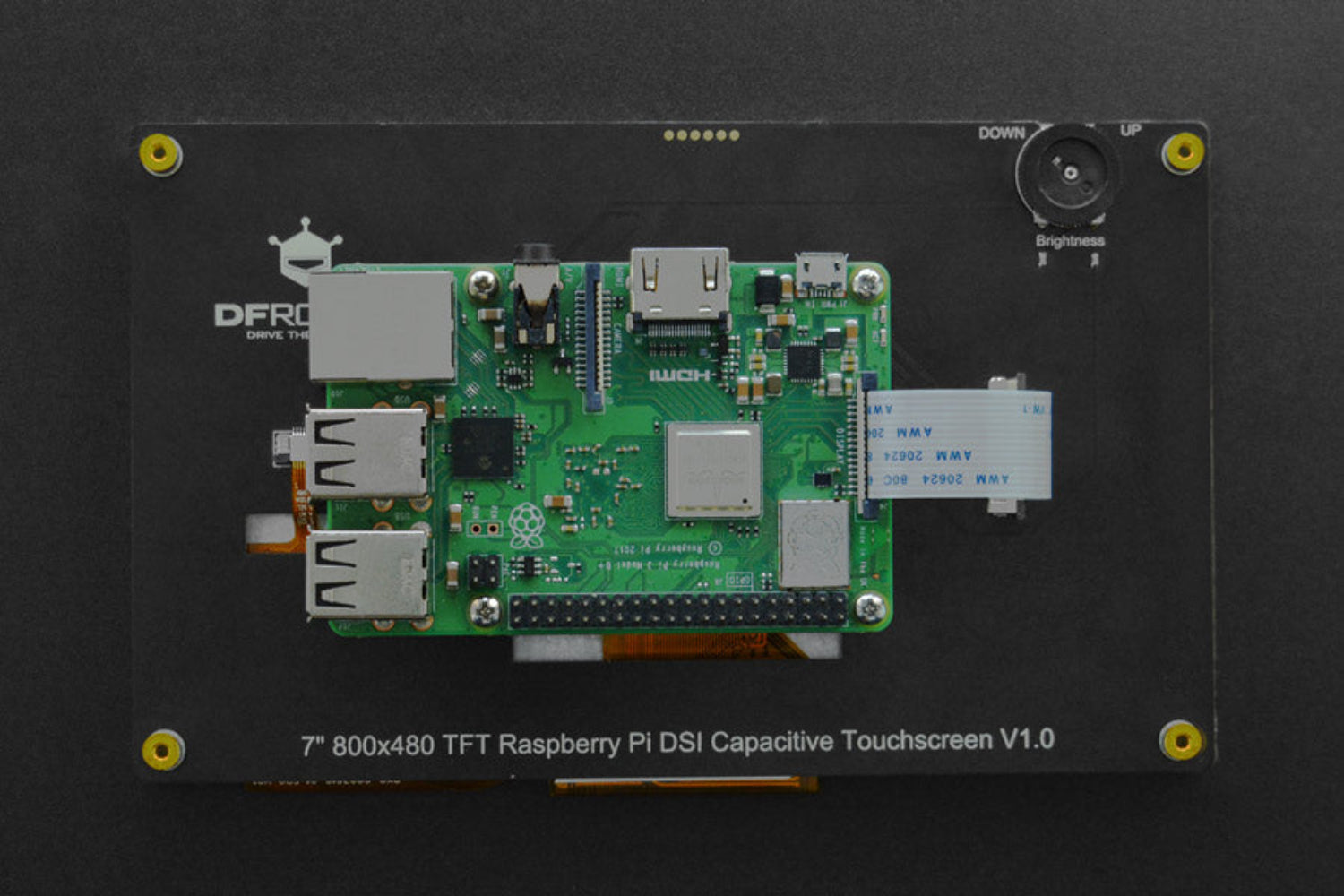

This 7-inch Raspberry Pi DSI touchscreen offers a vibrant 800x480 display with a 154.8 x 85.92mm viewing area and responsive 5-point capacitive touch. Designed for seamless integration with Raspberry Pi 4B, 3 B+, and 3B, it utilizes the DSI interface for optimal performance. Benefit from the integrated rear mounting holes for direct Raspberry Pi installation and the convenience of being powered directly by the Pi itself. Hardware backlight adjustment via a rear potentiometer provides easy control over display brightness.
Note: The screen is not compatible with Raspberry Pi Pico and Raspberry Pi 400 Personal Computer.
Specifications:
- Operating Voltage: 3.3V (Supplied by Raspberry Pi Display Interface)
- Maximum Operating Current: 450mA
- Resolution: 800*480

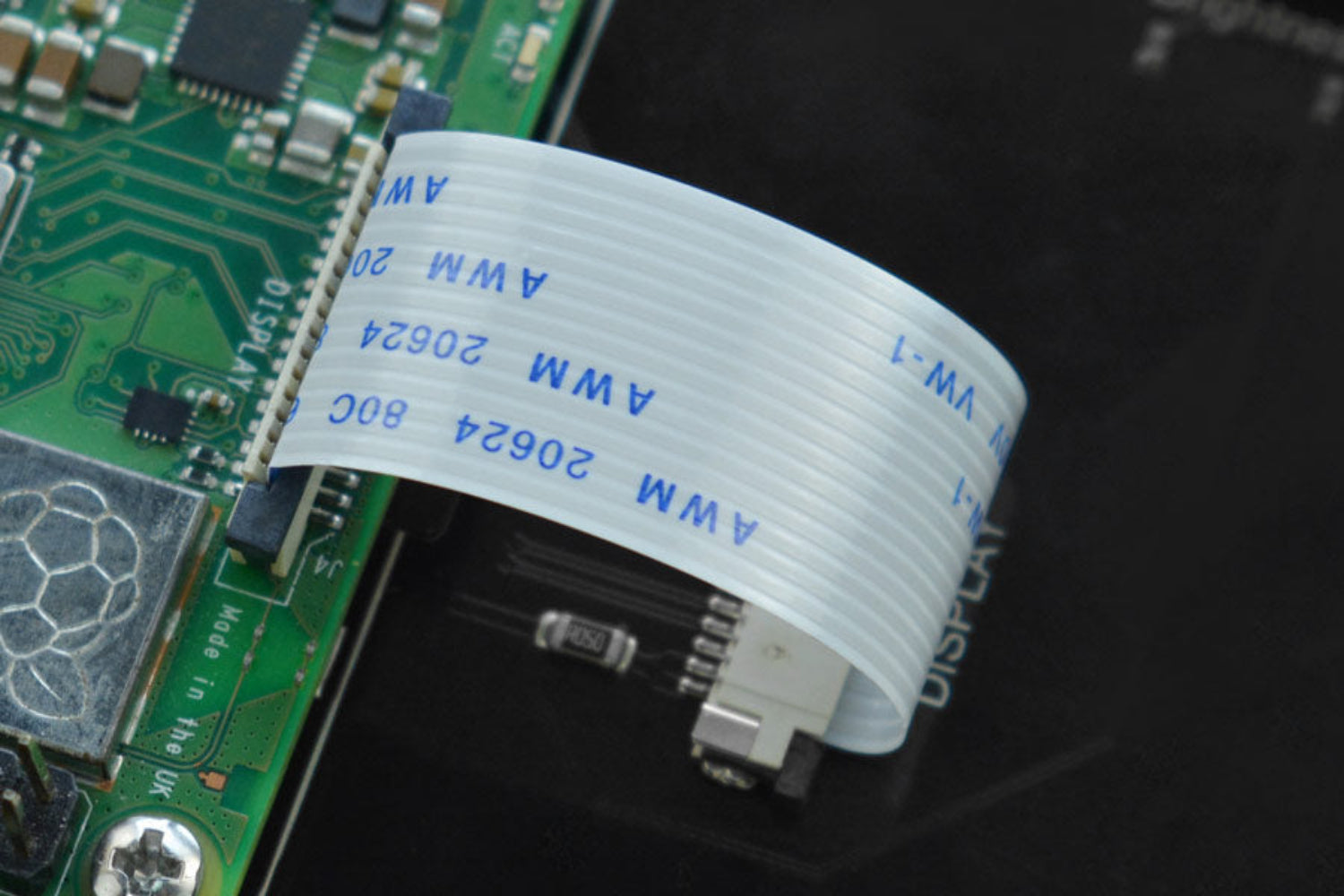

- Video Interface: Raspberry Pi DSI
- Number of Touch Points: 5
- Viewing Angle: 60°/70°/70°/70°
- RGB888-16 Mega True Color
- Refresh Frequency: 60Hz
- Luminous Efficiency: 280 cd/m2
- Operating Temperature: -20℃~70℃

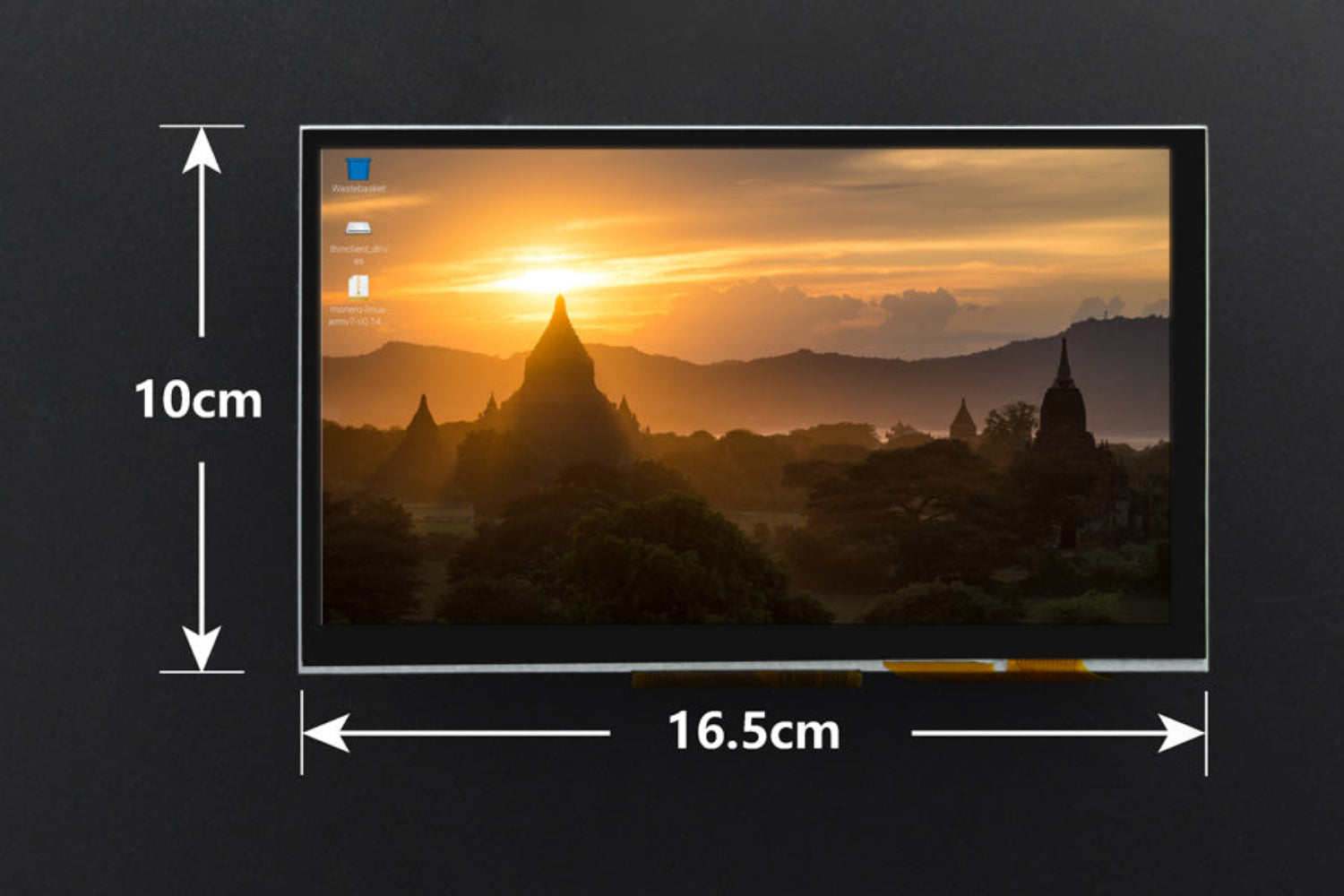

- Dimension: 165mm×100mm / 6.50" × 3.94
- Mounting Hole Size: M2.5
- Outer Mounting Hole Position: 155mm × 80mm/ 6.10" × 3.15
- Inner Mounting Hole Position: 58mm x 49mm/ 2.28" x 1.93
Features:
- Enables intuitive multi-finger interaction.
- Ensures seamless, high-performance display connectivity.
- Works with Raspberry Pi 5, 4B, 3 B+, and 3 B.
Projects:
Project 1: Constantly-Evolving Nature Scene Display
Project 2: Top 10 Worth Trying Raspberry Pico/Pi 4/Pi 3B+ Projects
Project 3: 30 Awesome Projects for a Raspberry Pi
Documents:

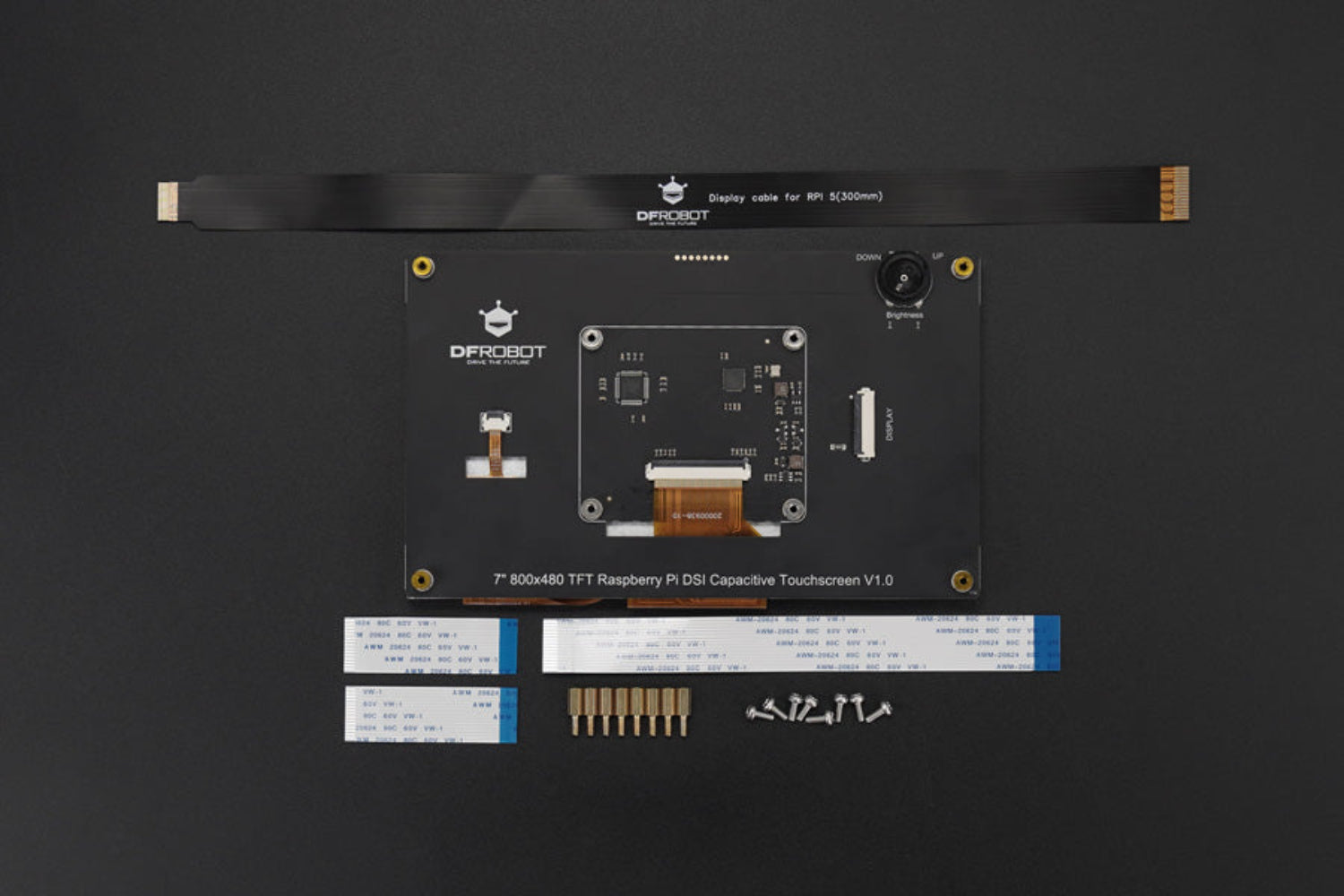

Package Included:
1 x DFRobot 7” 800×480 TFT DSI Capacitive Touchscreen For Raspberry Pi 4B/3B+/3B
