Description:
The 5V DFRobot Solar Power Manager series is designed for IoT projects and renewable energy projects, providing safe and high-efficiency embedded solar power management modules for makers and application engineers.

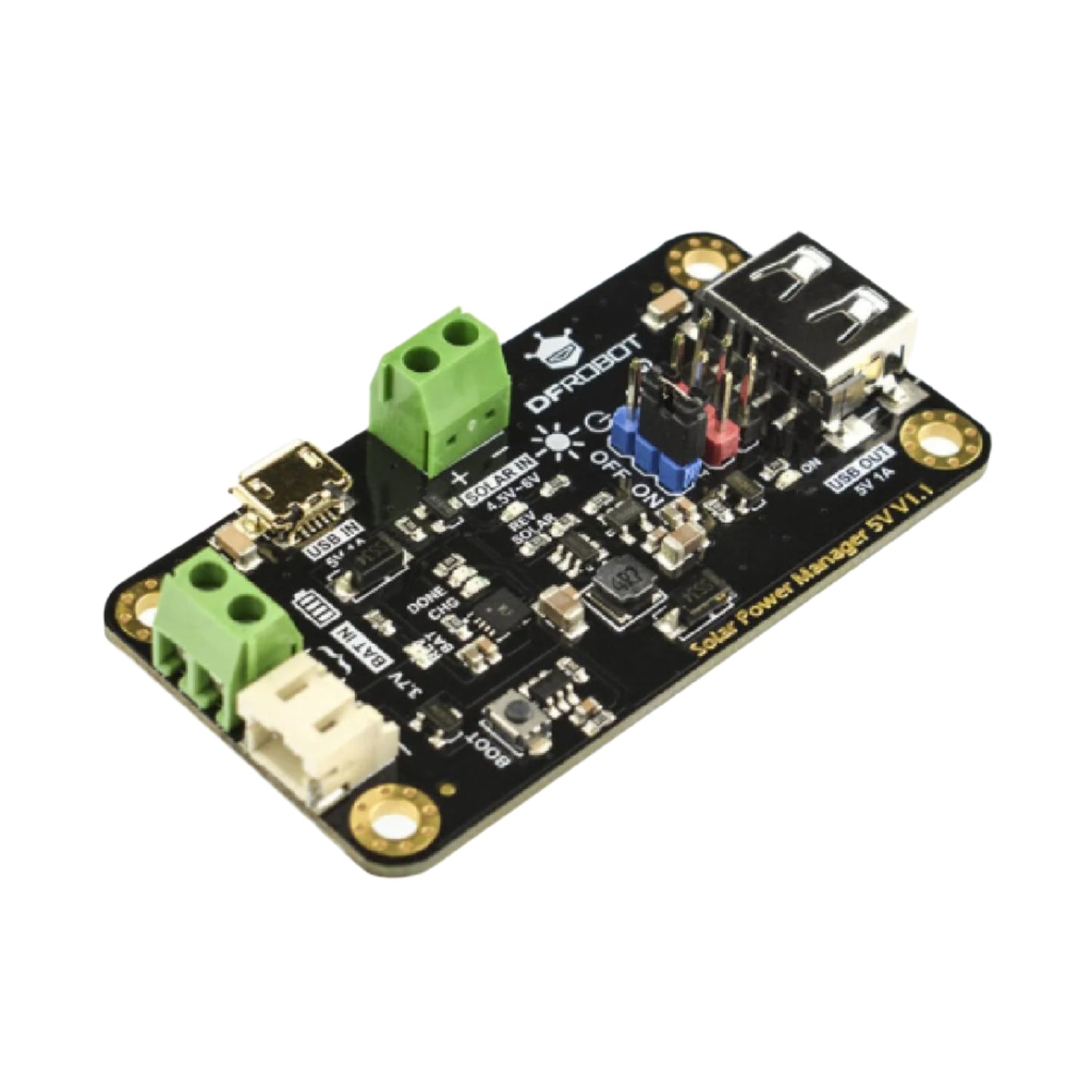

Solar Power Manager 5V is a small power and high-efficiency solar power management module designed for 5V solar panels.
It features an MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. The module can provide up to 900mA charging current to a 3.7V Li battery with a USB charger or solar panel. The ON/OFF controllable DC-DC converters with 5V 1A output satisfy the needs of various solar power projects and low-power applications. The module also employs various protection functions for battery, solar panel, and output, which greatly improves the stability and safety of your solar projects.
Specifications:

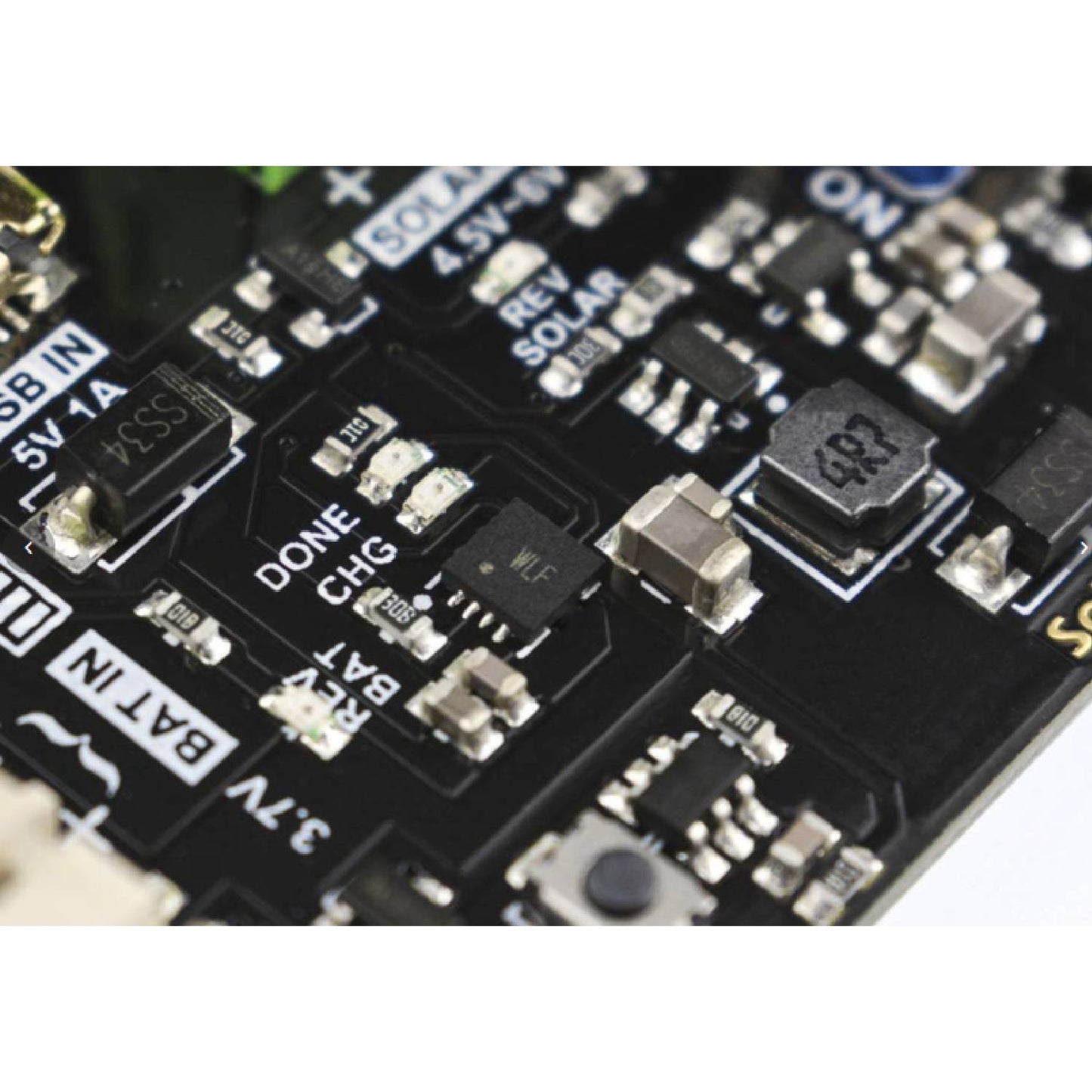

- Solar Power Management IC: CN3165
- Solar Input Voltage (SOLAR IN): 4.5V~6V
- Battery Input (BAT IN): 3.7V Single cell Li-polymer/Li-ion Battery
- Charge Current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
- Charging Cutoff Voltage (USB/SOLAR IN): 4.2V±1%
- Regulated Power Supply: 5V 1A
- Regulated Power Supply Efficiency (3.7V BAT IN): 86%@50%Load
- USB/Solar Charge Efficiency: 73%@3.7V 900mA BAT IN
- Quiescent Current: <1 mA
- Operation Temperature: -40℃～85℃

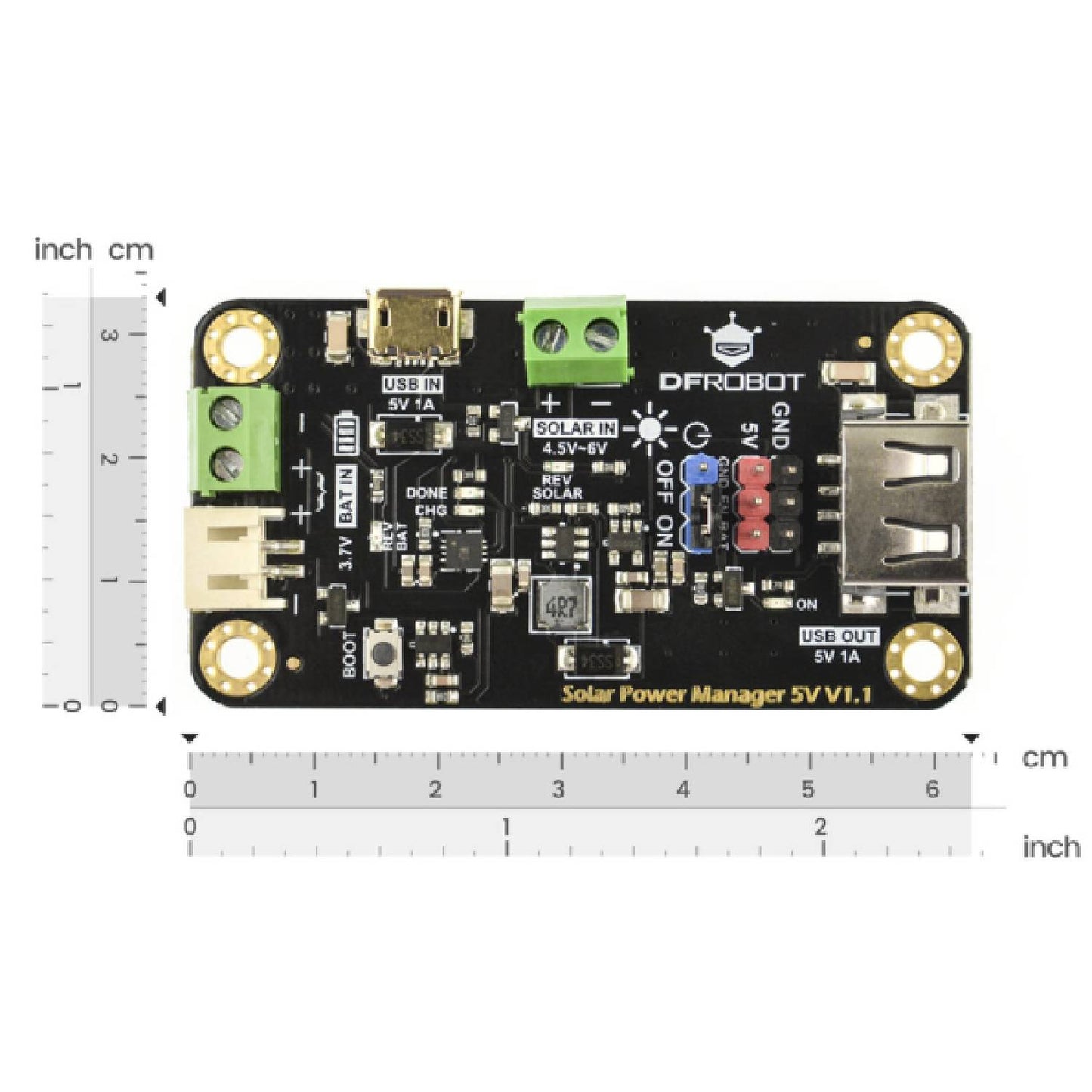

- Dimension: 33.0mm*63.0mm
- Protection Functions:
- BAT IN: overcharge/over-discharge/over current/reverse connection protection

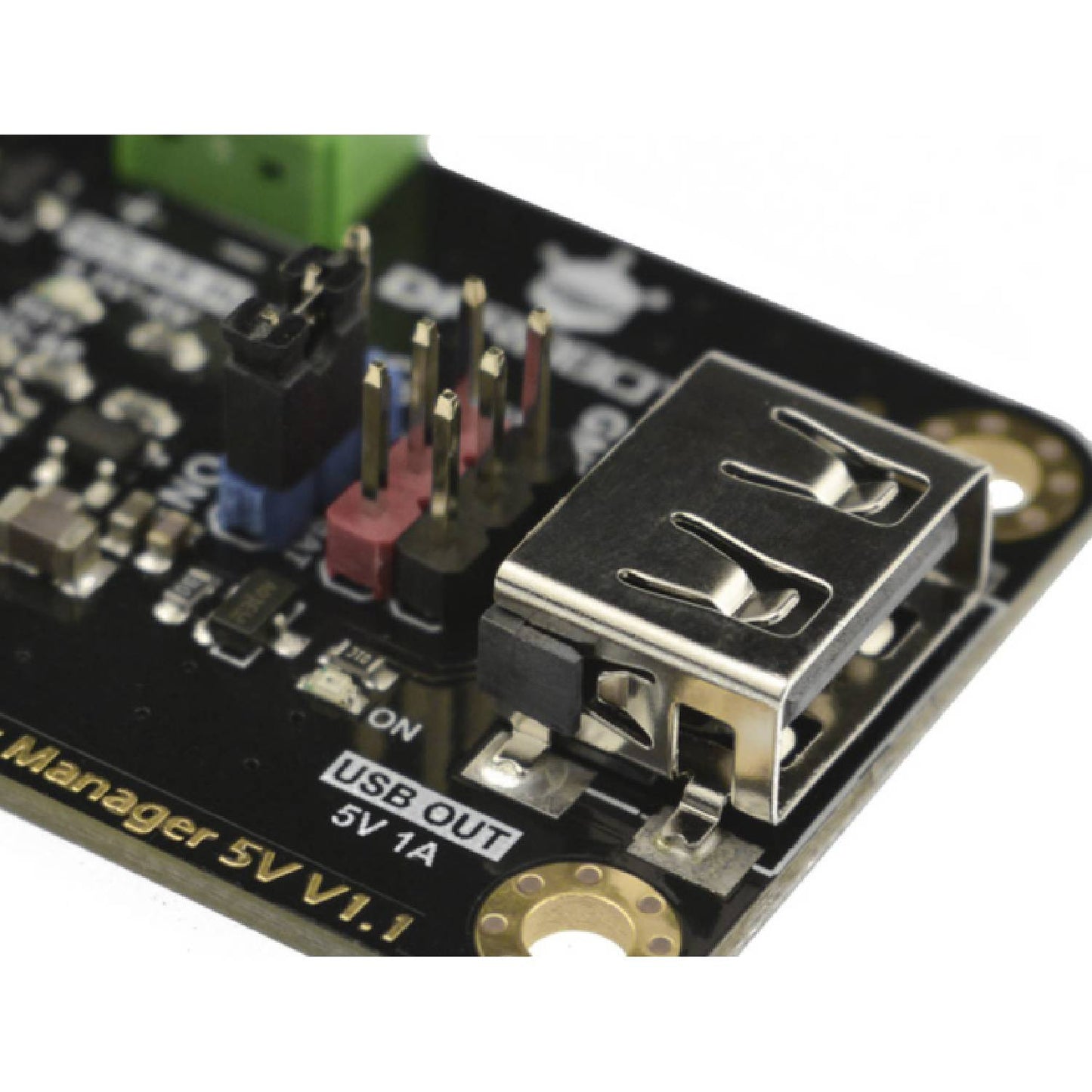

- 5V/USB OUT: short circuit/over current/overheat protection
- SOLAR IN: reverse connection protection
Features:
- Constant voltage MPPT algorithm, maximizing solar panel efficiency
- Designed for 5V solar panel
- Double charging mode: solar/USB charger (900mA max charge current)
- 5V ON/OFF controllable regulated power supply for low-power applications
- All-round protection functions
- USB connector with ESD shell
Applications:
- Smart solar environment monitor system
- Solar powered robot
- Small solar street lamp
- Solar power bank
Projects:
- Project 1. Finally Got My Solar Chargers Working With My 5V Solar Panel & LiPo Battery
- Project 2. Smart Compost Bin Monitoring System -Based on 4G IoT and SHT20
Introduction: The other day my friend asked me to help him remake his compost bin, he wants a device that allows him to remotely get the real-time temperature and humidity inside. So I add some electronic parts on it.
Introduction: Let's make a functional, solar-powered inverter.
Useful Link:
DFRobot 5V Solar Power Manager

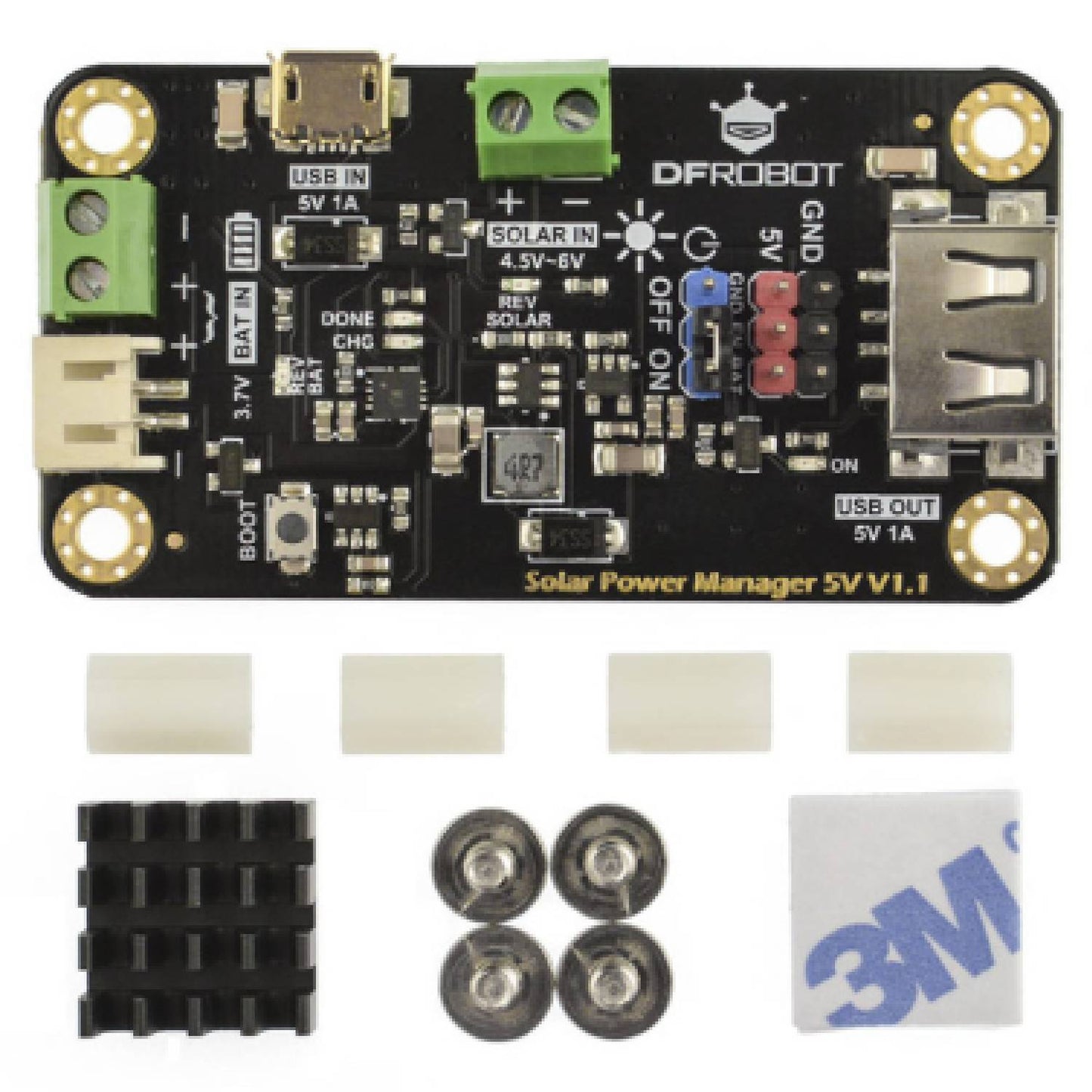

Package Included:
- 1 x solar Power Manager 5V
- 1 x 2.54mm Black Jumper
- 4 x M3*10mm Nylon Pillar
- 4 x M3*5mm Stainless Steel Screw

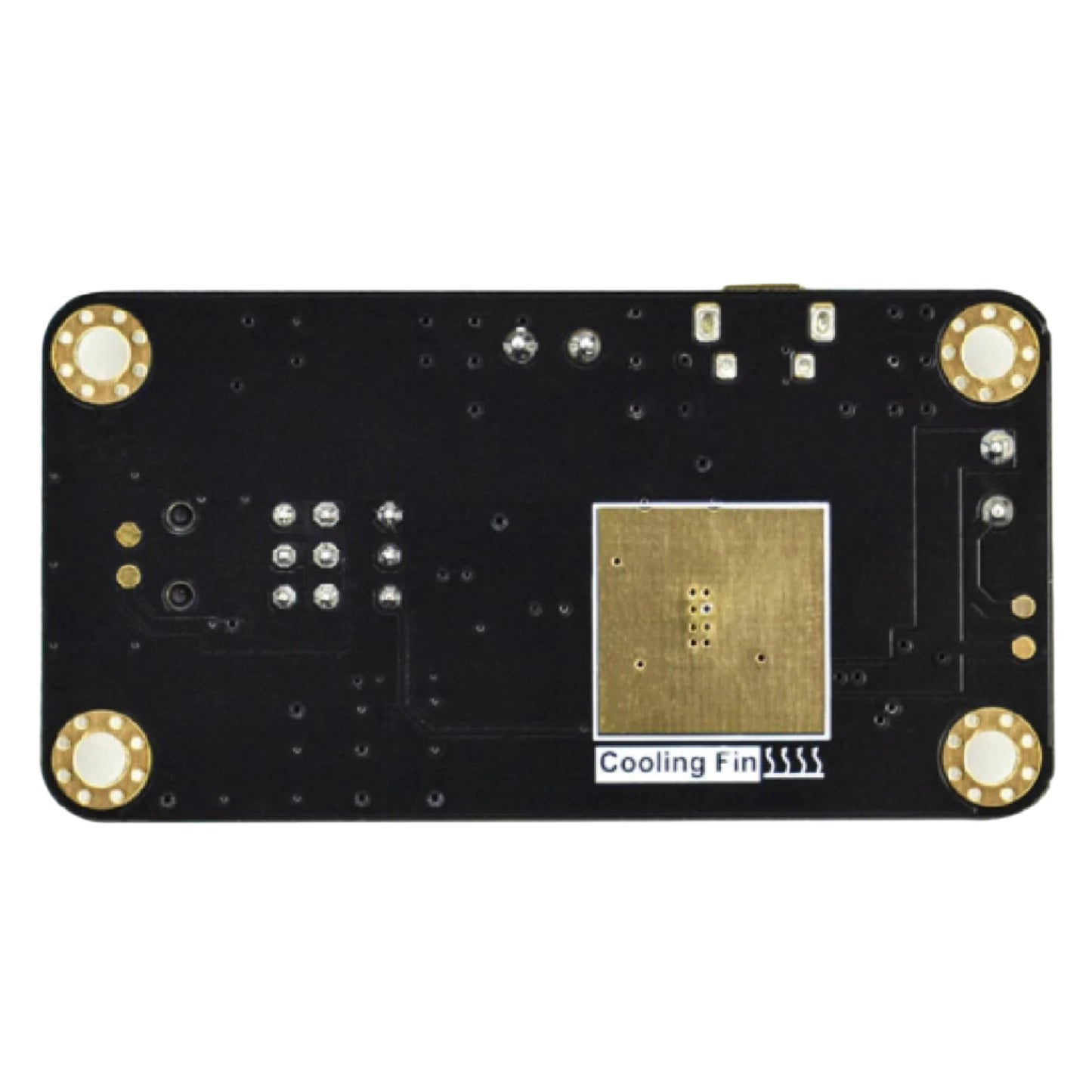

- 1 x 14*14*7mm Black Aluminum Cooling Fin
- 1 x 14*14*0.5mm Thermal Conductive Silicone Pad
