Description:
Enhance your Raspberry Pi experience with this high-quality 5-inch IPS capacitive touchscreen. Its 800×480 resolution ensures detailed visuals, and its responsive touch capabilities provide seamless interaction. Utilizing the Raspberry Pi's DSI interface, this display offers a straightforward connection to Raspberry Pi models 3B, 3 B+, and 4 B. Essential for projects requiring direct user input and visual output, this medium-sized touchscreen is a perfect match for the Raspberry Pi's versatility and ease of development. If your project needs a reliable and interactive display, this is an excellent choice.
Note: The screen does not support compatibility with Raspberry Pi 5.
Specifications:
Basic Parameters
- Operating voltage: 3.3V (provided by the Raspberry Pi display interface)
- Static operating current: approximately 700mA
- Display interface: Raspberry Pi DSI
- Mounting hole diameter: M2.5
- Raspberry Pi mounting hole dimensions: 58mm x 49mm
- Display screen mounting hole dimensions: 113mm x 68mm
- Weight: 175.6g
Screen Parameters
- Display area size: 5.0 inches
- Resolution: 800×480
- Pixel pitch (mm): 0.045(H)×0.135(V)
- Color display: 16.7M
- Display mode: usually black, transmissive
- Color arrangement: RGB stripe
- Data interface: RGB 24-bit, digital (TTL)
- Viewing angle: full viewing angle
- Contrast ratio: 1200
- Response time: 30ms
- Bonding method: full bonding
- Brightness: 550cd/㎡
- Touchpoints: 5-point capacitive
- Refresh rate: 60Hz
- Surface treatment: anti-fingerprint, anti-glare
- Viewable area (mm): 108.0(W)×64.8(H)

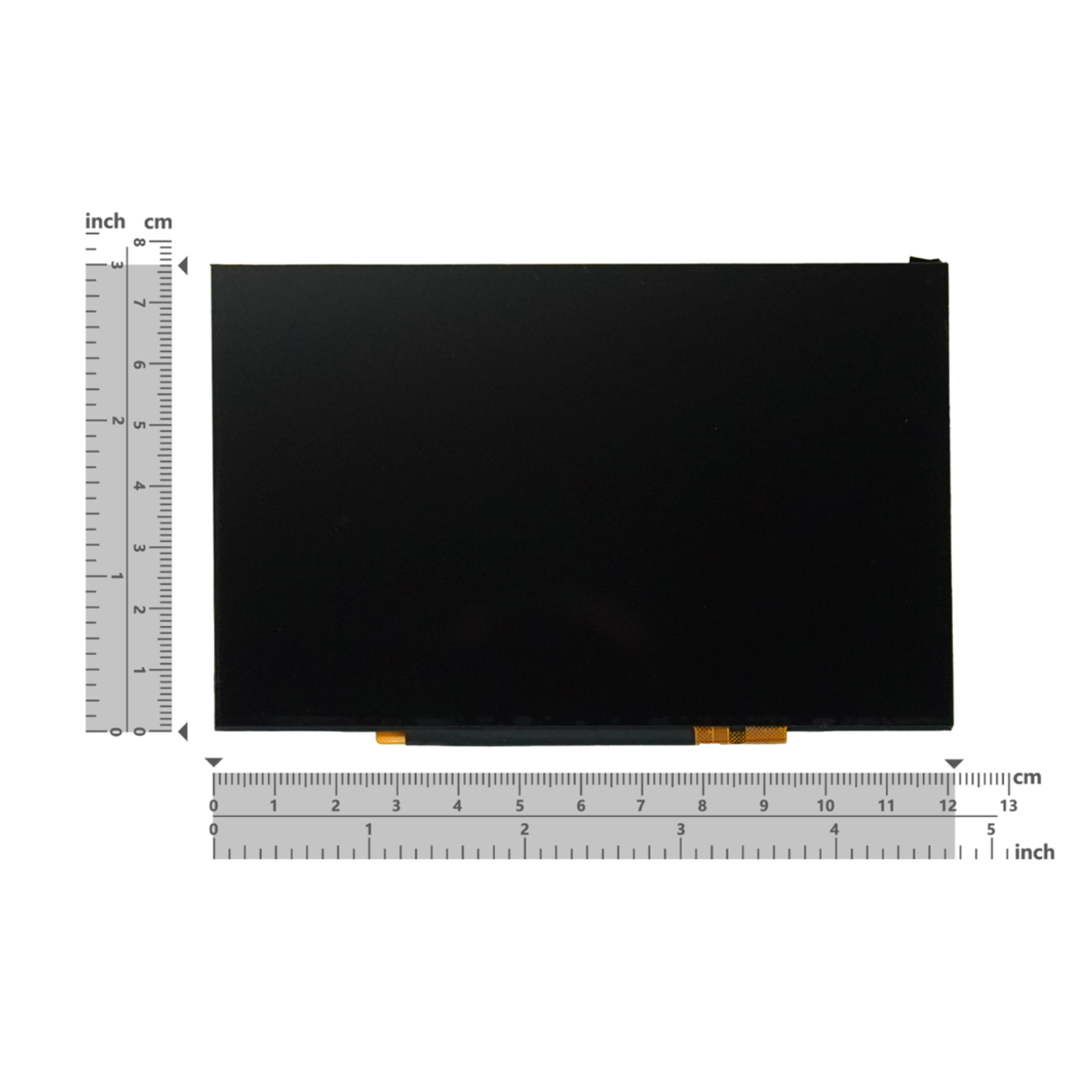

- Dimensions (mm): 120.7(W)×75.8(H)×4.9(T)
Features:
- Enjoy clear and vibrant visuals.
- Excellent visibility even in bright conditions.
- Consistent colors from any perspective.
- Reduced reflections and improved contrast.
- Minimizes smudges and distractions.
- Accurate and responsive multi-touch control.
- Plug-and-play with Raspberry Pi.
- Works with Raspberry Pi 5/4B/3B+/3B.
Applications:
- Raspberry Pi IoT projects
- Raspberry Pi personal computer
- Raspberry Pi server
- Raspberry Pi gateway
Documents:

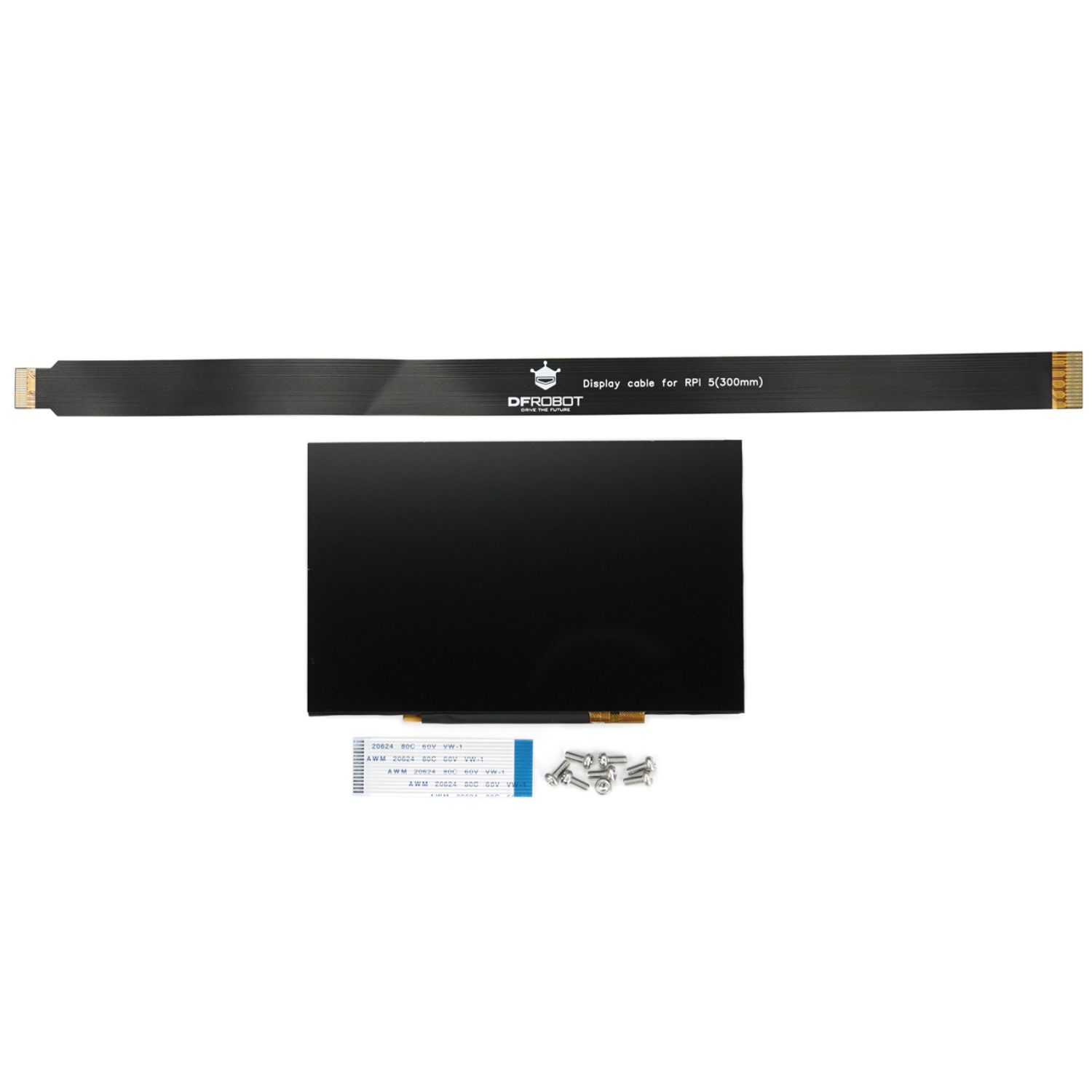

Package Included:
1 x DFRobot 5” 800×480 IPS Touchscreen With Optical Bonding For Raspberry Pi 4B/3B+/3B
