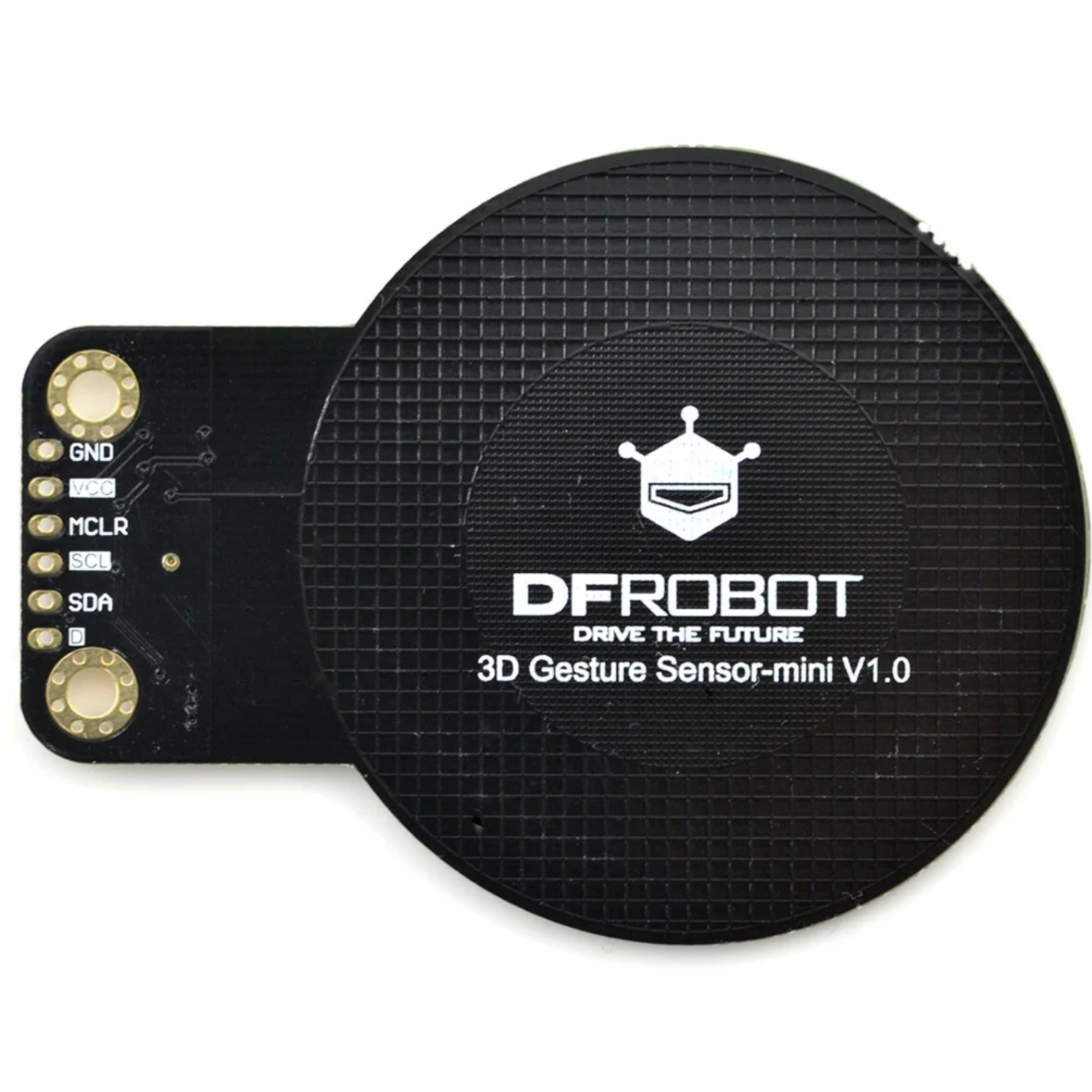

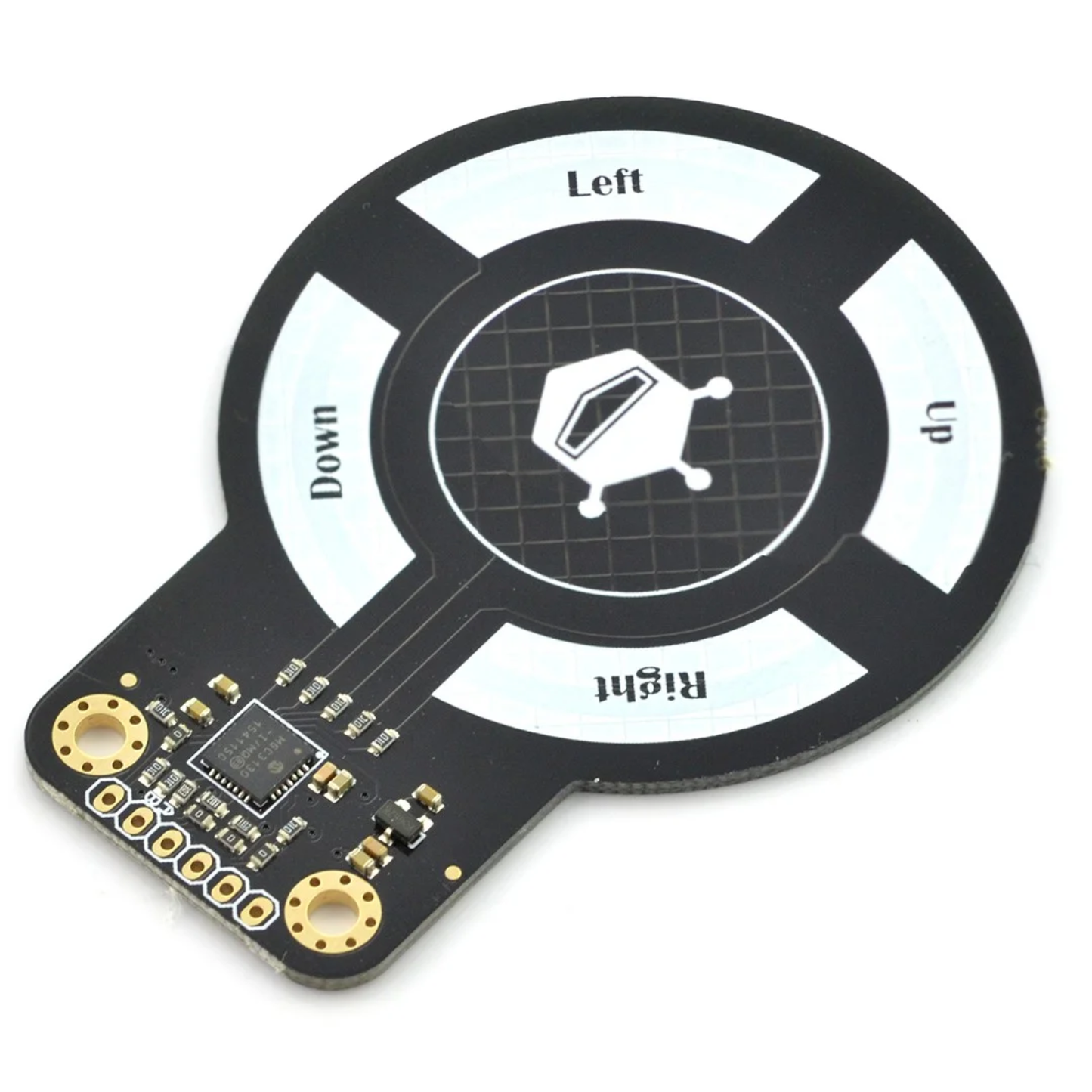

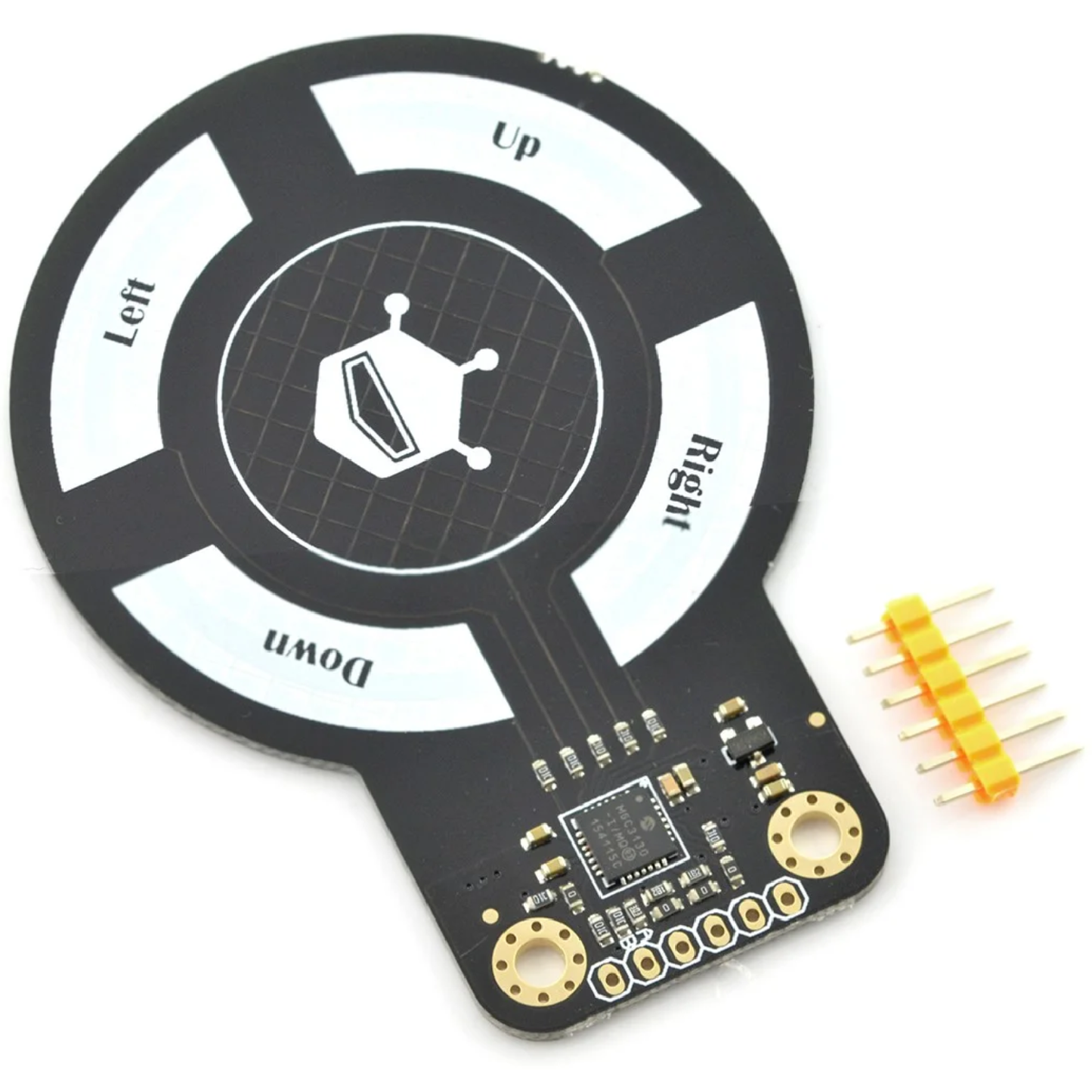

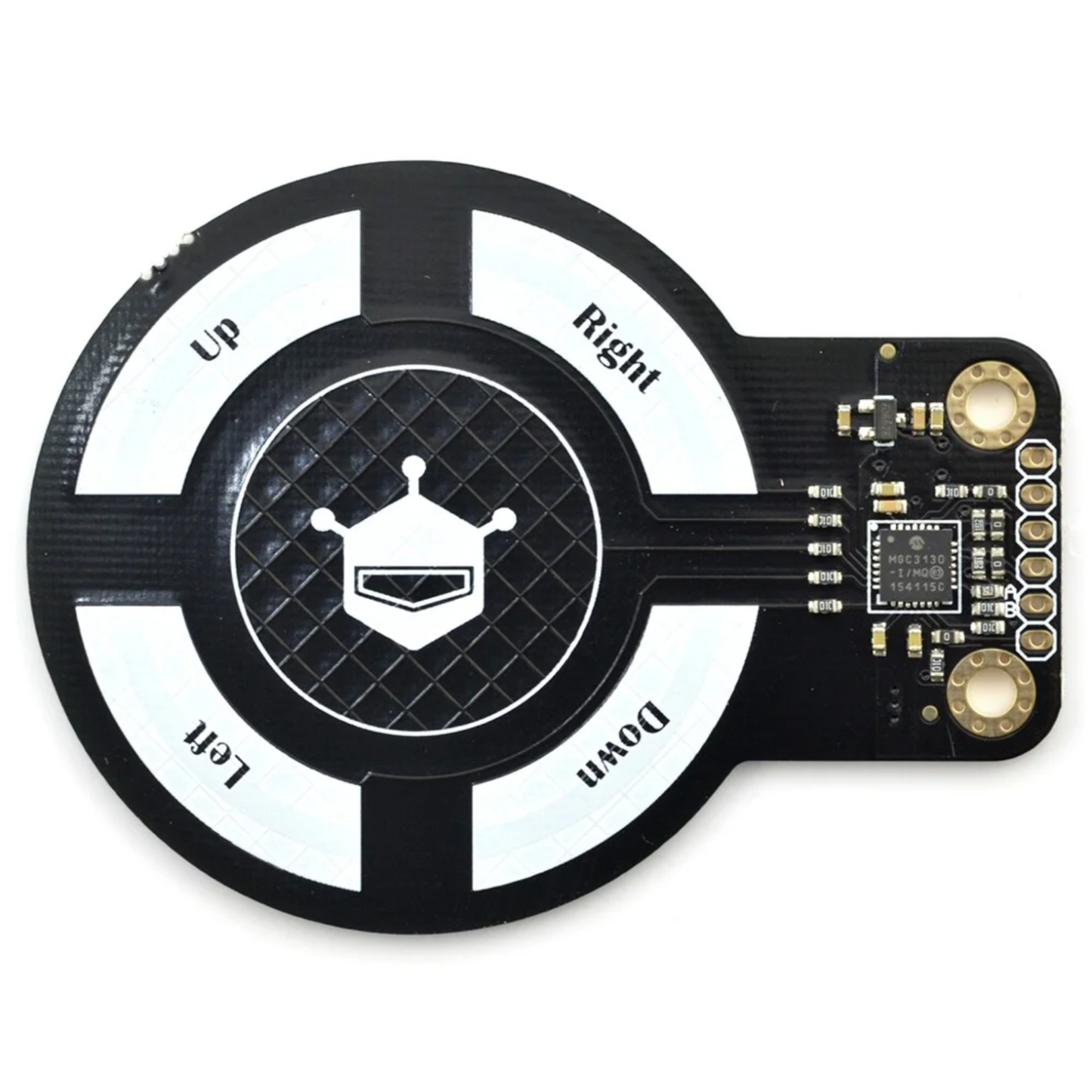

DFRobot 3D Gesture Sensor (Mini) I2C 3D Gesture And Motion Sensor For Arduino With 6 Recognizable Gestures (0-10cm Range)

Description:

Elevate your interactive designs with the DFRobot 3D Gesture Sensor, featuring advanced motion tracking. Utilizing Microchip's patented GestIC® electric near-field sensing technology, this sensor accurately detects a variety of 3D hand gestures within a 0-10cm range, including clockwise and counterclockwise rotations and directional movements. Its integrated 3D signal processing unit ensures reliable recognition, making it a perfect choice for creating engaging and intuitive user interfaces across diverse interactive projects.

Specifications:

• Operating Voltage: 3.3 - 5V
• Interface Type: I2C
• I2C Address: 0x42
• Gesture Detection Range: 5cm
• Distance Induction Range: 10cm
• Dimensions : 72 x 54 mm / 2.83 x 2.12"
• Operating Temperature: - 20 ℃ ~ + 85 ℃
• Spatial Resolution: 150 dpi

Features:

• Recognizes hand movements and spatial positioning.
• Delivers accurate and robust motion data.
• Identifies clockwise/counterclockwise spins and movement paths
• Microchip's patented electric near-field sensing.
• Enables contactless interaction.

Projects:

• Project1. Magical Sensors from DFRobot
• Project2. Arduino Password Unlock with 3D Gesture Sensor DFROBOT
• Project3. 3D Gesture Sensor Explained | Electric Near Field Sensing Technology | GestIC Technology

Documents:

• 3D Gesture Sensor wiki

Package Included:

1 x DFRobot 3D Gesture Sensor (Mini) For Arduino
