Description:

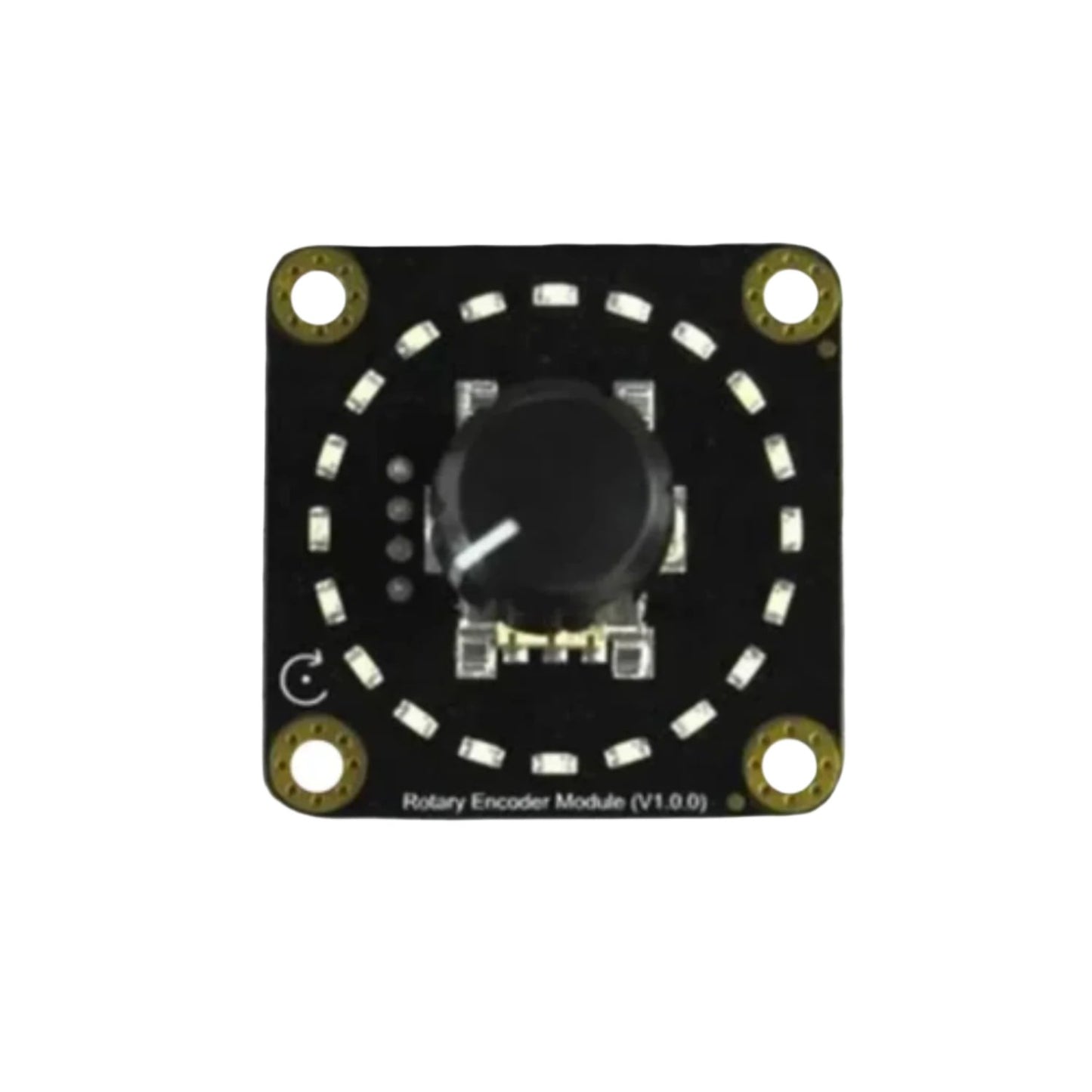

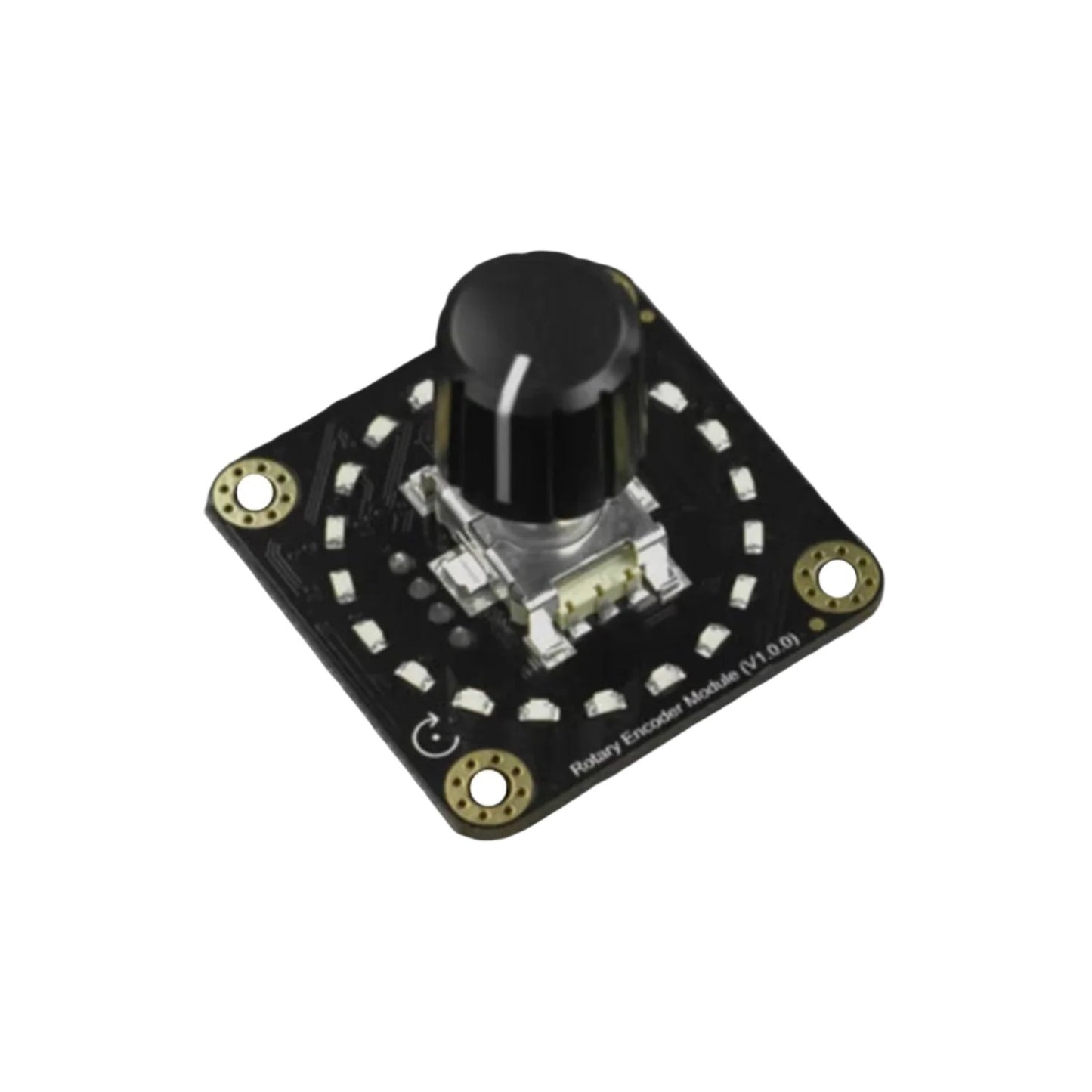

This is the 360°" rotary encoder module from the Gravity series from DFRobot. It is a stepped 360° rotary encoder switch with 20 pulses per revolution. LED lights are set so that users can check the status of the encoder live. For added convenience, the module is designed with I2C data output. It provides a configurable accuracy of 1~51 for each pulse.
To apply it to multiple scenarios, the encoder is equipped with a cascade function. This makes it possible to control multiple output devices by occupying only one I2C interface. For example, you can control brightness, color, volume, and/or speed at the same time.
Specifications:
- Operating Voltage: 3.3V~5V
- Total Rotating Angle: 360°
- Pulses Per Revolution: 20
- Interface: two Gravity connectors; I2C
- Cascadable Device Number: 4
- Rotation Lifespan: 30000±200 Cycles
- Contact Resistance: =100mO
- Insulation Impedance: 100MO above
- Oscillation: <10ms press
- Operating Temperature: -30°C ~ +80°C
- Accuracy: 1~51
- Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
- Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
- Storage: 0~1023
Features:
- Pluggable cascade
- I2C Data output, forward to increase, reverse to decrease
- Onboard LED detent indicator

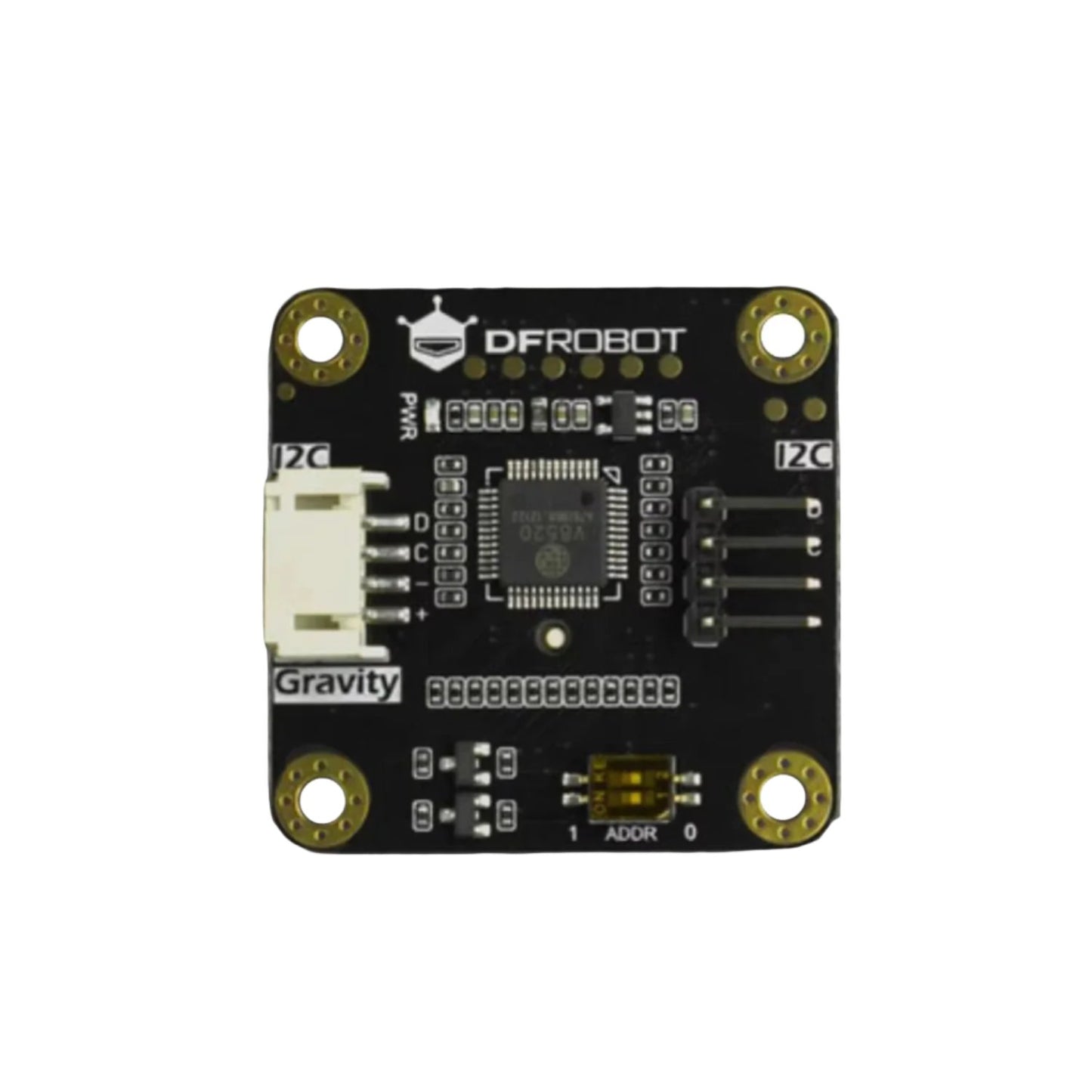

- Allow setting 4 different I2C addresses by address switch

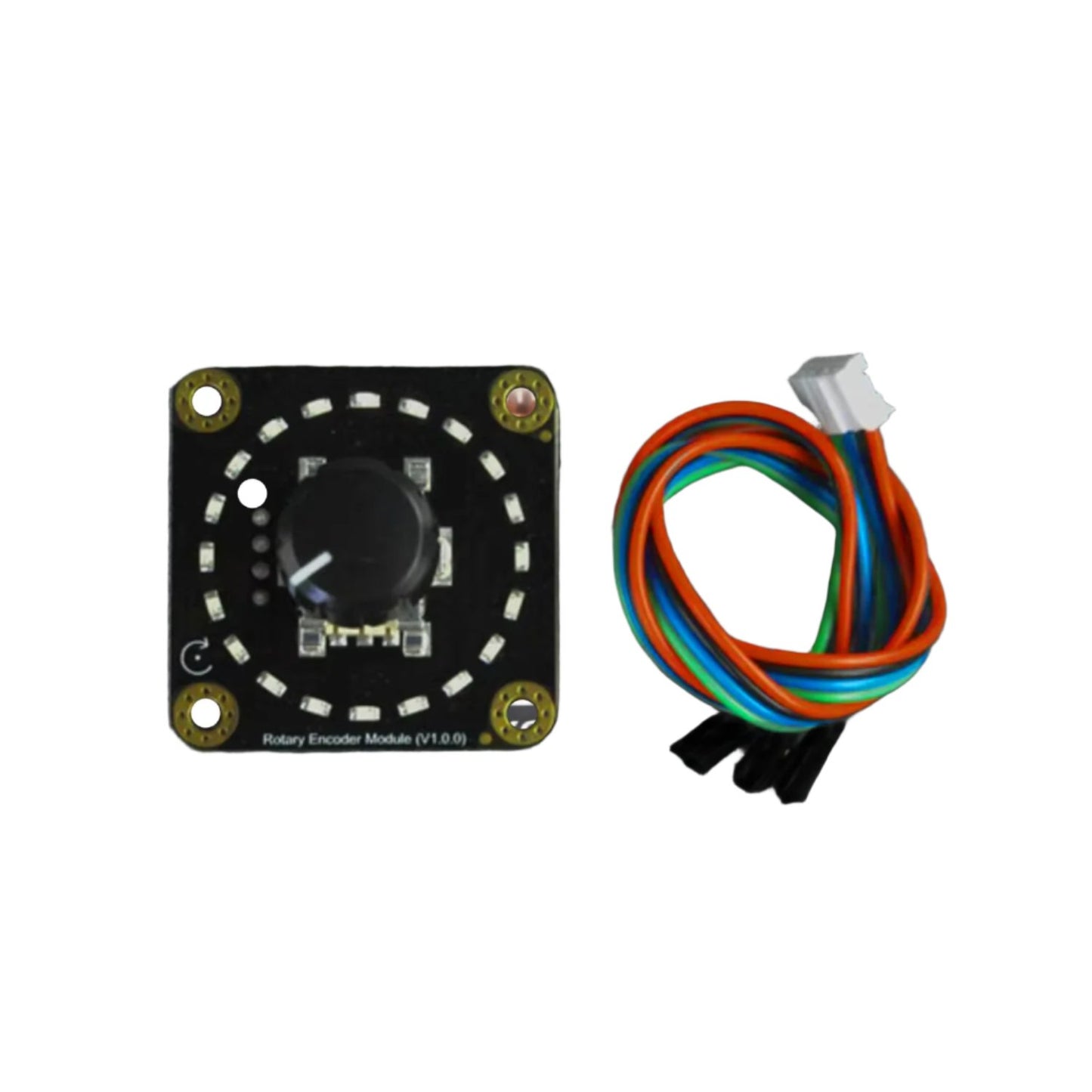

Package Included:
1x DFRobot 360° Gravity Rotary Encoder Module Gravity Rotary Encoder 360° High-Precision 360° Degree Rotary Encoder Module For Precise Angular Measurement
