Description:

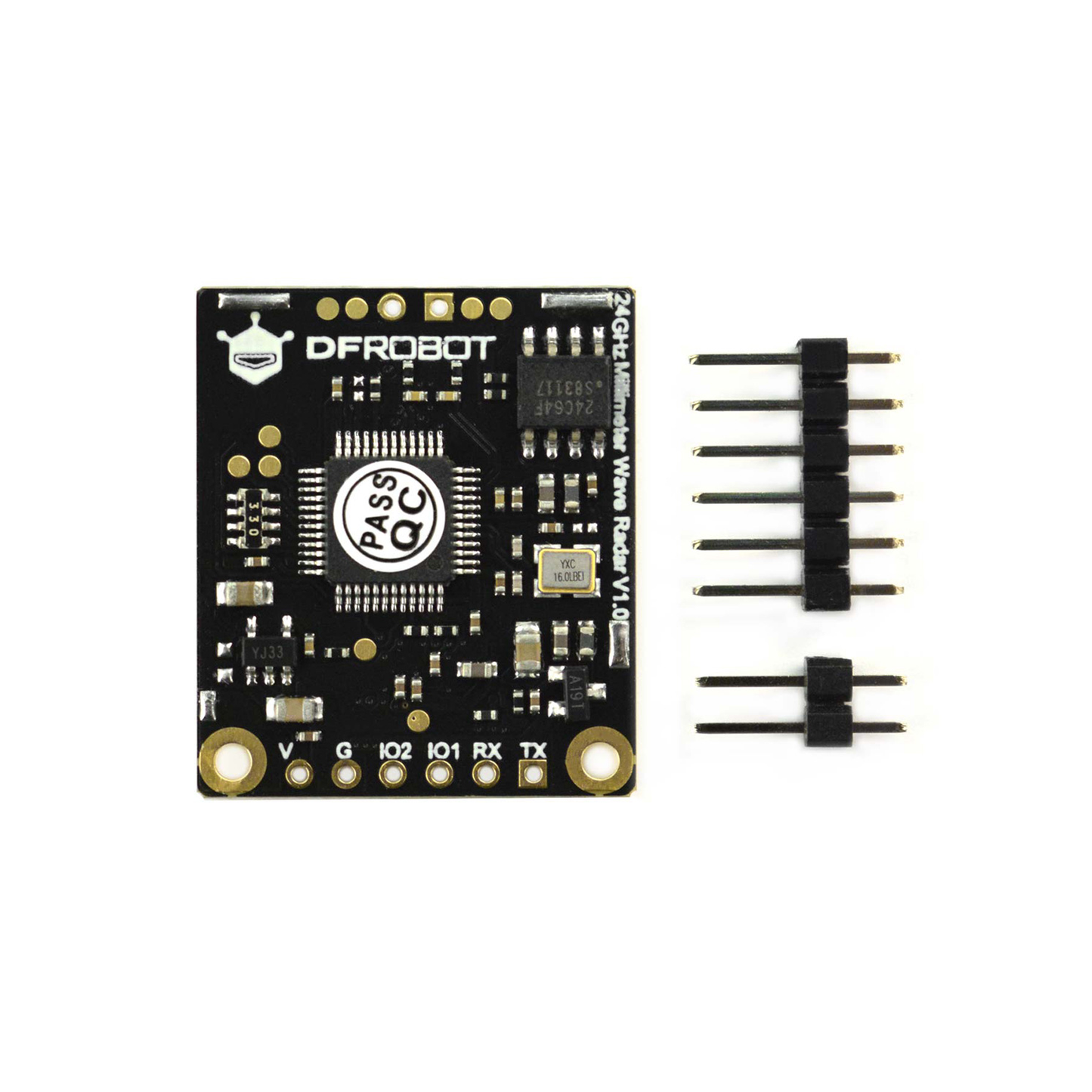

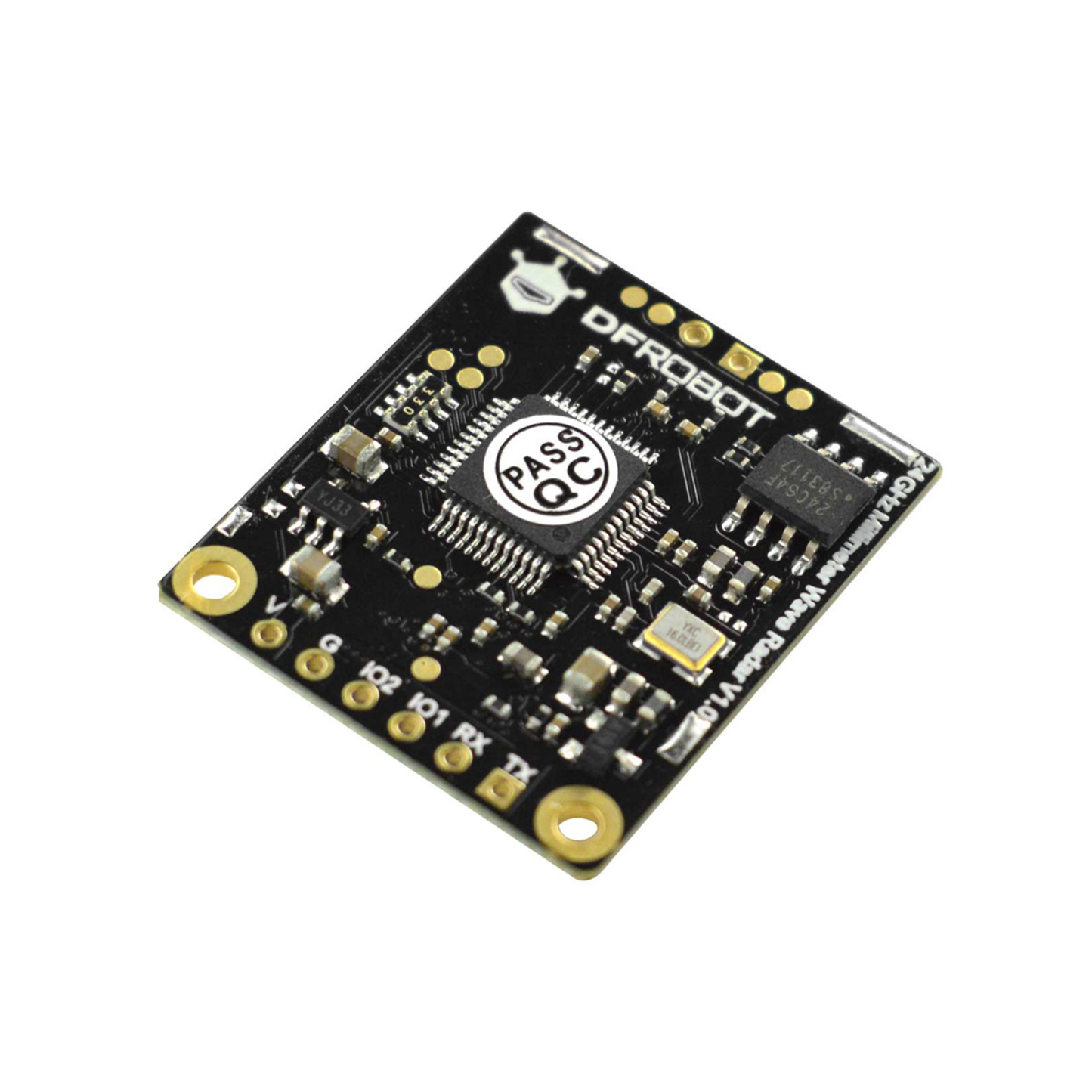

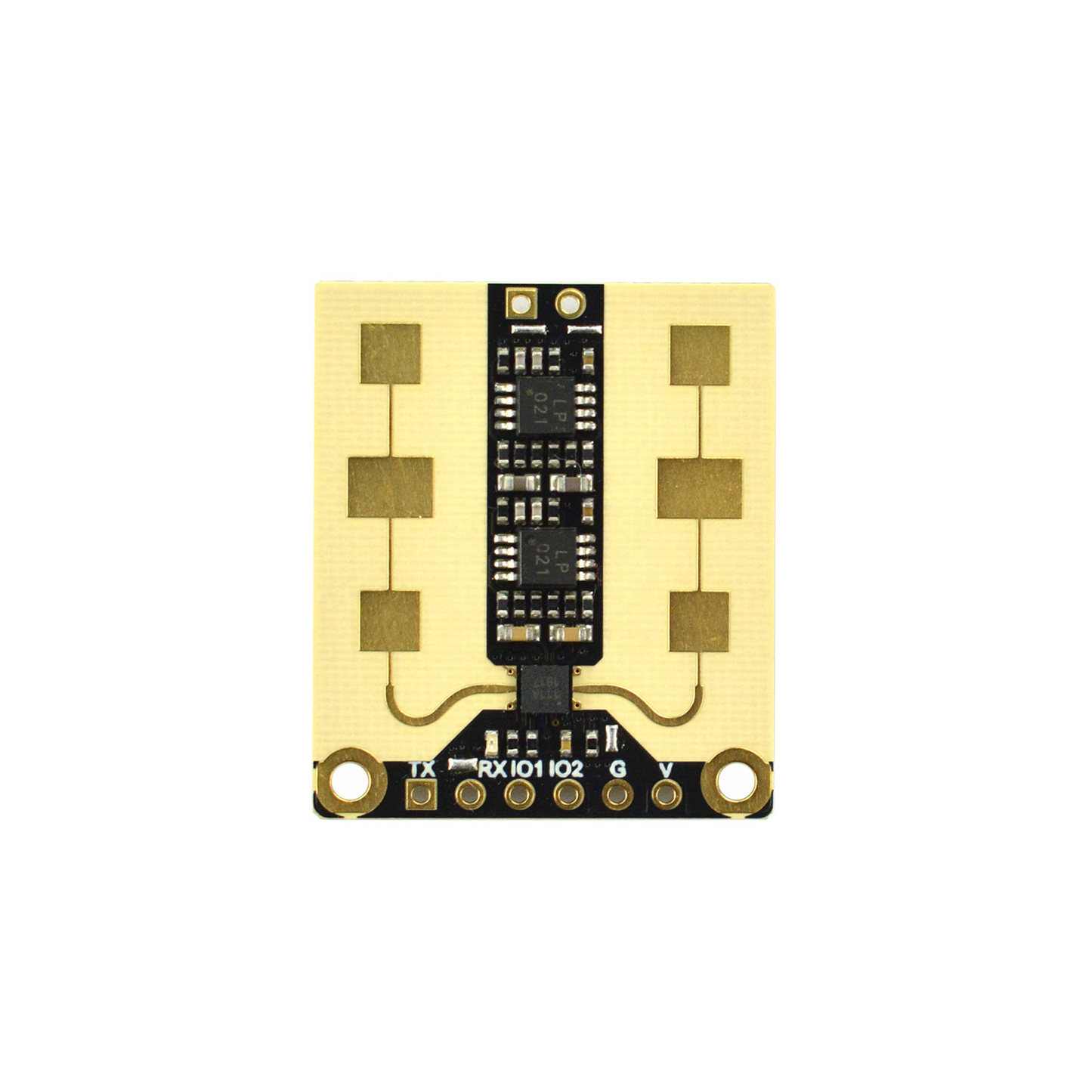

The DFRobot 24GHz mmWave radar sensor detects human presence up to 9 meters using FMCW and CW modulation with separate transmit and receive antennas. Reflected signals are processed through algorithms to identify moving, micro-moving, and stationary individuals, including those sleeping. Output is provided via serial and I/O ports. This compact sensor offers high sensitivity and reliability for easy integration into various applications.
Specifications:
- Power Supply: 3.6~5V
- Operating Current: 90mA
- Detection Distance: 9m
- Equivalent Transmit Power: 9-12dBM
- Beam Angle: 100*40°
- Modulation Mode: FMCW, CW
- Operating Frequency: 24GHz
- Operating Temperature Range: -40~85℃
- Baud Rate: 115200
Features:
- Human presence detection: Both Stillness and Motion Detection
- Strong anti-interference ability, not to be affected by snow, haze, temperature, humidity, dust, light, noise, etc.

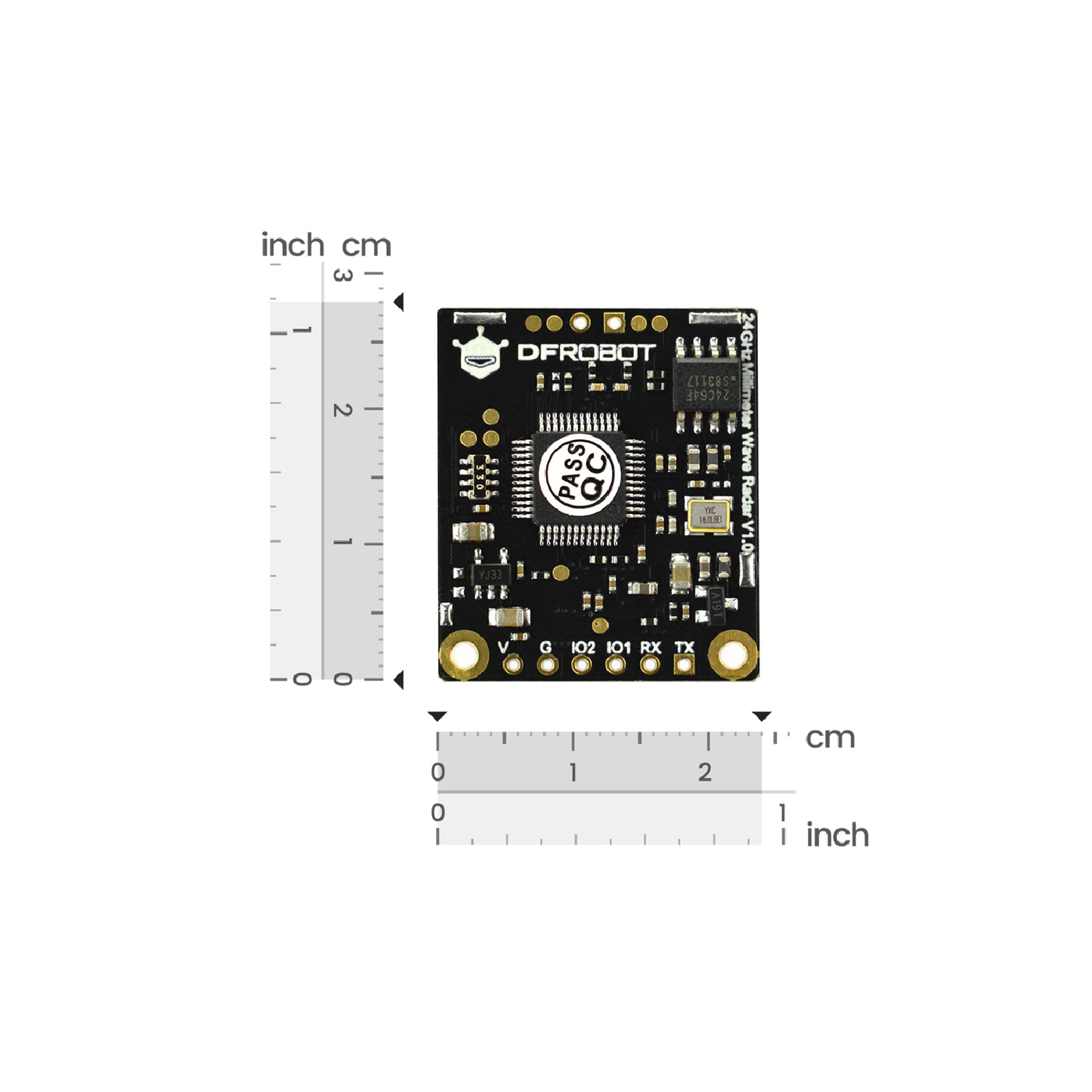

- Small Size and Easy Integration
- I/O port switch quantity input and output control
- Serial port input and output control
Useful Links:
Package Included:
1 x Human Presence Detection Sensor (9 Meters)
