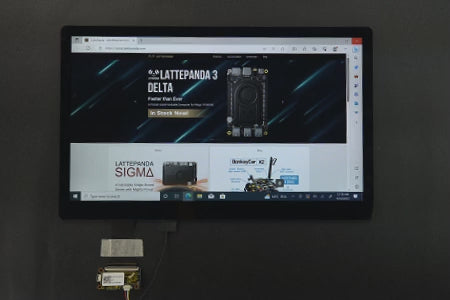

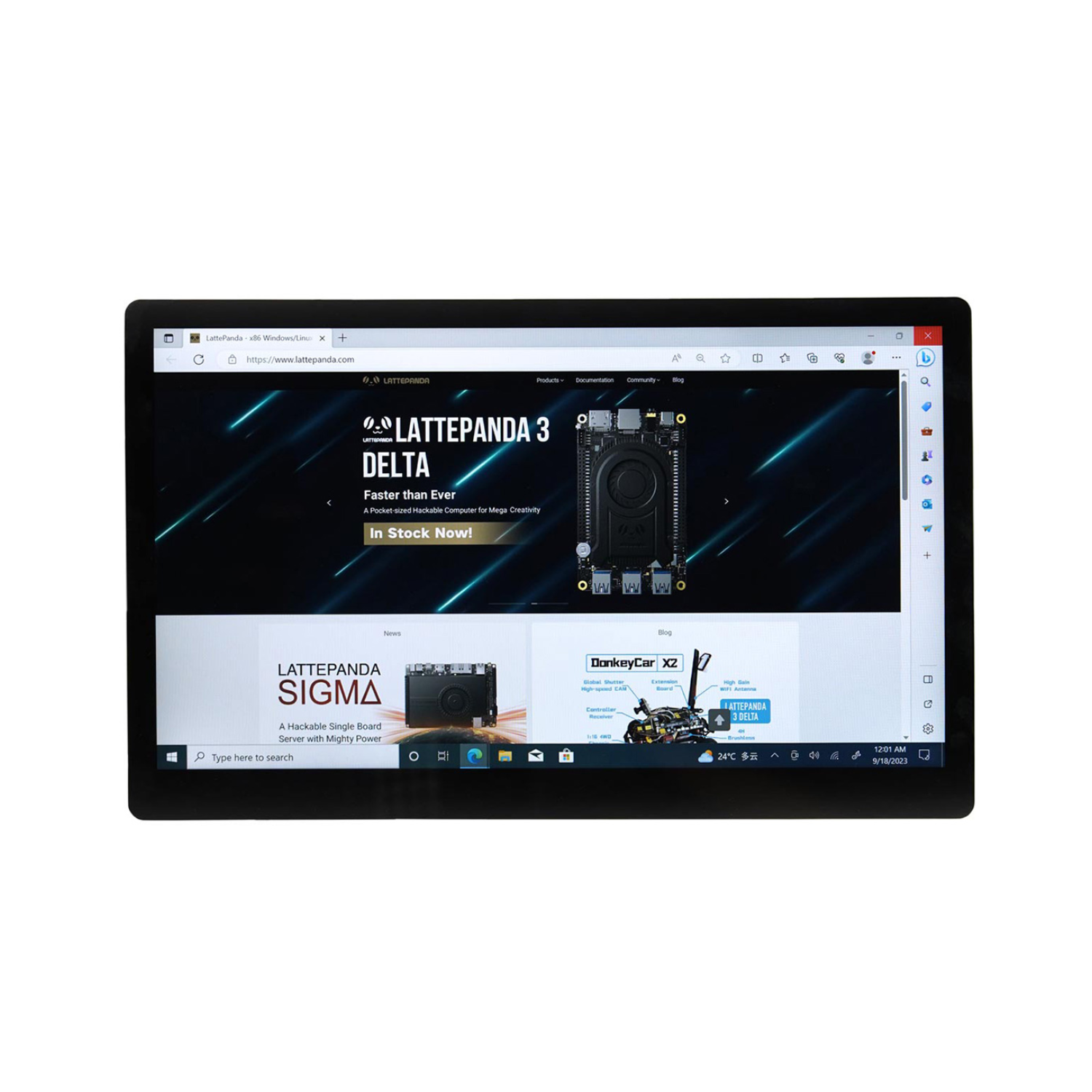

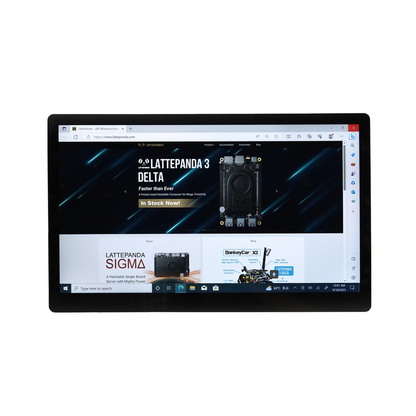

DFRobot 15.6 Inch 1920×1080 IPS Type-C Touch Screen & Display With Type-C & HDMI Input Compatible With Raspberry Pi, LattePanda, Jetson Nano Single Board Computer

Description:

Elevate your interactive experiences with this brilliant 15.6-inch Full HD touch display. The 1920x1080 resolution and IPS technology deliver stunning visuals with wide viewing angles, enhanced by optical bonding for exceptional clarity. Enjoy versatile connectivity through its full-function Type-C and HDMI ports, enabling seamless dual display setups. The responsive ten-point capacitive touch interface provides intuitive control for a wide array of applications. From empowering single-board computers like the LattePanda, Raspberry Pi 4B, and Jetson Nano, to expanding the capabilities of desktops, laptops, and industrial PCs, this display offers broad compatibility for human-machine interaction in terminal controls, IoT panels, and more.

Specifications:

Screen parameters

• LCD size: 15.6 inches
• Resolution: 1920×1080
• Pixel pitch (um): 179.25(H) × 179.25(V)
• Pixel arrangement: RGB Vertical Stripe
• Color gamut: 45%
• Display colors: 262k (6-bit)
• Active area(mm): 344.16(H)×193.59(V)
• Surface treatment: Anti-Glare
• Surface hardness: 3H
• Brightness: 250cd/㎡
• Refresh rate: 60Hz
• Transmittance: ≥86%
• View angle: Full-view angle
• Number of touches: 10
• Touch panel hardness: ≥6H
• Bonding method: Optical bonding
• Outline dimension(mm): 369.5(H)×288.6(V)×5.2(D)
• Interface: eDP
• LCD brand: BOE
• Operating temperature: 0~+50℃

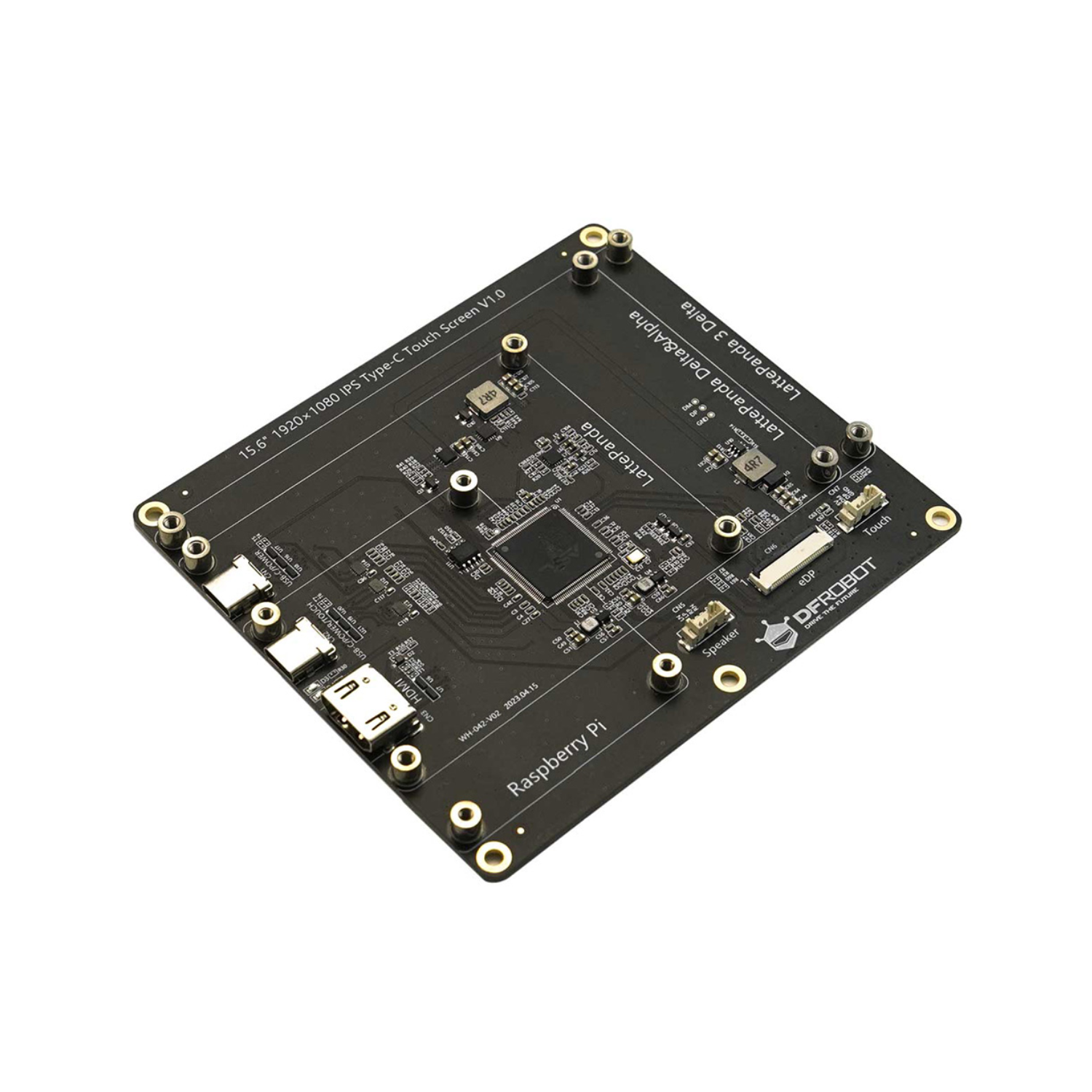

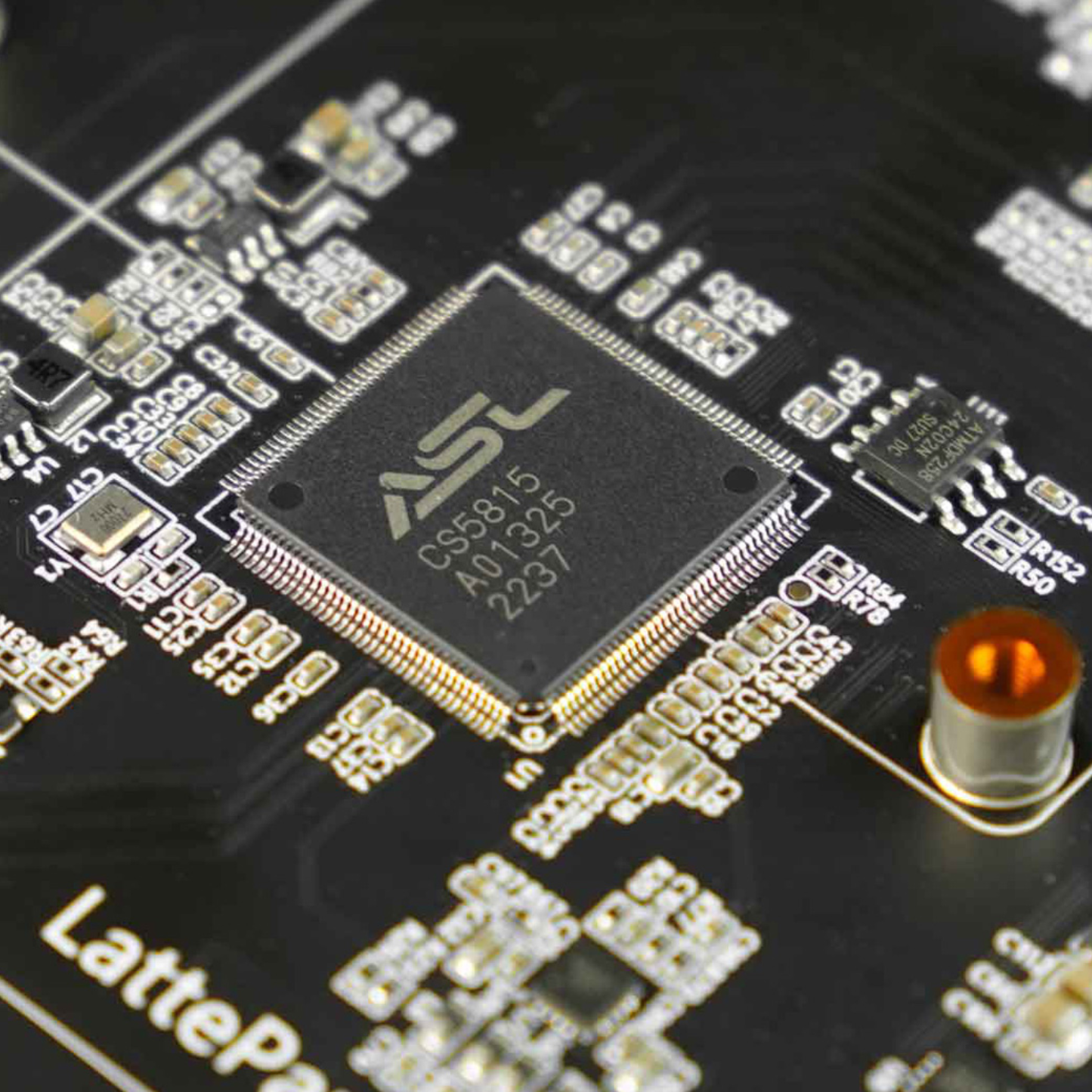

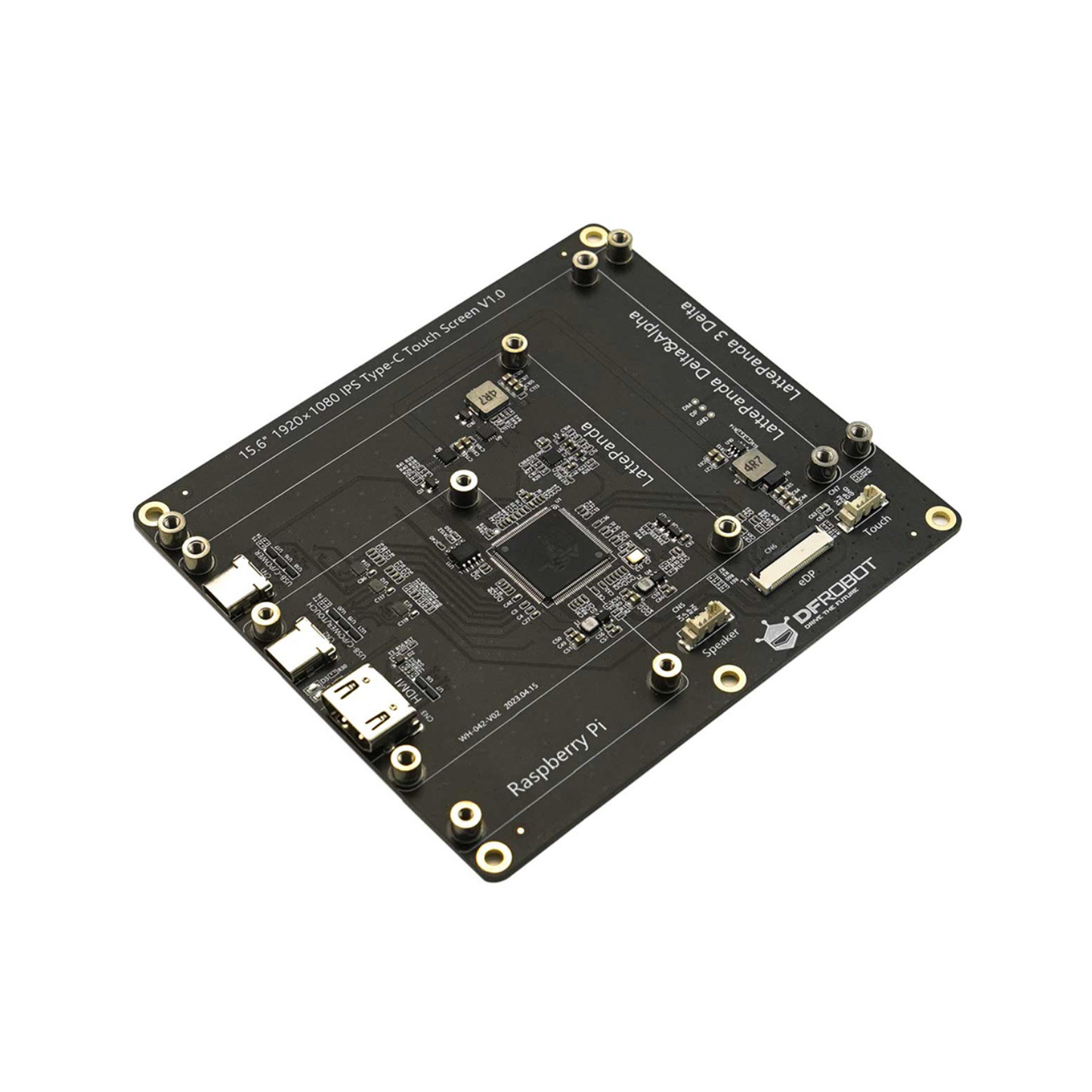

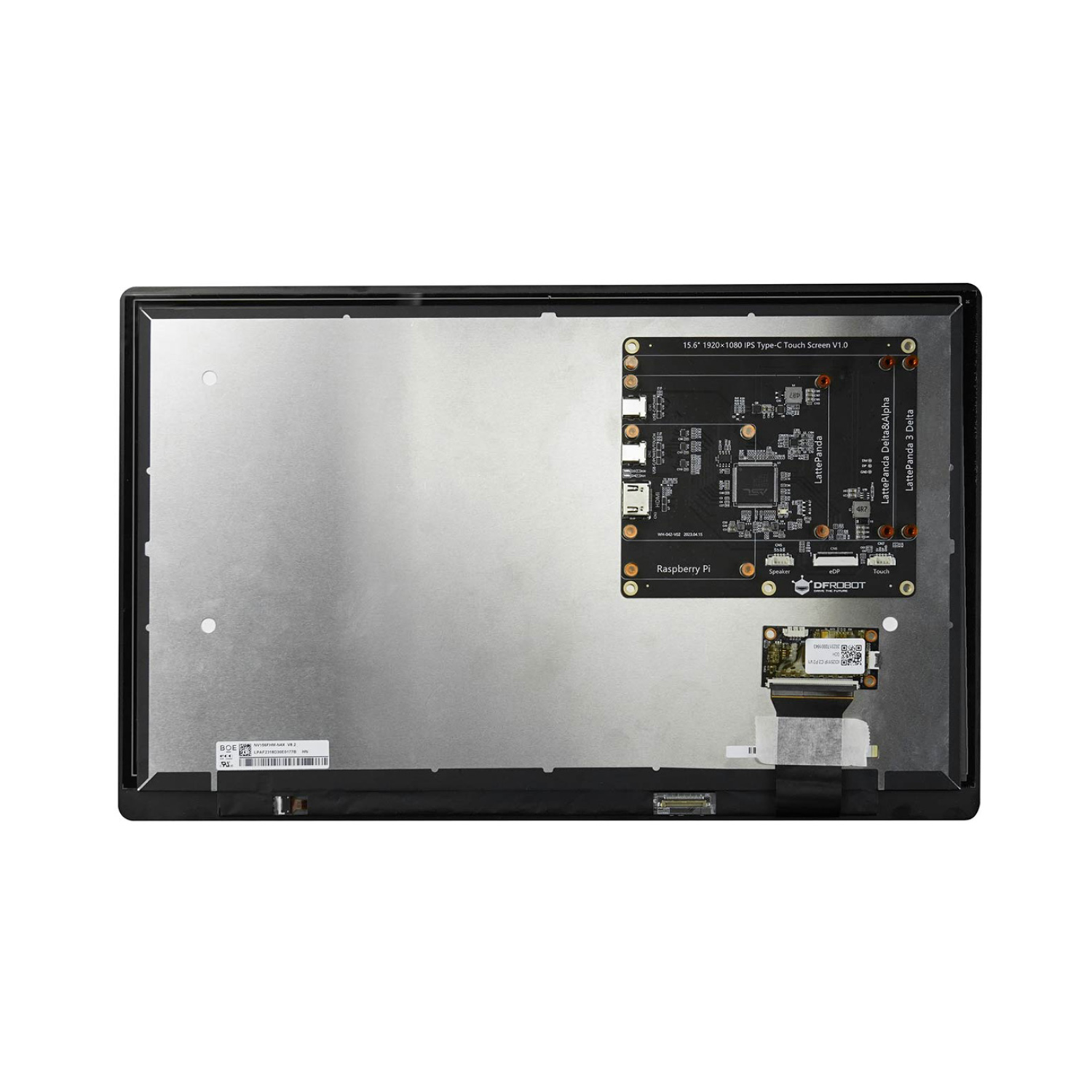

Display driver board parameters

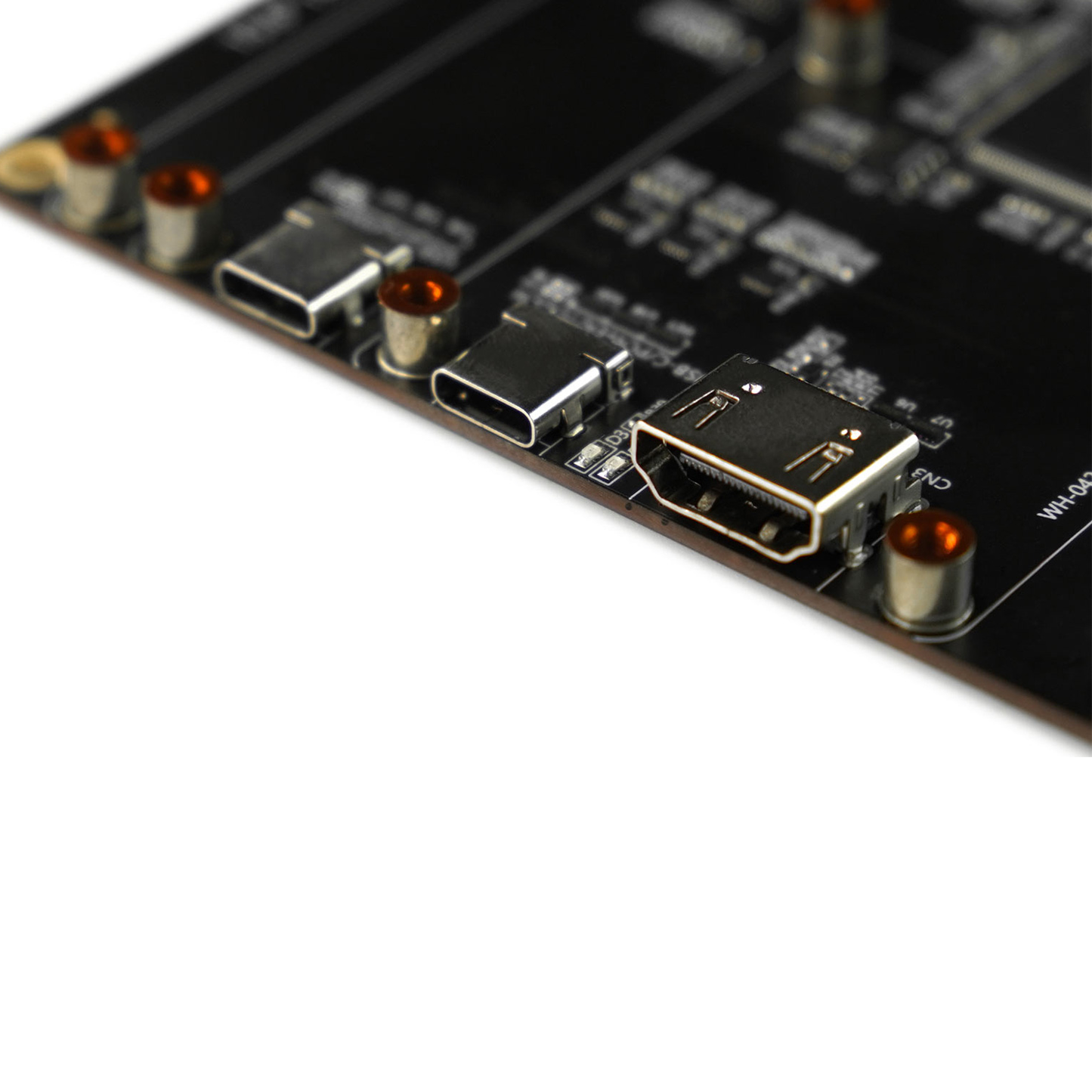

• Display interface: Type-C/HDMI
• Speaker interface: MX1.25- 4P
• Touch interface: Type-C
• Power interface: Type-C
• Power voltage: PD3.0, 5~20V
• Mounting hole size: Hole diameter 3.0mm
• PCB size(mm): 125(V)×110(H)×1.6(D)

Touch control board parameters

• Touch chip: ILI2511
• Touch interface: MX1.25- 4P
• Mounting hole size: Hole diameter 3.0mm
• PCB size(mm): 50(H)×26(V)×4.8(D)

Features:

• Enables intuitive multi-finger interaction.
• Delivers rich stereo sound.
• Supports both Type-C and HDMI connections.
• Transmits video, audio, and touch with power delivery over one connection.
•  Offers easy, plug-and-play connectivity without needing to check orientation.
• Works seamlessly with Raspberry Pi 4B, LattePanda series, and Delta 3.
• Compatible with desktops, laptops, mini PCs, industrial computers, and tablets.

Applications:

• Human-Machine Interaction Panel
• Terminal Control Panel
• IoT Control Panel

Documents:

• Product wiki
• Functional Indicative Diagram
• User Manual
• IEC 62368 Report

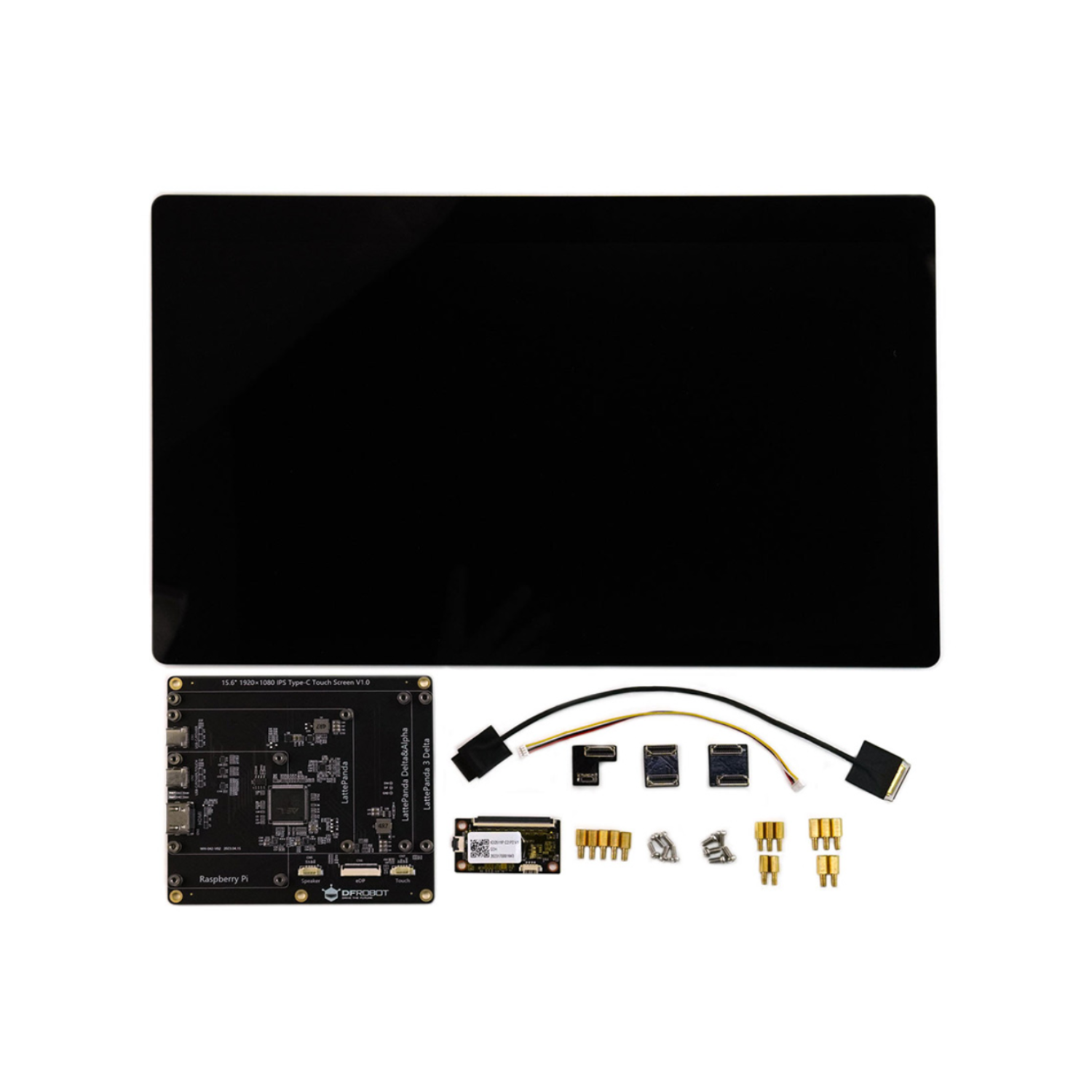

Package Included:

• 1 x 15.6″ 1920×1080 IPS Type-C Capacitive Touch Screen
• 1 x Display Driver Board
• 1 x Touch Control Board
• 1 x eDP Screen Connection Cable 210mm
• 1 x Dual-Head MX1.25-4P Touch Screen Cable
• 1 x HDMI A to A Adapter Module for LattePanda Delta 3
• 1 x HDMI A to A Adapter Module for LattePanda Delta/Alpha
• 1 x HDMI A to D Adapter Module for Raspberry Pi
• 5 x M3×6+8mm Single-Head Copper Pillar
• 5 x M3×6+9mm Single-Head Copper Pillar
• 5 x M2.5×6+8mm Single-Head Copper Pillar
• 5 x M3×6 Round Head Screw
• 5 x M2.5×6 Round Head Screw
