Description:

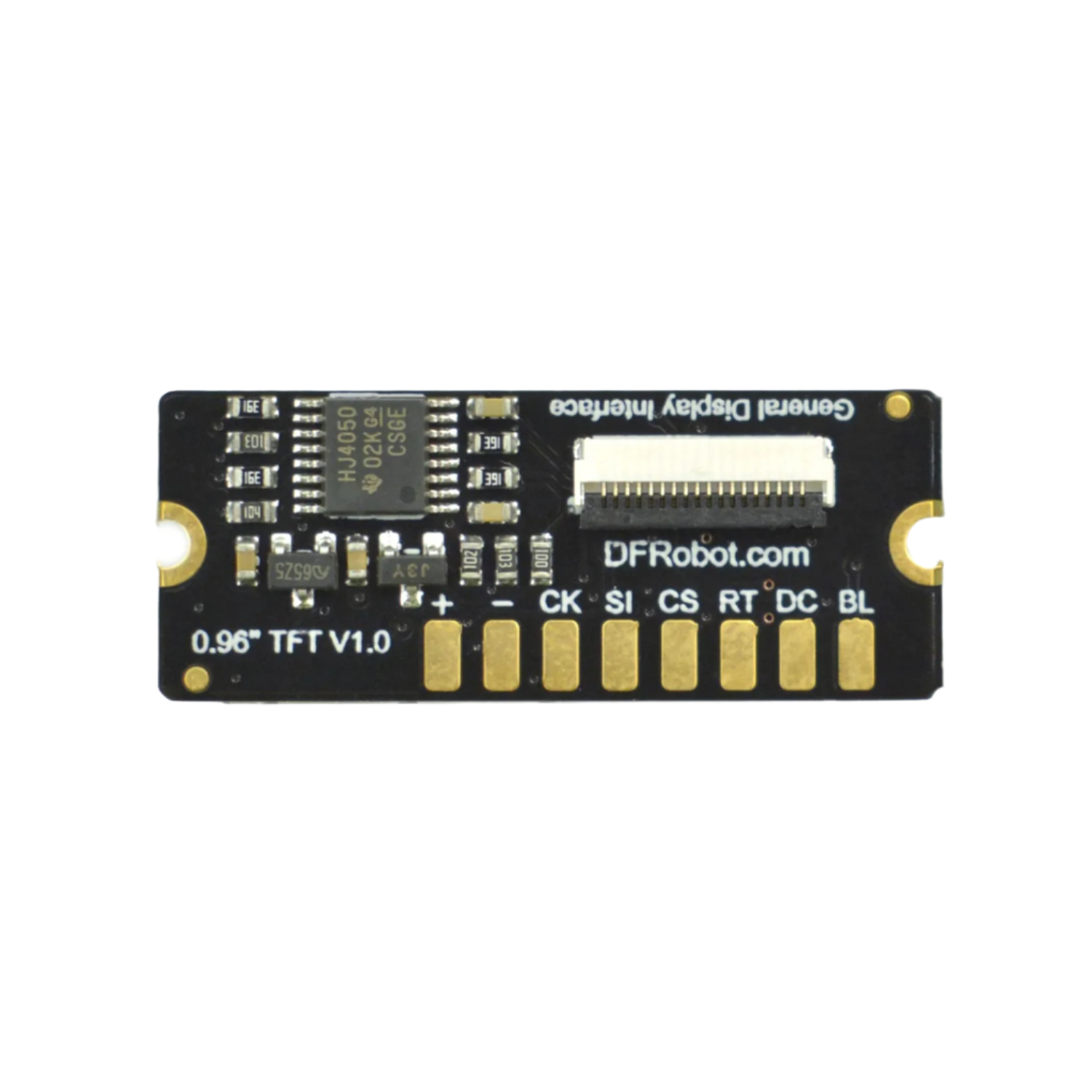

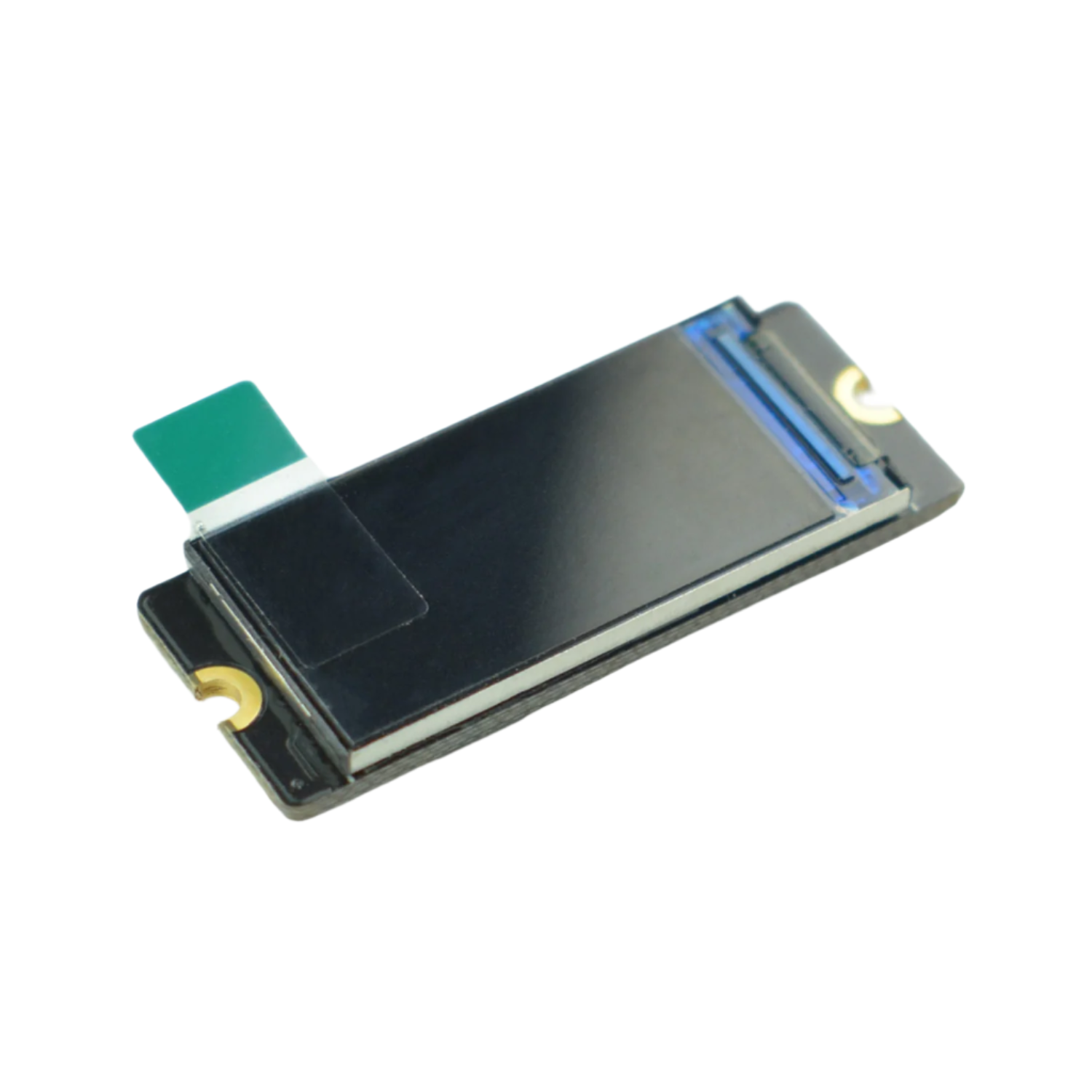

Elevate your embedded projects with this exquisite 0.96" TFT display. Its space-saving edge-to-edge construction houses a brilliant 160×80 HD screen capable of rendering vivid 16-bit color, perfect for enhancing wearables, mobile devices, and smart home interfaces. Designed for effortless integration, it leverages the DFRobot GDI display interface with a user-friendly FPC connector for plug-and-play connectivity. Operating efficiently within a 3.3V to 5V range and consuming minimal current (<15mA at full brightness), this versatile display seamlessly interfaces with a wide array of popular microcontrollers, including Arduino and ESP series boards.
Specifications:
- Operating Voltage: 3.3V-5V
- IPS Viewing Angles: 60/ 60/ 60/ 60
- Color Depth: 16-bit (RGB565)
- Pixels: 160x80
- Interface: SPI
- Driver Chip: ST7735
- Luminance: 250 (Typ) cd/m2
- Power Consumption of Full Screen: 15mA
- Operating Temperature: -30℃~+70℃
- Display Area: 10.8 x 21.7 mm/ 0.43 x 0.85"

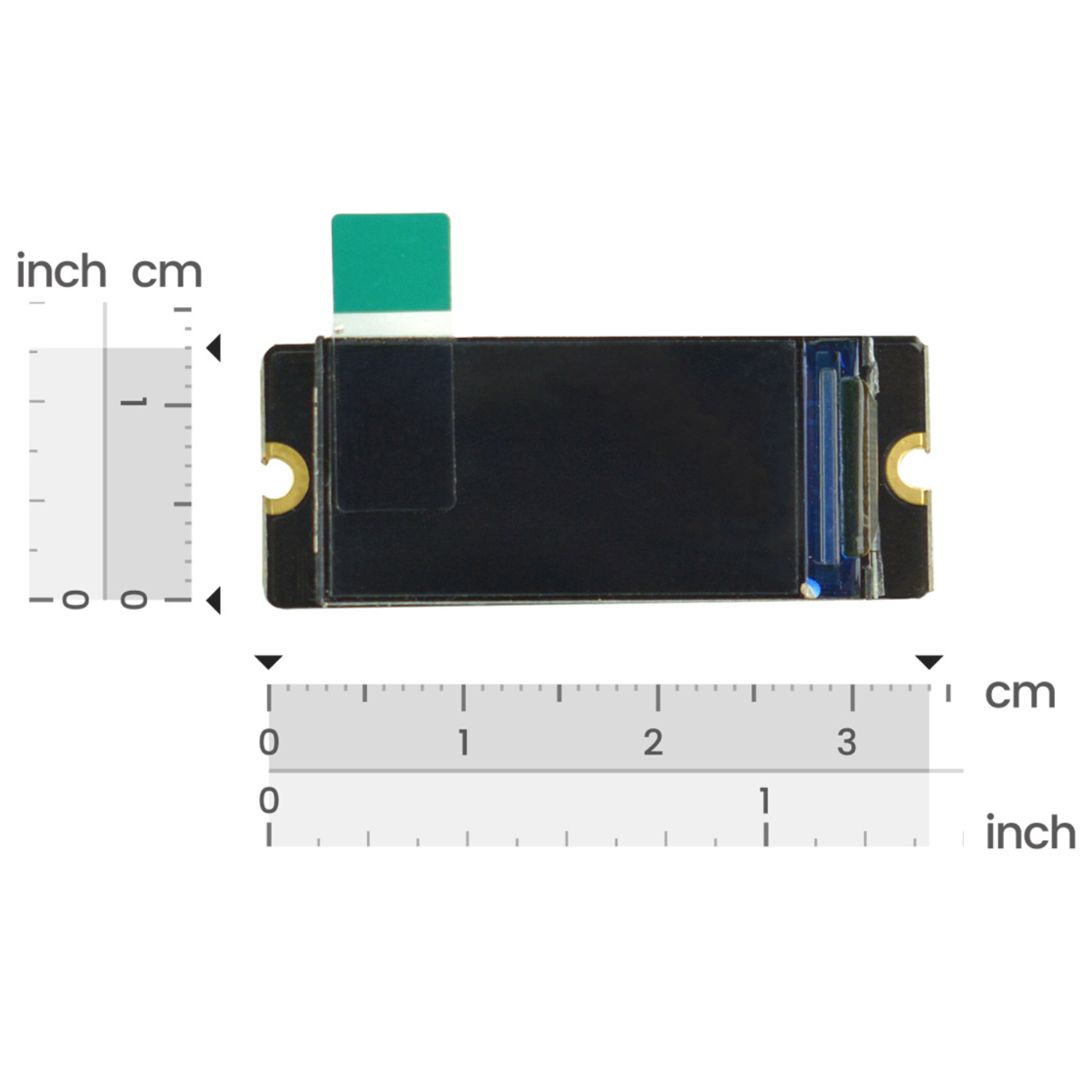

- Dimension: 13.5 x 34 mm/ 0.53 x 1.34"
Features:
- Offers superior visual clarity.
- Ensures quick and easy connection.
- Facilitates integration into space-constrained projects.
Applications:
- Wearable projects
- Mobile devices
- Smart home products.
Documents:

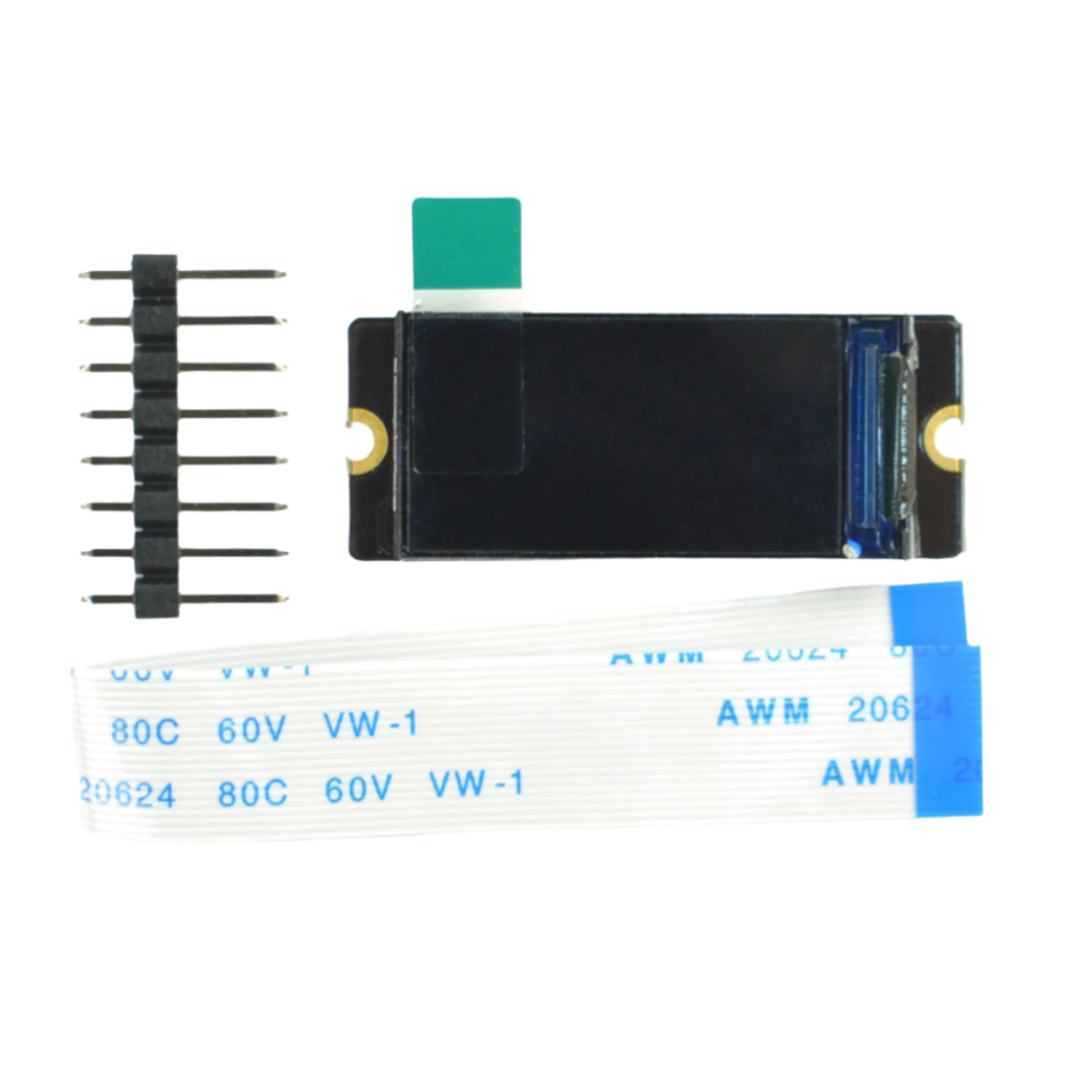

Package Included:
1 x DFRobot 0.96″ 160×80 Color SPI TFT Display
