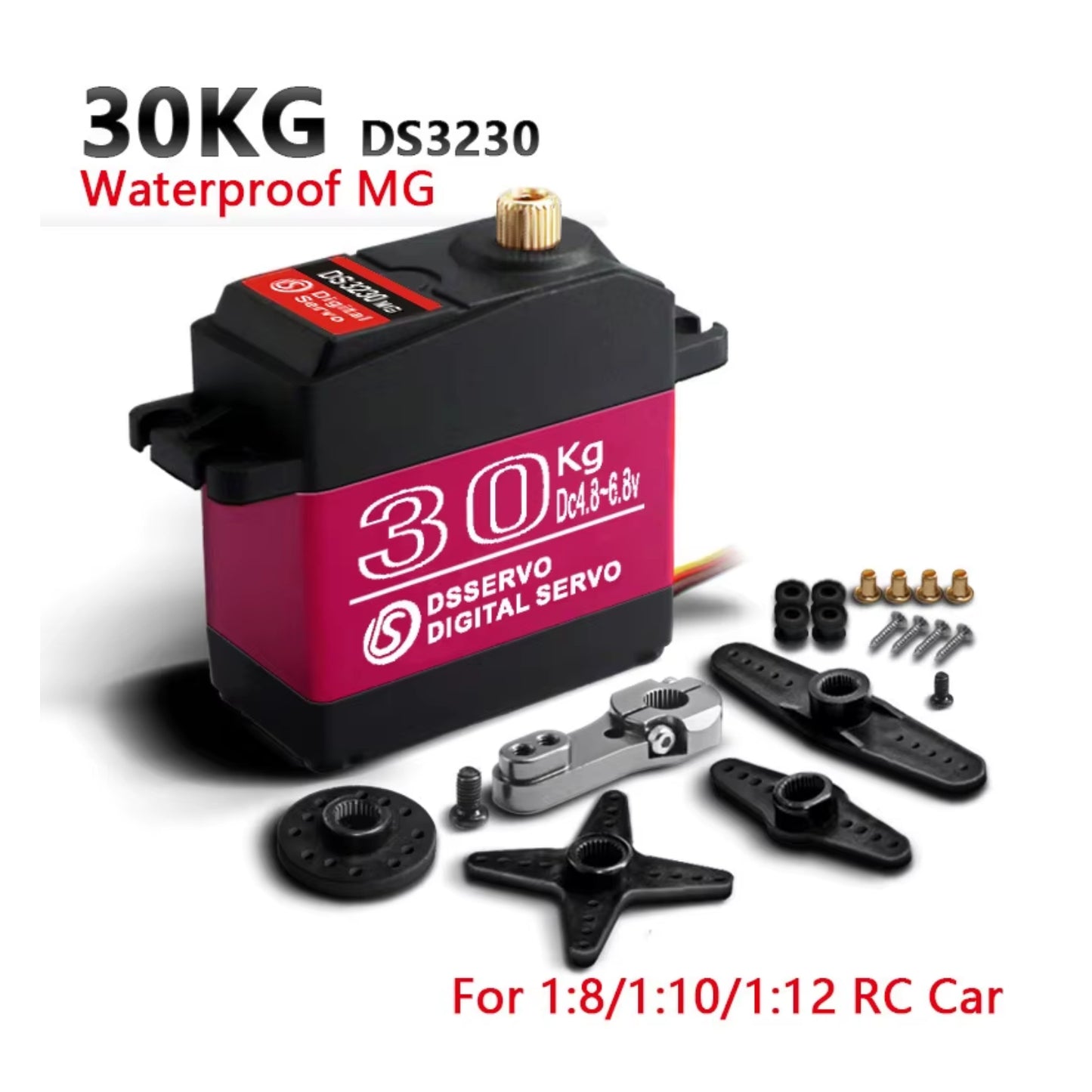

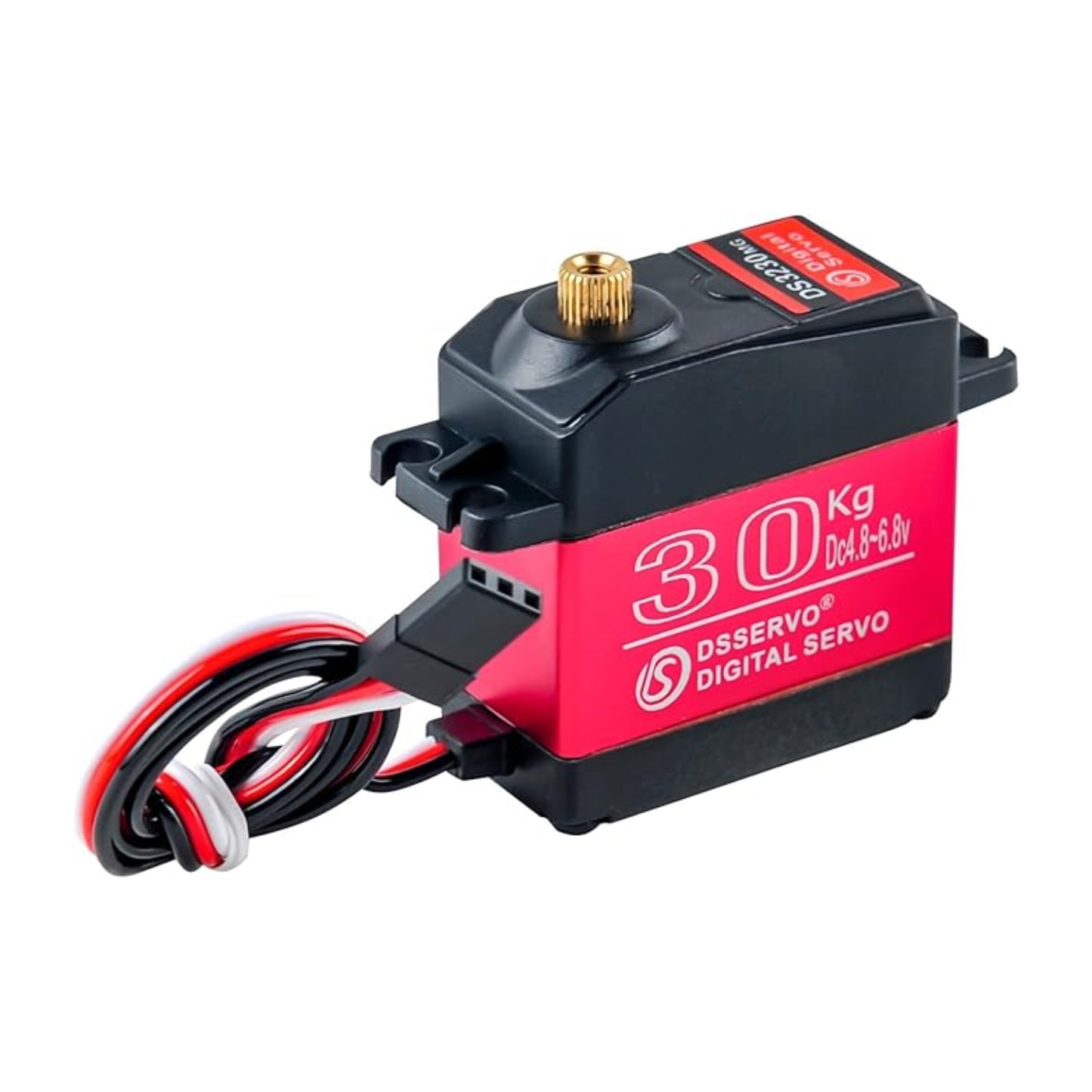

DSServo DS3230 30kg Waterproof Servo Motor 180°, 270°, 360° (Optional) Degree Rotation Servo High Torque Waterproof Metal Gear Servo Motor For Robotics and RC

DSServo DS3230 30kg Waterproof Servo Motor 180°, 270°, 360° (Optional) Degree Rotation Servo High Torque Waterproof Metal Gear Servo Motor For Robotics and RC

RS8287

In stock

Rs. 939.00
Rs. 939.00
Sale Sold out
Shipping calculated at checkout.
Degree

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

DSServo DS3230MG 30kg Waterproof Servo Motor is hard anodizing for better accuracy and longer service life, waterproof rubber seals screws, made of first-grade material ensure the longevity of the products.

This Durable 30kg Waterproof Servo Motor is controlled by pulse, compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application that uses a standard servo system.

Specifications:

Model DS3230
Material  Metal
Angle 180° 270° 360°
Working Voltage Range 4.8 - 6.8V
Amplifier Type Digital Controller
Pulse Width Range  500～2500usec
Neutral Position 1500usec
Working Frequency 50-333Hz
Command Signal  Pulse Width Modification
Operating Speed ( 5.0V ) 0.2 sec/60 degree
Operating Speed ( 6.8V ) 0.17 sec/60 degree
Stall Torque ( 5.0V ) 29.5kg/cm
Stall Torque ( 6.8V ) 34.5kg/cm
Dead Band Width  3 usec

Features:

  • Tailored for RC hobbyists to provide different experiences and delight.
  • High-precision metal gear with hard anodizing for better accuracy and longer service life.
  • Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products.
  • CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
  • Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys.

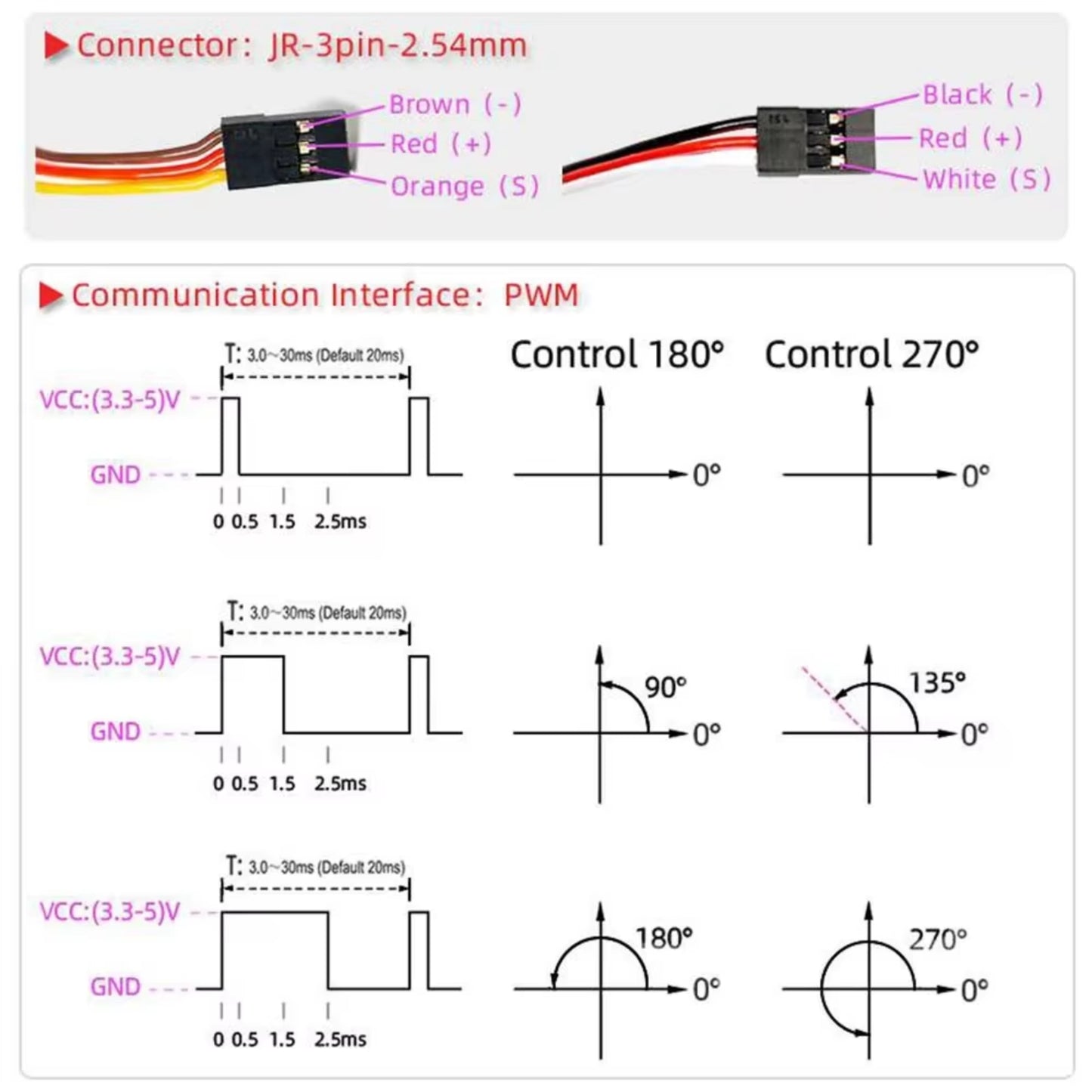

Pin Description:

Package Included:

  • 1 x DS3230 30kg Digital Servo
  • 1 x 25T Adjustable metal servo arm
  • 1 x Accessories set as shown
