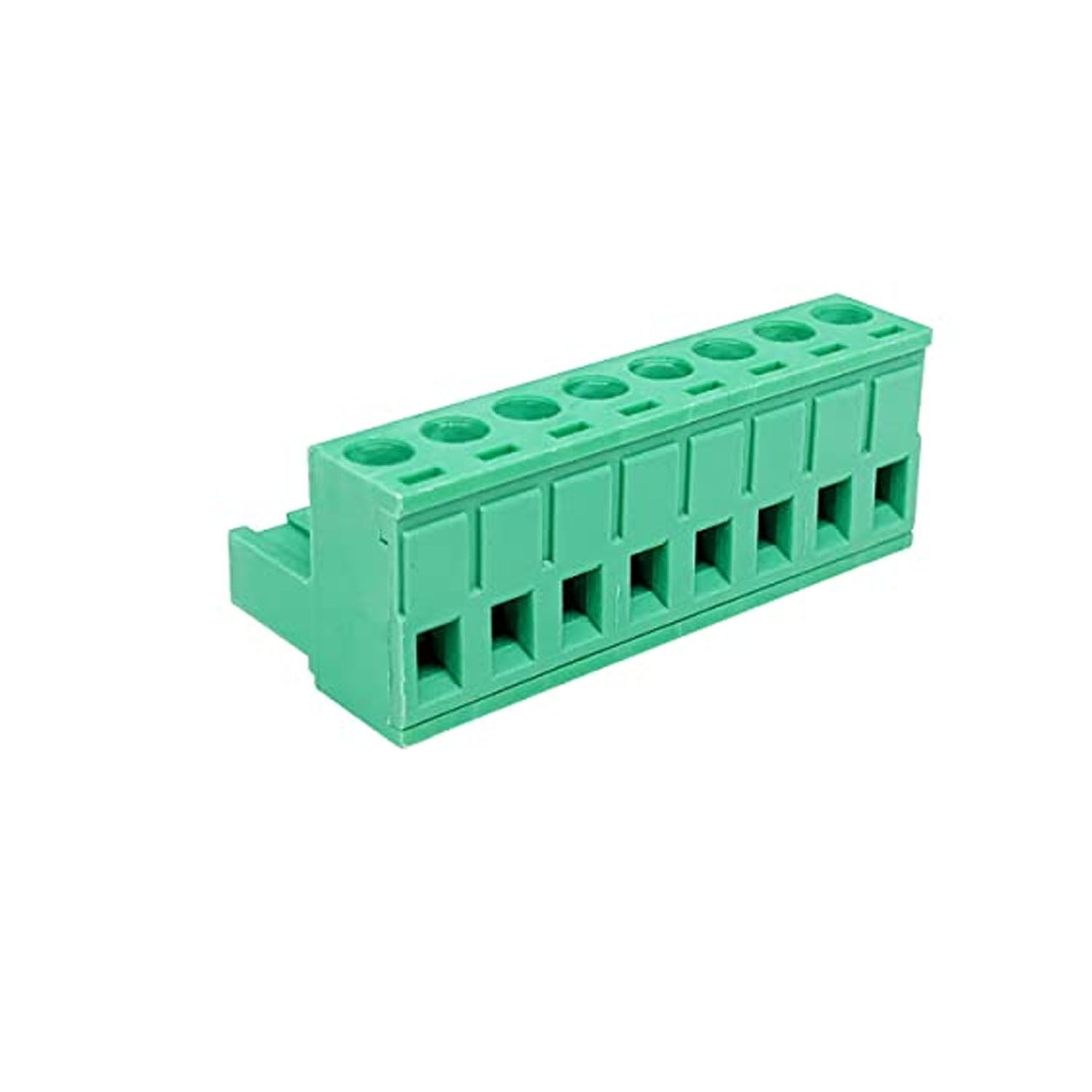

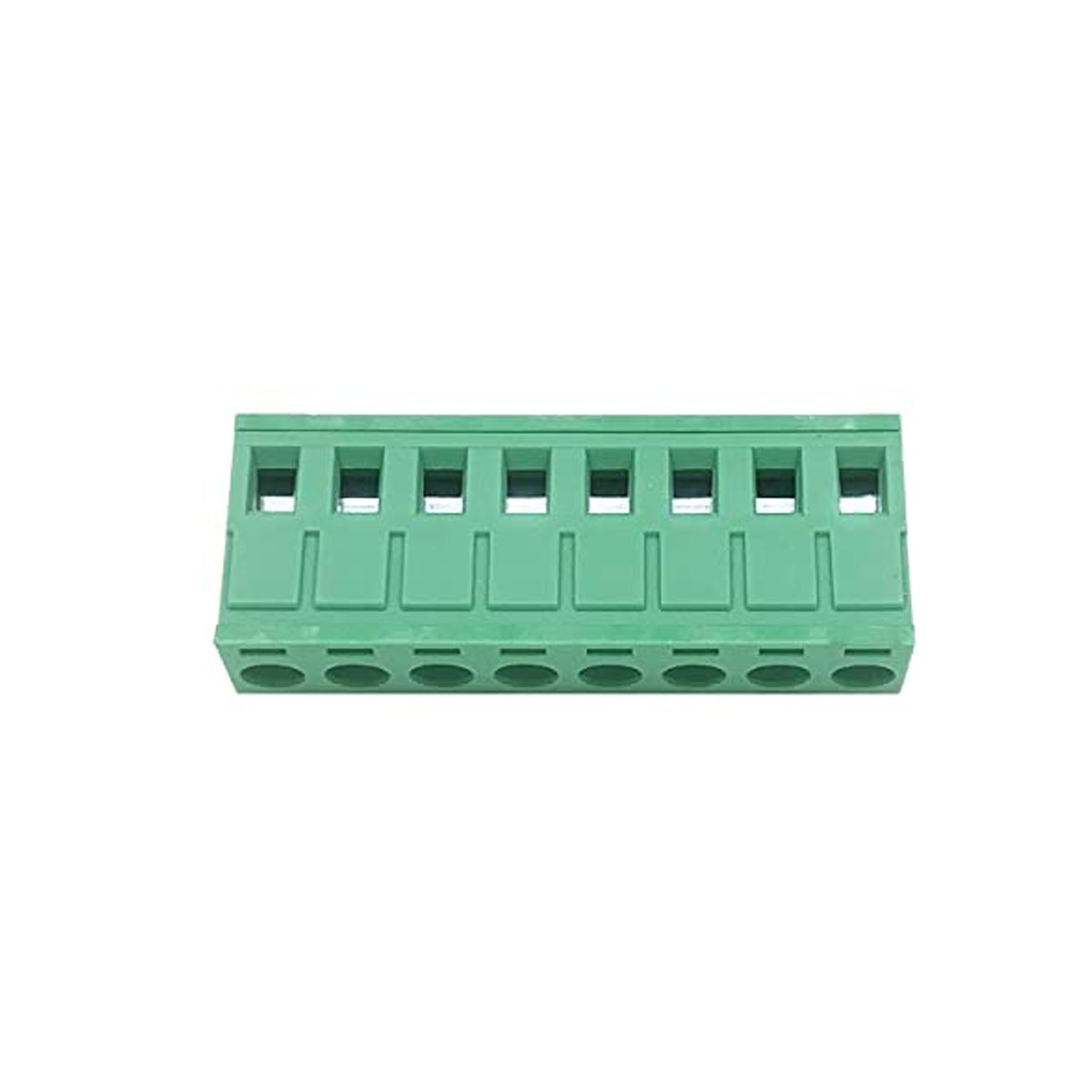

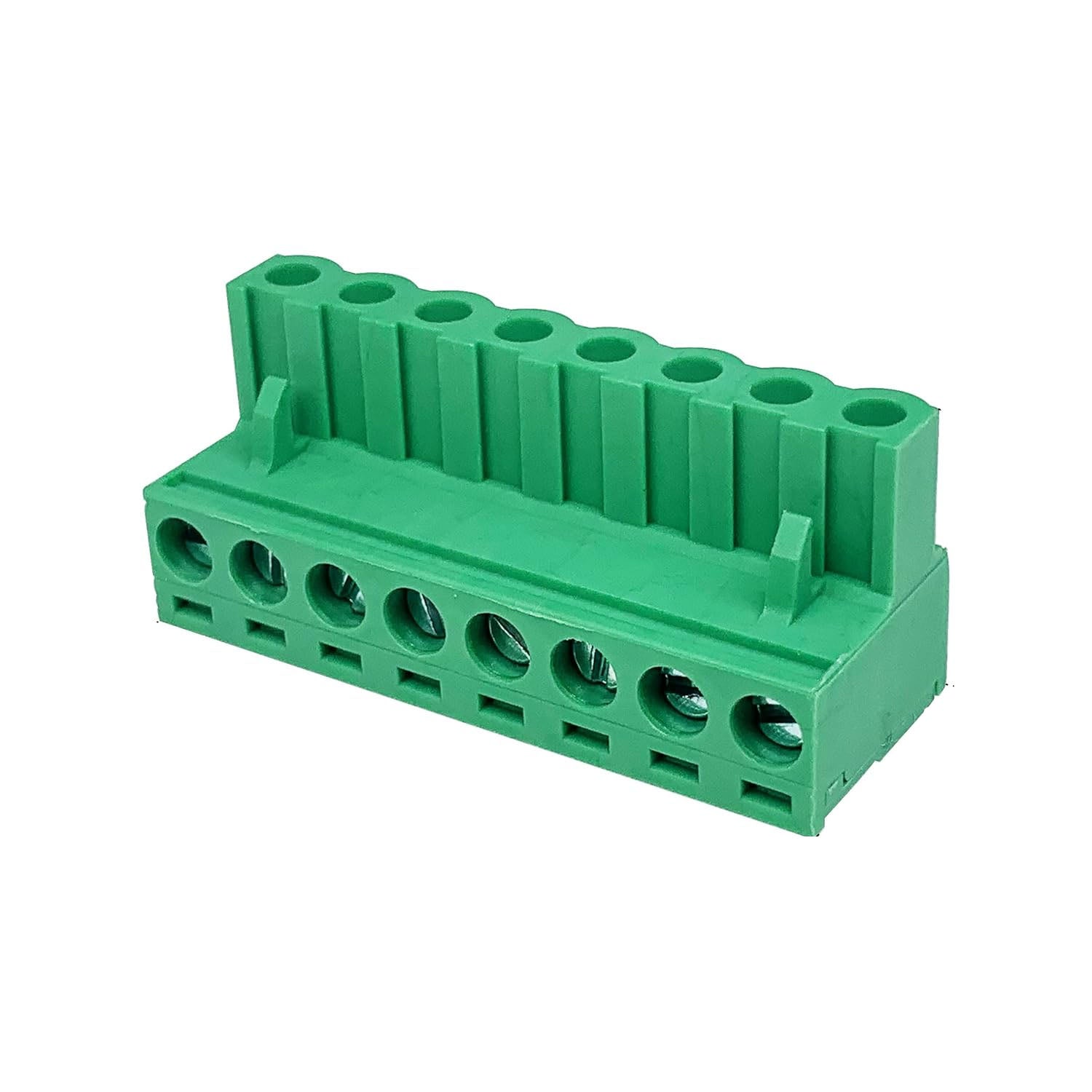

Degson 8 Pin PCB Terminal Block 5mm Pitch Pluggable Type PCB Terminal Block For PCB Applications - RS6538

Degson 8 Pin PCB Terminal Block 5mm Pitch Pluggable Type PCB Terminal Block For PCB Applications - RS6538

RS6538

Low stock: 9 left

Rs. 40.00
Rs. 40.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

These are pluggable terminal block connectors. They are light in weight and highly insulated for short-circuit protection. These connectors are used to connect wire and cable to the circuit board. The male connectors can easily mount on a PCB board. The female connectors have screws to hold the wires.

When the female connector interlock with the male connector, a strong bond is established and the current flows through them. These types of connectors are very useful in hot-swapping types of applications. In other words, They are used where the connection may be expected to be removed for servicing or any other purposes.

Specifications:

  • Number of Pins: 8
  • Pitch: 5mm
  • Rated Voltage: 300V
  • Rated Current: 20A
  • Wire Range: 28-12 AWG
  • Contact Resistance: 20m max
  • Operating Temperature Range: -40C to 105C
  • Material: Housing: PA66, UL94V-0; Contact: Brass, Tin-plated

Features:

  • This is a connector that comprises reliable screw connection technology.
  • The 5-pole connectors are already approved as DeviceNet connectors.
  • Single wire and stranded wire can be connected.

Package Included:

1 x Degson 8 Pin PCB Terminal Block 5mm Pitch Pluggable Type PCB Terminal Block For PCB Applications
