Description:

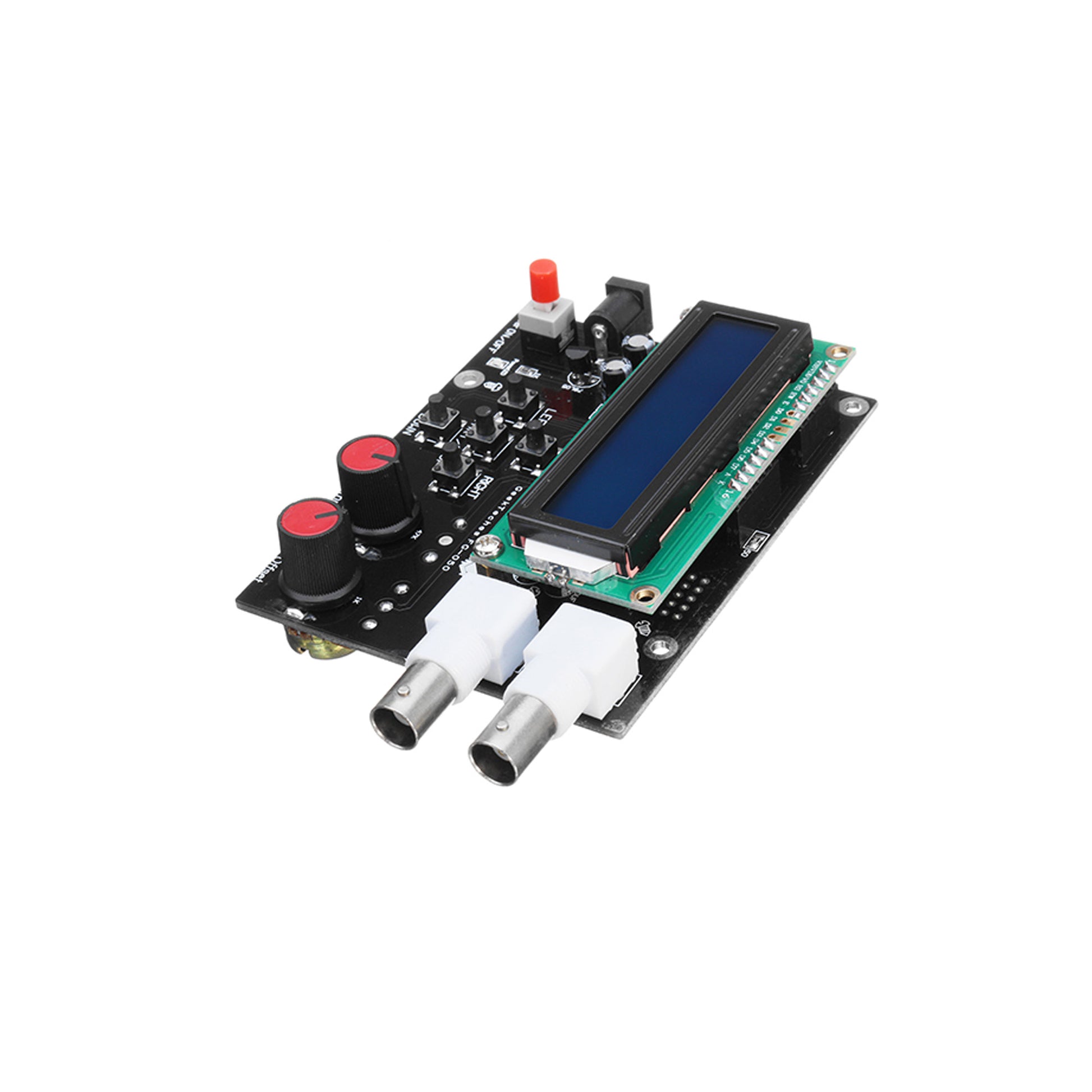

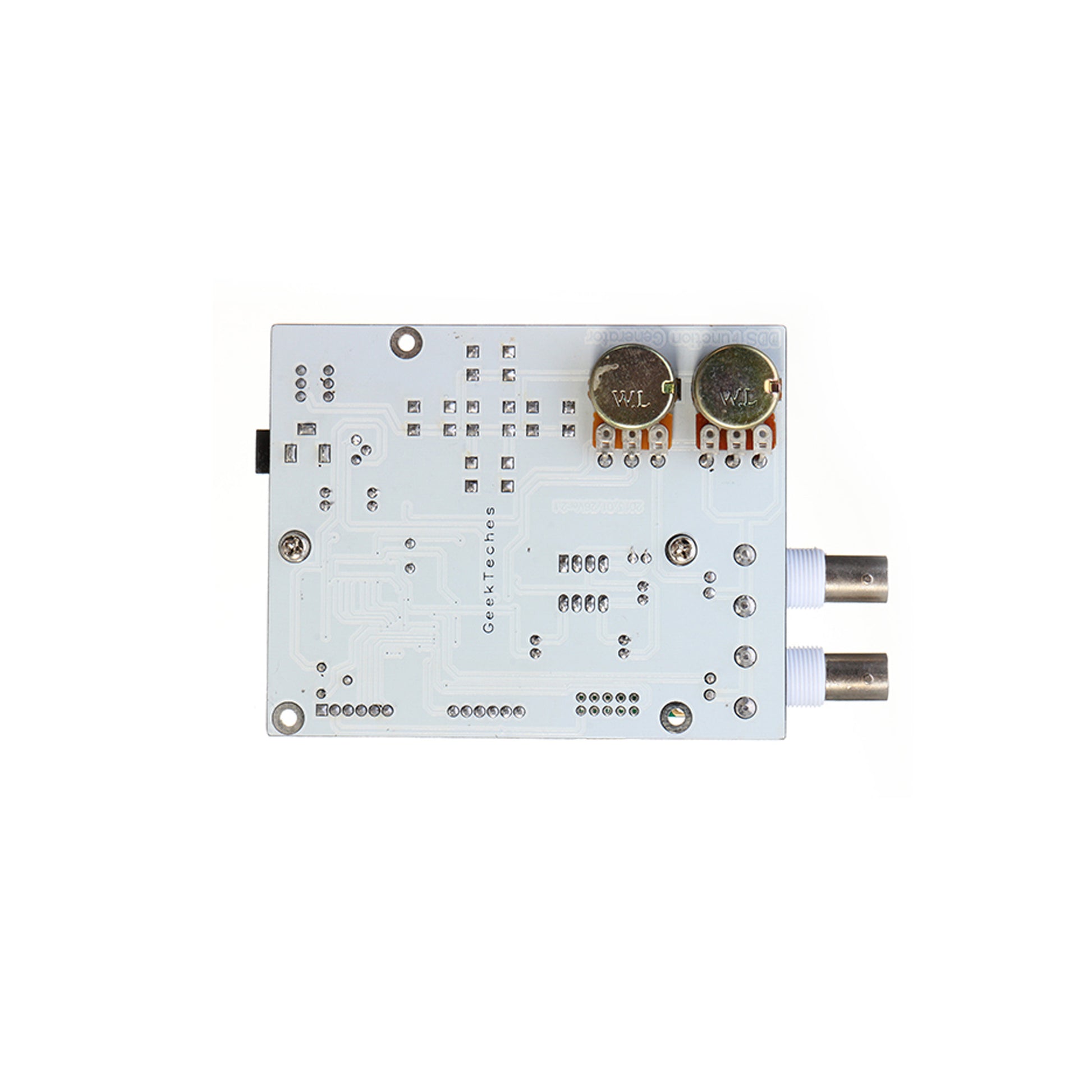

This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons. It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, pulse wave, etc.) signal. The frequency ranges from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of an extensive range of applications. DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers. The power automatically restores the last used configuration.
Specifications:
- Operating Voltage: DC7V-9V
- Template Thickness: 2mm
- DDS Frequency Range: 1HZ-65534Hz.
- High-speed Frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz
- DDS Signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave Section into the Value: 1,10,100,1000,10000 Hz
- Offset: 0.5pp-5Vpp
- Amplitude Amount: 0.5Vpp-14Vpp
- Output Impedance: 20-200 ohms

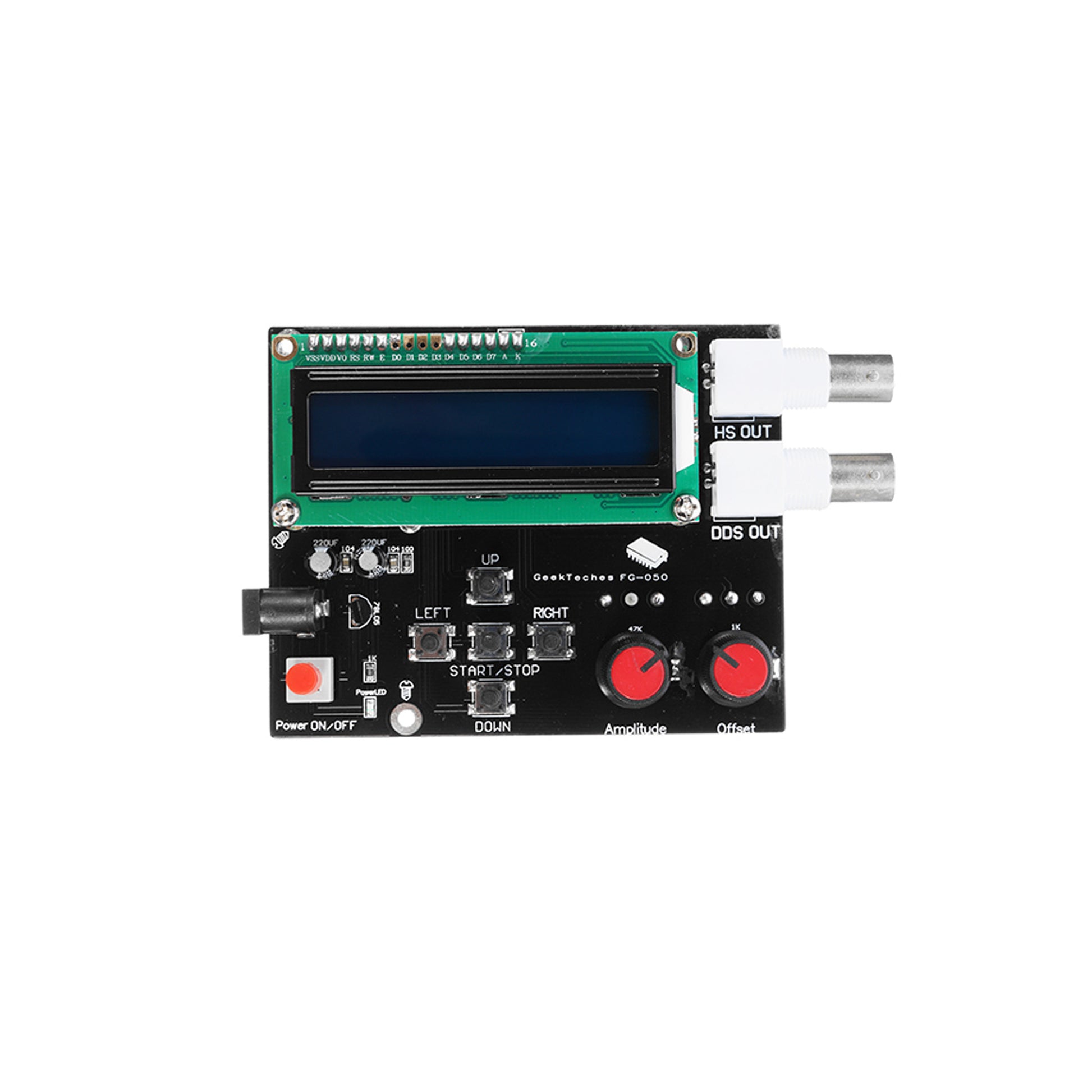

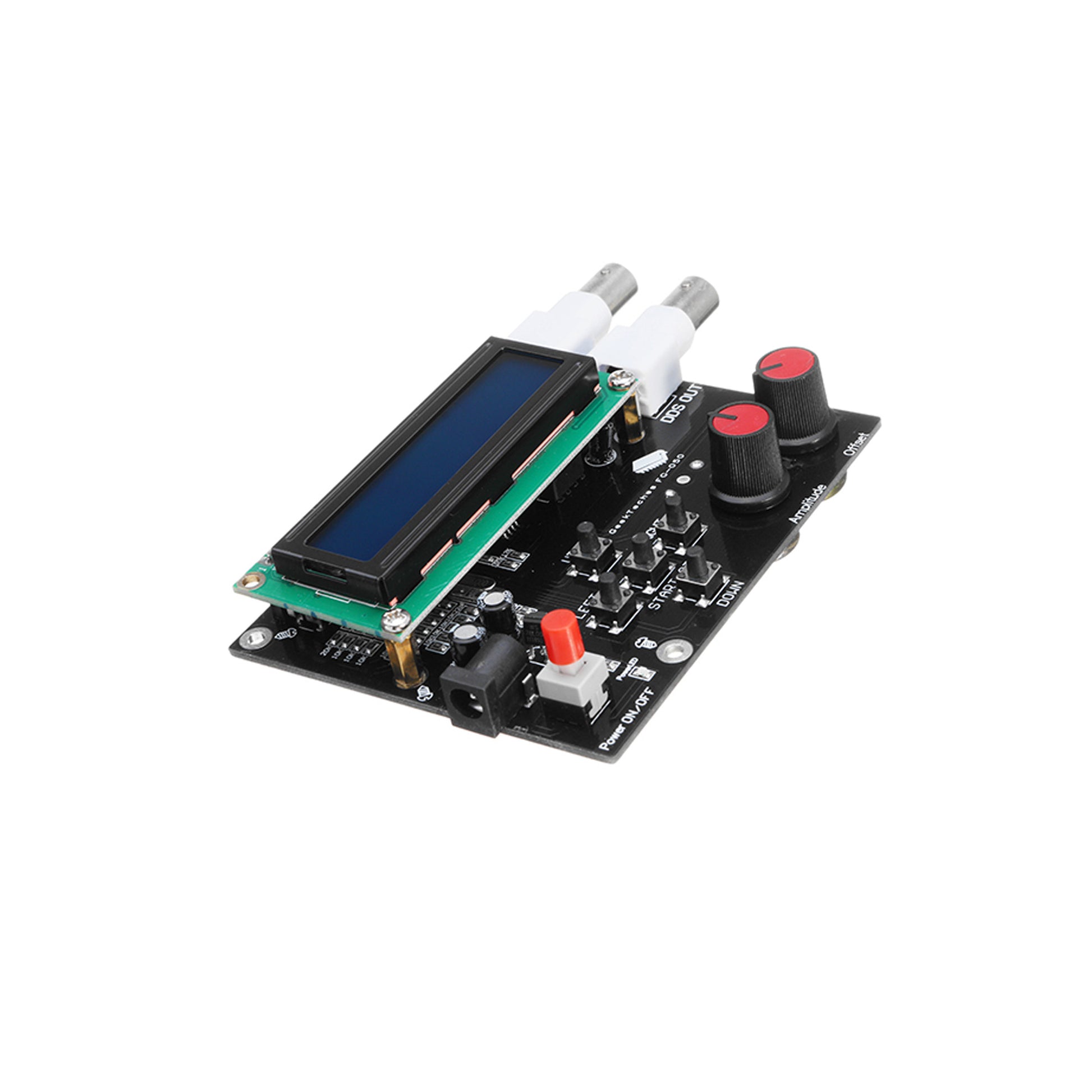

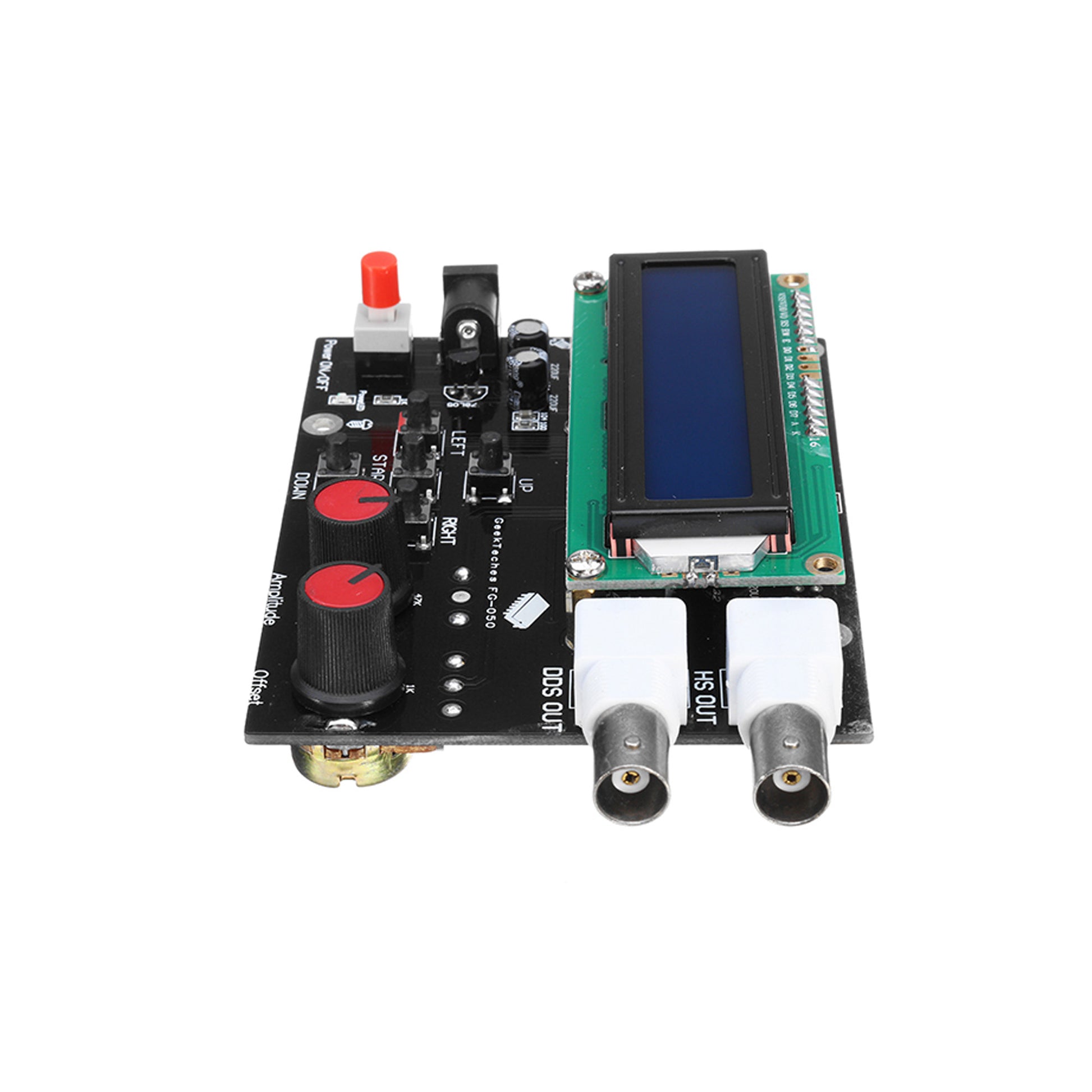

Button Function:
- UP: Output waveform select
- DOWN: Output waveform select
- LEFT: Output frequency -
- RIGHT: Output frequency +
- START/STOP: Output stop/start
Package Included:
1 x DDS Function Signal Generator Module Sine Square Sawtooth Wave Signal
