DC5-36V BLDC Motor Speed Controller 3-Phase Sensorless Brushless Modulator Motor Explosive Fan Drive - RS2559

DC5-36V BLDC Motor Speed Controller 3-Phase Sensorless Brushless Modulator Motor Explosive Fan Drive - RS2559

RS2559

31 in stock

Rs. 1,169.00
Rs. 1,169.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

BLDC 3-Phase Sensorless Brushless Modulator With wide voltage range, DC5-36v, and a protective current is 15A. Small size and elegant appearance.The speed of the motor can be regulated by the potentiometer, easy to use. Stable performance, simple and most cost-effective multi-function operation.

Specifications:

  • Input voltage: DC5-36V
  • Output current: within 15A
  • Forward rotation reverse: Bidirectional
  • Protection current: 15A
  • Input current: It is larger than the motor's work.
  • Speed range: 0—100%
  • Supported motor: Brushless motor

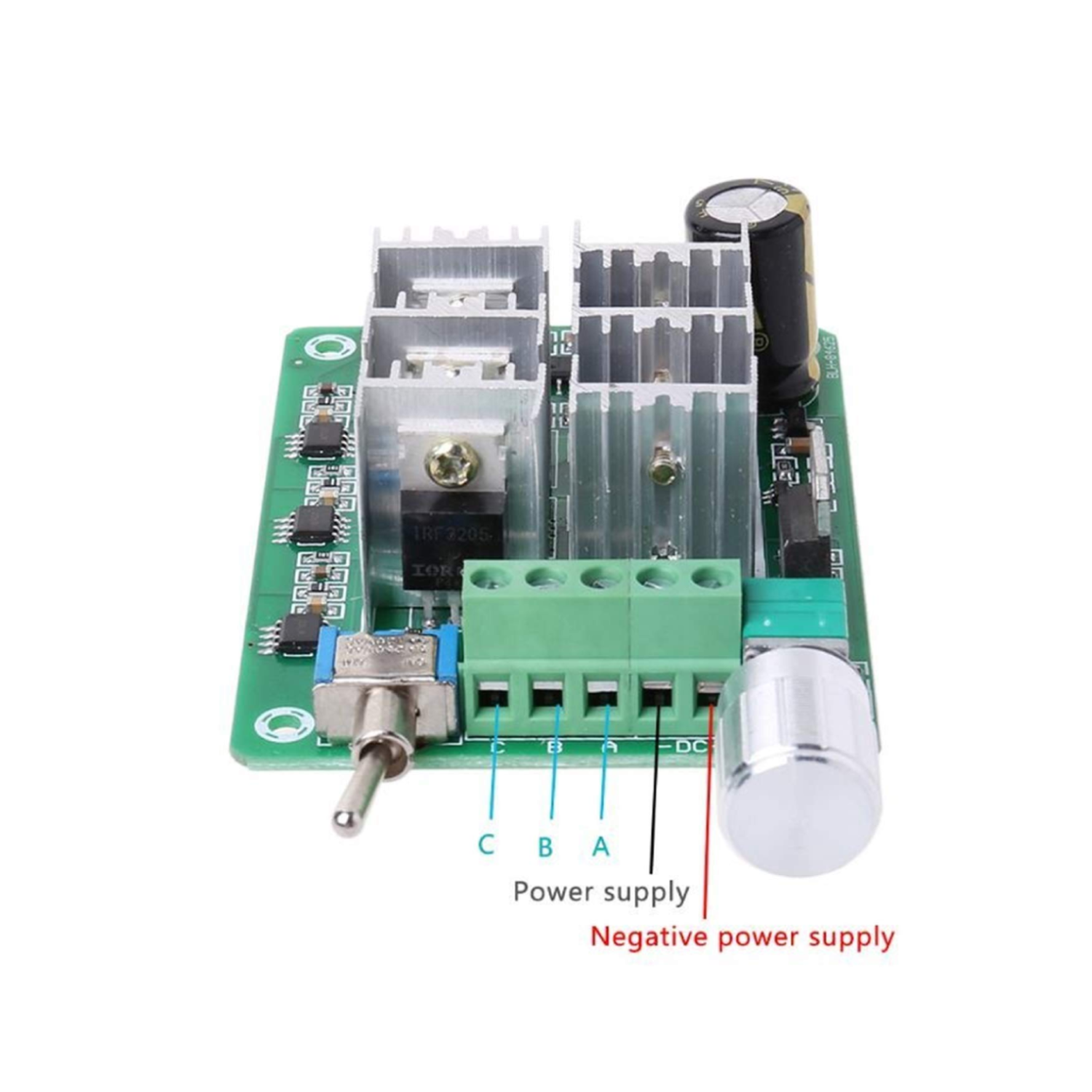

  • Wiring type: Barrier terminal block
  • Knob type: 100K (with switch)

Features:

  • Works with different power supplies like 5V, 12V, 24V, and 36V.
  • Detects rotor position electronically, reducing wiring complexity and cost.
  • Motor speed can be adjusted from 0% to 100% using a potentiometer knob.
  • Allows precise control for different applications.
  • Supports up to 15A output current, enabling control of relatively powerful motors.
  • Includes current protection (~15A) to help prevent damage from overload conditions.

Package Included:

1 x DC5-36V BLDC Motor Speed Controller
